| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS,ISO90001,ISO14000,Reach,Qualicoat |
| Model Number: | NH3386 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/ 20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000tons/year |
| Specification: | TGIC Cure | Application: | Powder Coating Manufacture For Outdoor Use |
|---|---|---|---|
| Advantage: | Excellent Flowability,heat Resistance&anti-yellowing | Property: | Outstanding Mechanical Property&storage Stability |
| Ratio: | 93/7 | Curing Condition: | 200°C/10mins |
| High Light: | ISO14000 Powder Coating polyesterResins,multifunctional Powder Coating polyester Resins,multifunctional clear polyester resin |
||

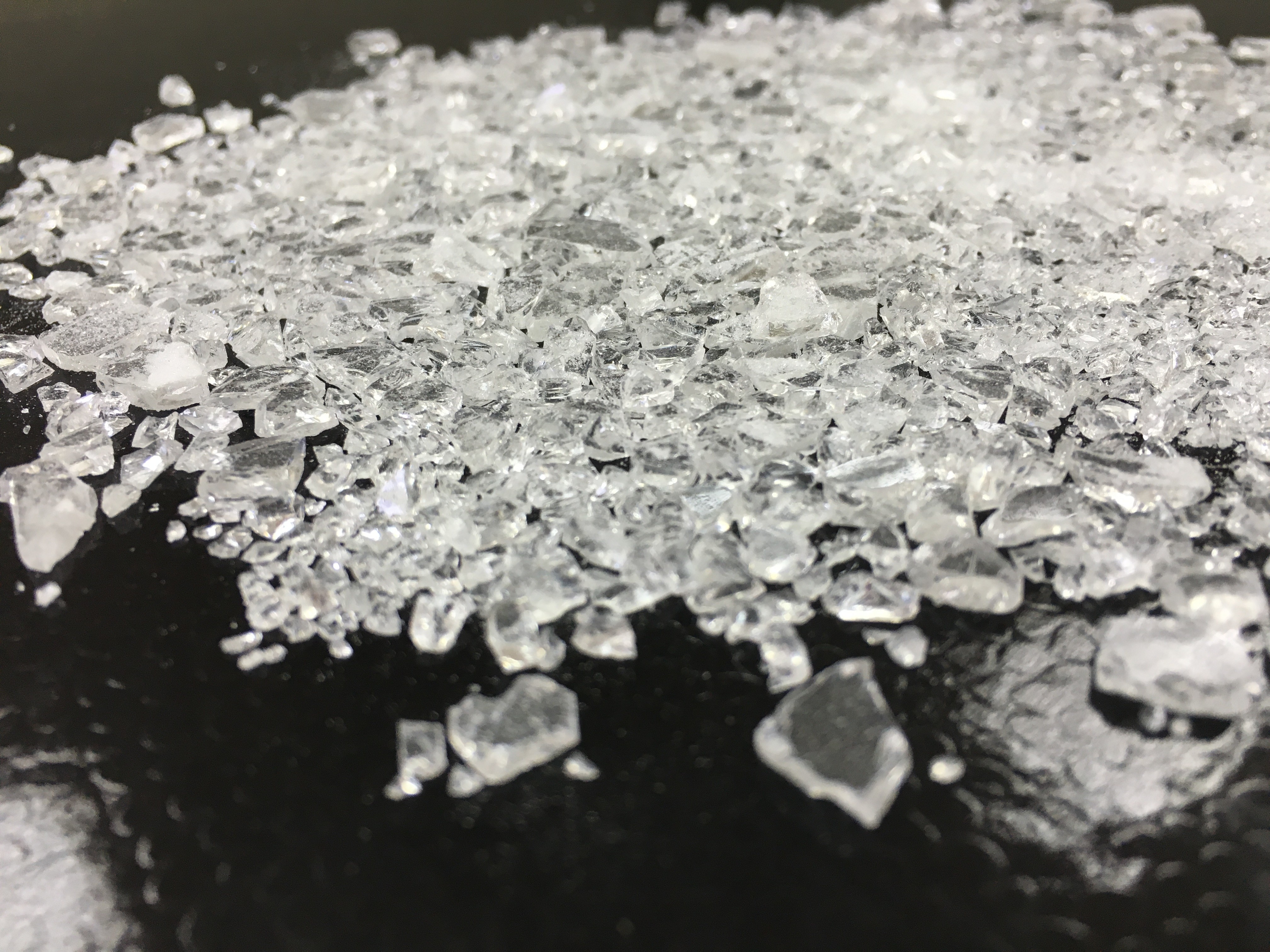

Smooth Flow Polyester Resin For General Industrial Powder Coating
◇ Applications:
NH3386 is saturated carboxyl polyester resin for applications of polyester/TGIC
powder coating system.
◇ Basic features:
Good flowability
Outstanding mechanical properties
Excellent of heat resistance and excellent anti-yellowing
Excellent storage stability
◇ Specifications:
Appearance pale yellow flake
Color(50%DMF): max:2
Acid number(mgKOH/g): 31～36
Softening point(℃): 105～115
Glass transition temp.(℃): ～69
Melting viscosity(200℃, cone/plate, mPa·s): 6500±1500
Reactivity at 180℃(s, 7% TGIC): 170～250
◇ Recommend Formulation:
| NH3386 | TGIC | Filler ＆ pigment | Leveling agent | Benzion |
| 200 | 15 | 140 | 2.4 | 1.2 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～100μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 200℃×10min
◇ Film Properties:
Gel time(180℃,sec): 260~360
Flow(180℃,mm) :23~28
Gloss(60°):≥85%
Bending(φ1mm): pass
Adhesive(1mm,grade): 0
Pencil hardness: 1H
Impact(50cm): pass
Storage test(40℃,24hr): good
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
The consistency and stability of products are guaranteed through rigorous quality inspection
Service is the life of enterprise, quality is the base of enterprise.
We adhere to the quality concept of "quality is the life of the enterprise", and comprehensively provide customers with one-stop solutions of standards, technical diagnosis and service. Product quality and stability are respected by customers, and Kinte’s market reputation is forged by continuous adherence. Kinte powder and liquid coating were successively rated as "famous brand products of Guangdong Province".
