| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS,ISO90001,ISO14000,Reach,Qualicoat |
| Model Number: | NH8303 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000tons/year |
| Specification: | TGIC Cure | Application: | Powder Coating Required High Temperature Baking |
|---|---|---|---|
| Advantage: | Excellent High Temperature Baking Resistance | Property: | Excellent Chemical Resistance And Storage Stability |
| Ratio: | 93/7 | Curing Condition: | 200°C/10mins |
| High Light: | High Thermostability Powder Coating Resins,Powder Coating Resins 93/7,93/7 polyester resin chemical resistance |
||
High Thermostability NH-8303 Polyester Resin with Baking Temperature at 300°C
◇ Applications:
NH8303 is a saturated carboxyl polyester resin for polyester/TGIC powder coating system, with high thermostability,
especially suitable for high temperature resistant powder coatings. The coating is prepared by mixing resin, pigment and filler, curing agent and other additives in a certain proportion, and then by hot extrusion, crushing and screening. They are stored stably at room temperature. After electrostatic spraying or fluidized bed dip coating, they are heated, baked, melted and solidified to form a flat and bright permanent film, so as to achieve the purpose of decoration and anti-corrosion.
◇ Basic features:
Good mechanical properties
Excellent storage stability
Excellent high temperature baking resistance
◇ Specifications:

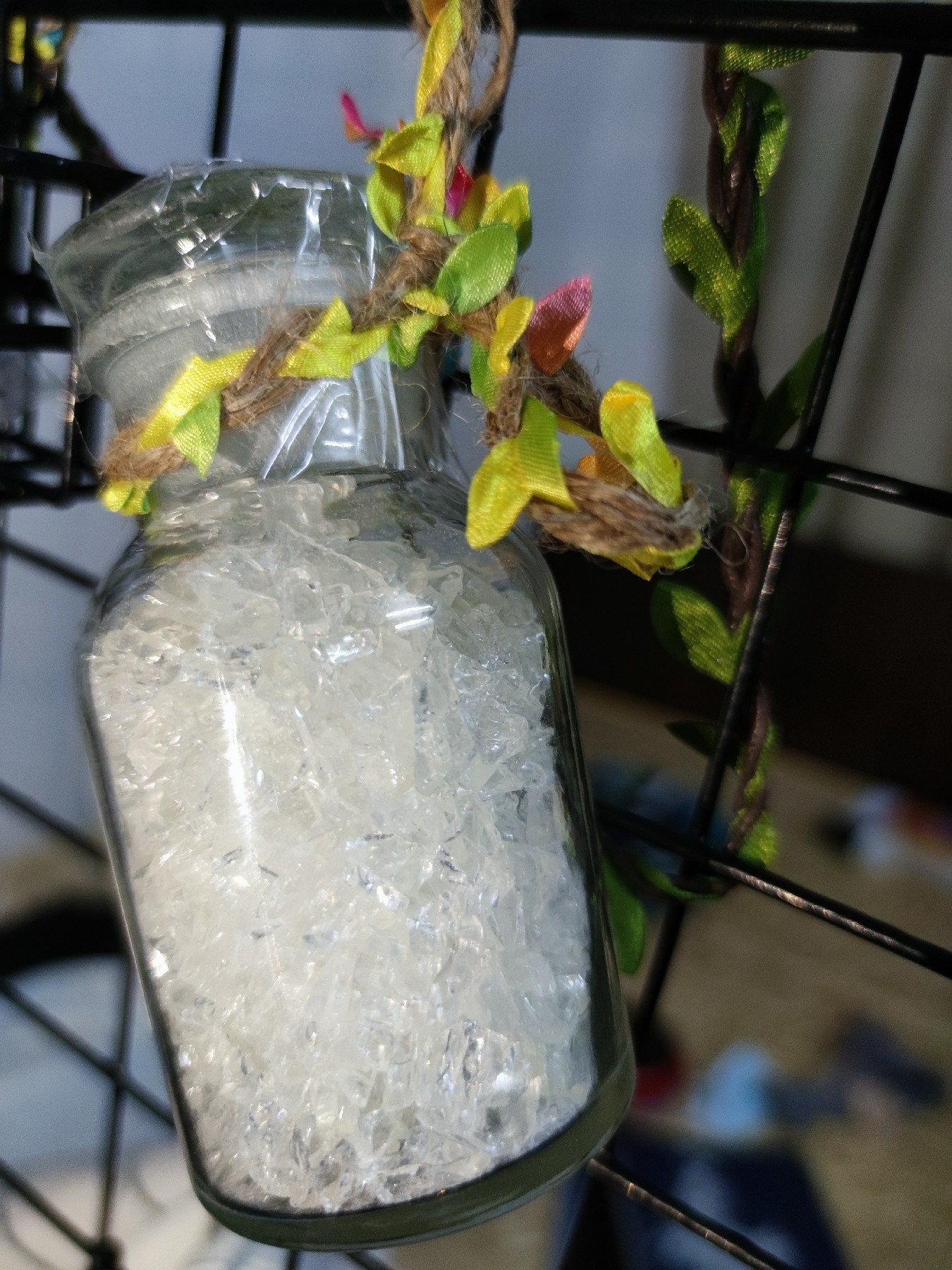

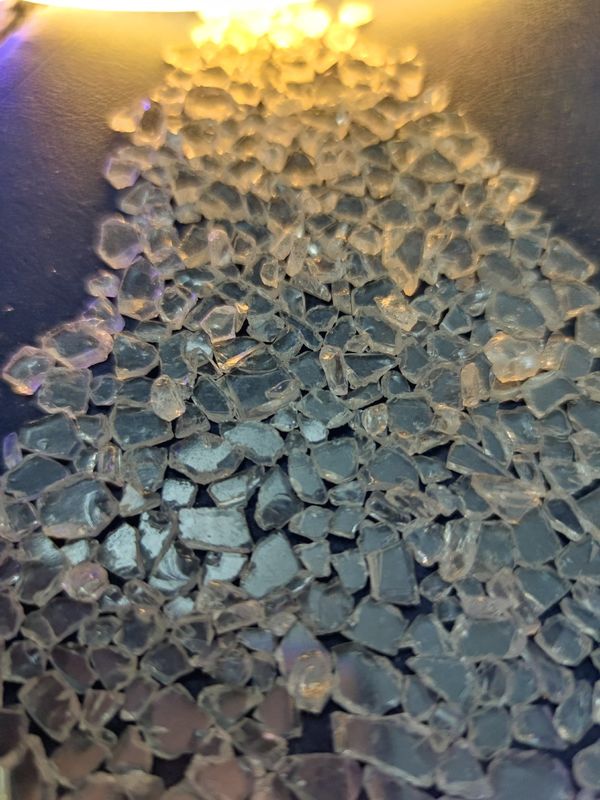

Appearance: white or pale yellow transparent flake
Color (50%DMF): max: 2
Acid number(mgKOH/g): 29～35
Softening point(℃): 110～120
Glass transition temp.(℃): ≥70
Melting viscosity(200℃, cone/plate, mPa·s): 17000±2000
Reactivity at 180℃(s, 7% TGIC): 60-120
◇ Recommend Formulation:
| NH8303 | TGIC | Filler ＆ pigment | Leveling agent | Benzion | 701 |
| 200 | 15 | 140 | 2.4 | 1.2 | 1.2 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Electrostatic spraying with: 40～70KV
Film thickness: 70～90μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 200℃×10-15min
◇ Film Properties:
Gel time(180℃,sec): 70~150
Horizontal flow:(180℃),mm: 19~23
Gloss(60°): ≥88%
Bending(φ1mm): Pass
Adhesive(1mm,grade): 0
Pencil hardness ≥1H
Impact(direct,reserve): Pass 50kg·cm
Heat resistance :
270℃ 2hr: maintenance gloss: ≥85%
300℃ 0.5hr: maintenance gloss: ≥85%

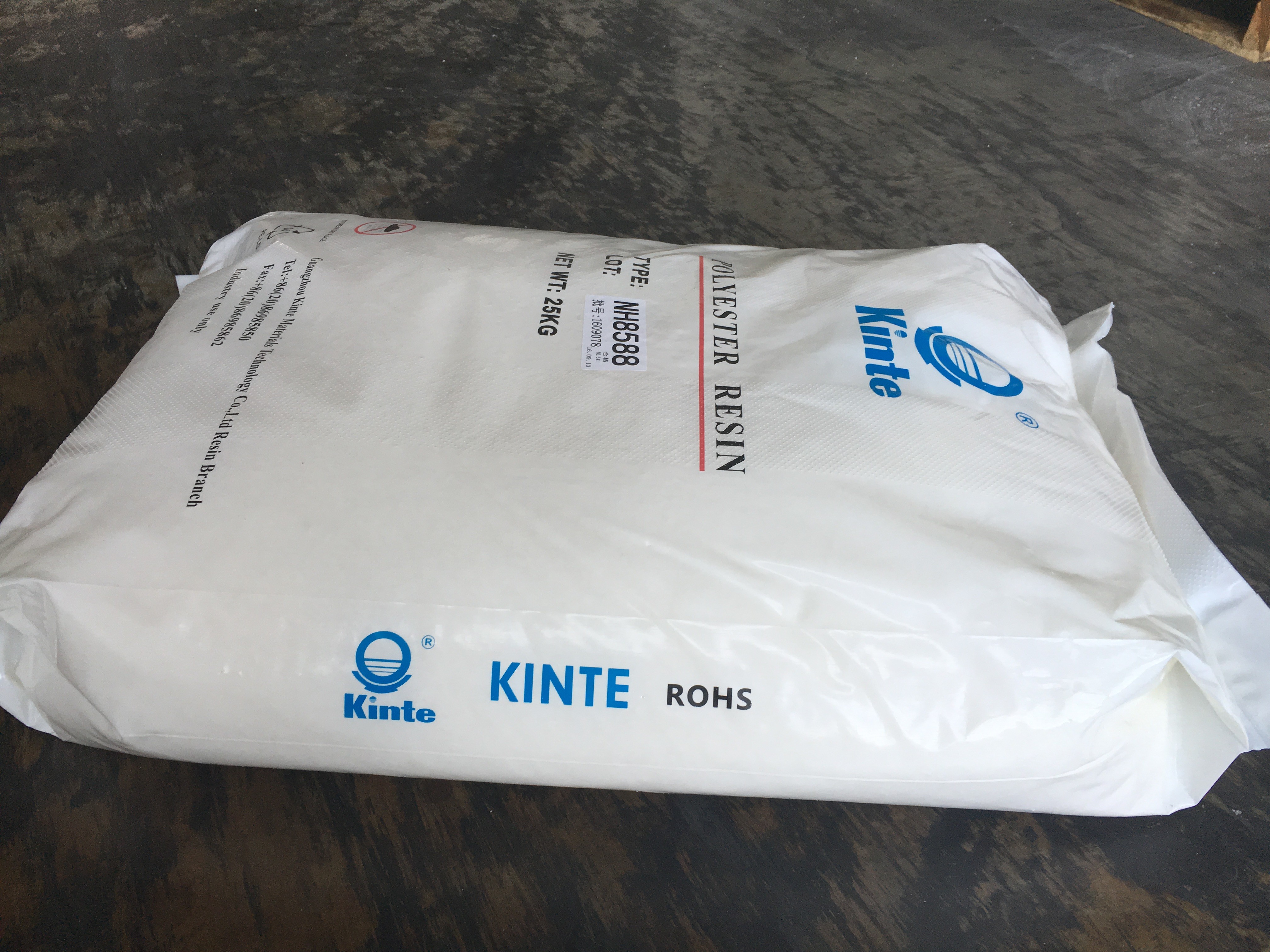

◇ Packaging:
PE bags, N.W. 25KG±0.1KG / bag
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
We ensure the consistency and stability of products through strict quality inspection.
