Fusion Bonded Epoxy Powder Coating

Basic Information
Place of Origin: CHINA
Brand Name: KINTE
Certification: ROHS,ISO90001,ISO14001,OHSMS18001,Reach
Minimum Order Quantity: 100KG
Price: negotiate
Packaging Details: with double PP bags,N.W 20(25)kg/carton,1000KG/pallet
Delivery Time: within 10 working days
Payment Terms: L/C, D/P, T/T, D/A
Supply Ability: 500tons/month
Application: Single, Double And Three Layer FBE Anticorrosion Coating For All Kinds Of Steel Pipeline Of Oil And Gas Color: RAL,PANTON And Customized
Shelf Life: 12 Month Within 30℃, Avoid Direct Sunlight. Transportation: Non-dangerous Goods. It Can Be Transported In Various Ways, But It Should Be Away From Direct Sunlight, Moisture, Heat And Chemicals.
Highlight:

FBE epoxy powder coating

,

Fusion Bonded epoxy powder coating

,

Fusion Bonded polyester finishing resin

Fusion Bonded Epoxy FBE Powder Coating Paint for pipe steel rebar


Introduction:

This series of products is one kind of thermoset pure epoxy powder coating made of epoxy resins and epoxy hardener.



Advantage:

---The film has high density and adhesion

---Excellent chemical corrosion resistance
---Excellent physical mechanical properties

---Curing reaction speed can be adjusted according to the customer request to satisfy the requirement of different spraying

---Not suitable for outdoor use directly, without good weatherability



Property:



Density: 1.2~1.8g/cm3(Owing to the different formula and different colors)



Particle size:

Different purposes varies, the standard for the average particle size is 40 ~ 50um,150μm powder on sieve ≤3%,250μm powder on sieve ≤0.2%



volatilization: ≤0.6%



Gel time: under 200℃≥12s, and in accordance with manufacturer’s value ±20%



Thermal properties: ΔH≥45J/g,Tg2≥95℃



Spraying: This series product is recommended to use high voltage electrostatic spraying method to coat



Curing guide: 160-230℃/3-5min or customizing design according to customer’s

spraying condition



Storage stability: Pure Epoxy Powder Coatings should be stored below 30°C in a dry and well ventilated place away from source of heat and direct sunlight. If stored in an air-conditioner room, in order to avoid damp again, before using the powder, the powder should be kept at the room temperature or at the same temperature with the spray equipment. Under such condition, the powder can be stored stably for 12months.

Extended, retest will be required. If the testing result meets the requirement, the powder can still be used.

Note: For the low temperature curing powder and powder with the gloss below 40%(60°),the stored temperature should be below 30℃.



Film characteristics:

Properties Method Value
Adhesion GB/T 23257-2009 ≤2 grade
Cathodic Disbonding   (65℃,48h)≤8mm
Cathodic Disbonding (65℃,30d)≤15mm
Anti-bending (-20℃,2.5°)no crack
Coating thickness of test is 300-400μm





Kinte’s product quality and stability are respected by customers. Kinte powder and liquid coating were successively rated as "famous brand products of Guangdong Province".



We will continue to uphold the business philosophy of "quality is the life of the enterprise, adhere to the first-class technology, first-class quality, first-class cost and first-class brand", provide all-round services and solutions for customers at home and abroad, and create a better future.

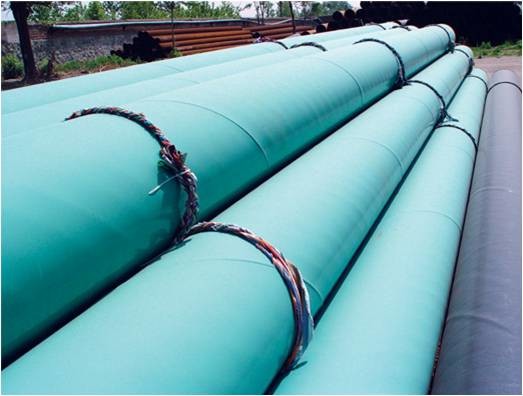

Fusion Bonded Epoxy Powder Coating 0





Fusion Bonded Epoxy Powder Coating 1



Fusion Bonded Epoxy Powder Coating 2
