60/40 Hybrid Powder Coating Polyester Resins For Fast Curing And Excellent Leveling

Basic Information
Place of Origin: CHINA
Brand Name: KINTE
Certification: ROHS,ISO90001,ISO14000,Reach,Qualicoat
Model Number: HH2686
Minimum Order Quantity: 1000KG
Price: Negotiable
Packaging Details: 25kg/PE bag , 875KG/PALLET , 17,500KG/20GP
Delivery Time: 10 working days
Payment Terms: T/T, L/C, D/P
Supply Ability: 80,000tons/year
Specification: Hybrid Cure Acid Value(mgKOH/g): 52.5~57
Viscosity(130°c): 3000~4500 Ratio: 60/40
Melting Point(°c): 93~103 Properties: Excellent Flow, Good Matting Performance
Highlight:

Fast Curing Powder Coating Polyester Resins

,

Powder Coating Polyester Resins 60/40 Hybrid

60/40 Polyester Epoxy Resin for Fast Curing Hybrid Powder Coatings





◇ Introduction:



HH2686 is a carboxyl polyester resin designed for 60/40 hybrid powder coatings.

The so-called leveling property of the coating refers to the smooth and smooth state of the coating film after the coating is applied. The surface with good leveling property should have no irregularities such as orange peel, brush marks, ripples, and shrinkage holes.

The factors affecting the leveling of powder coatings mainly include three aspects:

1. Leveling additives: Add appropriate leveling additives to the formula of powder coatings. When the powder coating is melted, these additives can quickly reduce the surface tension of the coating, promote the rapid flow of the coating before curing and film formation, eliminate or reduce orange Surface defects such as skin, brush marks, ripples, shrinkage holes, etc.

2. The melt viscosity of powder coatings: For thermosetting powder coatings, in the process of melt flow, along with the cross-linking curing reaction, the higher the temperature, the faster the curing reaction, the faster the viscosity of the system rises, the shorter the flow time, the faster the leveling Sex is restricted. Therefore, the melt viscosity of powder coatings cannot accurately reflect the final leveling property of the coating film, and the effects of baking process, heating rate, cross-linking curing temperature, etc. on the leveling property of the coating film must be considered at the same time.

3. Baking process: There is a heating process during baking after powder coating is applied, and the heating rate has a considerable impact on the leveling of the coating; under different heating rates, the dynamic viscosity changes with temperature. The trend is basically the same, that is, the beginning The viscosity decreases with the increase of temperature and reaches a minimum value, and then the viscosity increases with the increase of temperature, which is caused by the cross-linking reaction. More importantly, the faster the heating rate, the smaller the minimum value of the viscosity, and the higher the corresponding temperature, the better the curing of the coating film and the better the leveling of the coating film.





Basic Features:



Excellent leveling

Outstanding mechanical properties

Good chemical resistance

Good storage stability





Specifications:

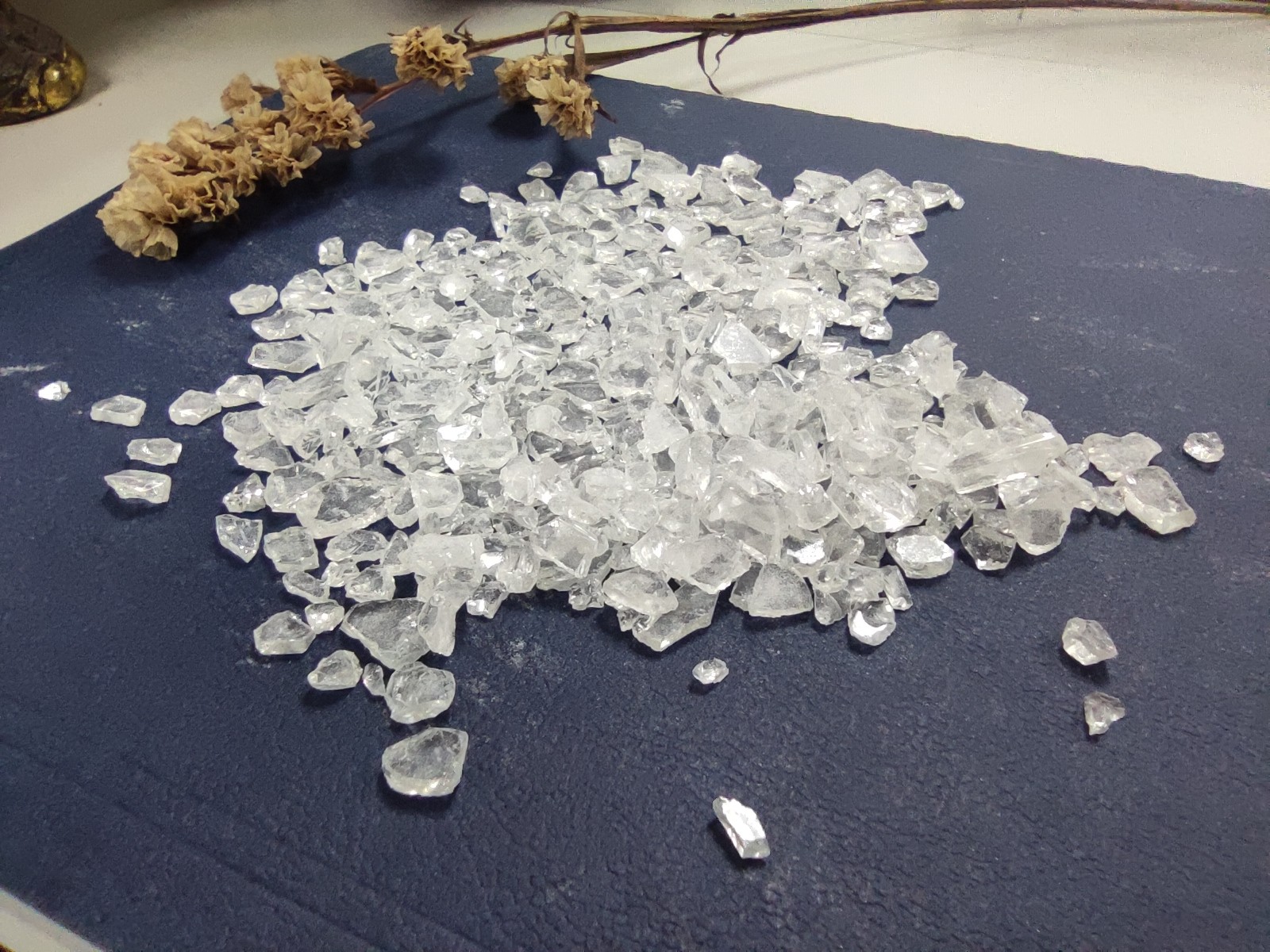

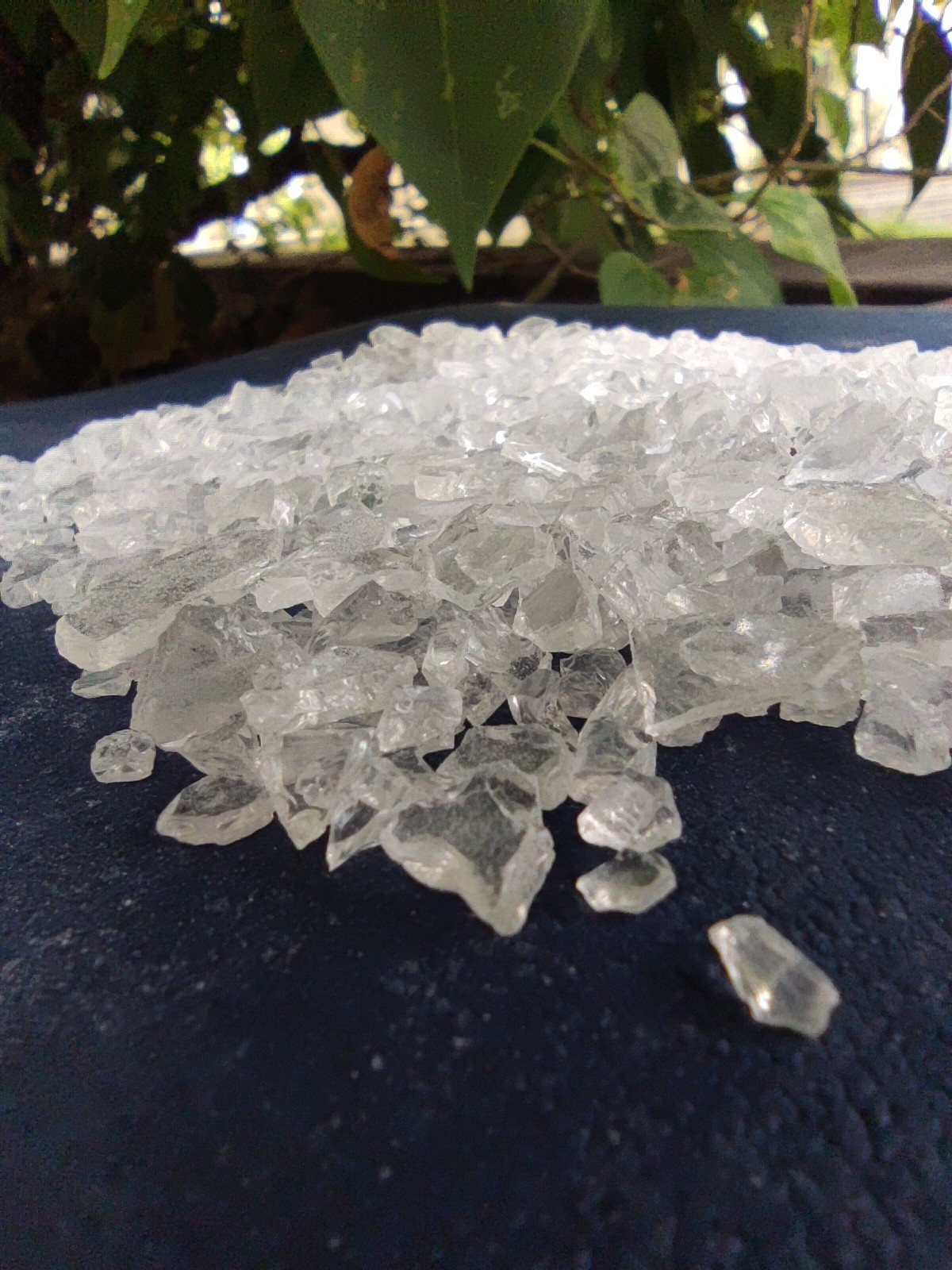

Appearance White or Light Yellow Transparent Flakes
Color (50% DMF) max:3
Acid Number (mgKOH/g) 52.5~57
Softening Point (℃) 93~103
Glass Transition Temp. ( ℃) ~55
Melting Viscosity (ICI, mPa·s/200℃) 3000~4500
Reactivity at 180℃ (s, 40% Epoxy) 170~300
Curing Requirement 180℃×15min or 200℃×10min

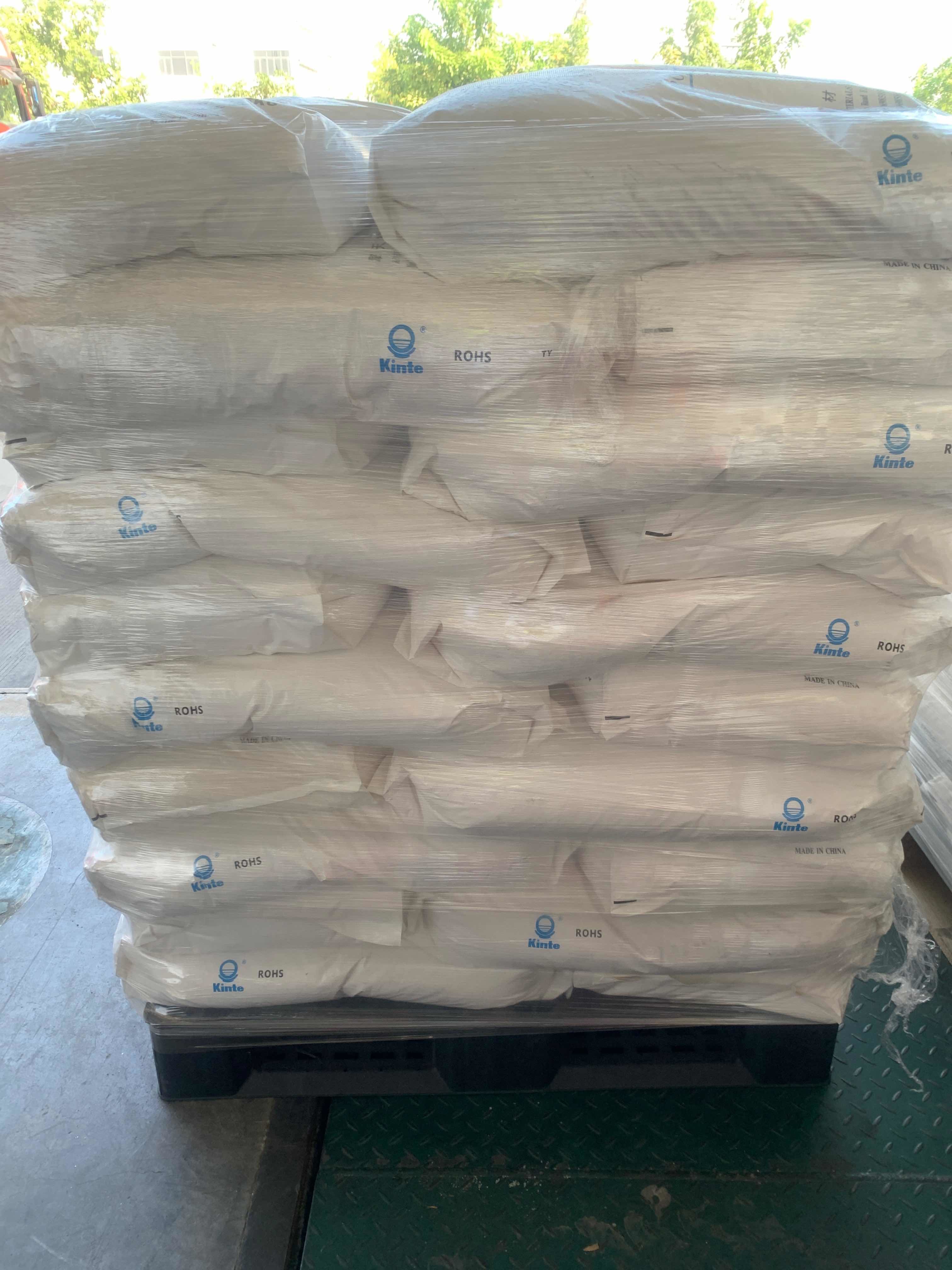

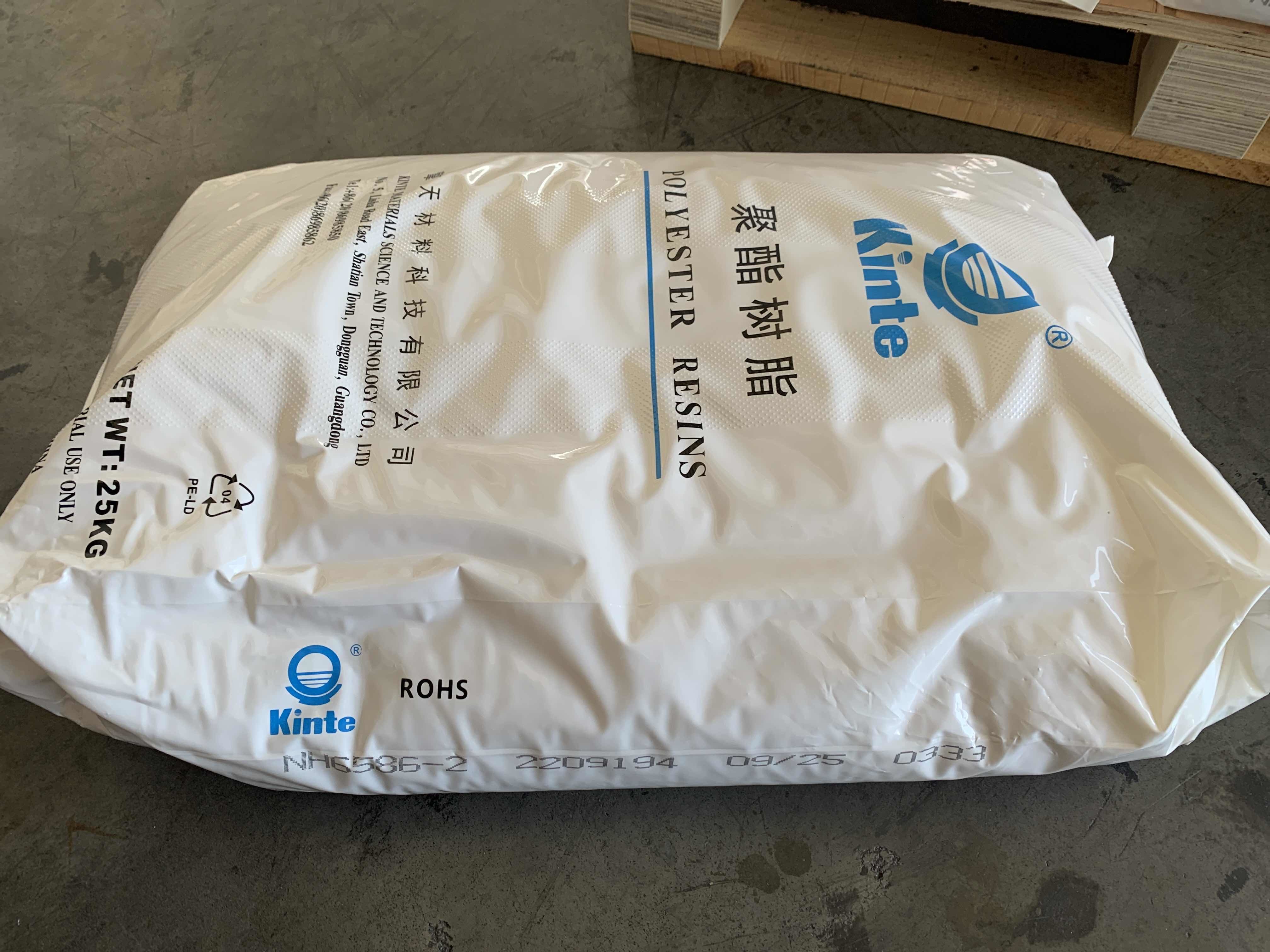

Package PE Bags, Net Weight 25kg±0.1kg / bag





Recommend Formulation:



Material HH2686 E12 Filler & Pigment Leveling Benzoin 701
Formula 360 240 383 8 4 5





◇Extrusion Condition:



Two-screw Extruder

Zone I: 90~110℃ Zone II: 110~120℃

Speed of Revolution: 500~1200rpm

Fineness of Powder: <100μm





◇Application Condition:



Electrostatic spraying with: 40~70KV

Coating film thickness: 50~70μm

Degreased cold-rolled steel: 0.5mm





◇Film Properties:



Gel Time (180℃, sec) 220~320
Horizontal Flow (180℃, mm) 28~30
Gloss (60°) ≥90%
Bending (φ1mm) Pass
Adhesive (1mm, grade) 0
Pencil Hardness ≥1H
Impact (50kg·cm) Pass





◇More Codes:



Code Ratio Cure Cycle AV (mgKOH/g) Viscosity (mPa.s/200℃) Tg (℃) Reactivity (s/180℃) Properties
HH2682 60/40 180℃*10min 47~55 2500~4500 ~56 150-250 For fast cure formulation. High Tg, excellent flow and good mechanical properties.
HH2683 60/40 180℃*15min 47~55 2500~3500 ~54 90-150 General purpose resin with good flow, good chemical resistance and mechanical properties.
HH2683B 60/40 180℃*15min 47~55 2500~3500 ~54 120-180 Non-tin version of HH2683.
HH2685 60/40 180℃*20min 47~55 2500~3500 ~58 200-300 Excellent flow, high gloss. Suitable for alloy wheel-hub powder coatings.
HH2608 60/40 200℃*15min 50~60 2500~4500 ~55 250-450 Outstanding flow, high gloss, excellent mechanical properties.
HH2686P 60/40 200℃*10min 50~60 2500~4500 ~55 240-360 General purpose resin. Excellent flow and strong anti-interference ability. Good balance of properties. Suitable for matt powder coatings.
HH2687 60/40 200℃*10min 51~66 3000~5000 ~60 200-300 High Tg, excellent flow, good mechanical properties.





Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)





Company Profile:



Kinte Materials Science and Technology Co., Ltd. is subordinate to China Machinery Industry Corporation (a key state-owned enterprise directly managed by SASAC, ranking 284 among the world's top 500 in 2021). It is a national high-tech enterprise under China National Electric Apparatus Research Institute Co., Ltd. (Stock Code: 688128), a listed enterprise on the SSE STAR MARKET. Focusing on the R & D, production, and sales of environmentally friendly coatings (powder coatings, waterborne industrial coatings) and powder coating resins, the company is committed to improving the global market competitiveness of China's environmentally friendly coating industry. Now it has become the leader and promoter in China’s technological development of environmentally friendly coatings as well as polyester resins for powder coatings!

60/40 Hybrid Powder Coating Polyester Resins For Fast Curing And Excellent Leveling 0



We have gained ISO9001 and ISO14000, ISO18001, RoHS, UL certification and QUALICOAT Certificate. Due to the excellent and stable quality, our products always enjoy high reputation at home and oversea, and were sold to more than 30 countries.

60/40 Hybrid Powder Coating Polyester Resins For Fast Curing And Excellent Leveling 1



Polyester resin branch was founded in 2000, now there are two factories (DongGuan factory and TaiXing Factory) with annual production capacity over 80,000 tons, and the annual production capacity reached 120000 tons by the end of 2020, opening the road to global diversified development. Our clients include many top-tier powder manufacturers in the world such as AKZO, PPG, TIGER, PROTECH, NIPPON, OXYPLAST, JOTUN, SHERWIN, VALSPAR, SINTERPLAST, etc.



We unremittingly stick at the business principle of “Quality is the life, adhere to first-class technology, first-class quality, first-class cost and first-class brand”. We would like to provide a complete set of services and solutions for both domestic and abroad customers and would like to go forward to brilliant future with you together.



60/40 Hybrid Powder Coating Polyester Resins For Fast Curing And Excellent Leveling 260/40 Hybrid Powder Coating Polyester Resins For Fast Curing And Excellent Leveling 3
