| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | Qualicoat,ISO90001,ISO14000,Reach |
| Model Number: | HH2685 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/ 20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000tons/year |
| Specification: | 60/40 Hybrid Cure | Application: | Powder Coating For Aluminum Wheel Hub(car Rim) |
|---|---|---|---|
| Advantage: | Excellent Flow And High Gloss | Property: | Excellent Chemical Resistance |
| Ratio: | 60/40 | Curing: | 180°C/20mins |
| High Light: | 60:40 Polyester Epoxy Resin,180C Polyester Epoxy Resin,60:40 polyester epoxy resin |
||

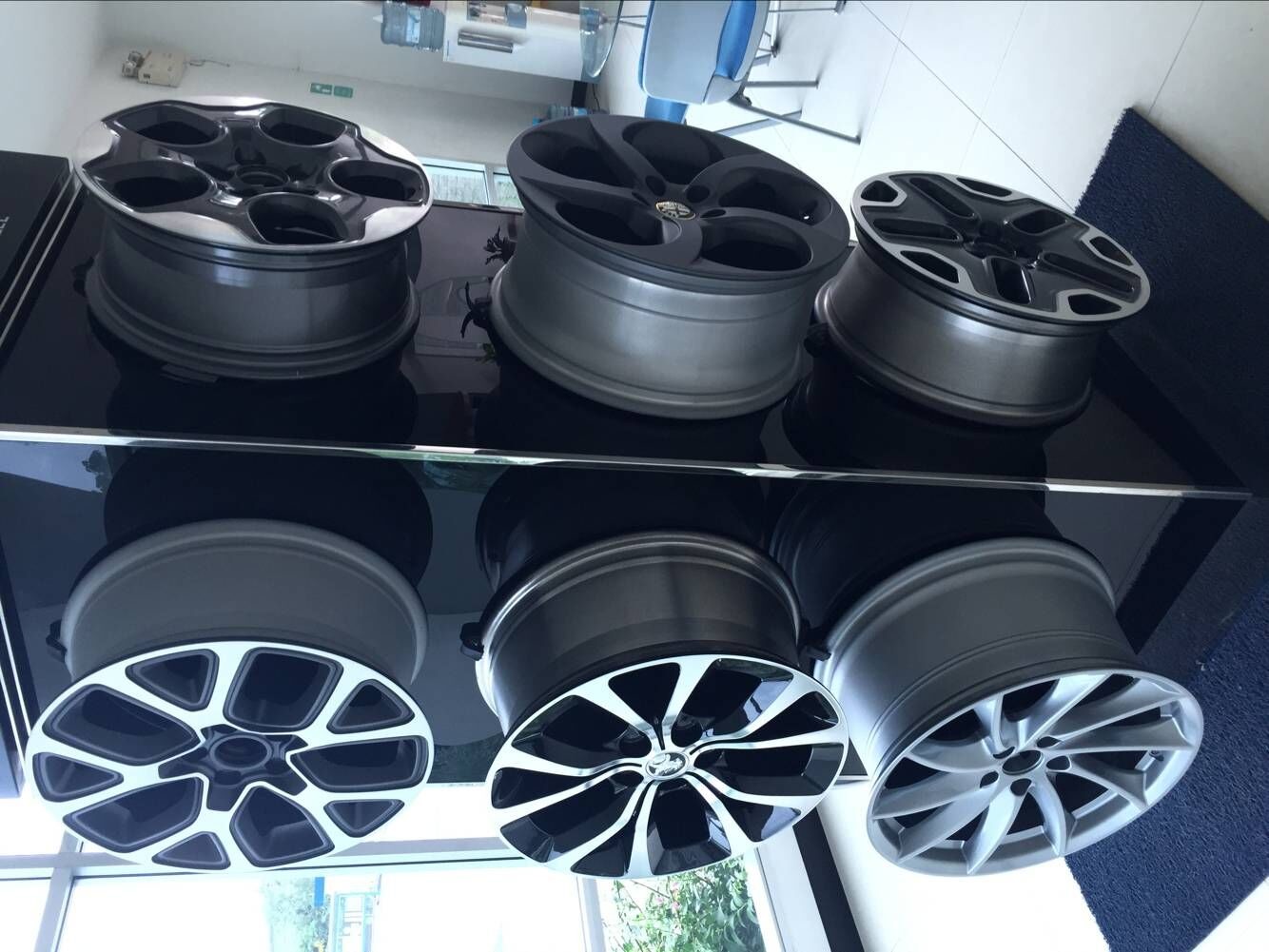

Epoxy Polyester Resin HH2685 for Aluminum Wheel hub(car rim) Powder Coating
◇ Applications:
HH2685 is a carboxyl polyester resin designed for 60/40 hybrid powder coatings.
◇ Basic features:
Excellent leveling, high gloss
Good chemical performance and mechanical properties
Good storage stability
◇ Specifications:

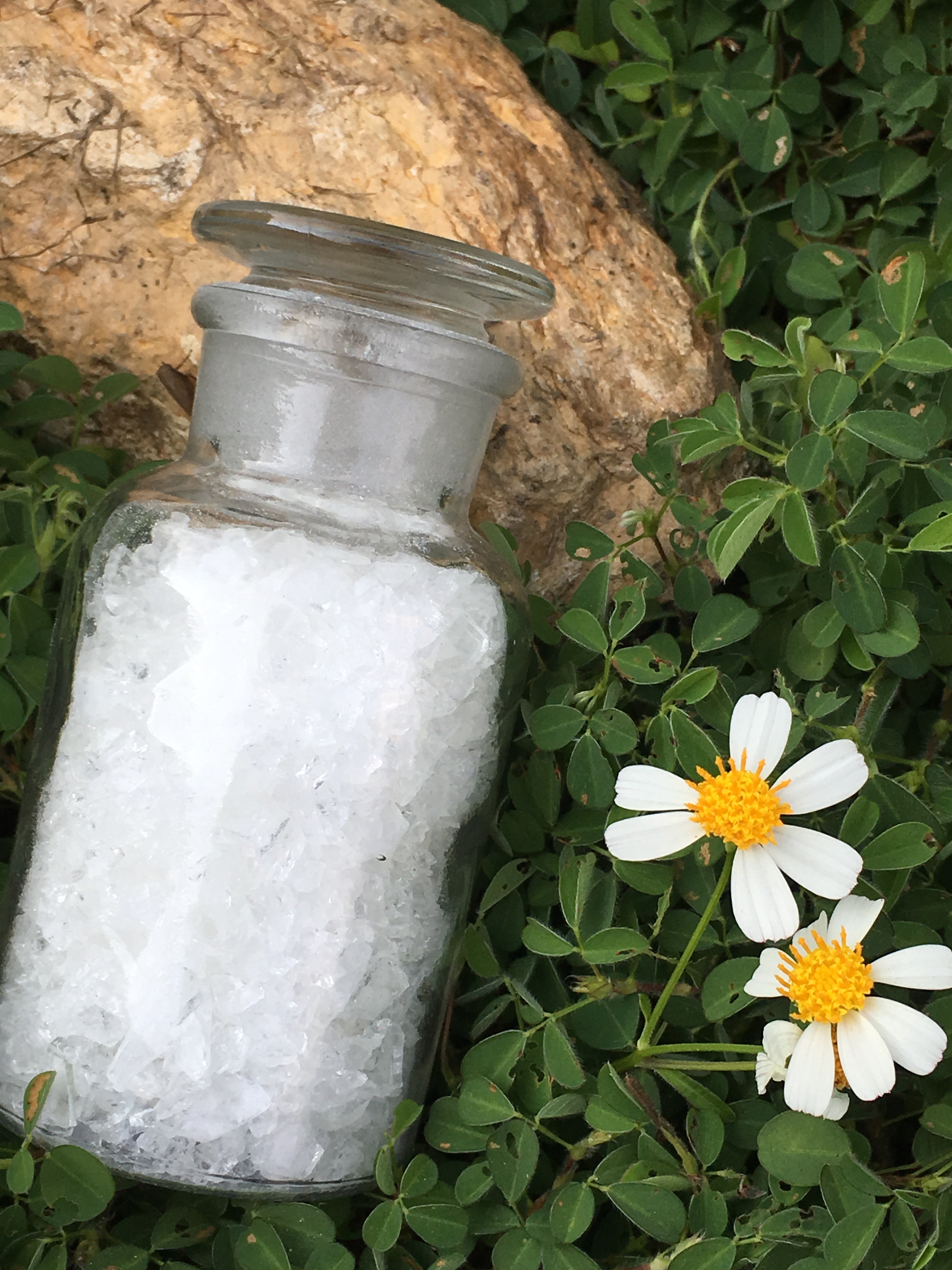

Appearance White or light yellow transparent flakes
Color(50%DMF): max:3
Acid number(mgKOH/g) 48～54
Softening point(℃) 100～110
Glass transition temp.( ℃) ～55
Melting viscosity(200℃, cone/plate, mPa·s): 3200±500
Reactivity at 180℃(s, 40% Epoxy): 250±50
◇ Recommend Formulation:HH2685—E12
| HH2685 | E12 | Filler ＆ pigment | Leveling agent | Benzoin |
| 180 | 120 | 105 | 4 | 2 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～70μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 180℃×20min
◇ Film Properties:
Gel time(180℃,sec) 230~360
Horizontal flow:(180℃),mm: 28~33
Gloss(60°): ≥90%
Bending(φ1mm): pass
Adhesive(1mm,grade): 0
Pencil hardness: 1H
Impact(40cm): pass
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
