| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | Qualicoat,ISO90001,ISO14000,Reach |
| Model Number: | NH3345 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/ 20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000tons/year |
| Specification: | TGIC Cure | Application: | Powder Coating Manufacture |
|---|---|---|---|
| Advantage: | Low Curing Temperature,anti-blooming | Property: | Good Mechanical Property,weathering Resistance And Leveling |
| Ratio: | 93/7 | Curing Condition: | 140°C/15mins |
| High Light: | Anti Frost TGIC Polyester Resin,15mins Cure TGIC Polyester Resin,15mins Cure Epoxy Polyester Hybrid |
||

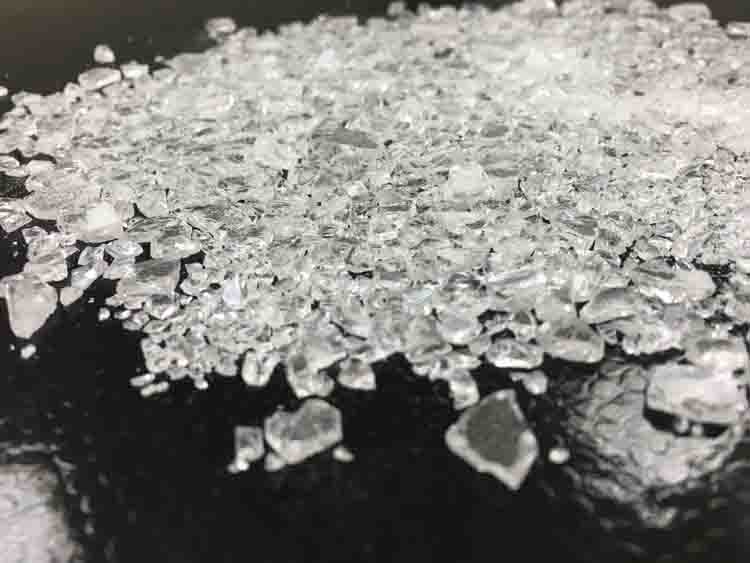

Polyester Resin 93/7 NH3345 in TGIC system with 140°C/15mins low Cure and Anti Frost
◇ Applications:
NH3345 is a saturated carboxyl polyester resin for polyester/TGIC powder coating system.
It's the anti blooming version of NH3343.
◇ Basic features:
Good leveling
Good mechanical properties
Good weathering resistance
Excellent anti-frost
Low curing temperature
◇ Specifications:
Appearance white or light yellow transparent flake
Color (50%DMF): max: 3
Acid number(mgKOH/g): 30～35
Softening point(℃): 100～110
Glass transition temp.(℃): ～60
Melting viscosity(ICI, mPa·s/200℃): 6500±1000
Reactivity at 180℃(s, 7% TGIC): 50±30
◇ Recommend Formulation for white powder:NH3345—TGIC
| NH3345 | TGIC | Filler ＆ pigmen | Leveling agent | Benzoin | 701 |
| 558 | 42 | 383 | 8 | 4 | 5 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Electrostatic spraying with: 40～70KV
Film thickness: 50～70μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 140℃×15min
◇ Film Properties:
Gel time(180℃,sec) 30~80
Horizontal flow (180℃), mm: 16~22
Gloss(60°): ≥88%
Bending(φ1mm): Pass
Adhesive(1mm,grade): 0
Pencil hardness: ≥1H
Impact (50cm) pass
◇ Packaging:
PE bags, N.W. 25KG±0.1KG / bag
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
Kinte Material Technology Co., Ltd. is a state-owned holding enterprise specializing in the R & D, production and sales of powder coatings, saturated polyester resin for powder coatings, liquid coatings and special new materials. It is subordinate to China National Electric Apparatus Research Insitute Co., Ltd. , which makes us professional and trustworthy.
