| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS,ISO90001,ISO14000,Reach,Qualicoat |
| Model Number: | NH6563 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000 tons/year |
| Specification: | HAA Cure | Application: | Powder Coating Required Durable |
|---|---|---|---|
| Advantage: | Low Curing Temperature,pinhole Free In Thicker Films | Rate: | 95/5 |
| Curing Condition: | 160°C/15mins | Property: | Good Mechanical Property, Chemical Resistance And Anti-yellowing |
| Highlight: | Pinhole Free HAA Polyester,saturated HAA Polyester,Pinhole Free thermosetting polyester resin |
||
Pinhole Free General HAA Low Curing Temperature Polyester Resin NH6563
◇ Applications:
NH-6563 is a saturated carboxyl polyester resin designed for 95:5 Primid XL 552 powder coating to be cured at 160℃.
◇ Basic features:
Low curing temp.
Outstanding mechanical properties
Good resistance to chemicals and fine anti-yellowing
Pinhole free in thicker films
◇ Specifications:

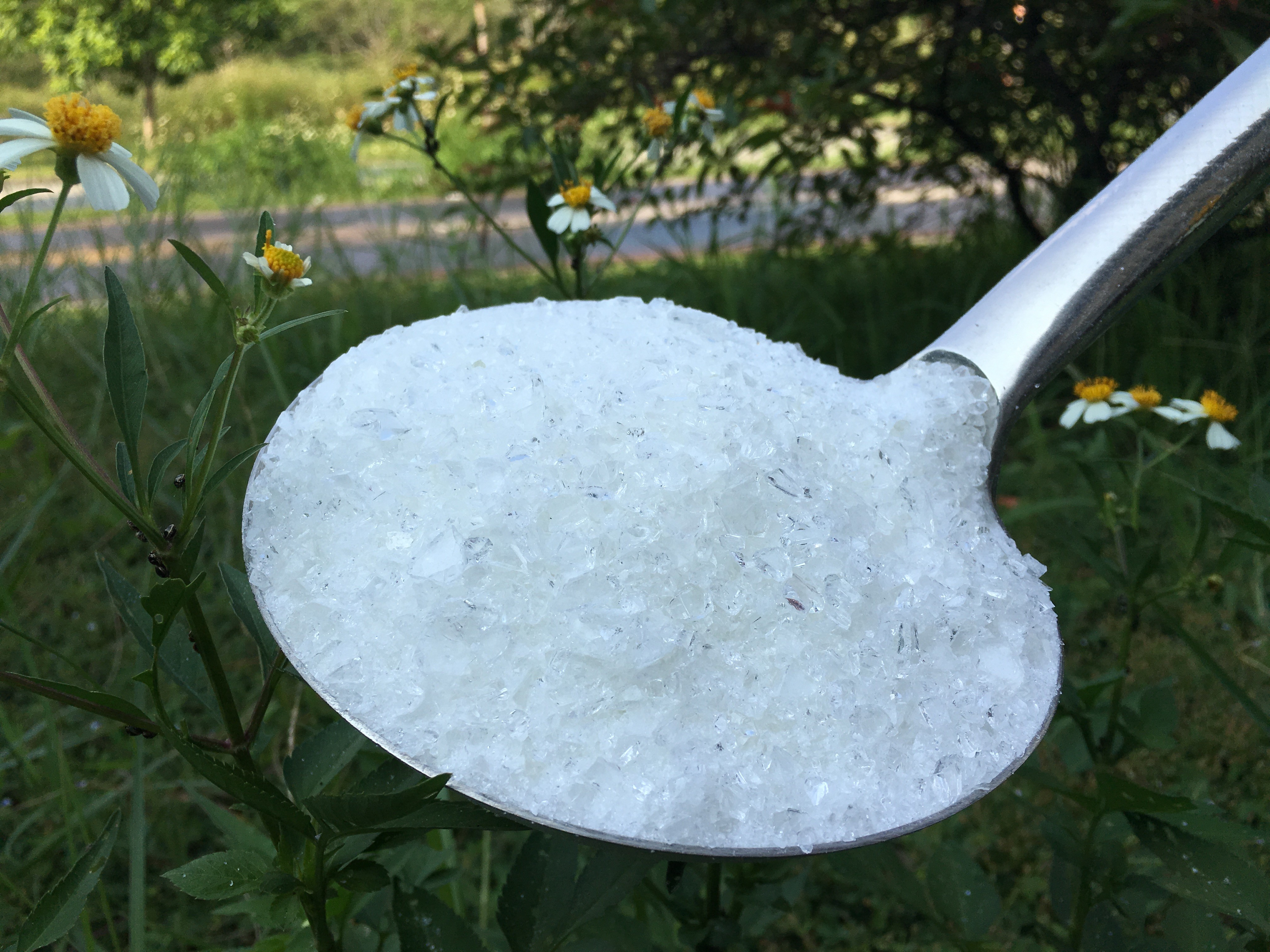

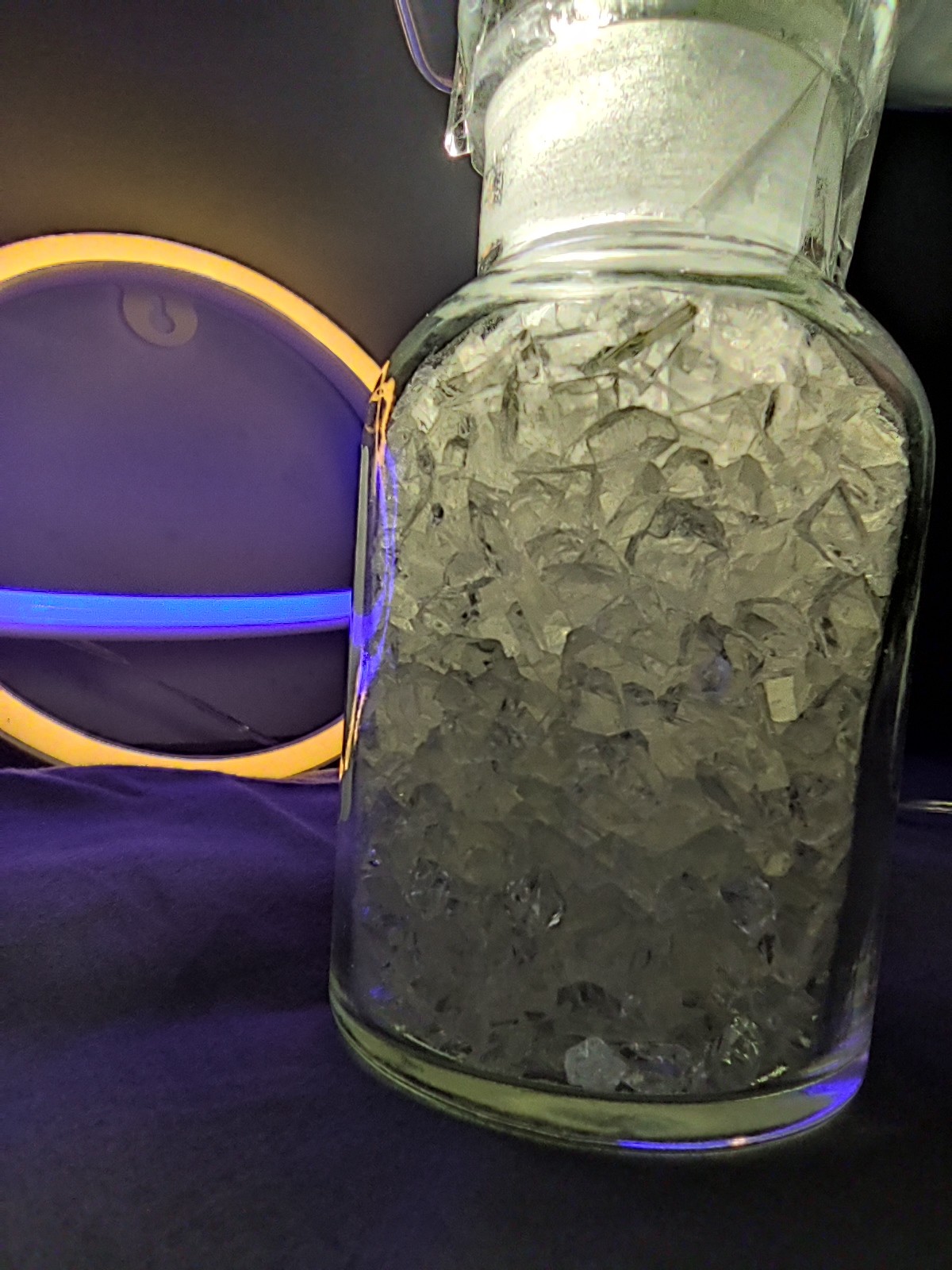

Appearance pale yellow flake
Color(50%DMF): max:2
Acid number(mgKOH/g): 30～34
Softening point(℃): 95～105
Glass transition temp.( ℃): ～58
Melting viscosity(200℃, cone/plate, mPa·s): 3800±700
Reactivity at 180℃(s, 5% XL552): 180±30
◇ Recommend Formulation:NH-6563
| NH-6563 | Primid XL-552 | Filler ＆ pigment | Leveling agent | Benzion |
| 200 | 12 | 140 | 2.4 | 1.2 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～100μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 160℃×15min.
◇ Film Properties:
Gel time(180℃,sec) 150~270
Flow(180℃,mm) 25~29
Gloss(60°): ≥85%
Bending(φ1mm): pass
Adhesive(1mm,grade): 0
Pencil hardness: 1H
Impact(50cm): pass
Storage test(40℃,24hr): good
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
