Place of Origin: | CHINA |
---|---|
Brand Name: | KINTE |
Certification: | ROHS,ISO90001,ISO14000,Reach,Qualicoat |
Model Number: | NH7808 |
Minimum Order Quantity: | 500KG |
Price: | Negotiable |
Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/20GP |
Delivery Time: | 10 working days |
Payment Terms: | T/T, L/C, D/P |
Supply Ability: | 80,000 tons/year |
Specification: | Isocyanate | Application: | Polyurethane Powder Coating |
---|---|---|---|
Advantage: | Excellent Flowability | Rate: | 84/16 |
Curing Condition: | 200°C/15mins | Property: | Excellent Mechanical Property,chemical Resistance |
Highlight: | 84/16 Isocyanate Polyester Resin,Good Flowability Isocyanate Polyester Resin,84/16 types of polyester resin |
Super Durable Isocyanate Polyester Resin NH7808 with Good Flowability
◇ Applications:
NH7808 is a hydroxylated polyester resin for polyester/isocyanate powder coating system.
◇ Basic features:
Excellent leveling
Good mechanical properties
Good chemical resistance
◇ Specifications:

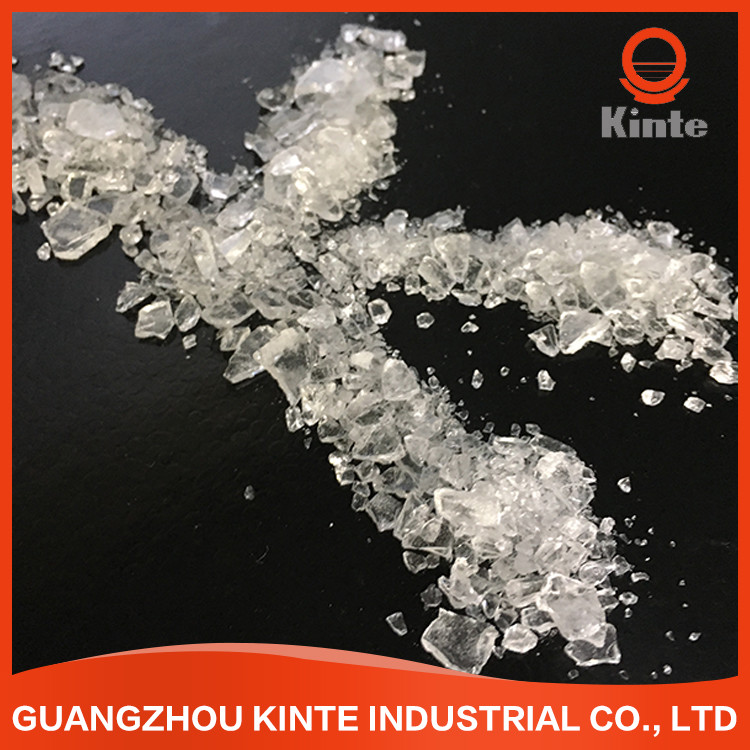

Appearance White or pale yellow transparent flake
Color (50%DMF): max: 2
Hydroxyl Value(mg KOH/g): 25~35
Softening point(℃): 102~112
Glass transition temp.(℃): ~59
Melting viscosity(200℃, cone/plate, mPa·s): 9000±500
Reactivity at 180℃(s, 17% B1530): 560±100
◇ Recommend Formulation:
NH7808 | Hardener | Filler & pigment | Leveling agent | Benzoin |
200 | 40 | 125 | 4.5 | 2.5 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90~110℃ Zone II: 110~120℃
Speed of revolution: 500~1200rpm
Fineness of powder: <100μm
◇ Application Condition:
Electrostatic spraying with: 40~70KV
Film thickness: 50~70μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 200℃×15min
◇ Film Properties:
Gel time(180℃,sec): 660~900
Horizontal flow:(180℃), mm: 27~31
Gloss(60°): ≥85%
Bending(φ1mm): Pass
Adhesive(1mm,grade): 0
Pencil hardness ≥1H
Direct Impact (50cm): pass
◇ Packaging:PE bags, N.W. 25KG±0.1KG / bag
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
