Place of Origin: | CHINA |
---|---|
Brand Name: | KINTE |
Certification: | ROHS,ISO90001,ISO14000,Reach,Qualicoat |
Model Number: | NH8003&NH8606 |
Minimum Order Quantity: | 500KG |
Price: | Negotiable |
Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/20GP |
Delivery Time: | 10 working days |
Payment Terms: | T/T, L/C, D/P |
Supply Ability: | 80,000tons/year |
Specification: | TGIC Cure | Application: | Powder Coating With Low Gloss Heat Transfer Finish |
---|---|---|---|
Advantage: | Good Leveling | Property: | Good Mechanical Property,chemical Resistance,weatherability,storage Stability |
Ratio: | 90/10,95/5 | Curing Condition: | 200°C/10mins |
Highlight: | 25Kg Blended Polyester Resin,ISO90001 Blended Polyester Resin,ISO90001 Powder Paint Polyester resin |

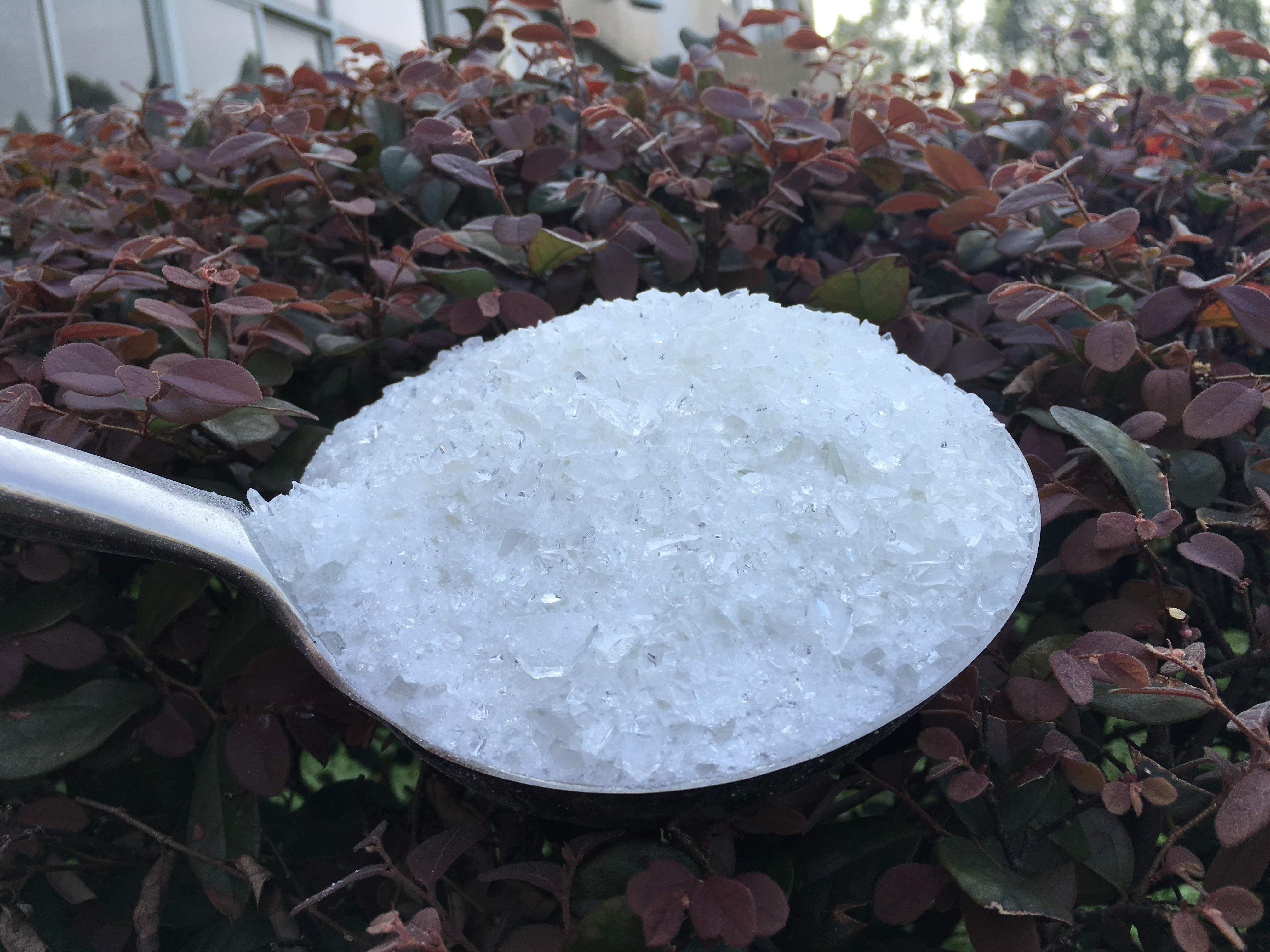

Powder Paint Polyester resin NH8003&NH8606 for Low Gloss Heat Transfer Finish
◇ Applications:
NH8003/NH8606 are saturated carboxyl polyester resins for low gloss polyester/TGIC powder coatings by a dry blend procedure.
Compared with the products of other manufacturers, the curing degree of our powder coating film is also higher, and the transfer paper tearing performance of the film is better. It is more suitable for the preparation of hybrid polyester for heat transfer powder coating.
◇ Basic features:
Good leveling
Excellent mechanical properties
Good weathering resistance
◇ Specifications:
NH8003 NH8606
Appearance: pale yellow flake pale yellow flake
Color(50%DMF): ≤3 ≤3
Acid number(mgKOH/g): 48~54 19~24
Softening point(℃): 108~118 103~113
Glass transition temp.( ℃): ~68 ~60
Melting viscosity: 5000±1000 9000±1000
(200℃, cone/plate, mPa·s)
Reactivity at 180℃ : 80±30 340±60
(s, 10, 4% TGIC)
◇ Recommend Formulation:
Formulation | NH8003 | NH8606 | TGIC | Filler & pigment | Leveling agent | Benzion |
I | 270 | — | 30 | 200 | 3 | 1.5 |
II | — | 288 | 12 | 200 | 3 | 1.5 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90~110℃ Zone II: 110~120℃
Speed of revolution: 500~1200rpm
Fineness of powder: <100μm
Blending Extrude I and II with weight ratio 1:1 before grinding.
◇ Application Condition:
Electrostatic spraying with: 40~70KV
Coating film thickness: 50~80μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 200℃×10min
◇ Film Properties:
Gloss(60°): ≤35%
Bending(φ2mm): Pass
Adhesive(1mm,grade): 0
Pencil hardness: 1H
Direct Impact (50cm): pass
◇ Packaging:
PE bags, N.W. 25KG±0.1KG / bag
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
