| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS,ISO90001,ISO14001,OHSMS18001,Reach,Qualicoat |
| Minimum Order Quantity: | 100KG |
| Price: | negotiate |
| Packaging Details: | with double PP bags，N.W 20(25)kg/carton,1000KG/pallet |
| Delivery Time: | within 10 working days |
| Payment Terms: | L/C, D/P, T/T, D/A |
| Supply Ability: | 500tons/month |
| Application: | Architectural Aluminum Profiles. | Color: | RAL,PANTON And Customized,all Colors |
|---|---|---|---|
| Property: | Good Weather Resistance,mechanical Properties,boiling Resistance,corrosion Resistance, Polish, Construction Adaptability,high Powder Spraying Rate,great Overbaking Resistanc | Shelf Life: | 12 Month Within 30℃, Avoid Direct Sunlight. |
| Transportation: | Non-dangerous Goods. It Can Be Transported In Various Ways, But It Should Be Away From Direct Sunlight, Moisture, Heat And Chemicals. | ||
| Highlight: | Weatherability Thermoset Powder Coating,TGIC Thermoset Powder Coating,TGIC Polyeser Powder Coating |
||

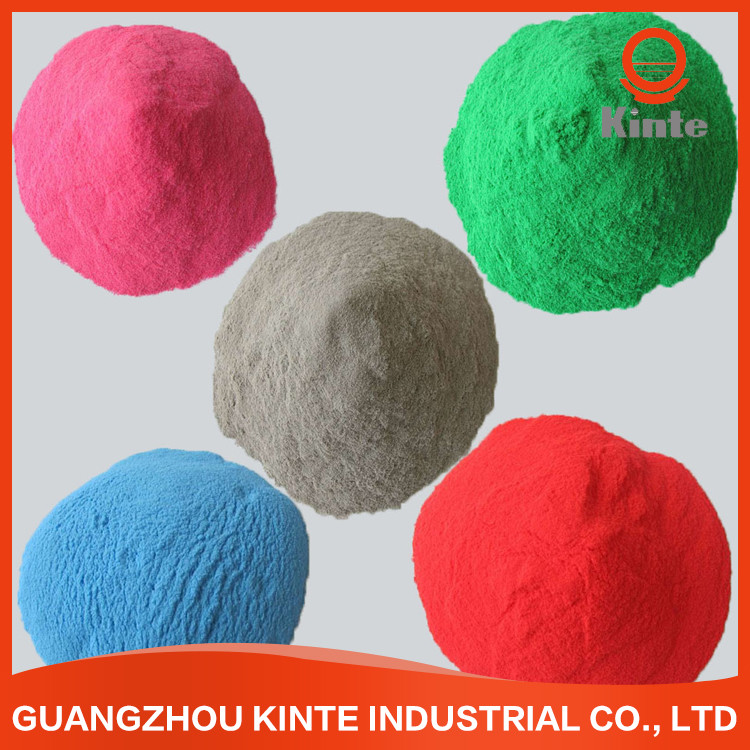

Durable weatherability Polyester TGIC powder coating for Aluminum Profile from China manufacturer Kinte
Introduction:
This series of products is one kind of thermoset powder coating made of saturated carboxyl polyester resin and TGIC curing agent.
It’s designed specially for the outside buliding materials with excellent weather resistance.
Property:
Density: 1.2~1.8g/cm3( Ingredient and color demand)
Particle Size: Purpose demands, standard granularity is 20-45 um, ＜10um powder ＜8%, ＞70um powder ＜20%.
Storage stability:
Polyester/TGIC type should be stored below 35°C in a dry and well ventilated place away from source of heat, ignition and direct sunlight. If stored in an air-conditioner room, in order to avoid damp again, before using the powder, the powder should be kept at the room temperature or at the same temperature with the spray equipment. Under such condition, the powder can be stored stably for 12 months.
Extended, retest will be required. If the testing result meets the requirement, the powder can still be used.
Note: For the low temperature curing powder with the gloss below 40%(60°),the better stored temperature is below 30℃.
Film Characteristics:
| Properties | Method | Value | |
| Appearance | Visual | A variety of coating effects | |
| Impact | GB/T 1732-1993 | 1Kg*50cm | |
| Flexibility | GB/T 6742-1986 | ∮2mm | |
| Cupping Test | GB/T 9753-1988 | ≥6mm | |
| Indentation Hardness | GB/T 9275 | ≥80 | |
| Adhesion | GB/T 9286-1998 | 0Grade | |
| Hardness | GB/T 6739-2006 | >H | |
| Neutral Salt Spray | GB/T1771 | ≥1000h | |
| Humilidy | GB/T 1740-2007 | change≤1Grade | |
| Weather Resistance(xenon lamp aging 1000h) | GB/T 1865-1997 | Chalking 0 Grade；Color difference 1Grade；Gloss Retention≥50% | |
| Boiling Resistance | GB/T 6682 | No bubbles, no wrinkles, no spots no shedding water and other defects,also no significant change in color | |
|
Chemical Resistance (Hydrochloric acid, xylene, mortar) |
GB/T 6682 |
No bubbles, no softening, no shedding and no other significant changes |
|
| All these above properties are in line with the European architectural aluminum Qualicoat standards and national standard aluminum profiles standard GB 5237.4-2004 . | |||
| Spraying | This series of products is suitable for the following spraying methods: corona electrostatic spraying, friction electrostatic spraying, electrostatic fluidized bed spraying,fluidized bed thermal spraying and other spraying methods(For the last 3 methods, please requested in advance) | ||
|
Film thickness :40~150μm, theoretically 40~80μm. Average coverage: 10~12m2/Kg, film thickness 60μm(Calculated at the usage rate of 100%) |
|||
| Curing Guide | 200 ℃ / 10 mins is suggested, and also 180 ℃ / 10 mins etc can be designed according to user’s needs. | ||
