| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS,ISO90001,ISO14000,Reach,Qualicoat |
| Model Number: | NH6588 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000 tons/year |
| Specification: | HAA Cure | Application: | Powder Coating |
|---|---|---|---|
| Advantage: | Super Durable Weatherablity,excellent Yellowing Resistance,oiling Water Performance | Rate: | 95/5 |
| Curing Condition: | 200°C/10mins | Property: | Good Mechanical Property,storage Stability |
| High Light: | polyester resin powder coating 95:5,epoxy resin powder coating 25kg,95:5 polyester resin 25kg |
||
Good Comprehensive Properties HAA NH6588 Polyester Resin for Powder Coating
◇ Applications:
NH-6588 is a saturated carboxyl polyester resin designed for 95:5 Primid XL 552 powder coating to be cured at 200℃.
◇ Basic features:
Super durable weatherablity
excellent yellowing resistance
Boiling water performance
Suitable for outdoor powder coatings.
◇ Specifications:

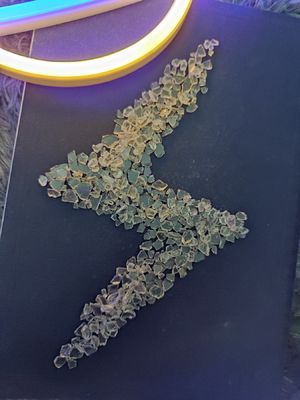

Appearance pale yellow flake
Color(50%DMF): ≤3
Acid number(mgKOH/g): 38±3
Softening point(℃): 105±5
Glass transition temp.( ℃): ～62
Melting viscosity(200℃, cone/plate, mPa·s): 2200±800
Reactivity at 180℃(s, 5% XL552): 360±120
◇ Recommend Formulation:NH-6588
| NH-6588 | XL552 | Filler ＆ pigment | Leveling agent | Benzion | 701 | 703 |
| 570 | 38 | 380 | 8 | 4 | 4 | 4 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～70μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 200℃×10min.
◇ Film Properties:
Gel time(180℃,sec) 270~390
Flow(180℃,mm) 27~31
Gloss(60°): ≥85%
Adhesive(1mm,grade): 0
Pencil hardness: ≥1H
Direct impact(50cm): pass
◇ Packaging:PE bags, N.W. 25KG±0.1KG / bag
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
