| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS,ISO90001,ISO14000,Reach,Qualicoat |
| Model Number: | NH6485 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000 tons/year |
| Specification: | HAA Cure | Application: | Heat Transfer Print Powder Coating |
|---|---|---|---|
| Advantage: | Good At Heat Transfer | Curing Rate: | 94/6 |
| Curing Condition: | 180°C/15mins | Property: | Excellent Leveling, Mechanical Property |
| High Light: | 94/6 Powder Coating Polyester Resins,Primid HAA Powder Coating Polyester Resins,Primid HAA polyester resin products |
||
Cost-effective Primid/HAA Polyester Resin NH6485 for Heat Transfer Printing
◇ Applications:
NH-6485 is a saturated carboxyl polyester resin for Polyester/Primid powder coating system.
Suitable for heat transfer powder coatings.
◇ Basic features:
Excellent mechanical properties
Excellent flowing
Good for heat tranfer printing
◇ Specifications:

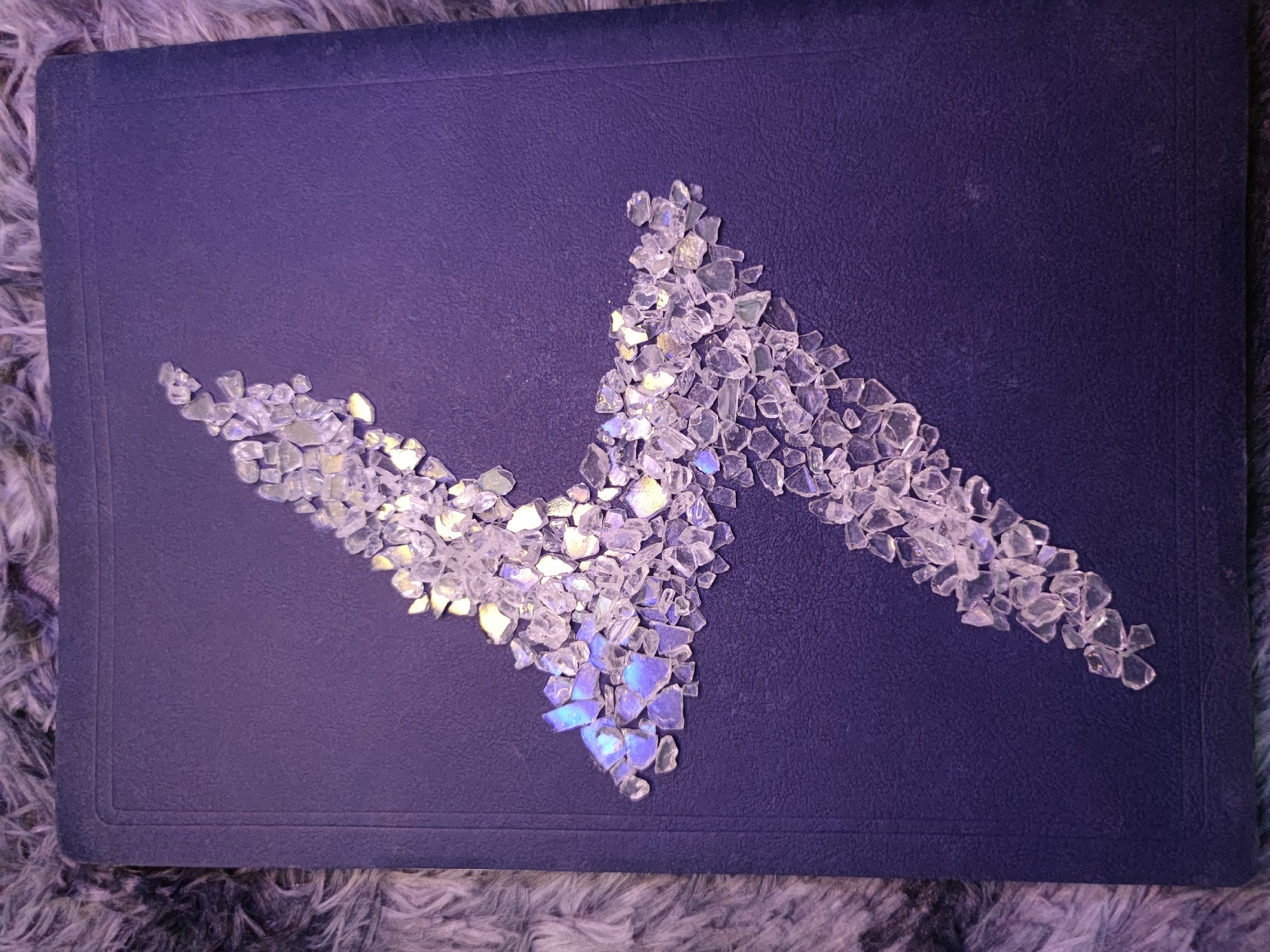

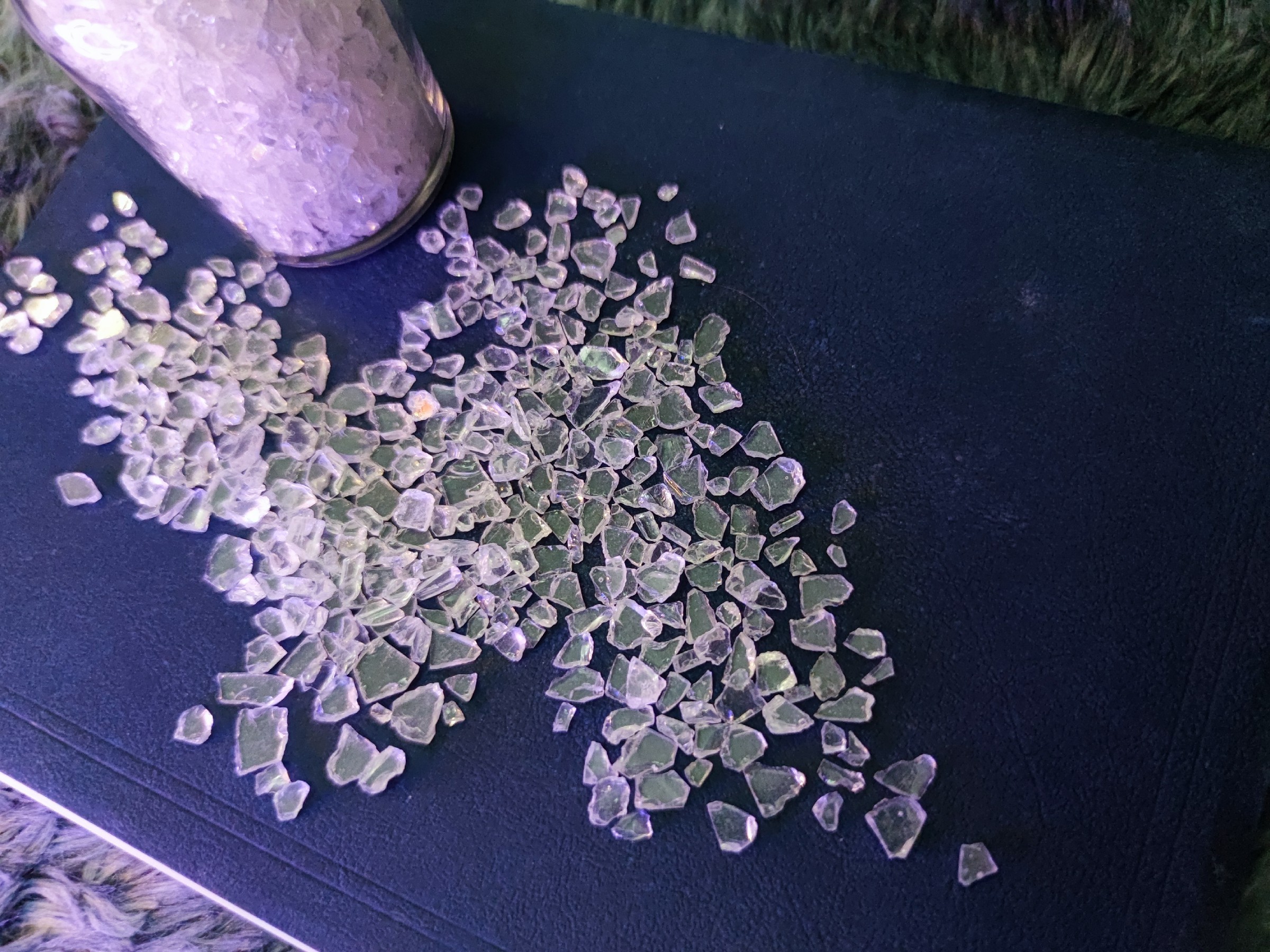

Appearance white or light yellow transparent flakes
Color(50%DMF): max:2
Acid number(mgKOH/g): 49～55
Softening point(℃): 101～1-1
Glass transition temp.( ℃): ～55
Melting viscosity(200℃, cone/plate, mPa·s): 3000±500
Reactivity at 180℃(s, 6% T-105): 150±30
◇ Recommend Formulation:
| NH-6485 | T-105 | TiO2 | BaSO4 | Leveling agent | Benzion | 701 | 703 | 4110 |
| 564 | 36 | 200 | 180 | 8 | 4 | 4 | 4 | / |
| 564 | 36 | / | 356 | 8 | 4 | 6 | 4 | 22 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～100μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 180℃×15min.
Heat transfer printing time: 180℃×2min.
◇ Film Properties:
Gel time(180℃,sec) 100~200
Horizontal flow(180℃,mm): 26~28
Gloss(60°): ≥88%
Bending(φ1mm): pass
Adhesive(1mm,grade): 0
Pencil hardness: ≥1H
Impact (50cm): pass
◇ Packaging:PE bags, N.W. 25KG±0.1KG / bag
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
