| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS,ISO90001,ISO14000,Reach,Qualicoat |
| Model Number: | NH6361 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000 tons/year |
| Specification: | HAA Cure | Application: | Primid Powder Coating |
|---|---|---|---|
| Advantage: | High Crosslinking Density And Low Cure Temperature | Curing Rate: | 93/7 |
| Curing Condition: | 160°C/10mins | Property: | Excellent Mechanical Property And Chemical Resistance |
| High Light: | AA Polyester finishing resin,Acid Alkaline Resistance HAA Polyester,Acid Alkaline Resistance HAA polyester finishing resin |
||
Acid and Alkaline Resistance HAA Polyester Resin NH6361 with High Crosslinking Density
◇ Applications:
NH-6361 is a saturated carboxyl polyester resin designed for 93:7 Primid XL 552 powder coating to be cured at 160℃.
◇ Basic features:
High crosslinking density
Excellent chemical resistance
Good mechanical properties
◇ Specifications:

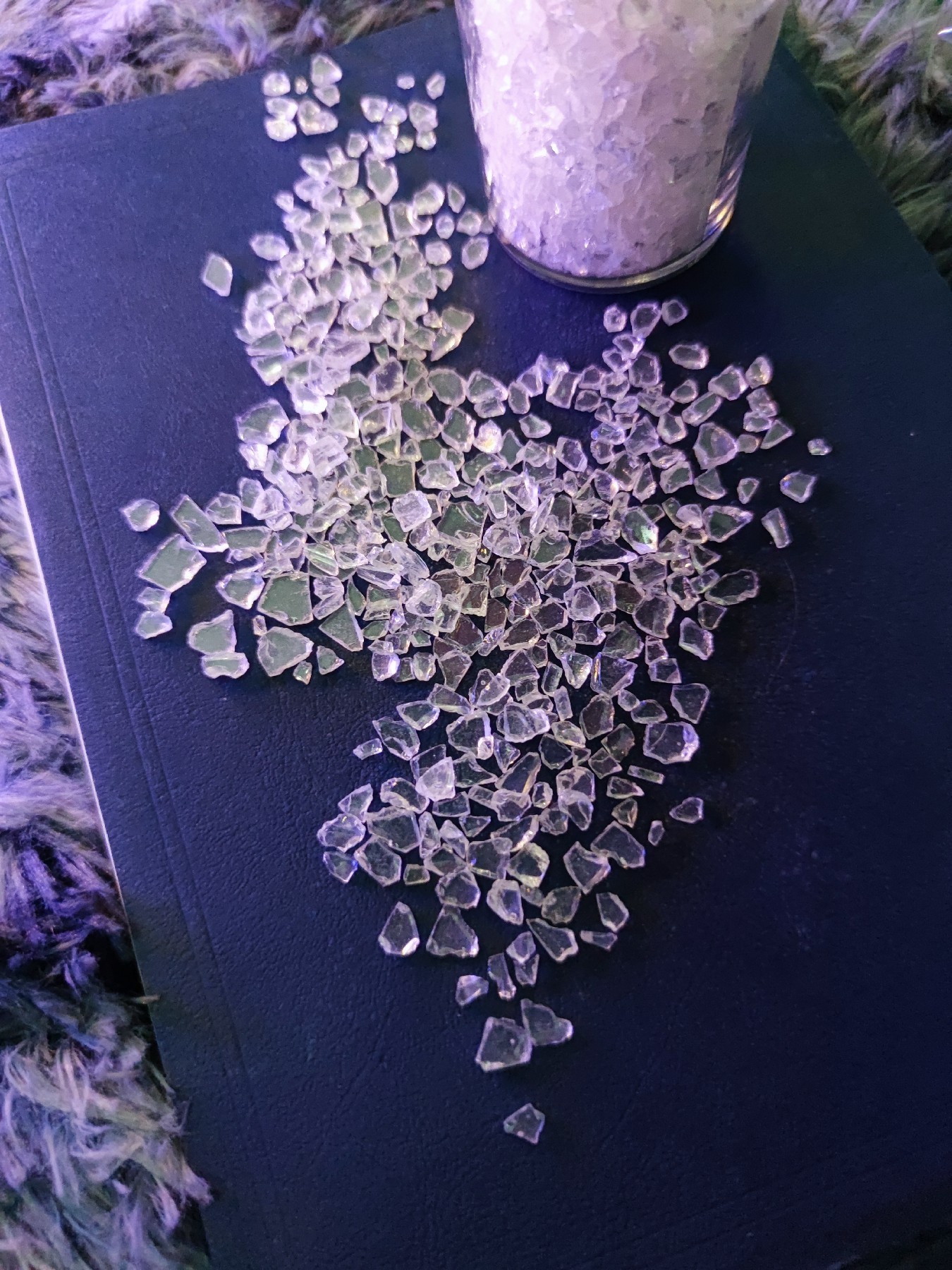

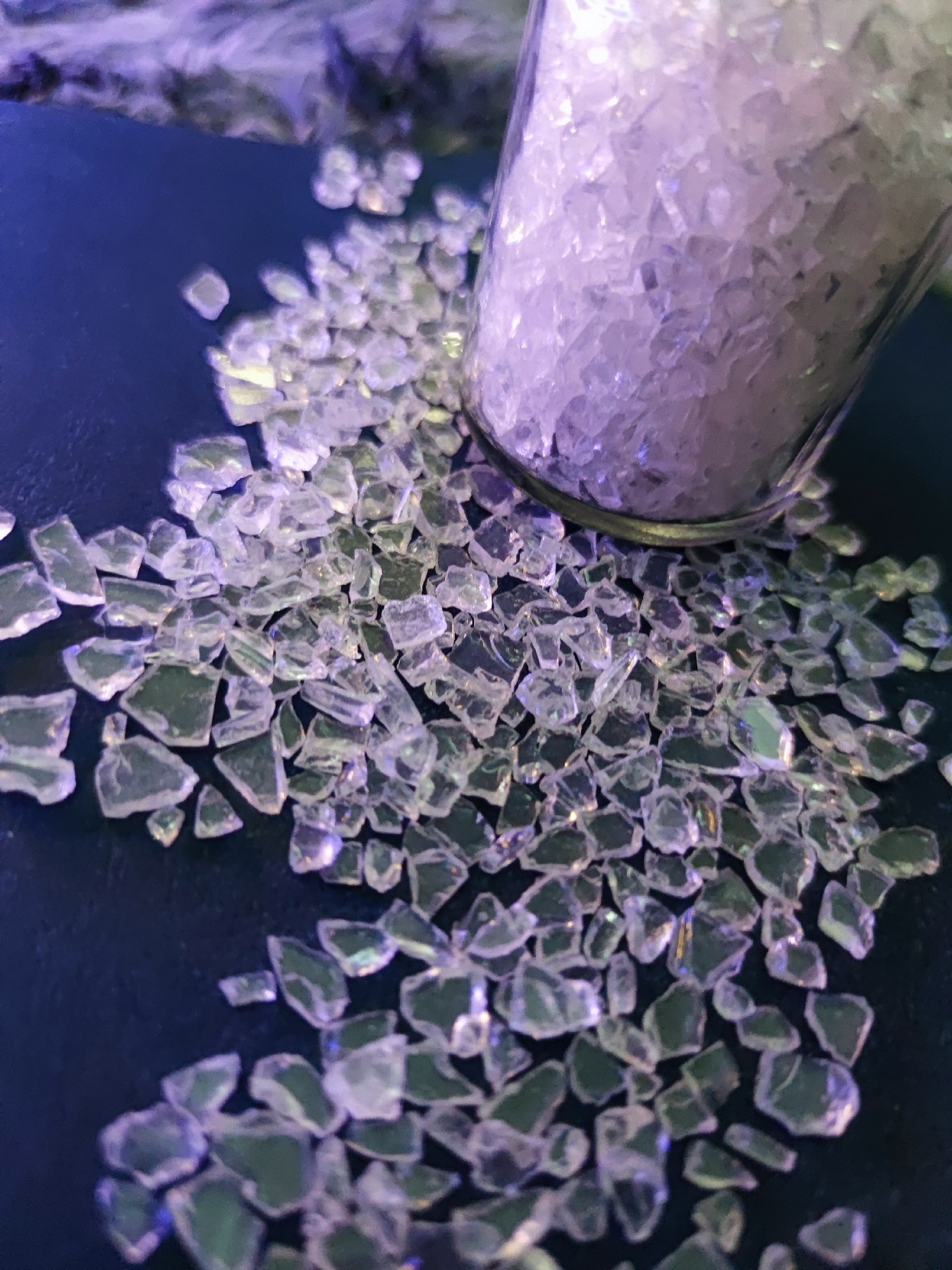

Appearance:White or pale yellow transparent flakes
Color(50%DMF): max:2
Acid number(mgKOH/g): 48～53
Softening point(℃):95～105
Glass transition temp.( ℃):～55
Melting viscosity(200℃, cone/plate, mPa·s): 3000±700
Reactivity at 180℃(s, 7% XL552): 80±30
◇ Recommend Formulation:
| NH-6361 | XL-552 | Filler ＆ pigment | Leveling agent | Benzion | 701 | 703 |
| 558 | 42 | 380 | 8 | 4 | 4 | 4 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～70μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 160℃×10min.
◇ Film Properties:
Gel time(180℃,sec) 60~90
Horizontal flow (180℃), mm: 20~25
Gloss(60°): ≥85%
Bending(φ1mm): pass
Adhesive(1mm,grade): 0
Pencil hardness: ≥1H
Impact (50cm): pass
◇ Packaging:
PE bags, N.W. 25KG±0.1KG / bag
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
