| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS,ISO90001,ISO14000,Reach,Qualicoat |
| Model Number: | NH6083/NH6685 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/ 20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000tons/year |
| Specification: | HAA Cure | Application: | Matt And Low Gloss Powder Coating |
|---|---|---|---|
| Advantage: | One-time Feed With Good Flow | Property: | Good Mechanical Properties,chemical Resistance,weatherability,storage Stability |
| Rate: | 90/10,96/4 | Curing Condition: | 180°C/10mins |
| High Light: | 90/10 saturated polyester resin,low gloss coating isophthalic polyester resin,90/10 polyester resin products |
||
Good Flow HAA Cure Pure Polyester Resin One-time Feed for Low Gloss and Matt
◇ Applications:
NH6083/NH6685 are saturated carboxyl polyester resins for low gloss and matt polyester/primid powder coatings by one shot extrusion.
◇ Basic features:
Low gloss film
Excellent mechanical properties
Good leveling
Good weathering resistance
◇ Specifications:
NH6083 NH6685

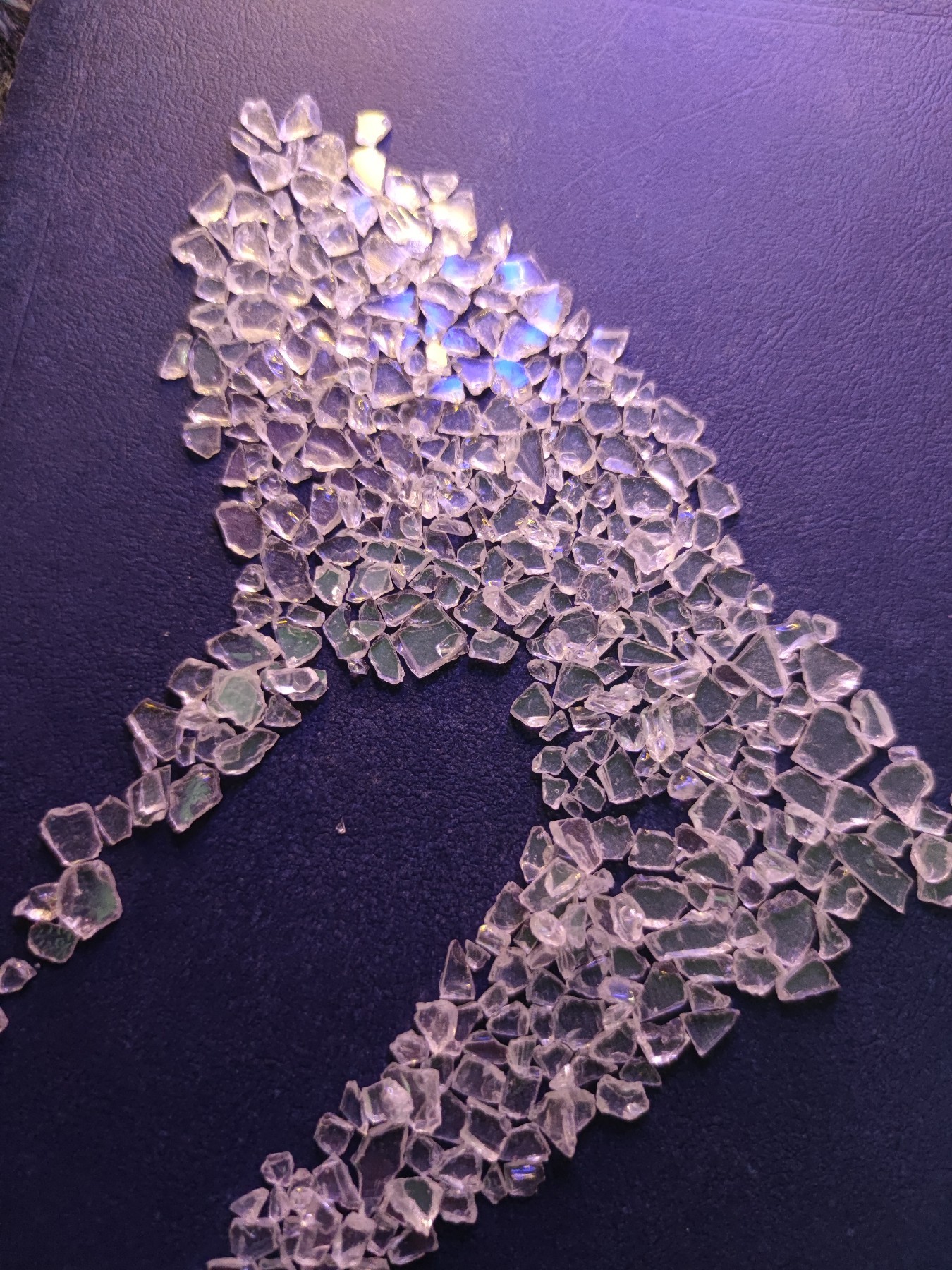

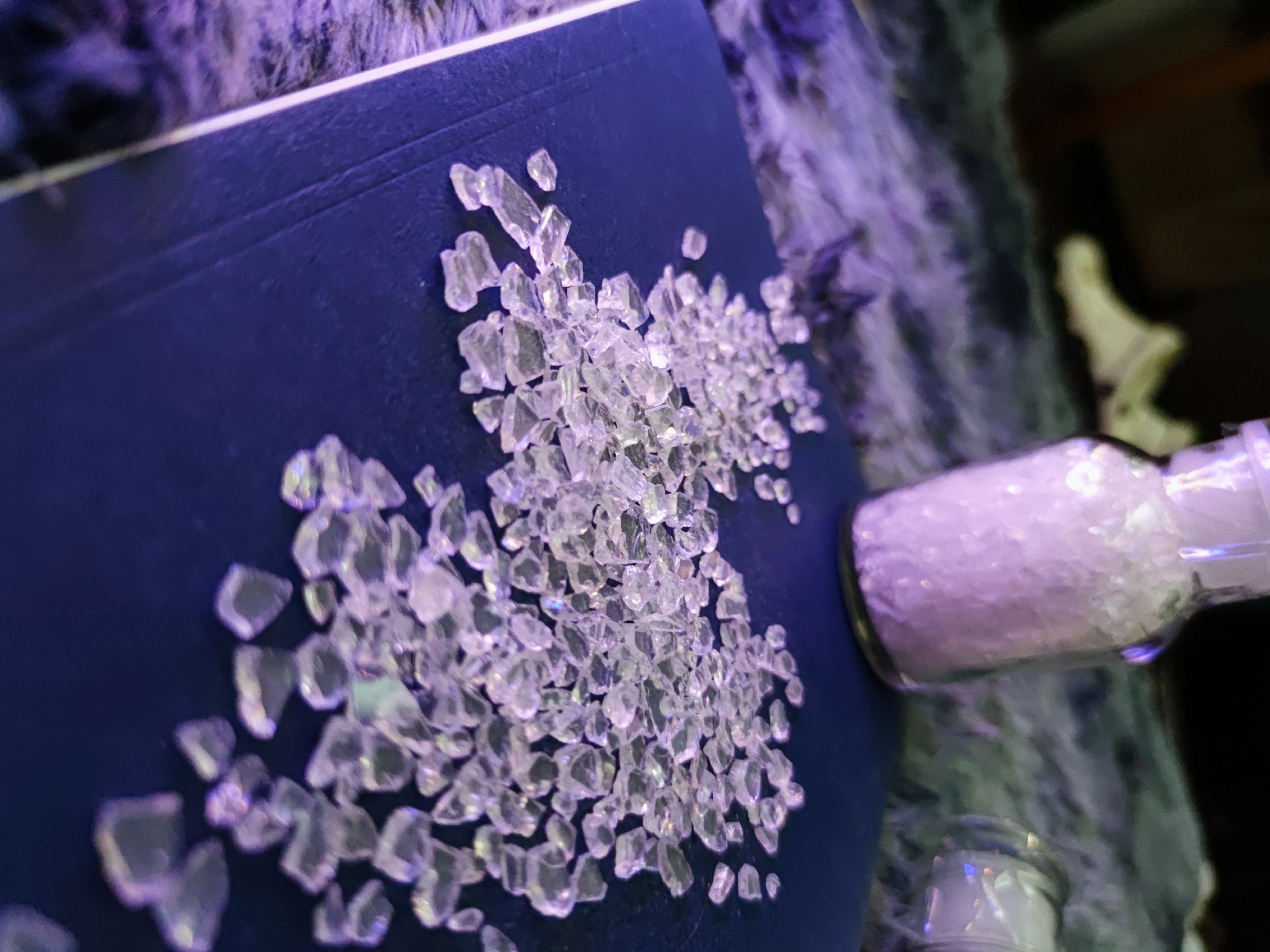

Appearance: pale yellow flake pale yellow flake
Color(50%DMF): ≤3 ≤3
Acid number(mgKOH/g): 80～90 19～24
Softening point(℃): 98～118 100～110
Glass transition temp. ~58 ~58
Tg ( ℃):
Melting viscosity: 3300±800 5600±800
(200℃, cone/plate, mPa·s)
Reactivity at 180℃(s, XL-552): 60±30 250±50
◇ Recommend Formulation:
| NH6083 | NH6688 | XL-552 | Filler ＆ pigment | Leveling agent | Benzoin |
| 270 | 270 | 43 | 406 | 8 | 3 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～80μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 180℃×10min
◇ Film Properties:
Gloss(60°): 8%～14%
Bending(φ2mm): pass
Adhesive(1mm,grade): 0
Pencil hardness: ≥ 1H
Direct Impact Resistance: pass 50kg·cm
◇ Packaging:
PE bags, N.W. 25KG±0.1KG / bag
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
Kinte’s product quality and stability are respected by customers. Kinte powder and liquid coating were successively rated as "famous brand products of Guangdong Province". We adhere to the quality concept of "quality is the life of the enterprise", and comprehensively provide customers with one-stop solutions of standards, technical diagnosis and service.
