| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS,ISO90001,ISO14000,Reach,Qualicoat |
| Model Number: | NH5307 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000 tons/year |
| Specification: | TGIC Cure | Application: | Manufacture Of Powder Coating,suitable For Architectural Profile |
|---|---|---|---|
| Advantage: | Excellent Anti-yellowing,boiling Water Resistance And Weathering Resistance | Property: | Good Mechanical Properties,chemical Resistance,storage Stability |
| Rate: | 93/7 | Curing Condition: | 200°C/15mins |
| High Light: | Water Resistance Polyester Resin Thermoset,ISO90001 Polyester Resin Thermoset,Thermoset Epoxy Polyester Resin |
||
Polyester Resin NH5307 with Excellent Boiling Water Resistance for Architectural Profile
◇ Applications:
NH5307 is a saturated carboxyl polyester resin for polyester/TGIC powder coating system.
◇ Basic features:
Good compatibility with architectural aluminum
Excellent anti-yellowing, boiling water resistance
Spectacular mechanical properties
Stable storage life
High weathering resistance
◇ Specifications:

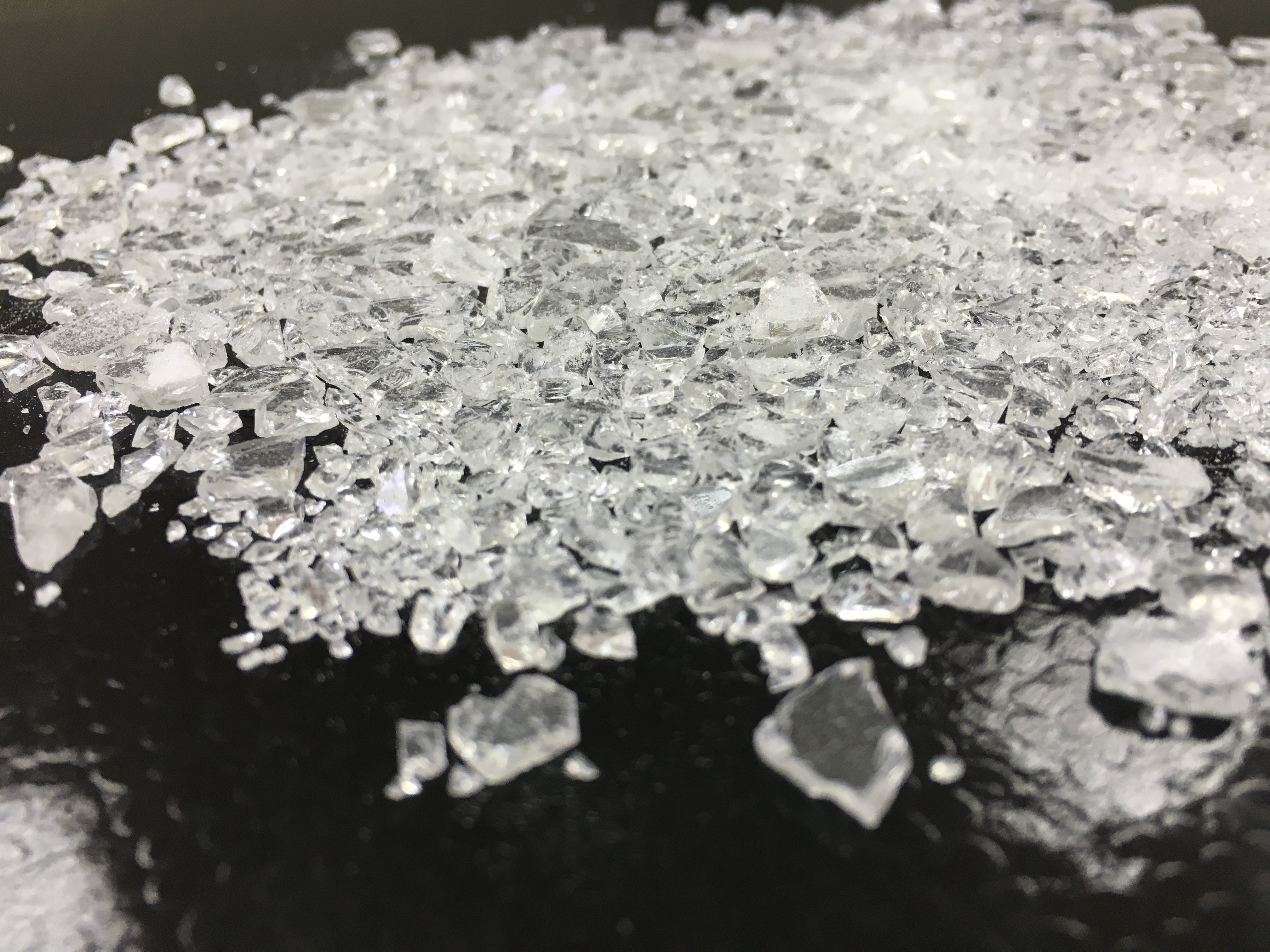

Appearance white or light yellow transparent flakes
Color (50%DMF): max: 2
Acid number(mgKOH/g): 30～36
Softening point(℃): 101～115
Glass transition temp.(℃): ～65
Melting viscosity(200℃, cone/plate, mPa·s): 5000±1500
Reactivity at 180℃(s, 7% TGIC): 180±60
◇ Recommend Formulation: NH5307—TGIC
| NH5307 | TGIC | Filler ＆ pigment | Leveling agent | Benzion | 701 |
| 558 | 42 | 383 | 8 | 4 | 5 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Electrostatic spraying with: 40～70KV
Film thickness: 50～100μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 200℃×15min
◇ Film Properties:
Gel time(180℃,sec): 240~380
Horizontal flow(180℃,mm): 23~28
Gloss(60°): ≥85%
Bending(φ1mm): pass
Adhesive(1mm,grade): 0
Pencil hardness: ≥1H
Impact (50cm): pass
◇ Packaging:PE bags, N.W. 25KG±0.1KG / bag
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
According to industry statistics, in 2014, KINTE polyester resin output ranked third in the national industry, becoming a well-known brand and technical leader in the field of polyester resin for powder coatings in China.
The market share in Guangdong province exceeds 50%, and the sales volume ranks the top two in China, and is exported to Southeast Asia, the Middle East, Russia and other regions and countries.
