| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | UL ,ISO90001,ISO14000, |
| Model Number: | E-RD4962-S7 |
| Minimum Order Quantity: | 100KG |
| Price: | negotiate |
| Packaging Details: | 20kg/box |
| Delivery Time: | within 10 working days |
| Payment Terms: | L/C, D/P, T/T, D/A |
| Supply Ability: | 500tons/month |

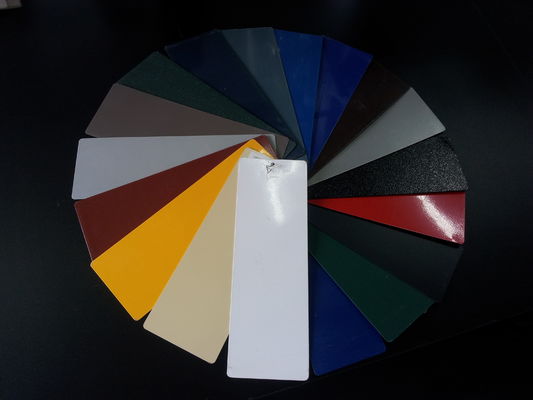

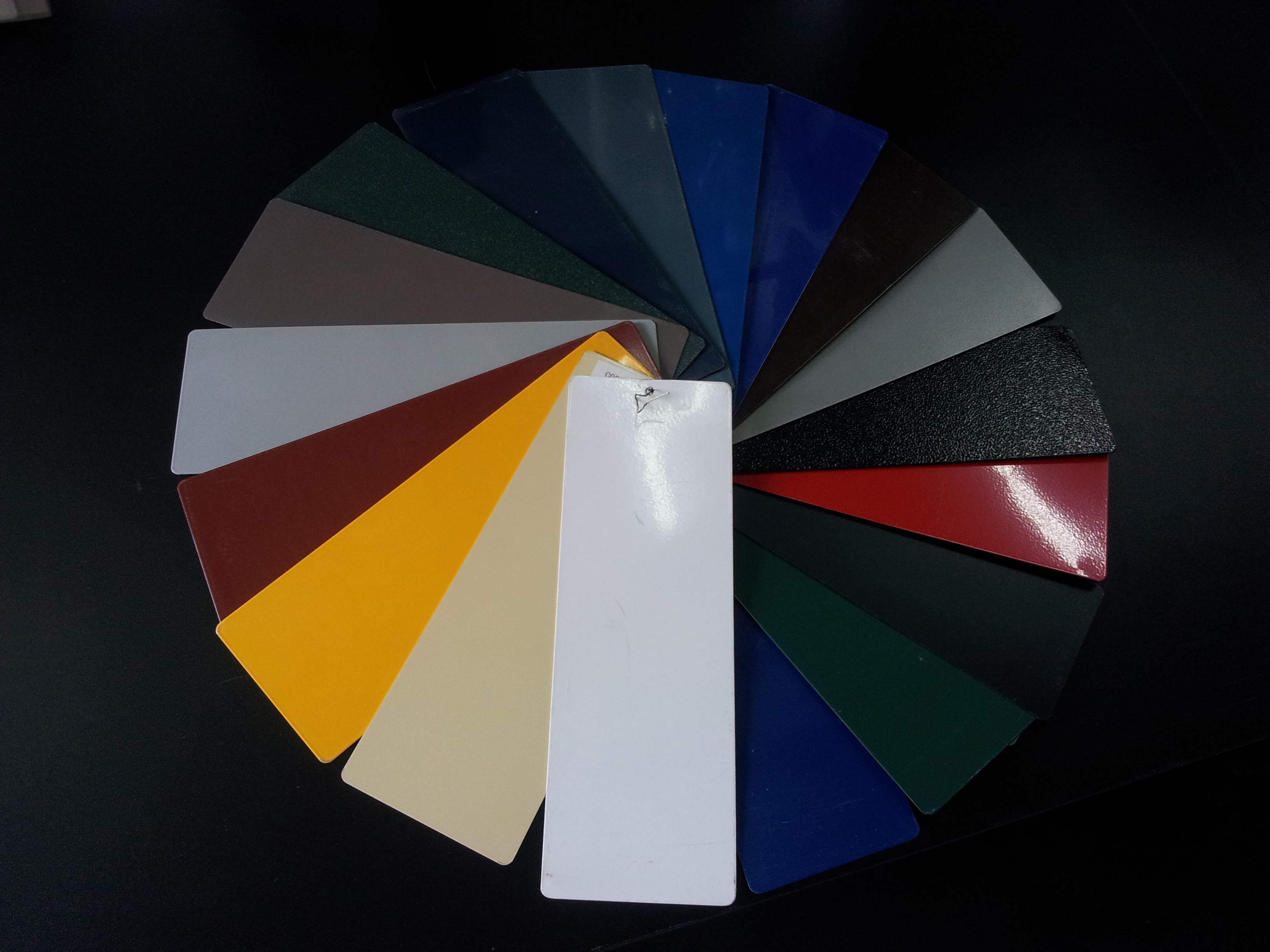

| Application: | BUSBAR,motor Stator, Rotor | Color: | Red,black,green |
|---|---|---|---|
| Property: | Electric Insulation | Cure Condition: | 180℃/20min |
| Advantage: | Good Coverage Ability Of Corner | ||
| High Light: | electrical insulation Epoxy Polyester Resin Powder Coating,UL Epoxy Polyester Resin Powder Coating,UL gloss powder coating |
||
Pure Epoxy Electric Insulation Powder Coating paint with UL certification for Busbar,motor stator, rotor

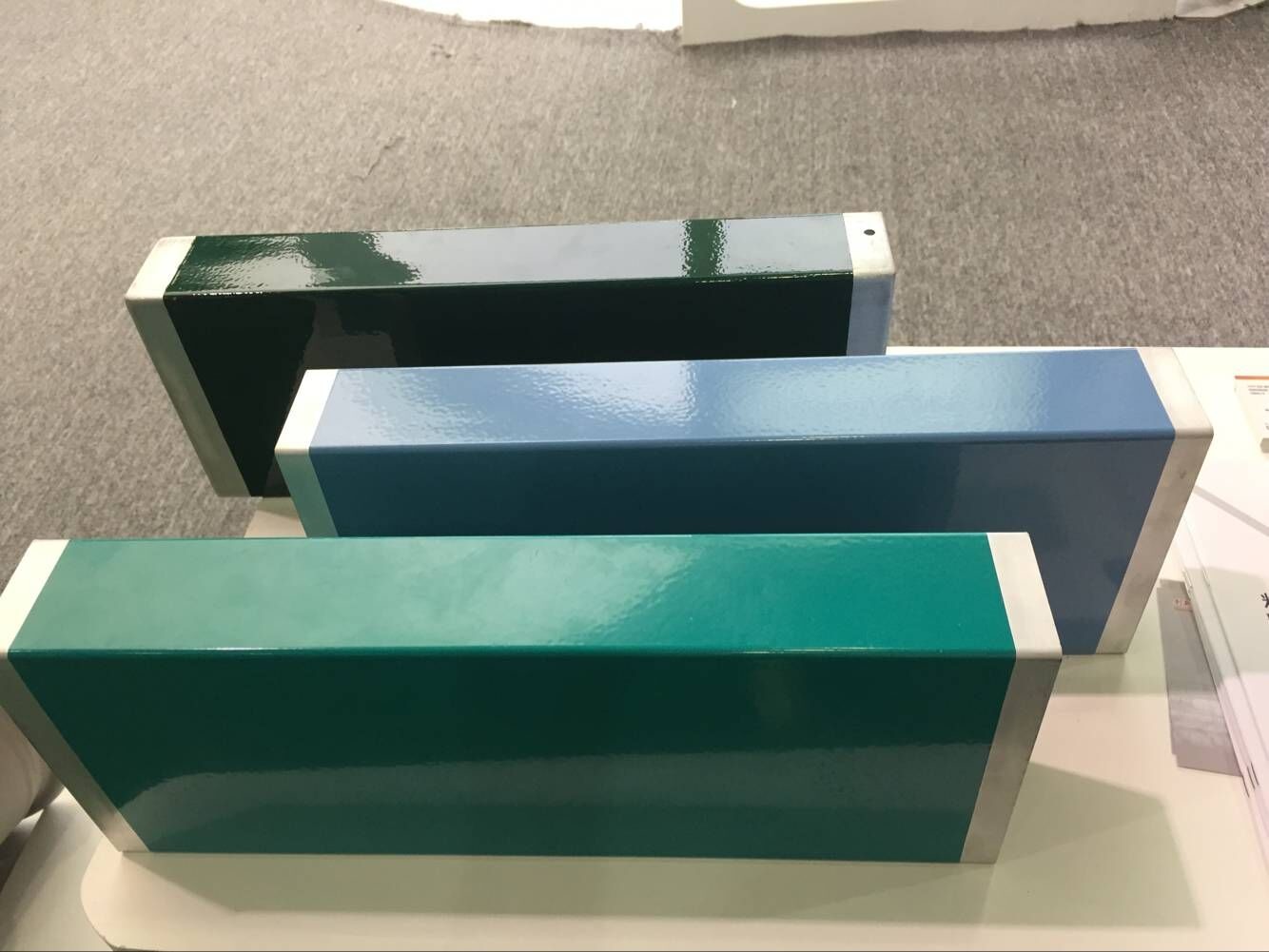

It is applied to electric insulation area, including electric component appliance, aluminum busbar, copper busbar, electric motor stator, rotor, switch plate etc.
Product characteristic
Not includes solvent and other volatile, environmental-friendly.
Fast curing.
With good coverage ability of corner.
Excellent insulation properties.
Key technical index
|
Properties |
Index |
Test standard |
| Film appearance | Smooth, allow slight orange peel | Eye-balling |
| Apparent density | 1.2～1.8g/cm3 | GB/T 6554-2003 |
| Impact strength(normality) | ≥ 30Kv/mm | GB/T 6554-2003 |
| Volume electric resistance rate(normality) | ≥ 10∧15Ω·cm | GB/T 6554-2003 |
|
water absorbing capacity (boiling 2h) |
< 1.5% | GB/T1738 |
|
Insulated heat-resistance level |
Grade B,≥130℃ | IEC60085-2007 |
|
Heat impact properties |
-20～100℃,5 times no crack |
GB/T 6554－2003 |
|
Salt-spray test |
1000h,≤2mm,no bubbles, no peel off | GB/T /T1771－2007 |
|
Corner coverage |
≥60% | GB/T 6554－2003 |
|
Inflaming retarding |
V-0 Grade | UL-94 |
|
Comparative Tracking Index (CTI) |
Grade 1 |
UL746A |
|
High Amp Arc Ignition (HAI) |
Grade 0 |
UL746A |
Appliance craft
Appliance method,electrostatic spraying or fluidized bed dipping.
Film thickness,depend on client’s actual appliance situation, recommend film thickness under control between 300~500um.
Substrate pre-heat temperature, 200℃/10～25min ( adjust according to the thickness, size and film thickness requirement of work piece. )
Curing condition, 200℃/10min ( actual temperature of work piece surface. )
Notice
Do not recommend using this product outdoors.
Appliance thickness might be affected by color, gloss, appearance and physicochemical properties.
There will be difference between lab samples and production samples, it can be adjusted according to client’s appliance parameter.
Transportation and storage
Pack in box with net weight 20 or 25kg.
Non-dangerous article, no special transportation requirement.
Storage under 25℃ cool dry place.
Shelf life, 6 months.
