Thermal Transfer Thermoset Powder Coating Wood Effect With ROHS Approval

Basic Information
Place of Origin: CHINA
Brand Name: KINTE
Certification: ROHS,ISO90001,ISO14001,OHSMS18001,Reach
Minimum Order Quantity: 100KG
Price: negotiate
Packaging Details: with double PP bags,N.W 20(25)kg/carton,1000KG/pallet
Delivery Time: within 10 working days
Payment Terms: L/C, D/P, T/T, D/A
Supply Ability: 500tons/month
Application: Aluminum Profiles,iron Profiles, Metal Furniture,metal Door,window Frame Color: RAL,PANTON And Customized
Shelf Life: 12 Month Within 30℃, Avoid Direct Sunlight. Transportation: Non-dangerous Goods. It Can Be Transported In Various Ways, But It Should Be Away From Direct Sunlight, Moisture, Heat And Chemicals.
Highlight:

ROHS Thermoset Powder Coating

,

thermal transfer Thermoset Powder Coating

,

Thermoset Wood Effect Powder Coating

Heat transfer Print Wood Veine effect Powder Coating



It’s a kind a powder coating that with special purpose, specifically used for base film of thermal transfer technology coating.

With heat thermal transfer technology, all kinds of appearance effects can be formed on the powder film.



There are 2 kinds of heat-transfer powder coating :

Polyester type based on TGIC hardener and Polyurethane type based on blocked isocyanate hardener.Regards of Polyurethane type.



Advantage:

Good leveling,clear veins,easy to tear the printing fill,good permeability, slight diffusivity.

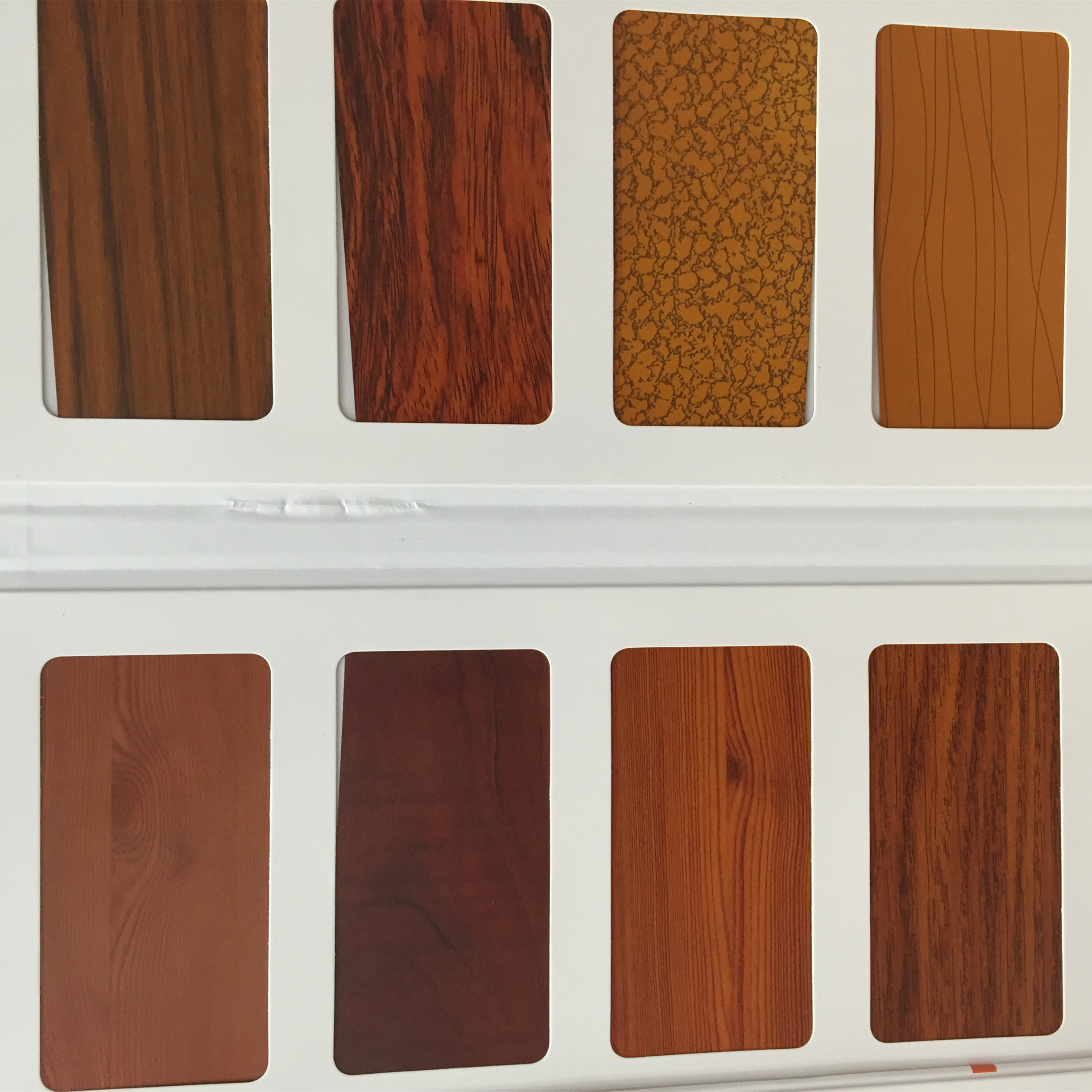

All kinds of appearance effects can be formed on the powder film, such as wood , marble, vein,and our base powder has metallic effect, pearlescent effect and compound colors



Coating process: base coating →preheat →top coating →powder shaving→cure





PROPERTIES Specific Gravity 1.4~1.8g/cm3(It varies according to the different formula and different colors)
Particle Size Standard particle size of average is35~40μm,the amount of less than 10μm is <10%,and the amount of more than 100μm is <0.5%.If there is special demand, please advise in advance
Flowing Good flowing and conveying
Softening Point 70~105℃.It varies according to the different colors and gloss
Storage Stability 12 month within 30℃

PROPERTIES OF COATING



Test Items Test standard and method Value
Appearance Visual inspection A variety of coating effect
Impact GB/T 1732-1993 ISO 6272 1Kg*50cm
Flexibility GB/T 6742-1986 ISO 1519 ∮2mm
Cupping GB/T 9753-1988 ISO 1520 ≥8mm
Adhesion GB/T 9286-1998 ISO 2409 0 grade
Hardness GB/T 6739-2006 ASTM D3363 H~2H
Salt Spray GB/T 1771-2007 ISO 7253 ≥500 h
Humidity GB/T 1740-2007 ISO 6270 ≥1000 h
QUV article aging test GB/T1865-1997 ASTM G151 1000h
The above properties of coating might reduce slightly with the reducing of the gloss
Spraying This series product is suitable for the following spraying methods: corona electrostatic spraying, friction electrostatic spraying, electrostatic fluidized bed spraying,fluidized bed thermal spraying and other spraying methods(For the last 3 methods, please requested in advance)

Film thickness :40~150μm, theoretically 50~80μm.

Average coverage: 10~12m2/Kg, film thickness 60μm(Calculated at the usage rate of 100%)

Curing guide Theoretical 200℃/10min



Kinte’s product quality and stability are respected by customers. Kinte powder and liquid coating were successively rated as "famous brand products of Guangdong Province".



We will continue to uphold the business philosophy of "quality is the life of the enterprise, adhere to the first-class technology, first-class quality, first-class cost and first-class brand", provide all-round services and solutions for customers at home and abroad, and create a better future.
