| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | Qualicoat |
| Model Number: | NH3307 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/ 20GP container |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000tons/year |
| Specification: | HAA Cure | Application: | Outdoor Use Powder Resin |
|---|---|---|---|
| Property: | Environmental Friendly | Properties: | Smooth High Gloss |
| Agent Rate: | 95/5 | Advantage: | Excellent Mechanic Properties |
| Highlight: | 95/5 polyester resin products,HAA polyester resin products,HAA Polyester primid |
||
Applications:
NH-6583 is a saturated carboxyl polyester resin designed for 95:5 Primid XL 552 powder coating to be cured at 180℃.
Basic features:
Excellent leveling
Outstanding mechanical properties
Good anti-yellowing
Pinhole free in thick films
Good weathering resistance
◇ Specifications:
Appearance white or light yellow transparent flakes
Color(50%DMF): max:2
Acid number(mgKOH/g): 29～35
Softening point(℃) 96～106
Glass transition temp.( ℃) ～56
Melting viscosity(200℃, cone/plate, mPa·s): 3000±500
Reactivity at 180℃(s, 5% XL552): 245±45
Recommend Formulation:
NH-6583/HAA
| NH-6583 | XL-552 | Filler | Flow agent | Benzoin | 701 | 703 |
| 566 | 34 | 380 | 8 | 4 | 4 | 4 |
Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～70μm
Degreased cold-rolled steel 0.5mm
Curing Requirement: 180℃×10min.
Film Properties:
Gel time(180℃,sec) 160~300
Horizontal flow:(180℃),mm: 25~29
Gloss(60°): ≥88%
Bending(φ1mm): pass
Adhesive(1mm,grade): 0
Pencil hardness: ≥1H
Impact (50cm): pass

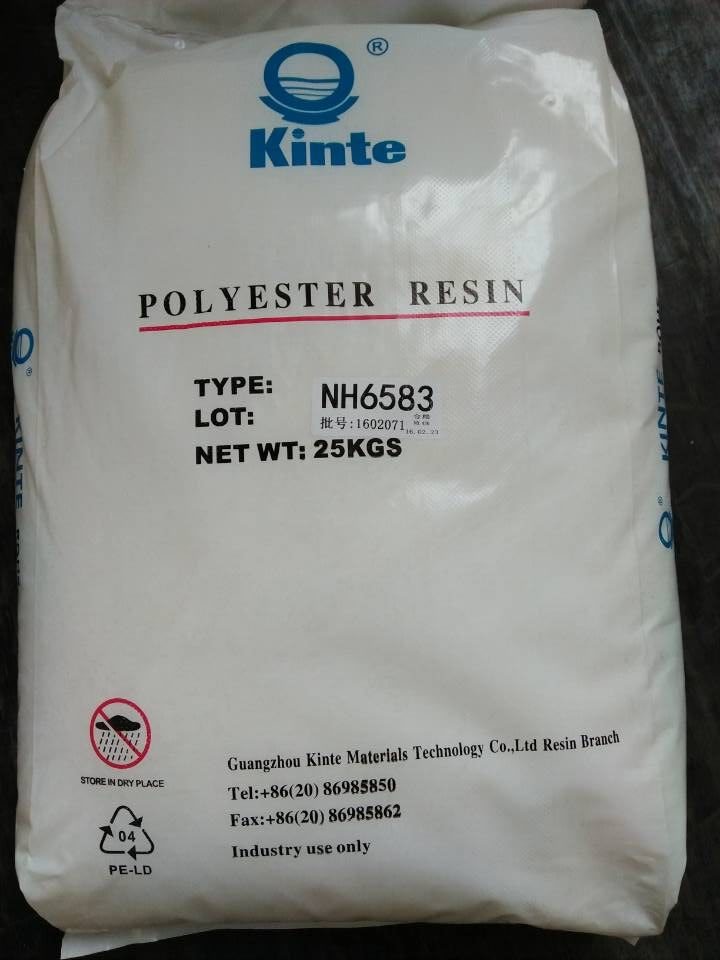

Packaging:
PE bags, N.W. 25KG±0.1KG / bag
According to industry statistics, in 2014, KINTE polyester resin output ranked third in the national industry, becoming a well-known brand and technical leader in the field of polyester resin for powder coatings in China.
The market share in Guangdong province exceeds 50%, and the sales volume ranks the top two in China, and is exported to Southeast Asia, the Middle East, Russia and other regions and countries.
The consistency and stability of products are guaranteed through rigorous quality inspection
Service is the life of enterprise, quality is the base of enterprise.
