| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS,ISO90001,ISO14000,Reach,Qualicoat |
| Model Number: | NH3309C |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000tons/year |
| Specification: | TGIC Cure | Acid Value（mgKOH/g）: | 29-35 |
|---|---|---|---|
| Viscosity(mPa.s/200°c): | 3500-4200 | Ratio: | 93/7 |
| Curing Condition: | 200°C/15mins | Reactivity(s/180°c): | 380-450 |
| Tg(°c): | ~60 | Properties: | Excellent Flow, Enhanced Outdoor Durability |
| Highlight: | TGIC based Polyester Resin,Powder Paint TGIC Polyester Resin,TGIC clear polyester resin |
||
Powder Paint Polyester resin NH3309C Excellent flow enhanced outdoor durability
NH3309C is a saturated carboxyl polyester resin for a polyester/TGIC powder coating system with excellent levelling. It is also suitable to mix with acrylic or matting agent to produce low gloss or matt powder coatings.
With the continuous development of powder coatings, people have higher and higher requirements for the gloss of coatings. In some specific environments, it is necessary to use coatings with low gloss and soft light. Therefore, the demand for low-gloss or matt powder coatings becomes more and more.
☉Recommend Formulation: NH3309C—TGIC
| NH3309C | TGIC | Filler ＆ pigment | Leveling Agent | Benzion | 701 |
| 558 | 42 | 383 | 8 | 4 | 5 |
☉Basic Features:
Excellent Leveling
Outstanding Mechanical Properties
Good Anti-yellowing and Storage stability
Good Chemical Resistance
☉Specifications I:

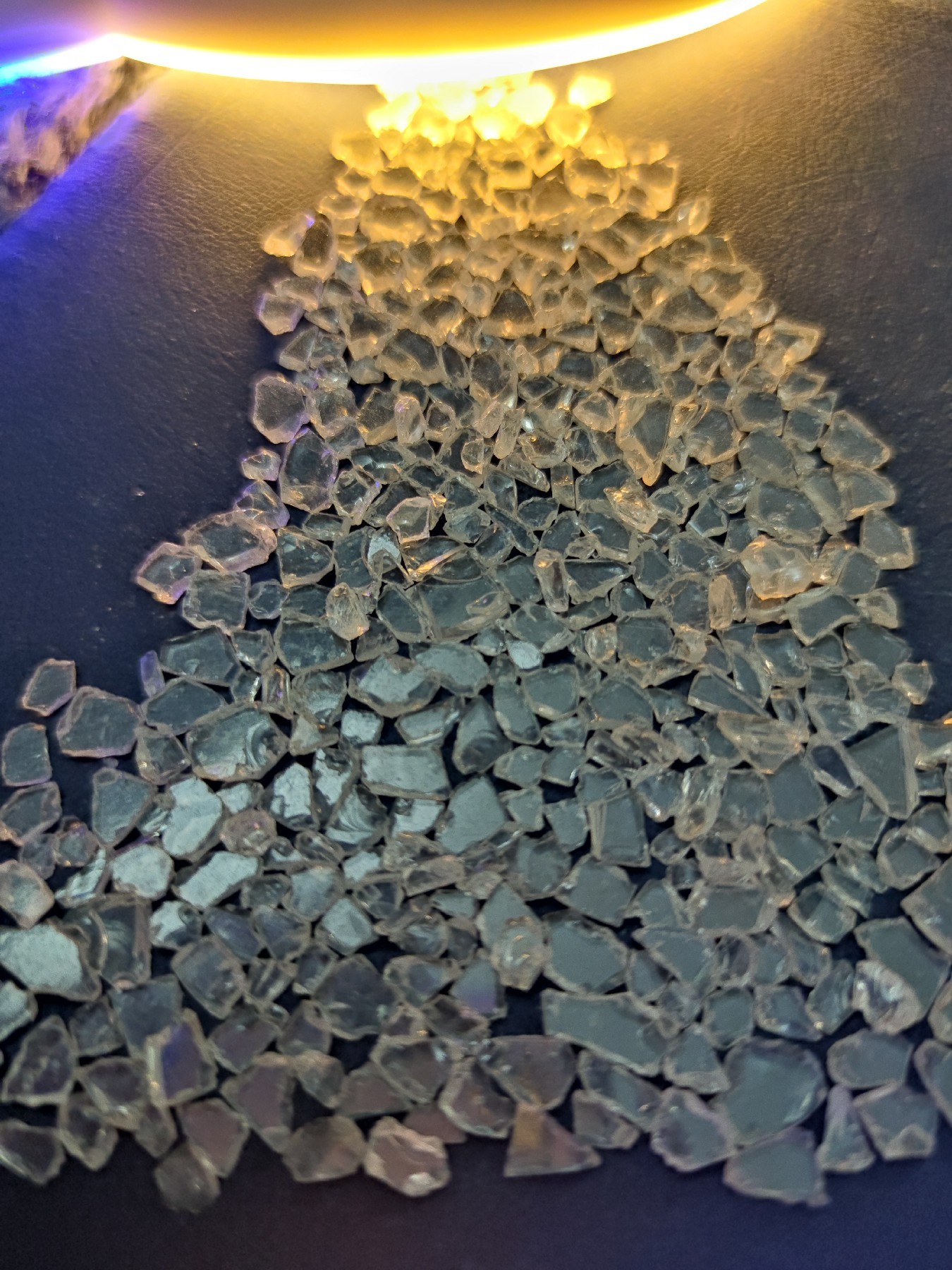

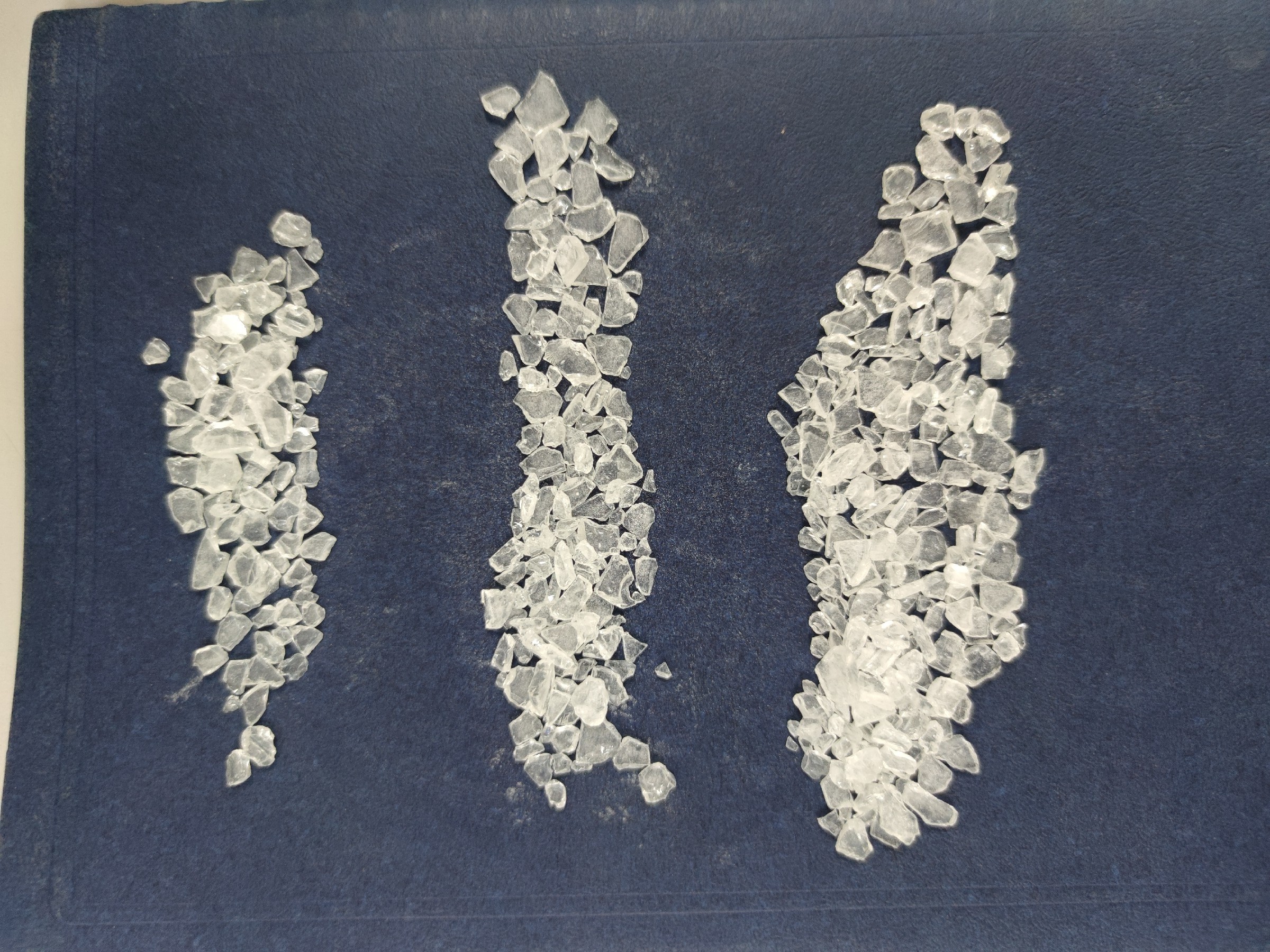

| Appearance | White or Light Yellow Transparent Flakes |
| Color (50% DMF) | max:2 |
| Acid Number (mgKOH/g) | 29～35 |
| Softening Point (℃) | 103～108 |
| Glass Transition Temp. (℃) | ～60 |
| Melting Viscosity (200℃, cone/plate, mPa·s) | 3500～4200 |
| Reactivity at 180℃ (s, 7% TGIC) | 380～420 |
| Curing Requirement | 200℃×15~20min |
| Packaging | PE Bags, Net Weight 25kg±0.1kg / bag |
☉Specifications II:
| Extrusion Condition | Two-screw Extruder | |
| Zone I: 90～110℃ | Zone II: 110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～70μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 500~570 |
| Horizontal Flow (180℃, mm) | 29~31 | |
| Gloss (60°) | ≥88% | |
| Bending (φ1mm) | Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact (50cm) | Pass 50kg·cm | |
| Code | Ratio | Cure cycle |
Acid value (mgKOH/g) |
Viscosity (mPa.s/200°c) |
Tg(°c) |
Reactivity (s/180°c) |
Properties |
| NH3309C | 93:7 | 200°C/15mins | 29-35 | 3500-4200 | ~60 | 380-450 |
Excellent flow enhanced outdoor durability |

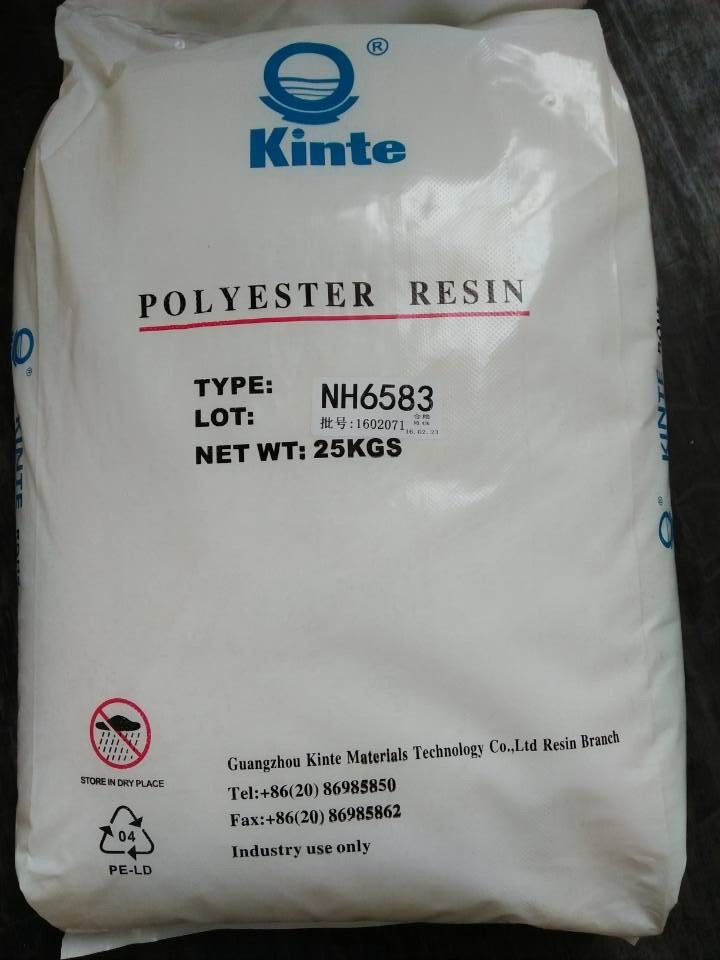

◇ Packaging:PE bags, N.W. 25KG±0.1KG / bag
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
