| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | Qualicoat ,ISO90001 ,ISO140000 |
| Model Number: | HH2652 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/ 20GP container |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000tons/year |
| Specification: | TGIC Cure | Application: | Indoor Use Powder |
|---|---|---|---|
| Property: | Good Leveling, Low Curing Temperature | Agent Rate: | 50/50 |
| Apply On: | Furniture Used Powder | ||
| Highlight: | Low Temperature Curing tgic polyester,Good Toughness tgic polyester,Tgic Thermoset Polyester Resin |
||
HH2562 is a carboxyl polyester resin designed for 50/50 hybrid powder coatings to be cured at 160℃.
Good leveling, good mechanical properties
Excellent chemical performance
Low curing temperature

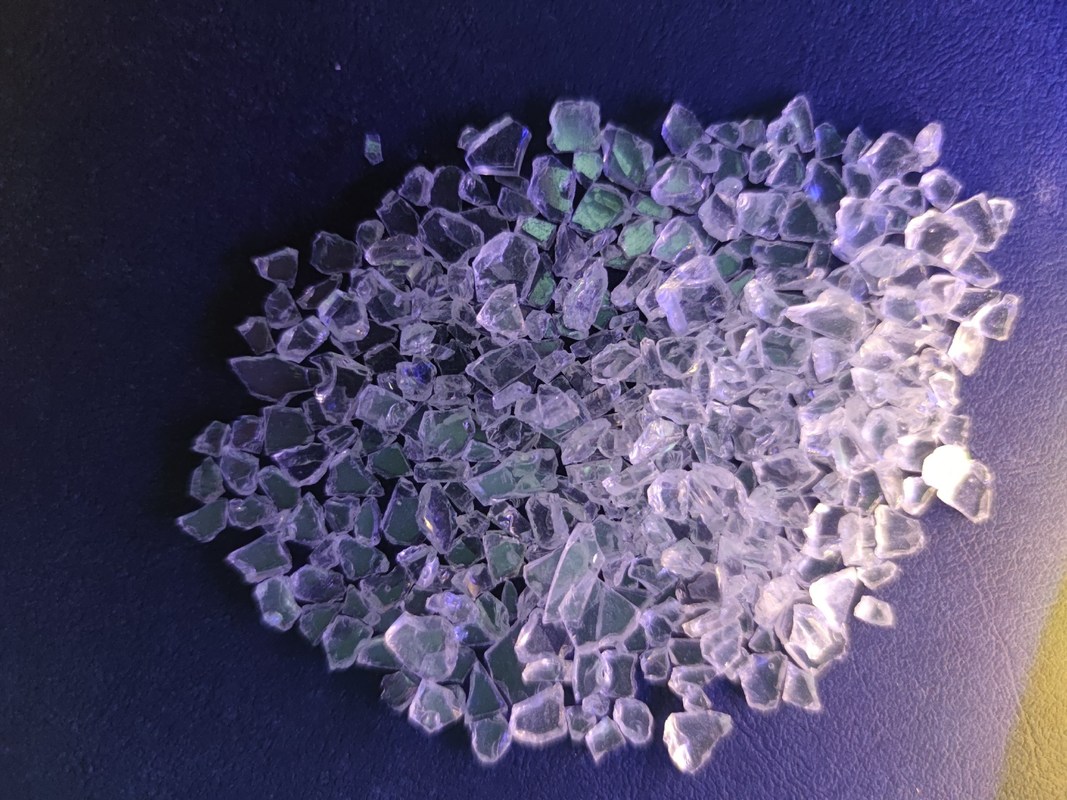

Appearance White or light yellow transparent flakes
Color(50%DMF) max:3
Acid number(mgKOH/g): 68～75
Softening point(℃) 95～105
Glass transition temp.( ℃) 45～60
Melting viscosity(ICI, mPa·s/200℃): 1500～3500
Reactivity at 180℃(s, 50% Epoxy): 50～150
| HH-2562 | E12 | Filler ＆ pigment | Leveling agent | Benzoin | 701 |
| 300 | 300 | 383 | 8 | 4 | 5 |
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～70μm
Degreased cold-rolled steel 0.5mm
Curing Requirement: 160℃×15-20min
Gel time(180℃,sec): 60~160
Horizontal flow (180℃,mm): 21~26
Gloss(60°): ≥90%
Bending(φ1mm): pass
Adhesive(1mm,grade): 0
Pencil hardness: ≥1H
Impact(direct,reserve): pass 50kg·cm
PE bags, net weight 25kg±0.1kg / bag
Two-screw extruder
