| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS, ISO90001, ISO14000, Reach, Qualicoat |
| Model Number: | HH2686 |
| Minimum Order Quantity: | 500Kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Appearance: | White Or Light Yellow Transparent Flakes | Color (50%DMF): | Max:3 |
|---|---|---|---|
| Acid Number (mgKOH/g): | 52.5～57 | Softening Point(℃): | 93～103 |
| Glass Tansition Temp. (℃): | ～55 | Melting Viscosity (ICI,mPa.s/200℃): | 3000～4500 |
| Reactivity At 180℃ (s, 40% Epoxy): | 170～300 | Advantage: | Excellent Flow, Good Matting Performance |
| Highlight: | White Powder Coating Polyester Resins,Chemical Resistance Powder Coating Polyester Resins |
||
60/40 Epoxy Polyester Resins for Hybrid Powder Coatings in 180°C Fast Curing
Economic General Purpose Resins HH2686 with Excellent Flow and Good Matting Performance
Hybrid powder coatings are prepared by using epoxy resin and polyester resin as the main raw materials, and at the same time have their own unique properties, so that the produced coating film has excellent levelling, decorative, mechanical properties and strong corrosion resistance. Mainly used for surface coating of automobiles, household appliances, metal furniture, instrumentation, indoor fitness equipment, radiators and other industries.
◇Recommend Formulation: HH2686—E12
|
Material |
HH-2686 |
E12 |
Filler ＆ Pigment |
Leveling |
Benzoin |
701 |
|
Formula |
360 |
240 | 383 | 8 | 4 | 5 |
◇Basic Features:
Excellent leveling
Outstanding mechanical properties
Good chemical resistance
Good storage stability
◇Curing Requirement: 180℃×15min or 200℃×10min
◇More Codes:
| Code | Ratio | Cure Cycle | AV (mgKOH/g) | Viscosity (mPa.s/200℃) | Tg (℃) | Reactivity (s/180℃) | Properties |
| HH-2682 | 60/40 | 180℃*10min | 47~55 | 2500~4500 | ~56 | 150-250 | For fast cure formulation. High Tg, excellent flow and good mechanical properties. |
| HH-2683 | 60/40 | 180℃*15min | 47~55 | 2500~3500 | ~54 | 90-150 | General purpose resin with good flow, good chemical resistance and mechanical properties. |
| HH-2683B | 60/40 | 180℃*15min | 47~55 | 2500~3500 | ~54 | 120-180 | Non-tin version of HH2683. |
| HH-2685 | 60/40 | 180℃*20min | 47~55 | 2500~3500 | ~58 | 200-300 | Excellent flow, high gloss. Suitable for alloy wheel-hub powder coatings. |
| HH-2608 | 60/40 | 200℃*15min | 50~60 | 2500~4500 | ~55 | 250-450 | Outstanding flow, high gloss, excellent mechanical properties. |
| HH-2686P | 60/40 | 200℃*10min | 50~60 | 2500~4500 | ~55 | 240-360 | General purpose resin. Excellent flow and strong anti-interference ability. Good balance of properties. Suitable for matt powder coatings. |
| HH-2687 | 60/40 | 200℃*10min | 51~66 | 3000~5000 | ~60 | 200-300 | High Tg, excellent flow, good mechanical properties. |
◇Package: PE Bags, Net Weight 25kg±0.1kg / bag
◇Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).

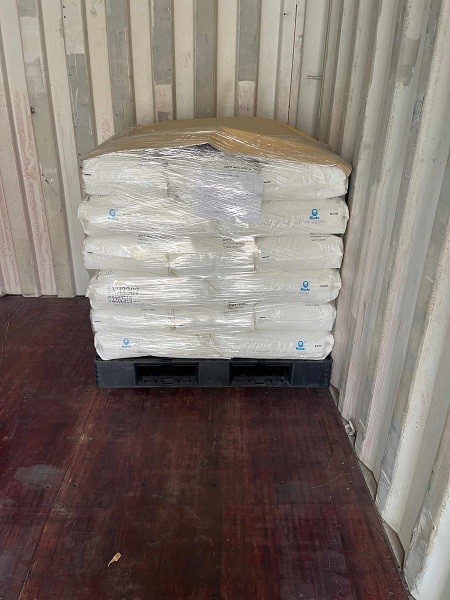

◇Product Show:
