Thermosetting 70/30 Epoxy Polyester Resin For Hybrid Powder Coatings

Basic Information
Place of Origin: China
Brand Name: KINTE
Certification: ROHS, ISO90001, ISO14000, Reach, Qualicoat
Model Number: HH2783
Minimum Order Quantity: 500Kg
Price: Negotiable
Packaging Details: 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP
Delivery Time: 10 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 80,000 tons per year
Curing Type: 70:30 Epoxy Polyester Cure Curing Condition: 180°C/15mins
Acid Value (mgKOH/g):: 29~35 Viscosity (mPa.s/200°C): 4500~6500
Advantage: Excellent Mechanical Properties Properties: Good Flow, Good Balance Of Properties
Appearance: White Or Light Yellow Transparent Flakes Application: General Purpose Resin
Highlight:

70/30 Epoxy Polyester Resin

,

Thermosetting Epoxy Polyester Resin

Thermosetting 70:30 Epoxy Polyester Resins for Hybrid Powder Coatings, General Purpose Resin



Thermosetting Epoxy Polyester Resin HH2783 for 70:30 Hybrid Powder Coatings



HH2783 is a carboxyl polyester resin designed for 70/30 hybrid powder coatings, which are mainly used indoors, such as household appliances, metal furniture, instrumentation, indoor fitness equipment, radiators, etc.



Basic Features:

Excellent Mechanical Properties

Good Leveling

Good Comprehensive Performance



Recommend Formulation: HH2783—E12

HH2783 E12 Filler & Pigment Leveling Agent Benzoin Leveling Additive 701
420 180 383 8 4 5



Specifications:

Appearance White or Light Yellow Transparent Flakes
Color (50% DMF) max:2
Acid Number (mgKOH/g) 29~35
Softening Point (℃) 98~110
Glass Transition Temp. ( ℃) ~57
Melting Viscosity (ICI, mPa·s/200℃) 5500±1000
Reactivity at 180℃ (s, 30% Epoxy) 240±60
Curing Requirement 180℃×15min
Package PE Bags, Net Weight 25kg±0.1kg / bag



Code Ratio Cure Cycle AV (mgKOH/g) Viscosity (mPa.s/200℃) Tg (℃) Reactivity (s/180℃) Properties
HH-2781 70/30 180℃*10min 30~36 4500~6500 ~56 120-240 Economic resin. Fast Cure, good flow and impact resistance. TMA free.
HH-2781T 70/30 180℃*10min 30~36 4000~5500 ~55 100-200 HH2781T is tribo chargerable of HH2781.
HH-2782 70/30 180℃×10~20min 29~34 5000~7000 ~60 160-240 Outstanding mechanical properties, good leveling, good storage stability, good Chemical resistance. TMA free
HH-2782G 70/30 180℃*15min 29~35 5800~7000 ~60 180-280 Good storage stability, good balance of properties. TMA free.
HH-2783 70/30 180℃*15min 29~35 4500~6500 ~57 180-300 General purpose resin. Excellent mechanical properties, good flow, good balance of properties.
HH-2784 70/30 180℃×15min or 200℃×10min 29~35 4500~6500 ~57 240-360 Good mechanical properties, good storage stability, good flow. TMA free



Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).

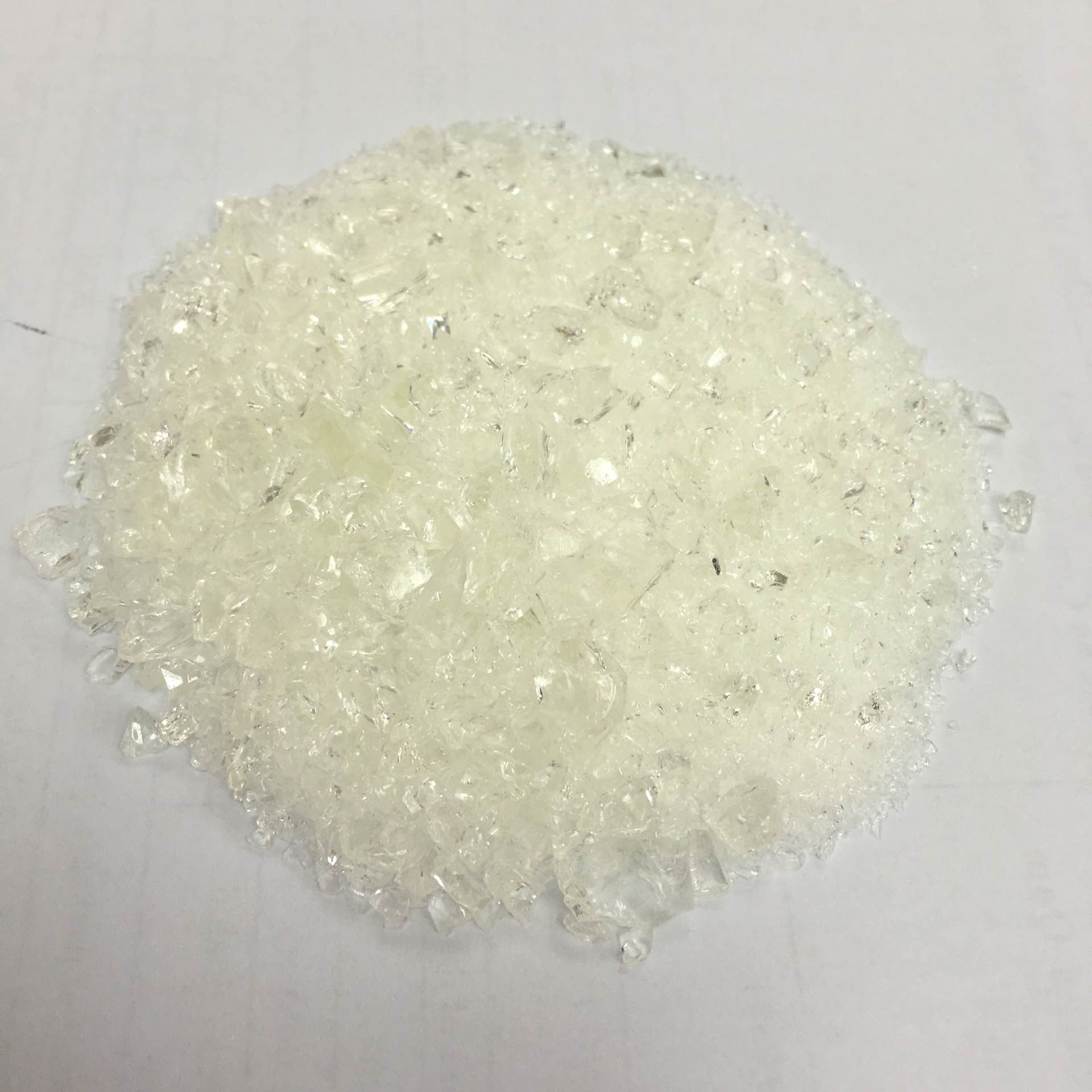

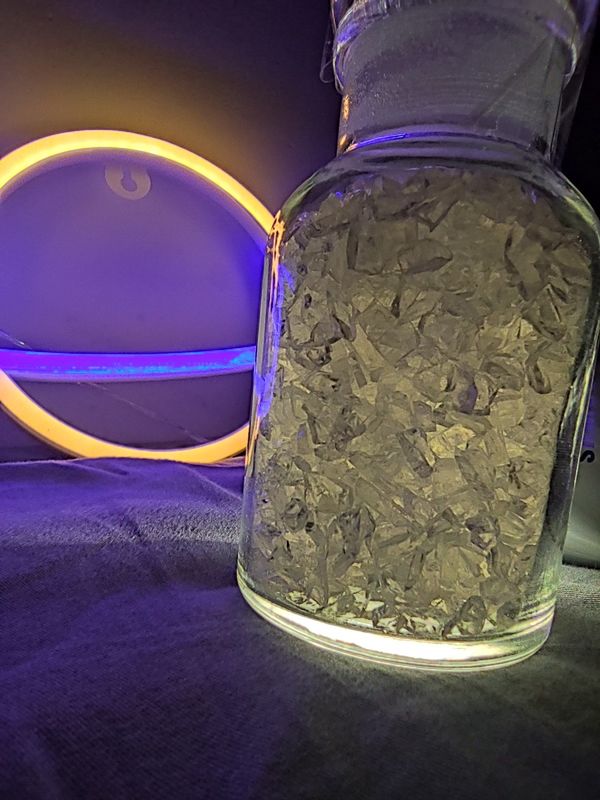

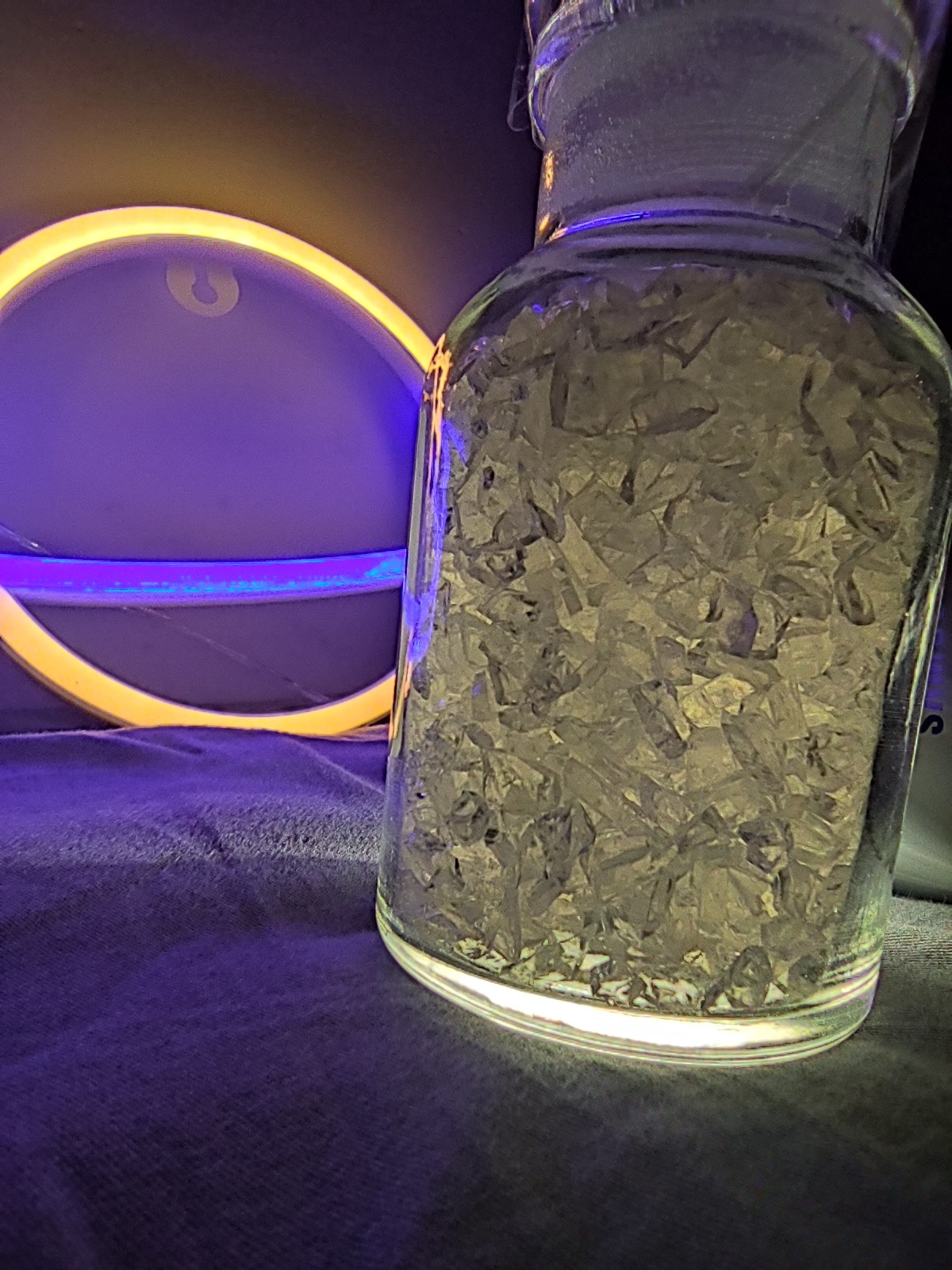

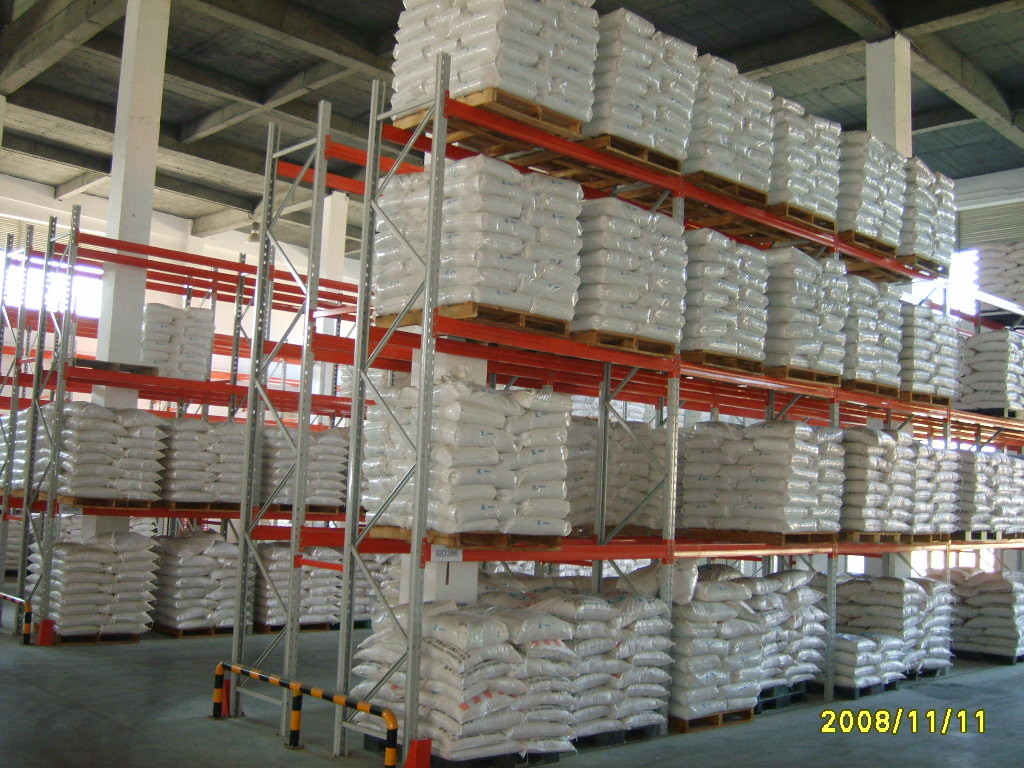

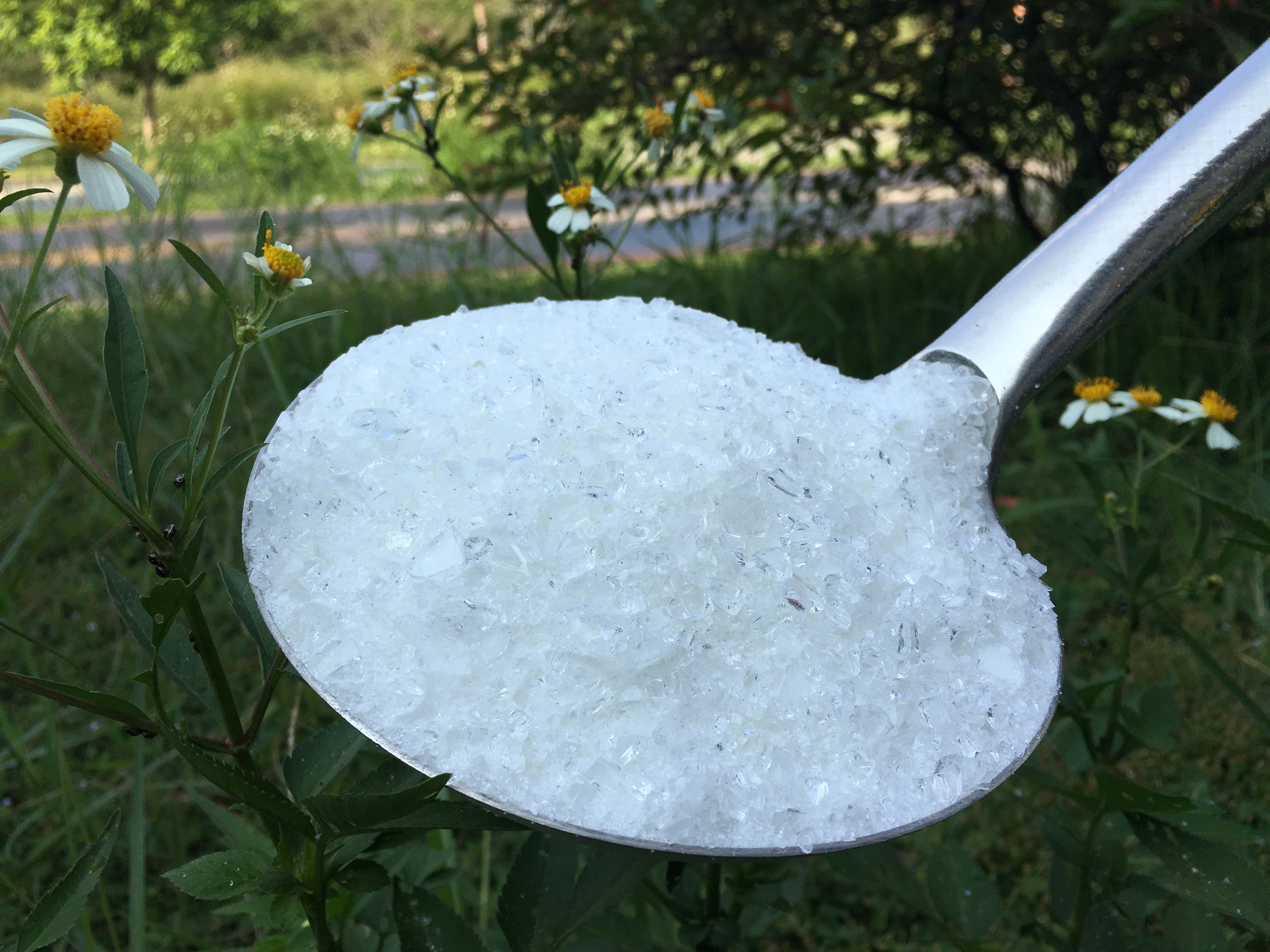

◇Product Show:

Thermosetting 70/30 Epoxy Polyester Resin For Hybrid Powder Coatings 0

Thermosetting 70/30 Epoxy Polyester Resin For Hybrid Powder Coatings 1Thermosetting 70/30 Epoxy Polyester Resin For Hybrid Powder Coatings 2
