Ultra Weather Resistant Thermoset Powder Coating Anti Corrosion For Electric Cabinet

Basic Information
Place of Origin: China
Brand Name: KINTE
Certification: ISO90001, ISO14000, Rosh, Reach
Model Number: Anti-corrosion Super Durable Powder Coating Series
Minimum Order Quantity: 100Kg
Price: Negotiable
Packaging Details: 20Kg per Box
Delivery Time: Within 10 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 500 tons per month
Color: Various Color, Depends On Customers’ Requirements Basic Property: Anti-corrosion And Super Durable
Application: Suitable For Product Coating Of Various Outdoor Long-term Exposure Appliance Method: Electrostatic Spraying Or Fluidized Bed Dipping
Curing Craft: Two Coats And One Bake Or Two Coats And Two Bakes Curing Condition: 200ºC/15min, Could Be Designed According To User Needs
Neutral Salt Spray Test: 1500h Passed Aging Test: 1500h Passed
Highlight:

Ultra Weather Resistant Thermoset Powder Coating

,

Anti Corrosion Thermoset Powder Coating

,

Electric Cabinet Thermoset Powder Coating

Anti-corrosion and Ultra-weather Resistant Thermoset Powder Coating for Electric Cabinet





◎ Introduction



This series of powder coatings has good adhesion, and the coating film has excellent corrosion resistance and outdoor aging resistance. It is suitable for the coating of various outdoor products exposed to the sun for a long time.

Some electrical and communication cabinets are exported to countries with marine climates such as Northern Europe, Finland, Norway, etc., which have high requirements on the weather resistance and corrosion resistance of powder coatings, and meet the highest performance requirements of 1500 hours of neutral salt spray test and 1500 hours of aging test.





◎ Key Features



Good adhesion

Excellent corrosion resistance

Excellent outdoor aging resistance

Not includes a solvent and other volatile, environmental-friendly.





◎ Composite Coating Properties



Properties Index Test Result
Adhesion (75±3ºC, 48h) ≤ Grade 2 Grade 2
Impact Resistance 50Kg·cm Pass
Adhesion (Cross-Hatch) Grade 0 Grade 0
Flexibility 3mm 3mm
Pencil Hardness ≥ 1H 2H
Cupping Test ≥ 5mm 6mm
Salt Spray Test 1500h Corrosion width ≤ 3mm Corrosion width ≤ 2mm
Damp Heat Test 1000h No bubbles, no falling off No bubbles, no falling off
Water Resistance 3000h No bubbles, no falling off No bubbles, no falling off
Natural Weather Resistance (10 years of natural exposure in Hainan) Gloss retention ≥ 60%, color difference ≤ 3.0 Gloss retention ≥ 66.4%, color difference: 2.3
Artificial Accelerated Aging Xenon Lamp 1500h Gloss retention ≥ 60%, color difference ≤ 3.0 Gloss retention: 80.8%, color difference: 0.31





◎ Coating Craft



Spraying Craft: Primed with epoxy (zinc rich) insulating powder, top coat with polyester super weather resistant powder.

Spraying Method: Electrostatic spraying or fluidized bed dipping.

Curing Craft: Two coats and one bake or two coats and two bakes.

Curing Condition: 200ºC/15min, could be designed according to user needs.

Film Thickness: It is determined according to the actual application of the customer.

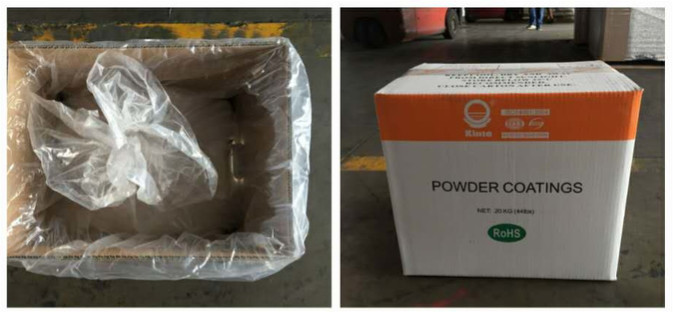

◎ Transportation and Storage



Carton packaging, net weight 20 or 25kg.

Non-dangerous goods, no special transportation requirements.

Store in a cool, dry place below 25°C.

Shelf Life: 6 months.

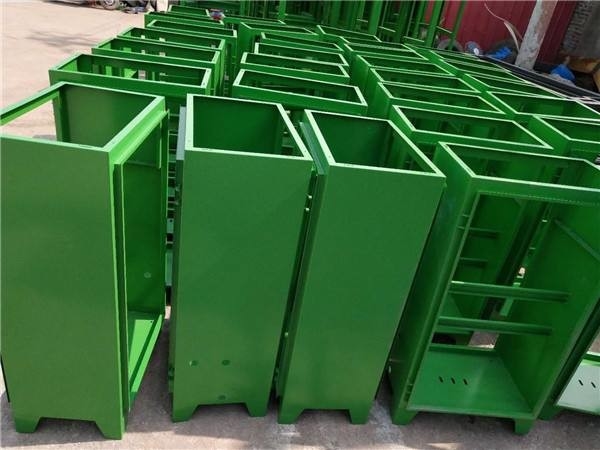

◎ Application Examples



Primed epoxy powder

Ultra Weather Resistant Thermoset Powder Coating Anti Corrosion For Electric Cabinet 0



Top coat with super weather resistant powder

Ultra Weather Resistant Thermoset Powder Coating Anti Corrosion For Electric Cabinet 1
