Place of Origin: | China |
---|---|
Brand Name: | KINTE |
Certification: | ISO90001, ISO14000, Rosh, Reach |
Model Number: | Fire and Thermal Insulation Powder Coating Series |
Minimum Order Quantity: | 100Kg |
Price: | Negotiable |
Packaging Details: | 20Kg per Box |
Delivery Time: | Within 10 working days |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 500 tons per month |
Color: | Various Color, Could Be Designed According To User Requirements | Advantages: | Excellent Fire And Thermal Insulation Properties |
---|---|---|---|
Application: | Fire Doors, Fire Busway, Steel Structure, Etc | Appliance Method: | Electrostatic Spraying Or Fluidized Bed Dipping |
Curing Condition: | 160ºC—180ºC/10-15 Min | Density: | 1.2 ~ 1.6 G/cm3 |
Impact Strength (Normality): | ≥ 30Kv/mm | Volume Electric Resistance Rate (Normality): | ≥ 10∧15Ω·cm |
Highlight: | IOS9001 Thermosetting Powder Coating,Fire Insulation Thermosetting Powder Coating,30Kv/mm Thermosetting Powder Coating |
Excellent Fire and Thermal Insulation Performance, IOS9001 Thermosetting Powder Coating
◎ Introduction
Fire and thermal insulation coatings are generally divided into two categories: intumescent and non-intumescent according to their thermal insulation mechanism.
Intumescent fire-resistant and heat-insulating coating mainly softens and expands rapidly when the coating is exposed to fire, and expands to form a hollow carbonized layer 10-100 times thicker than the original coating. The highly expanded carbonized layer blocks the heat transfer of flame to the substrate, so as to achieve the effect of heat insulation.
The non-intumescent fire-resistant and heat-insulating coating mainly uses the inorganic heat-insulating material in the coating and the heat-absorbing effect generated by the evaporation and decomposition of some components at high temperature to block and consume the heat of the external flame to achieve the heat-insulation effect.
The traditional fire and heat insulation coatings are solvent-based coatings, which have environmental protection and health risks. Currently, the switch from "paint to powder" is being carried out. Powder coatings have no VOC emissions and belong to green environmental protection coatings.
◎ Key Features
Excellent fire insulation performance
Excellent thermal insulation properties
Not includes a solvent and other volatile, environmental-friendly.
◎ Basic Application
Including but not limited to the protective coating of metal parts such as steel structures, fire doors, fire bus ducts, etc.
◎ Basic Properties Index
Properties | Index | Test Method |

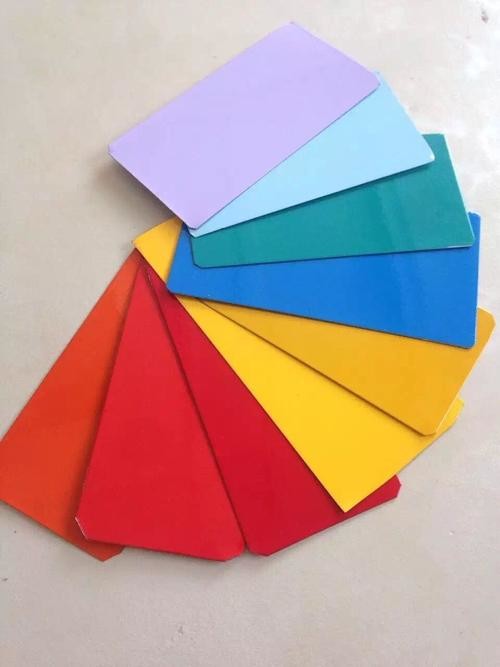

Film Appearance | Color and appearance can be customized according to customer requirements | Eyeballing |
Apparent Density | 1.2 ~ 1.7g/cm3 | GB/T 6554-2003 |
Impact Strength (Normality) | ≥ 30Kv/mm | GB/T 6554-2003 |
Volume Electric Resistance Rate (Normality) | ≥ 10∧15Ω·cm | GB/T 6554-2003 |
Salt-spray Test | 1000h, ≤ 2mm, No bubbles, no falling off | GB/T /T1771-2007 |
Insulated Heat-resistance Level | Grade B, ≥130ºC | UL746B |
Corner Coverage | ≥ 60% | GB/T 6554-2003 |
Inflaming Retarding | V-0 Grade | UL-94 |
Fire Resistance Limit | 0.50 - 1.00h | GB14907-2018 |
Bond Strength | ≥ 0.15Mpa | GB14907-2018 |
Moisture and Heat Resistance | 1000h | GB14907-2018 |
◎ Related Tests
Butane spray gun spraying, the coating is softened and foamed by heating, carbonized expansion and heat insulation.
Alcohol lamp burns for 5 minutes without ignition.
Natural gas burns for 1 minute, and there is no ignition phenomenon on the sand surface.
The muffle furnace high temperature test and the coating adhesion test result is grade 0.
Coating temperature resistance 500ºC/1h without falling off.
◎ Coating Craft
Spraying Craft: Electrostatic spraying or fluidized bed dipping are available, depending on coating thickness requirements.
Curing Condition: 160ºC—180ºC/10-15 min (actual temperature of workpiece surface)
◎ Transportation and Storage
Carton packaging, net weight 20 or 25kg.
Non-dangerous goods, no special transportation requirements.
Store in a cool, dry place below 25°C.
Shelf Life: 6 months.

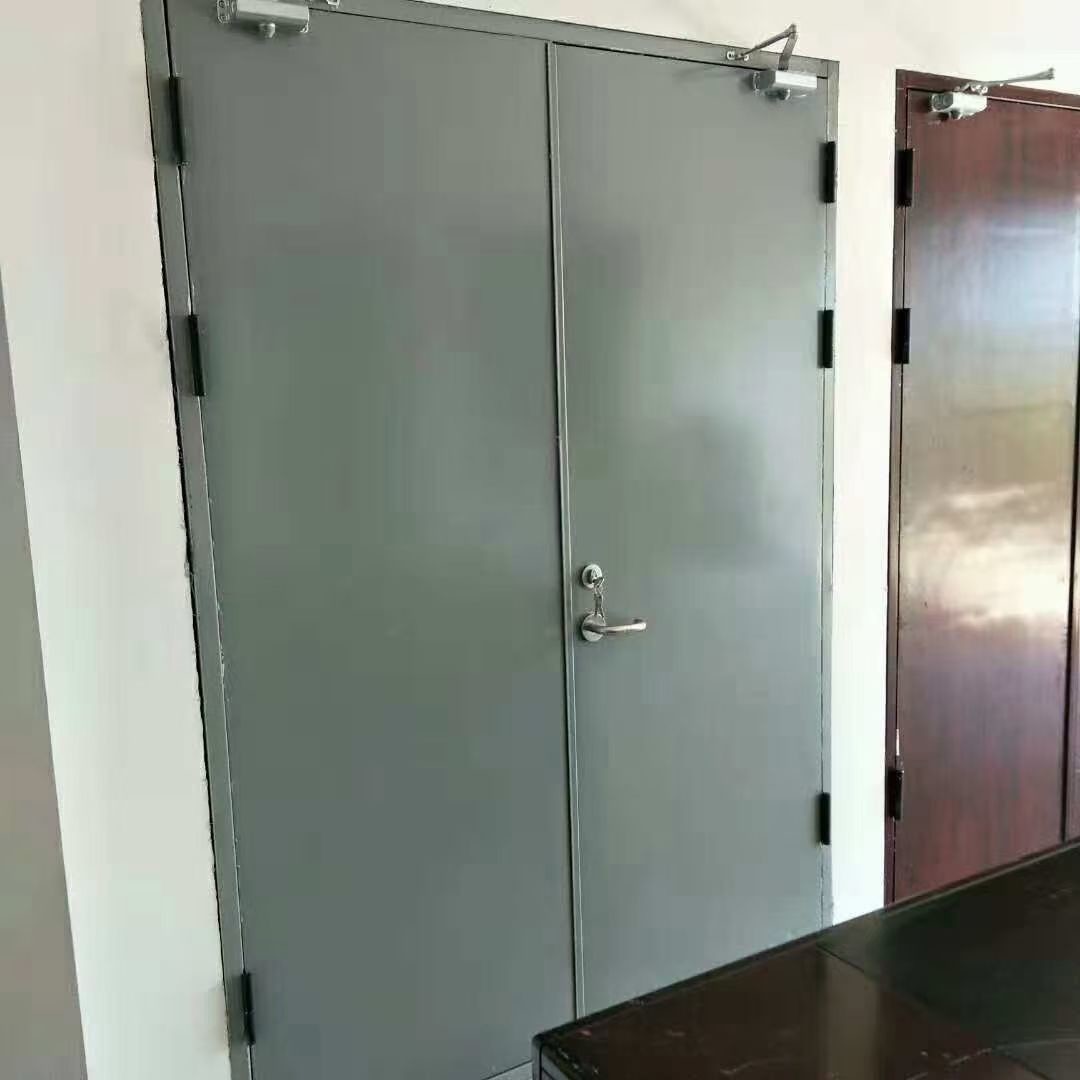

◎ Application Examples
