FBE Powder Coating With Excellent Corrosion Protection Epoxy polyester Resin Powder Coating For Oil Pipelines

Basic Information
Place of Origin: China
Brand Name: KINTE
Certification: Rohs, Reach, ISO90001, ISO14000
Model Number: KT-201
Minimum Order Quantity: 1000Kg
Price: Negotiable
Packaging Details: 25Kg per Carton
Delivery Time: Within 10 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 25Kg per Carton
Product Type: Fusion Bonded Epoxy Powder Coating Color: Various, Depends On Users Requirements
Film Surface: Flat, Uniform Color, No Bubbles, No Cracks Advantage: Excellent Properties Of Corrosion Resistance
Application: For Steel Pipelines Carrying Oil, Gas, Water And Others Application Craft: Electrostatic Spraying
Curing Conditions: 200°C/5~10min Recommended Film Thickness: ≥300µm
Highlight:

Corrosion Protection FBE Powder Coating

,

Oil Pipelines FBE Powder Coating

FBE Powder Coating with Excellent Corrosion Protection, Epoxy Resin Powder Coating for Oil Pipelines





◎Introduction



The KT-201 thermosetting epoxy powder is designed to protect pipelines from corrosion in the most demanding operating environments. This product has excellent properties of corrosion resistance and can be wildly used in anti-corrosion for steel pipelines carrying oil, gas and water and others.

This product has been certified to meet the requirements of CSA Z245.20-18 standard.





◎Product Features



The film has high density and adhesion.

Excellent chemical corrosion resistance.

Excellent physical mechanical properties.

Curing reaction speed can be adjusted according to the customer request to satisfy the requirement of different spraying.





◎Powder Properties



Items Acceptance Criteria Test Result Test Standard
Color Various Various Visual Color-Pass
Cure Time (232±3℃, min) ≤3min 1 CSA Z245.20.14 Section 12.1
Gel Time (205±3℃, s) 10-30 22 CSA Z245.20.14 Section 12.2
Moisture Content, % ≤0.6 0.29 CSA Z245.20.14 Section 12.4
Particle Size ≥150µm, % ≤3.0 2.5 CSA Z245.20.14 Section 12.5
≥250µm, % ≤0.2 0
Density (g/cm3) 1.45±0.05



1.46

CSA Z245.20.14 Section 12.6
Thermal Properties Tg1, ℃ 50-70 58.33 CSA Z245.20.14 Section 12.7
Tg2, ℃ ≥100 102.56
ΔH, J/g 35-60 39.58
Shelf Life @25℃ 12months
Theoretical Coverage 0.69 m2/kg/mm





◎Film Properties



Items Acceptance Criteria Test Result Test Standard
Recommended Film Thickness (µm) ≥300
Thermal Properties ΔTg ≤3℃ 0.79 CSA Z245.20 Section 12.7



Cathodic Disbondment

24 Hours, -3.5V, 65℃, ≤6.5mm

28 Days, -1.5 volt, 23℃, ≤8mm

28 Days, -1.5 volt, 65℃, ≤10mm

28 Days, -1.5 volt, 95℃, ≤15mm

1.1

1.3

4.5

5.6



CSA Z245.20 Section 12.8

Porosity

Cross-section, Rating ≤3

Interface, Rating ≤3

1

2

CSA Z245.20 Section 12.10
Flexibility bending, -30℃, 3°, No Cracking No Cracking CSA Z245.20 Section 12.11
Impact Resistance 1.5J, -30℃ No Holidays CSA Z245.20 Section 12.12
2.5° Strained Coating 28d Cathodic disbondment No Holidays CSA Z245.20 Section 12.13
Adhesion, Rating 24 Hours, 75℃, 1 Rating 1 CSA Z245.20 Section 12.14
28d, 75℃, 1-2 Rating 1
28d, 95℃, 1-2 Rating 2
Tabor Abrasion

Cs-17 1kg 5000r ≤300mg



200 ASTM D4060
Hardness Shore hardness >80 87 ASTM D2240
Pull-Off Adhesion >20MPa 35MPa ASTM D4541
Volume Resistivity >1.0*1015 Ω-cm 2.0*1015 ASTM D257
Dielectric Strength >30 MV/m 43.5 ASTM D149
Chemical Restraints

10% NaCl Solution, 30d, 23℃

No blistering or disbondment

Pass ASTM G20

10% NaOH Solution, 30d, 23℃

No blistering or disbondment

Pass

10% HCl Solution, 30d, 23℃

No blistering or disbondment

Pass

20% Na2CO3 Solution, 30d, 23℃

No blistering or disbondment

Pass

5% HAc Solution, 30d, 23℃

No blistering or disbondment

Pass

30% H2SO4 Solution, 30d, 23℃

No blistering or disbondment

Pass

10% HNO3 Solution, 30d, 23℃

No blistering or disbondment

Pass
Methyl Alcohol 30d, 23℃ Pass

Note: prepare specimens process

1) abrasive blasting to Sa2.5 near-white metal with surface profile of 50-100 microns. Then, cleaning the surface with high pressure gas

2) Put the specimen into the oven (200℃), preheat 40-60 min.

3) Spray the powder to the preheated specimen with electrostatic spray gun, then put it to the oven, keep 5-10 minutes at 200℃

4) The dry film thickness is 350±50µm.





◎Coating Reference



1. Application: Factors such as plant capability, specifications, and pipe construction or characteristics can affect application conditions. The recommended application temperature range is 200-220ºC.

2. Surface Preparation: Remove all surface contamination before abrasive blasting. Blast clean using steel grit to Sa2.5 near-white metal with a minimum surface profile of 2 mils/51 microns.





◎Precautions



1. All data are based on laboratory testing and practical experience.

2. It is recommended that the product should pass process evaluation before mass use, so as to avoid unnecessary loss to customers due to various reasons such as process.





◎Package and Storage



1. The package is 25kg per box, lined with polyethylene plastic bags. In the course of shipment, it should be loaded or unloaded lightly and avoid direct sunlight and heat and moisture.

2. The product should be stored in a cool, ventilated, dry room with temperature below 25℃ and humidity below 65%.

3. Keep away from fire and heat and tide.

4. After use, it should be sealed in time to prevent powder from being been polluted and damped.

5. Reduce the number of movement to avoid impact and pressure.

6. The maximum stacking height should not exceed 5 layers.





◎Product Show

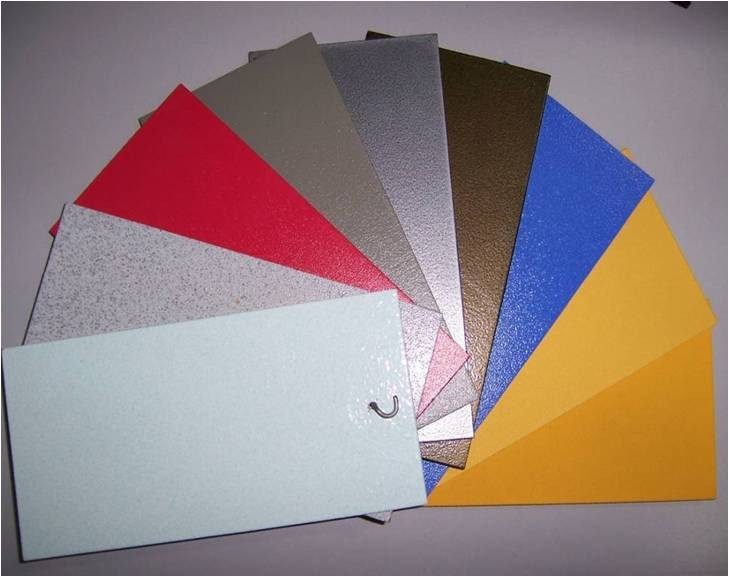

FBE Powder Coating With Excellent Corrosion Protection Epoxy polyester Resin Powder Coating For Oil Pipelines 0

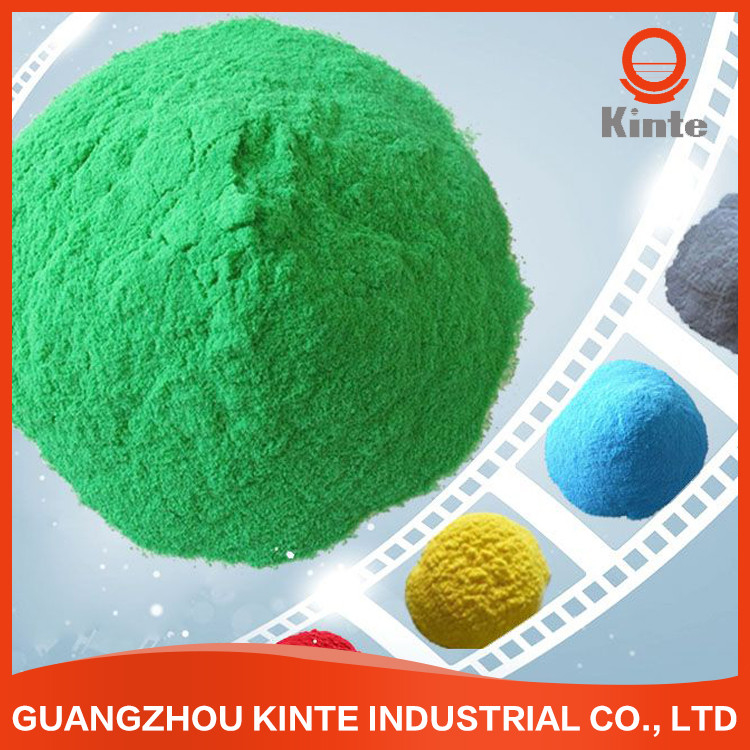

FBE Powder Coating With Excellent Corrosion Protection Epoxy polyester Resin Powder Coating For Oil Pipelines 1

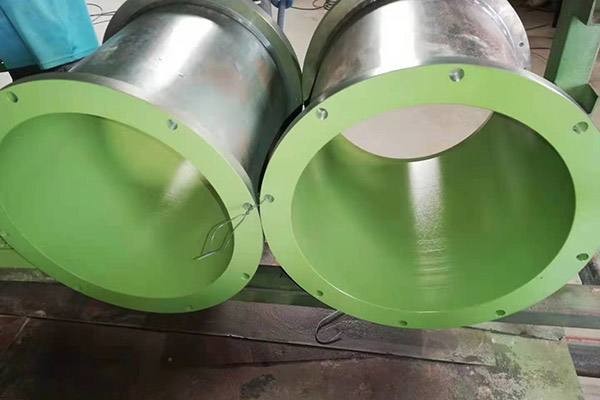

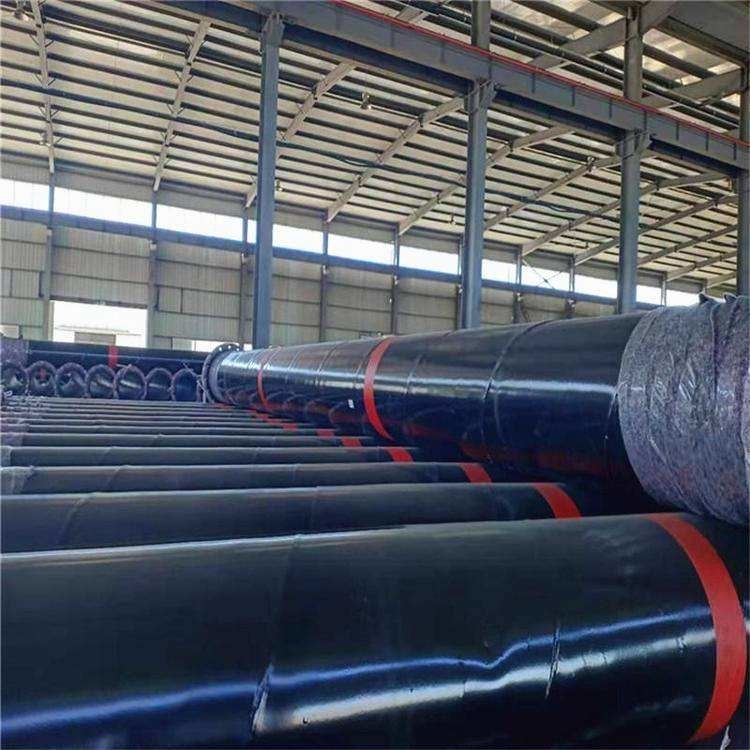

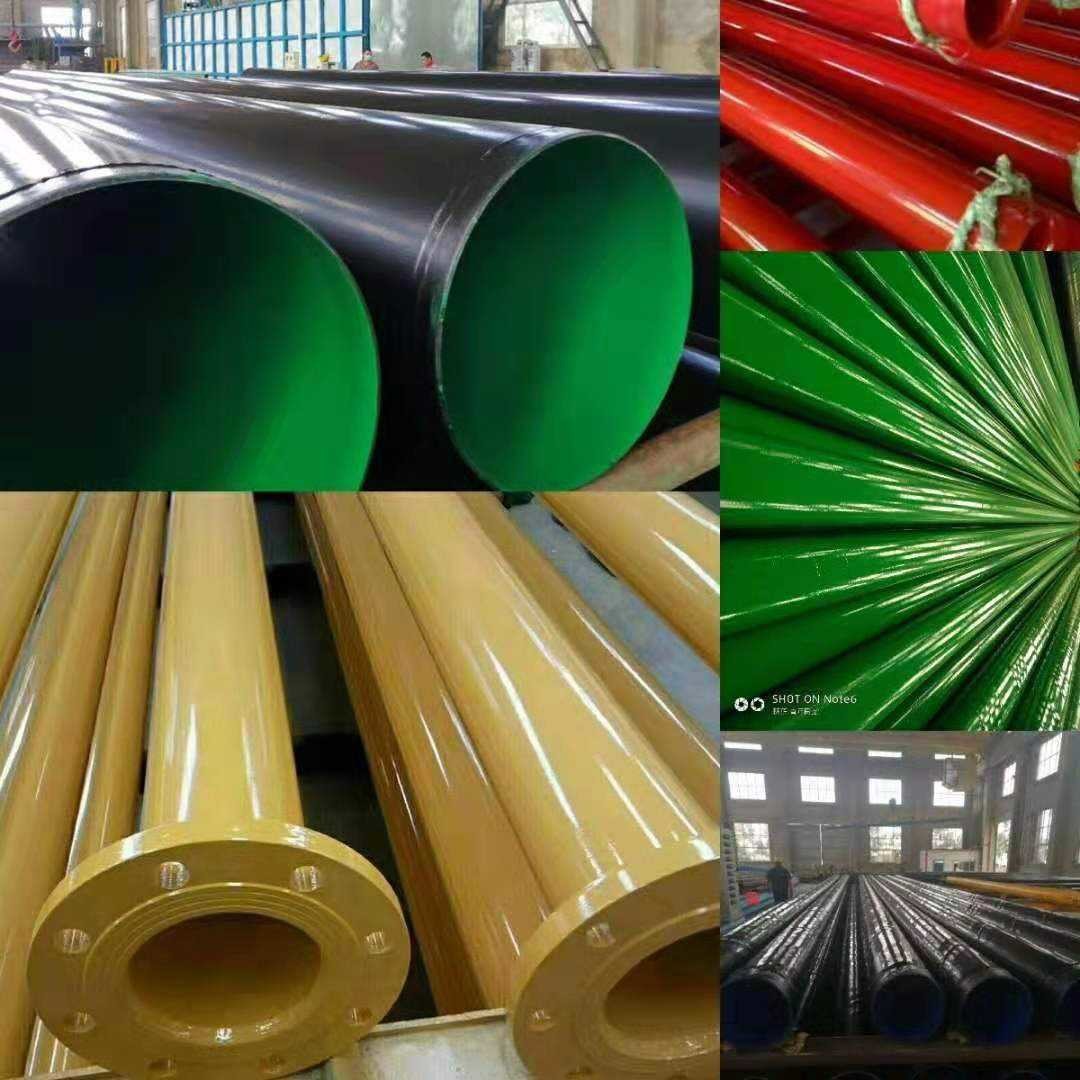

FBE Powder Coating With Excellent Corrosion Protection Epoxy polyester Resin Powder Coating For Oil Pipelines 2FBE Powder Coating With Excellent Corrosion Protection Epoxy polyester Resin Powder Coating For Oil Pipelines 3FBE Powder Coating With Excellent Corrosion Protection Epoxy polyester Resin Powder Coating For Oil Pipelines 4
