| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | NH3408 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Curing Type: | 93:7 Polyester/TGIC | Curing Requirement: | 200℃×10~15min |
|---|---|---|---|
| Acid Number (mgKOH/g): | 27-32 | Melting Viscosity (mPa·s/200℃): | 6000±1000 |
| Softening Point (℃): | 101～115 | Glass Transition Temp.(℃): | ～ 65 |
| Properties: | Excellent Extinction, Mechanical And Boiling Resistance | Application: | Suitable For Matte/high Gloss Powder Coatings |
| Highlight: | Boiling Resistance TGIC Polyester Resin,TGIC Polyester Resin Powder Coatings |
||
Excellent Boiling Resistance 93/7 TGIC Polyester Resin Powder Coatings
◎Introduction
NH3408 is a saturated polyester resin designed for TGIC powder coating systems. It features outstanding leveling performance, excellent extinction, mechanical and boiling resistance, good storage stability, suitable for matte/high gloss powder coatings.
In today's market, powder coating is a widely used material. Unlike general solvent-based coatings and water-based coatings, powder coatings do not use a solvent as a dispersion medium but rely on air as a dispersion medium. Therefore, pollution is reduced, the environment is improved, and the health of operators is guaranteed.
According to the different gloss levels of powder coatings, there are high-gloss, flat, matte, and low-gloss types. The gloss of high-gloss powder coatings is generally greater than 75GU, while the flat type is between 45GU and 75GU. Between 10GU and 45GU is matte type, and the low-gloss powder coating is below 10GU. In addition, the powder coatings used in different environments are also different. For example, high-gloss powder coatings are mainly used outdoors, are relatively temperature-resistant, and are often used on air conditioners or street lamps; matte powder coatings are mainly used indoors, it’s not harmful to people's eyes.
◎Basic Features
Outstanding leveling performance
Excellent extinction, mechanical and boiling resistance
Good storage stability
Suitable for matte/high gloss powder coatings
◎Recommend Formulation:
| NH3408 | TGIC | Filler ＆ pigment | Leveling agent | Benzoin | 701 |
| 564 | 36 | 383 | 8 | 4 | 5 |
◎Specifications I:

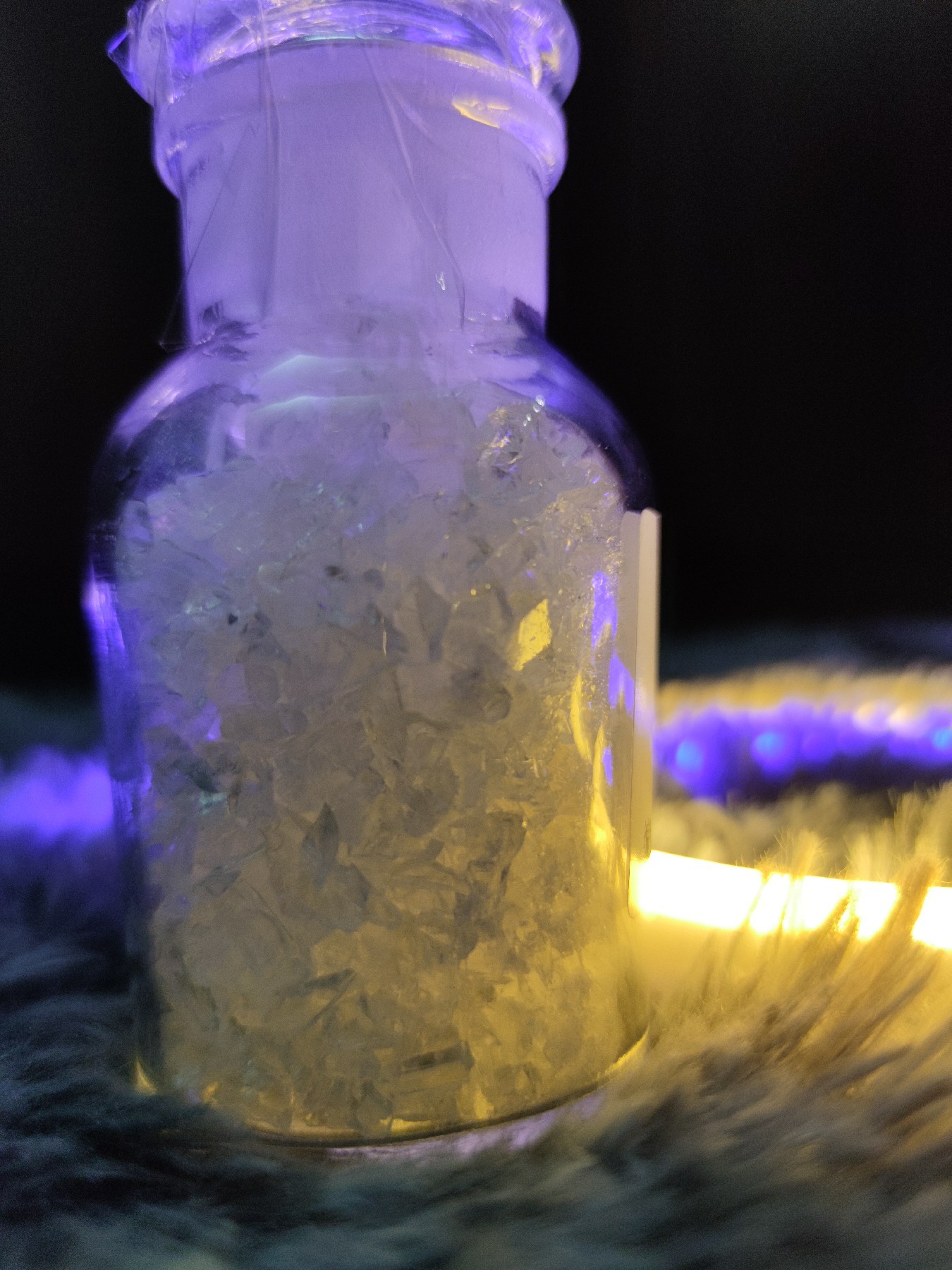

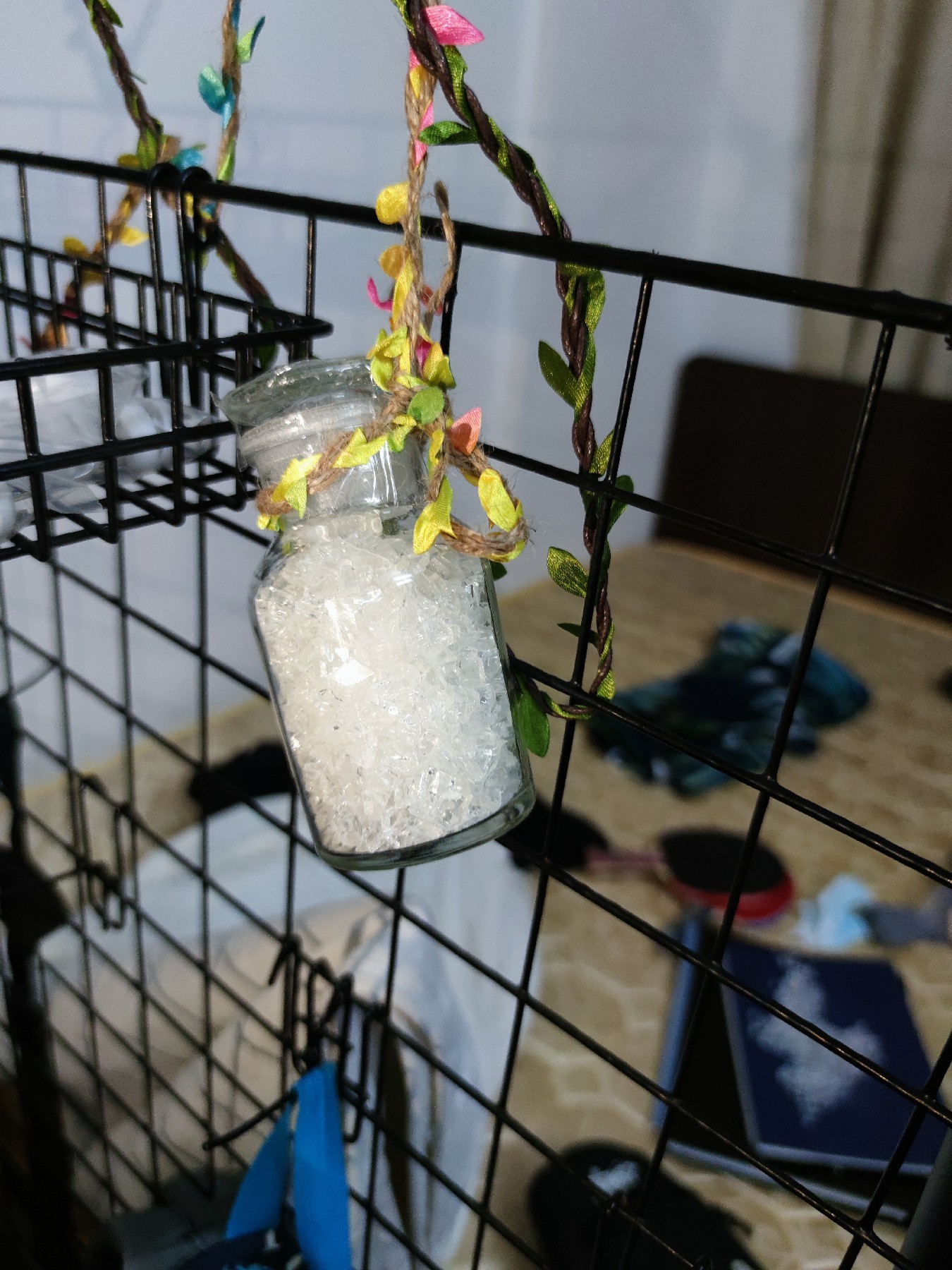

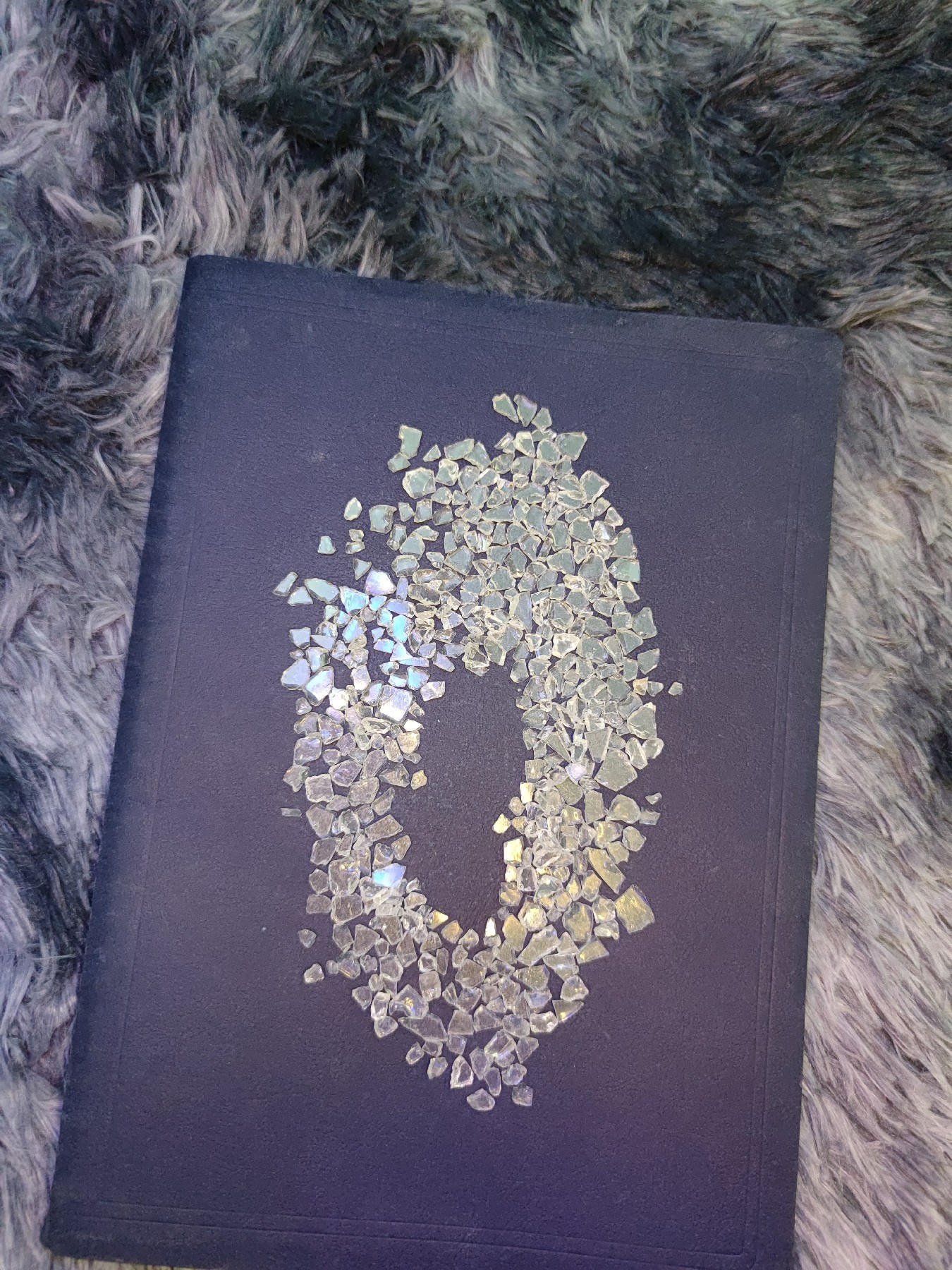

| Appearance | White or light yellow transparent flakes |
| Acid Number (mgKOH/g) | 27～32 |
| Softening Point (℃) | 101～115 |
| Glass Transition Temp. (℃) | ～65 |
| Melting Viscosity (ICI, mPa·s/200℃) | 6000±1000 |
| Reactivity at 180℃ (s, 6% TGIC) | 260±80 |
| Curing Condition | 200℃×10~15min |

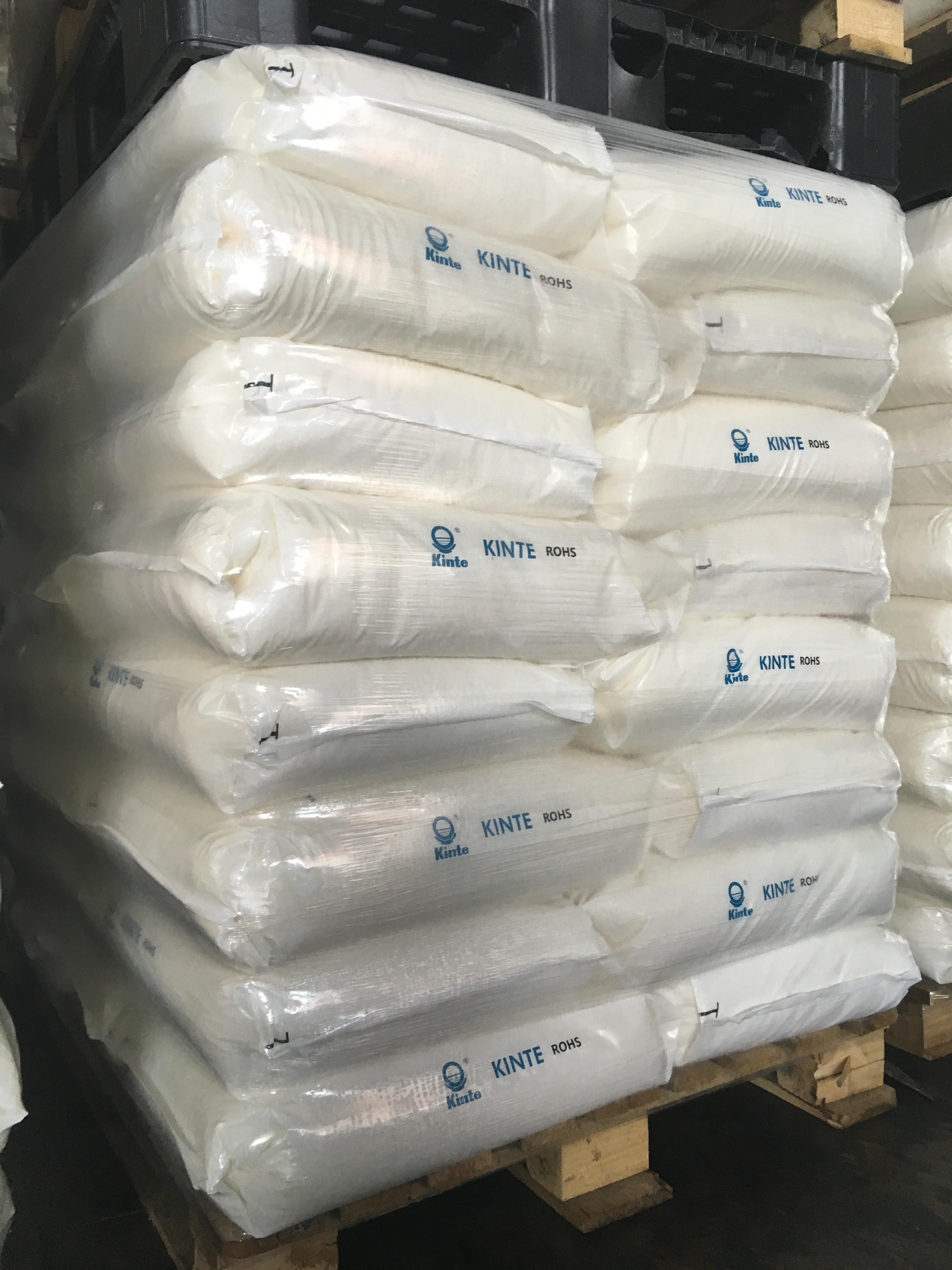

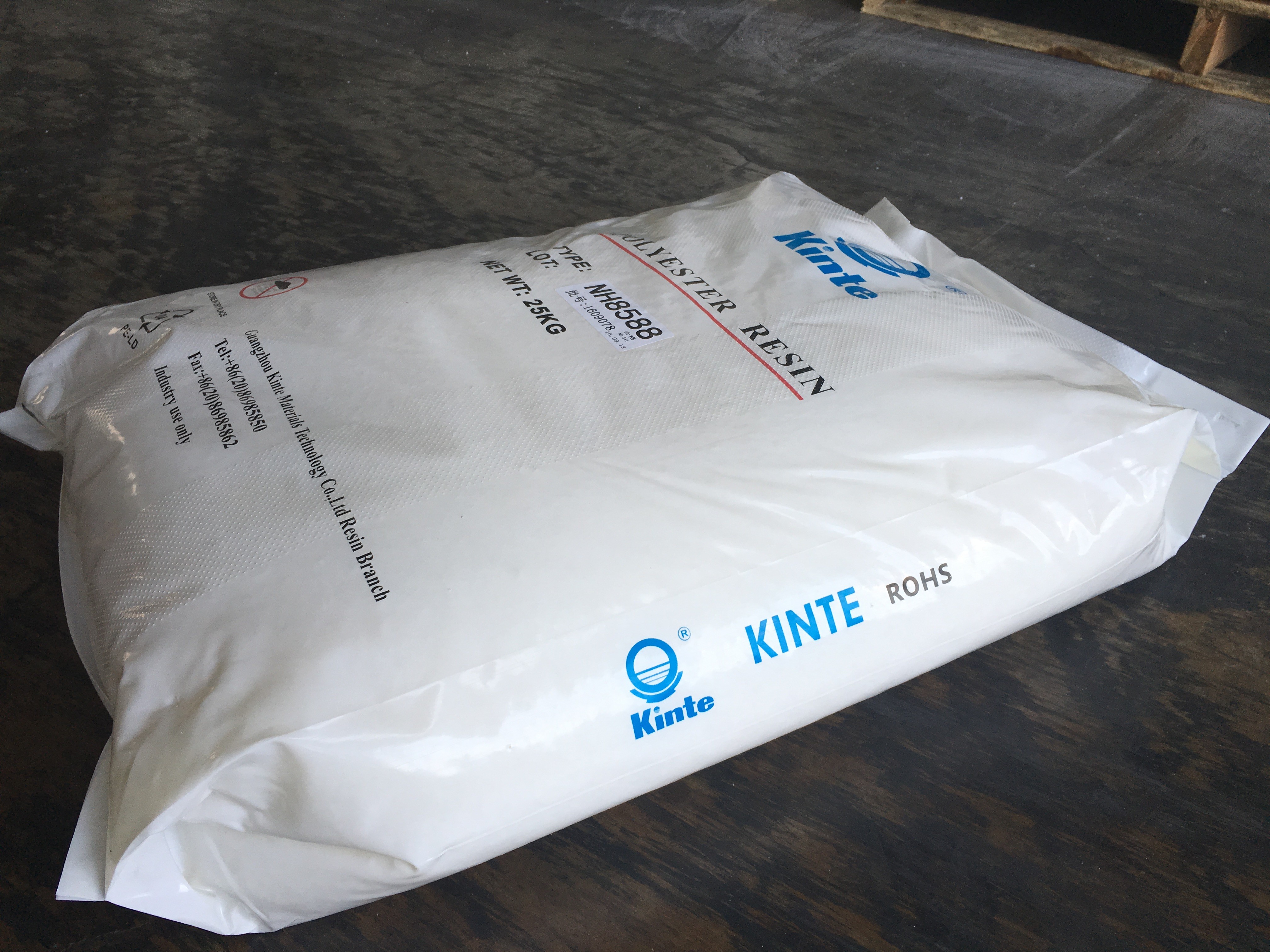

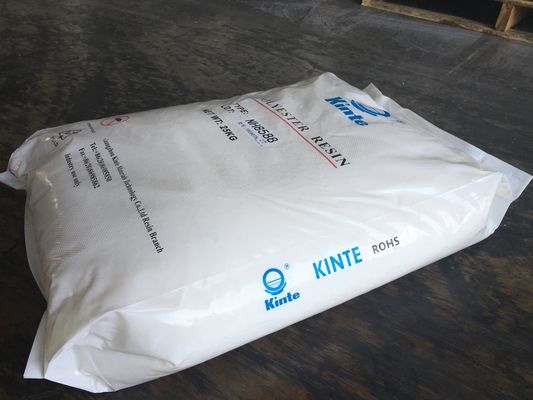

| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Specifications II:
| Extrusion Condition | Two-screw Extruder | |
| Jacket temperature | 110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～70μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 260~420 |
| Horizontal Flow (180℃, mm) | 25~29 | |
| Gloss (60°) | ≥85% | |
| Bending (φ1mm) | Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact (50cm) | Pass | |
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
