| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | HC6040 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Curing Ratio: | 60/40 Polyester/Epoxy | Curing Time: | 200℃×10min Or 180℃×15min |
|---|---|---|---|
| Acid Value (mgKOH/g): | 48-55 | Viscosity (mPa·s/200℃): | 3600±900 |
| Softening Point(℃): | 93～105 | Glass Transition Temp.(℃): | ～ 51 |
| Properties: | Excellent Leveling And Good Mechanical Properties | Application: | Suitable For Mixed Powder Coating System |
| Highlight: | Chemical Resistance Polyester Epoxy Resin,60/40 Polyester Epoxy Resin |
||
60/40 Polyester Epoxy Resin with Outstanding Chemical Resistance
◎Introduction
HC6040 is a saturated polyester resin, which is mainly used in 60 (polyester) / 40 (epoxy) mixed powder coating system.
Compared with traditional liquid coatings, powder coatings have the characteristics of energy-saving, environmental protection, and excellent comprehensive performance. Whether it is a powder coating raw material manufacturer, especially the main raw material polyester resin factory, or a powder coating manufacturer, it is necessary to test the performance of the powder coating. Among them, the chemical resistance of coatings, as an unconventional property, has an important influence on the protection of plates (substrates) used in highly corrosive environments.
Epoxy resin has excellent physical and mechanical properties and chemical resistance and is mostly used in anti-corrosion powder coatings. HC6040 can be well mixed with epoxy resin to make epoxy polyester powder coating, which makes the produced coating film not only have excellent leveling, and decoration, but also strong mechanical properties and chemical resistance.
◎Basic Features
Excellent leveling
Good mechanical properties
Outstanding chemical resistance
◎Recommend Formulation:
| HC6040 | E-12 | Filler ＆ Pigment | Leveling agent | Benzoin | 701 |
| 360 | 240 | 383 | 8 | 4 | 5 |
◎Specifications I:

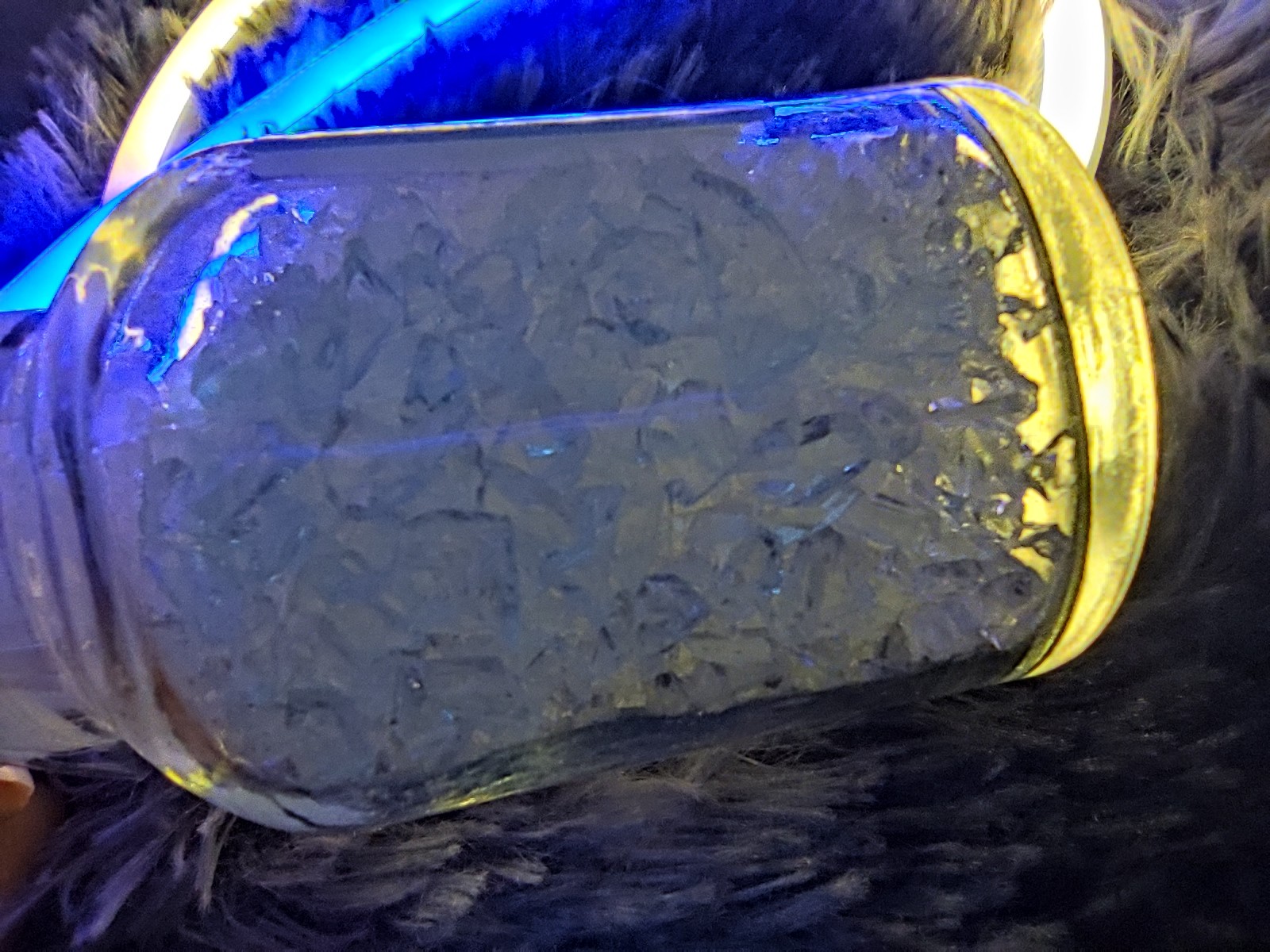

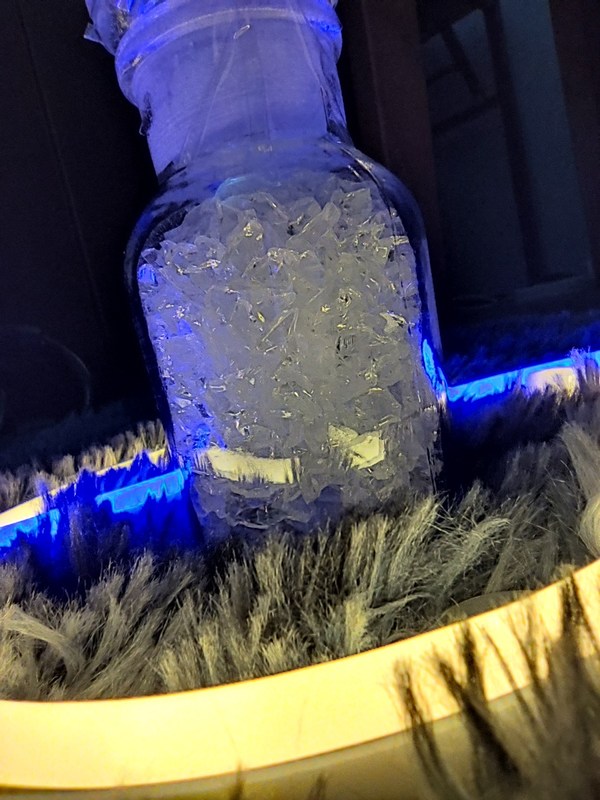

| Appearance | White or pale yellow transparent flakes |
| Acid Number (mgKOH/g) | 48～55 |
| Softening Point (℃) | 93～103 |
| Glass Transition Temp. (℃) | ～51 |
| Melting Viscosity (200℃, cone/plate, mPa·s) | 3600±900 |
| Reactivity at 180℃ (s, 40% E-12) | 200±100 |
| Curing Requirement | 200℃×10min or 180℃×15min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Specifications II:
| Extrusion Condition | Two-screw Extruder | |
| Jacket temperature | 110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～70μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 200~300 |
| Horizontal Flow (180℃, mm) | 26~30 | |
| Gloss (60°) | ≥90% | |
| Bending (φ1mm) | Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact (50cm) | Pass | |
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti-gas burners (G), tribo gun (T), and anti-blooming (F).
