| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | HH2608GT |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Cure Type: | 60/40 Polyester/Epoxy | Cure Requirement: | 200℃×15min |
|---|---|---|---|
| Acid Value (mgKOH/g): | 53-57 | Viscosity (mPa·s/200℃): | 3000～4500 |
| Softening Point(℃): | 95～105 | Glass Transition Temp.(℃): | ～ 55 |
| Properties: | Excellent Gas Oven Stability | Application: | For 60/40 Hybrid Powder Coatings For General Purpose |
| Highlight: | General Purpose Polyester Epoxy Resin,60/40 Hybrid Powder Polyester Epoxy Resin |
||
General Purpose Polyester Epoxy Resin for 60/40 Hybrid Powder Coatings
◎Introduction
HH2608GT is tribo version of HH2608G, it is a carboxyl polyester resin designed for 60/40 hybrid powder coatings for general purpose. With excellent gas oven stability.
Powder coatings are solvent-free, non-polluting, recyclable, environmentally friendly, save energy and resources, reduce labor intensity, and have high mechanical strength of the coating film, so they have developed rapidly and are widely used in home appliances, automotive coatings, aluminum alloy doors, and windows, as well as metal and non-metallic exterior decorative coatings protection. At present, there are basically three heating methods on the coating production line: electric heating, gas heating, and oil heating. In many areas of our country, due to the shortage and high cost of industrial electricity, diesel, natural gas, etc. are widely used as heat sources for heaters in coating lines. However, directly heated by a gas furnace, the baking of the gas will affect the surface color of the powder coating, thereby affecting the final coating effect.
Polyester resin HH2608GT is synthesized by adding a certain amount of antioxidant and anti-yellowing agent to make it resistant to direct-fired furnace heating. Therefore, the powder coating prepared with this resin will not affect the surface color even when the coating production line is heated by gas.
◎Basic Features
Excellent gas oven stability
Excellent leveling
Good mechanical properties
Good storage stability
◎Recommend Formulation:
| HH2608GT | E-12 | Filler ＆ Pigment | Leveling agent | Benzoin | 701 |
| 360 | 240 | 383 | 8 | 4 | 5 |
◎Specifications I:

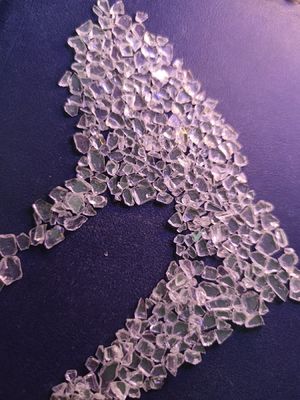

| Appearance | White or light yellow transparent flakes |
| Color (50%DMF) | max:3 |
| Acid Value (mgKOH/g) | 53～57 |
| Softening Point (℃) | 95～105 |
| Glass Transition Temp. (℃) | ～55 |
| Melting Viscosity (200℃, cone/plate, mPa·s) | 3000～4500 |
| Reactivity at 180℃ (s, 50% E-12) | 250～350 |
| Curing Requirement | 200℃×15min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Specifications II:
| Extrusion Condition | Two-screw Extruder | |
| Zone I: 90～110℃ | 110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～100μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 430~530 |
| Horizontal Flow (180℃, mm) | 31~33 | |
| Gloss (60°) | ≥90% | |
| Bending (φ1mm) | Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact | Pass 50kg·cm | |
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti-gas burners (G), tribo gun (T), and anti-blooming (F).
◎Company Profile:
Kinte Materials Science and Technology Co., Ltd. is subordinate to China Machinery Industry Corporation (a key state-owned enterprise directly managed by SASAC, ranking 284 among the world's top 500 in 2021). It is a national high-tech enterprise under China National Electric Apparatus Research Institute Co., Ltd. (Stock Code: 688128), listed on the SSE STAR MARKET. Focusing on the R & D, production, and sales of environmentally friendly coatings (powder coatings, waterborne industrial coatings) and powder coating resins, the company is committed to improving the global market competitiveness of China's environmentally friendly coating industry. Now it has become the leader and promoter in China’s technological development of environmentally friendly coatings as well as polyester resins for powder coatings!
In 2017, the new production base with 80000 tons annual capacity was put into construction in Dongguan, Guangdong, and the annual production capacity reached 120000 tons by the end of 2020, opening the road to global diversified development.
