Place of Origin: | China |
---|---|
Brand Name: | KINTE |
Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
Model Number: | NH8308 |
Minimum Order Quantity: | 1000kg |
Price: | Negotiable |
Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
Delivery Time: | 10 working days |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 80,000 tons per year |
Cured Ratio: | 93/7 Polyester TGIC | Cured Time: | 200℃×10min |
---|---|---|---|
Acid Number: | 30-37 MgKOH/g | Melting Viscosity (mPa·s/200℃): | 5600±1000 |
Softening Point(℃): | 105~120 | Glass Transition Temp.(℃): | ~ 68 |
Properties: | Extraordinary Heat Resistance | Application: | Suitable For High Temperature Resistant Powder Coatings |
Highlight: | TGIC Powder Coating Polyester Resin,High Temperature Resistance Coating Polyester Resin |
TGIC Powder Coating Polyester Resin with Excellent High-Temperature Resistance
◎Introduction
NH8308 is a saturated polyester resin, which is mainly used in polyester / TGIC powder coating systems. It features extraordinary heat resistance, excellent impact performance, and good leveling performance, suitable for high-temperature resistant powder coatings.
Powder coatings, as a kind of green environmental protection coatings, have been widely used in many fields in recent years, especially in metal coating. Powder coatings often use organic resins such as epoxy, polyester, acrylic, and polyurethane as the matrix. Due to the influence and limitation of the structure of the matrix resin, these common powder coatings have deficiencies in some properties, resulting in application limitations. Such as barbecue stoves, heaters, high-power lighting, heating pipes, and other high-temperature-resistant equipment, powder coatings are required to have high-temperature resistance.
NH8308 has very good heat resistance. The powder coatings prepared with this resin have extraordinary heat resistance and can be used in various high-temperature resistance equipment in electrical, metallurgy, petroleum, aviation, chemical, pharmaceutical, food, and other industries.
◎Basic Features
Extraordinary heat resistance
Excellent impact performance
Good leveling performance
Suitable for high-temperature resistant powder coatings
◎Recommend Formulation:
HH8308 |
TGIC | Filler & Pigment | Leveling agent | Benzoin | 701 |
300 | 22.6 | 232 | 3.6 | 1.8 | 1.8 |
◎Specifications I:

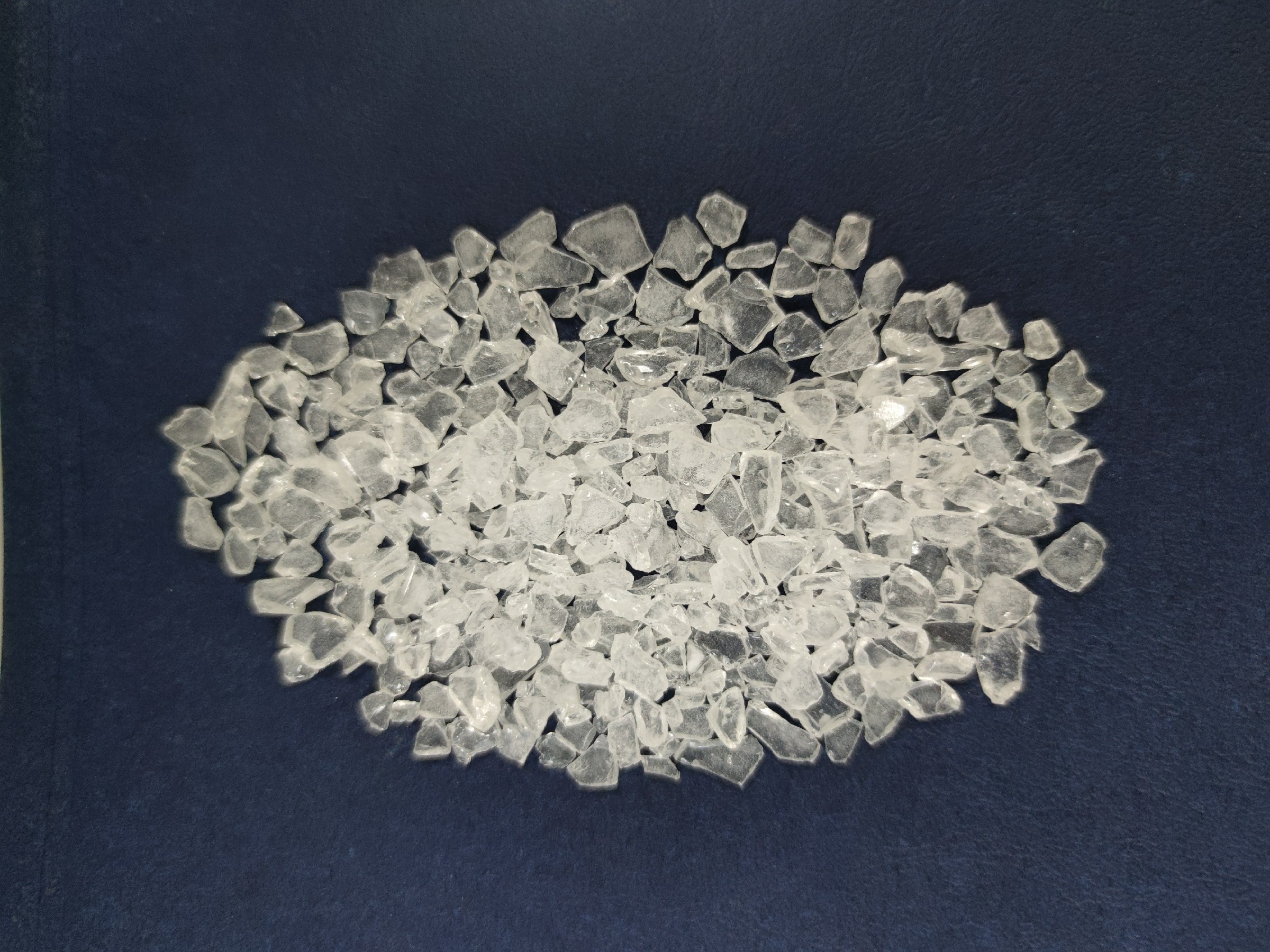

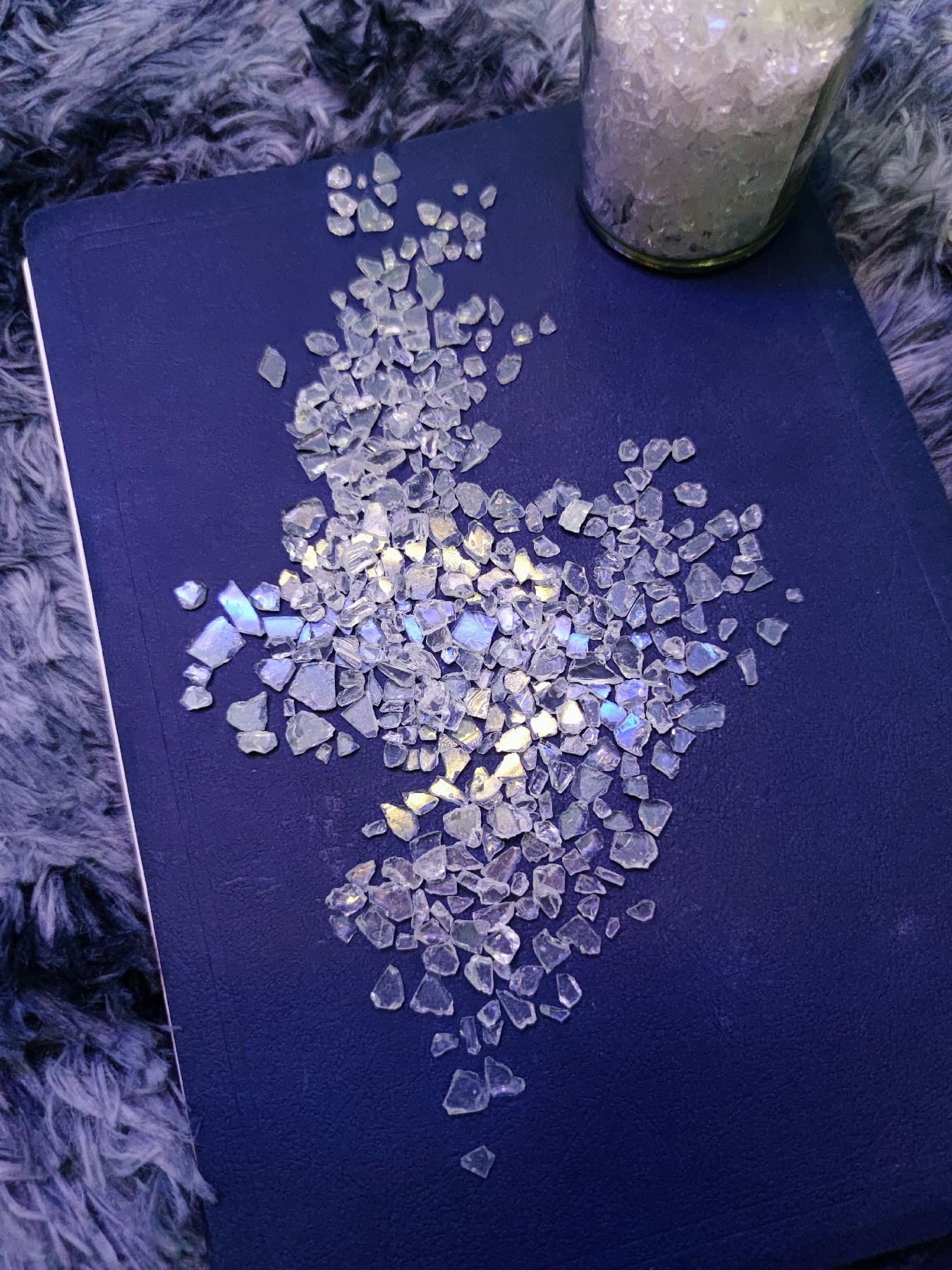

Appearance | White or pale yellow transparent flakes |
Acid Value (mgKOH/g) | 30~37 |
Softening Point (℃) | 105~120 |
Glass Transition Temp. (℃) | ~68 |
Melting Viscosity (200℃, cone/plate, mPa·s) |
5600±1000 |
Reactivity at 180℃ (s, 7% TGIC) |
180±80 |
Curing Requirement |
200℃×10min |
Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Specifications II:
Extrusion Condition | Two-screw Extruder | |
Jacket temperature |
110~120℃ | |
Speed of Revolution | 500~1200rpm | |
Fineness of Powder | <100μm | |
Application Condition | Electrostatic Spraying With | 40~70KV |
Coating Film Thickness | 70~90μm | |
Degreased Cold-rolled Steel | 0.5mm | |
Film Properties | Gel Time (180℃, sec) | 160~320 |
Horizontal Flow (180℃, mm) | 23~28 | |
Gloss (60°) | ≥85% | |
Bending (φ1mm) | Pass | |
Adhesive (1mm, grade) | 0 | |
Pencil Hardness | ≥1H | |
Impact (50cm) | Pass |
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti-gas burners (G), tribo gun (T), and anti-blooming (F).
◎Company Profile:
Kinte Materials Science and Technology Co., Ltd. is subordinate to China Machinery Industry Corporation (a key state-owned enterprise directly managed by SASAC, ranking 284 among the world's top 500 in 2021). It is a national high-tech enterprise under China National Electric Apparatus Research Institute Co., Ltd. (Stock Code: 688128), listed on the SSE STAR MARKET. Focusing on the R & D, production, and sales of environmentally friendly coatings (powder coatings, waterborne industrial coatings) and powder coating resins, the company is committed to improving the global market competitiveness of China's environmentally friendly coating industry. Now it has become the leader and promoter in China’s technological development of environmentally friendly coatings as well as polyester resins for powder coatings!
In 2017, the new production base with 80000 tons annual capacity was put into construction in Dongguan, Guangdong, and the annual production capacity reached 120000 tons by the end of 2020, opening the road to global diversified development.
