| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | NH0308 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Curing System: | 93/7 Polyester TGIC Or 95/5 Polyester HAA | Curing Time: | 200℃×10min (TGIC) Or 180℃×10min (HAA) |
|---|---|---|---|
| Acid Value: | 30-36 MgKOH/g | Melting Viscosity: | 3800±1000 MPa·s/200℃ |
| Softening Point(℃): | 105～115℃ | Glass Transition Temp.(℃): | ～ 63℃ |
| Properties: | Excellent Anti-interference Performance | Application: | Suitable For Both TGIC And HAA Powder Coating Systems |
| Highlight: | HAA Polyester Resin,Anti Interference HAA Polyester |
||
Economic HAA Polyester Resin with Excellent Anti-interference Performance
◎Introduction
NH0308 is a saturated polyester resin, which is used in polyester / TGIC powder coating system and polyester / HAA powder coating system.
It features excellent anti-interference performance, o when switching between different systems, there will be no problems such as incompatible shrinkage holes or loss of light.
◎Basic Features
High cost performance
Excellent storage stability
Outstanding leveling performance
Excellent anti-interference performance
◎Recommend Formulation:
NH0308/TGIC
| NH0308 | TGIC | Filler ＆ pigment | Leveling agent | Benzoin | 701 | 703 |
| 300 | 22.6 | 190 | 4 | 2 | 2.5 | / |
NH0308/HAA
| NH0308 | T-105 | Filler ＆ pigment | Leveling agent | Benzoin | 701 | 703 |
| 300 | 15.8 | 190 | 4 | 2 | 2 | 2 |
◎Specifications I:

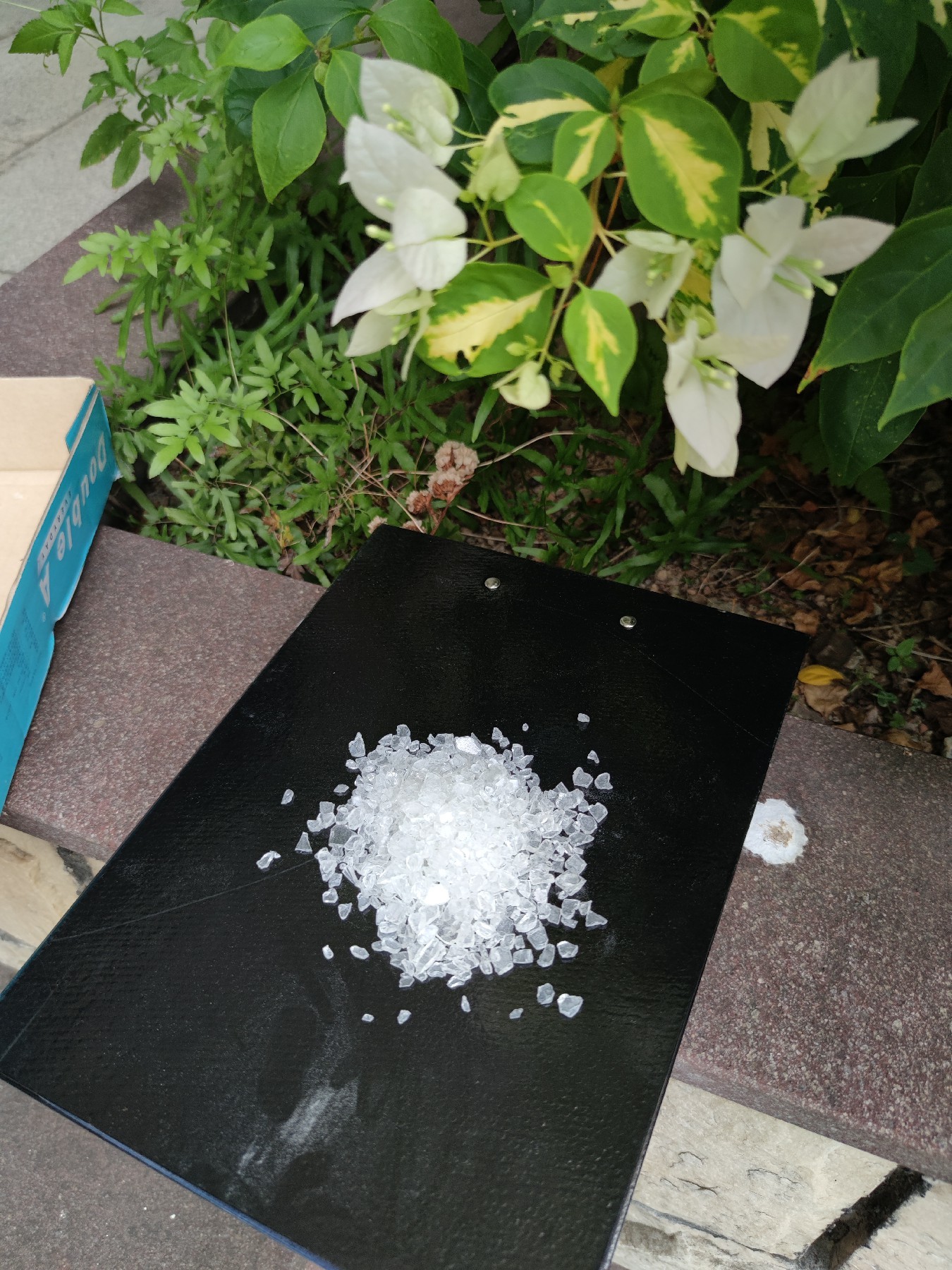

| Appearance | white or pale yellow transparent flakes |
| Acid Value (mgKOH/g) | 30～36 |
| Softening Point (℃) | 105～115 |
| Glass Transition Temp. (℃) | ～63 |
| Melting Viscosity (200℃, cone/plate, mPa·s) |
3200±1000 |
| Reactivity at 180℃ (s, 7% TGIC) | 200±100 |
|
Reactivity at 180℃ (s, 5% T-105) |
200±100 |
| Curing Requirement |
200℃×10min (TGIC) 180℃×10min (HAA) |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Specifications II:
| Extrusion Condition | Two-screw Extruder | |
|
Jacket temperature |
110～120℃ |
|
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 60～80μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, TGIC, sec) | 300~450 |
|
Gel Time (180℃, T-105, sec) |
150~300 |
|
| Horizontal Flow (180℃, mm) | 25~30 | |
| Gloss (60°) | ≥80% | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact (50cm) | Pass | |
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti-gas burners (G), tribo gun (T), and anti-blooming (F).
