| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | NH9001 |
| Minimum Order Quantity: | 1000Kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Cured Ratio: | 90:10 Polyester/ TGIC | Cured Time: | 200℃×10min |
|---|---|---|---|
| Acid Value (mgKOH/g): | 46-54 | Melting Viscosity (mPa·s/200℃): | 5100±800 |
| Softening Point(℃): | 103～113 | Glass Transition Temp.(℃): | ～65 |
| Properties: | Excellent Weathering Resistance | Application: | For Low Gloss Polyester/TGIC Powder Coatings |
| Highlight: | Dry Blended Polyetser Resin,TGIC Blended Polyetser Resin |
||
90/10 Dry Blended Polyetser Resin for TGIC Low Gloss Powder Coatings
◎Introduction
NH9001 are saturated carboxyl polyester resins for low gloss polyester/ TGIC powder coatings by a dry blending procedure with NH9508.
Depending on the application, a semi-gloss or matt powder coating is sometimes required. Extinction is to use a certain method to reduce the gloss of the surface of the coating film.
Dry-blended matting is mixing polyester resins with different curing speeds by the dry-blending method. Because the polyester resin with high reactivity is rapidly cured, the slow-curing resin of the continuous phase is hindered from leveling and reaction, and the final cured coating film is tarnished. Powder coatings prepared by the dry-blending matting method can avoid the use of matting agents and reduce the cost of coatings.
◎Basic Features
Excellent leveling
Excellent weathering resistance
Excellent mechanical properties
Good chemical resistance
Good storage stability
◎Recommend Formulation:
| Formulation | NH9001 | NH9508 | TGIC | Filler ＆ pigment | Leveling agent | Benzion |
| I | 270 | — | 30 | 200 | 3 | 1.5 |
| II | — | 270 | 14 | 200 | 3 | 1.5 |
◎Specifications I:

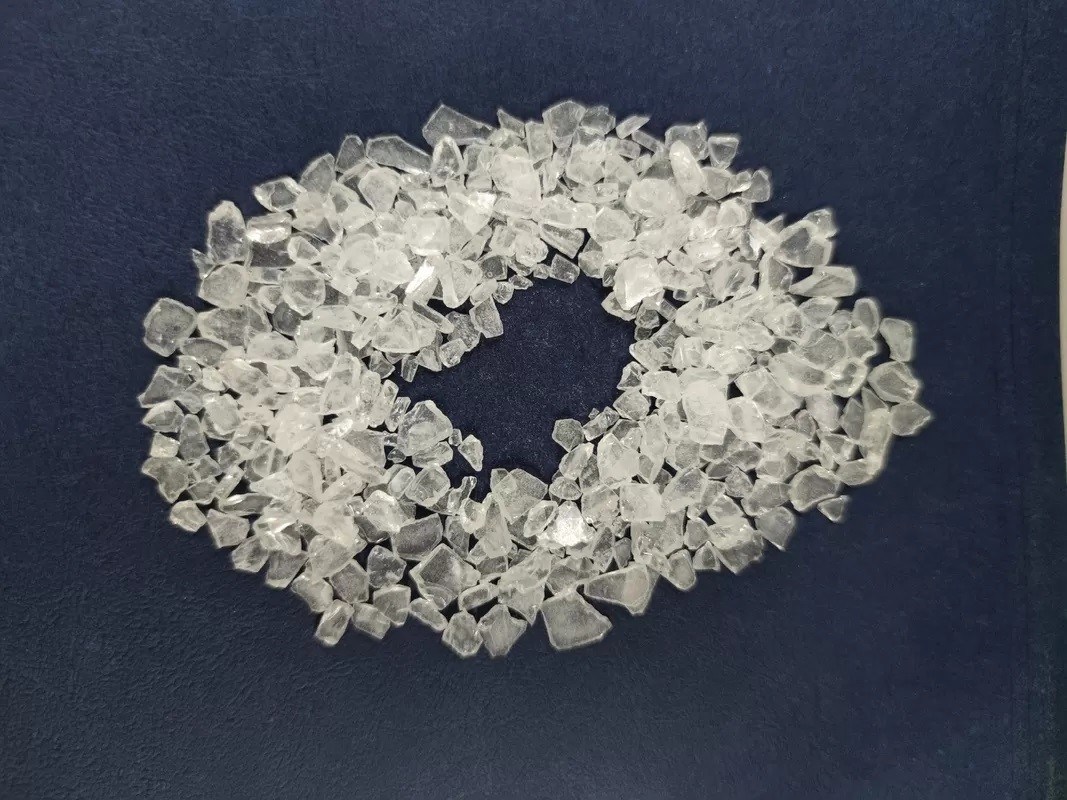

| Appearance | pale yellow flake |
| Color (50% DMF) | ≤3 |
| Acid Number (mgKOH/g) | 46～54 |
| Softening Point (℃) | 103～113 |
| Glass Transition Temp. (℃) | ～65 |
| Melting Viscosity (200℃, cone/plate, mPa·s) |
5100±800 |
| Reactivity at 180℃ (s, TGIC) |
50±25 |
| Curing Requirement |
200℃×10min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Specifications II:
| Extrusion Condition | Two-screw Extruder | ||
| Zone I: 90～110℃ | Zone II: 110～120℃ | ||
| Speed of Revolution | 500～1200rpm | ||
| Fineness of Powder | ＜100μm | ||
| Application Condition | Electrostatic Spraying With | 40～70KV | |
| Coating Film Thickness | 50～70μm | ||
| Degreased Cold-rolled Steel | 0.5mm | ||
| Film Properties | |||
| Gloss (60°) | ≤40% | ||
|
Bending (φ1mm) |
Pass | ||
| Adhesive (1mm, grade) | 0 | ||
| Pencil Hardness |
≥2H |
||
| Direct Impact (50cm) |
pass |
||
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
