| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | NH3368 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Curing Ratio: | 94/6 TGIC System | Curing Time: | 160℃×15~20min |
|---|---|---|---|
| Acid Value (mgKOH/g): | 31-36 | Melting Viscosity (ICI, MPa·s /200℃): | 2000～4000 |
| Softening Point: | 95～115℃ | Glass Transition Temperature: | ～ 63℃ |
| Properties: | Low Curing Temperature And Excellent Frost Resistance | Application: | For Polyester/ TGIC System Powder Coatings |
| Highlight: | Low Curing TGIC Polyester Resin,Frost Resistance TGIC Polyester Resin |
||
Low Curing 94/6 TGIC Polyester Resin with Excellent Frost Resistance
◎Introduction
NH3368 is a saturated carboxyl polyester resin for polyester/TGIC powder coating system.
For a long time, the paint has been dissolved and diluted with organic solvents. During the use process, VOC emissions are accompanied, which wastes resources and pollutes the environment. However, powder coatings have no VOC emissions during use and have the well-known 4E (Economy, Energy Saving, Ecology and Efficiency) characteristics.
However, compared with conventional paint, powder coatings have the disadvantages of higher baking curing temperature (generally 180~200°C) and longer baking time. The high baking temperature brings considerable difficulties to the coating of heat-sensitive substrates such as plastics, wood, and solder metal parts, which restricts the expansion of the application range of powder coatings; the baking time is long, the production cycle of the product is long, and the production is low efficient.
The curing temperature of low temperature curing powder coatings is generally 140~160°C. Considering energy saving, cost reduction, efficiency improvement, and expansion of the application scope of powder coatings, the development of low temperature curing powder coatings is of great significance.
The curing time of NH3368 is 160℃×15~20min, which meets the requirements of low temperature curing. At the same time, by optimizing the polyester formula, the powder coating prepared with this polyester will not precipitate powder-like substances on the surface even after baking and curing at a low temperature for a long time, and has excellent anti-blooming performance, so it will not decrease coating gloss and affects the appearance of the coating.
◎Basic Features
Low curing temperature
Excellent frost resistance
Excellent leveling
Outstanding mechanical properties
Good extinction and weather resistance.
◎Recommend Formulation:
| Materials | NH3368 | TGIC | Pigment & Filler | Leveling agent | Benzoin | 701 |
| Formula | 558 | 42 | 377 | 8 | 10 | 5 |
◎Specifications:

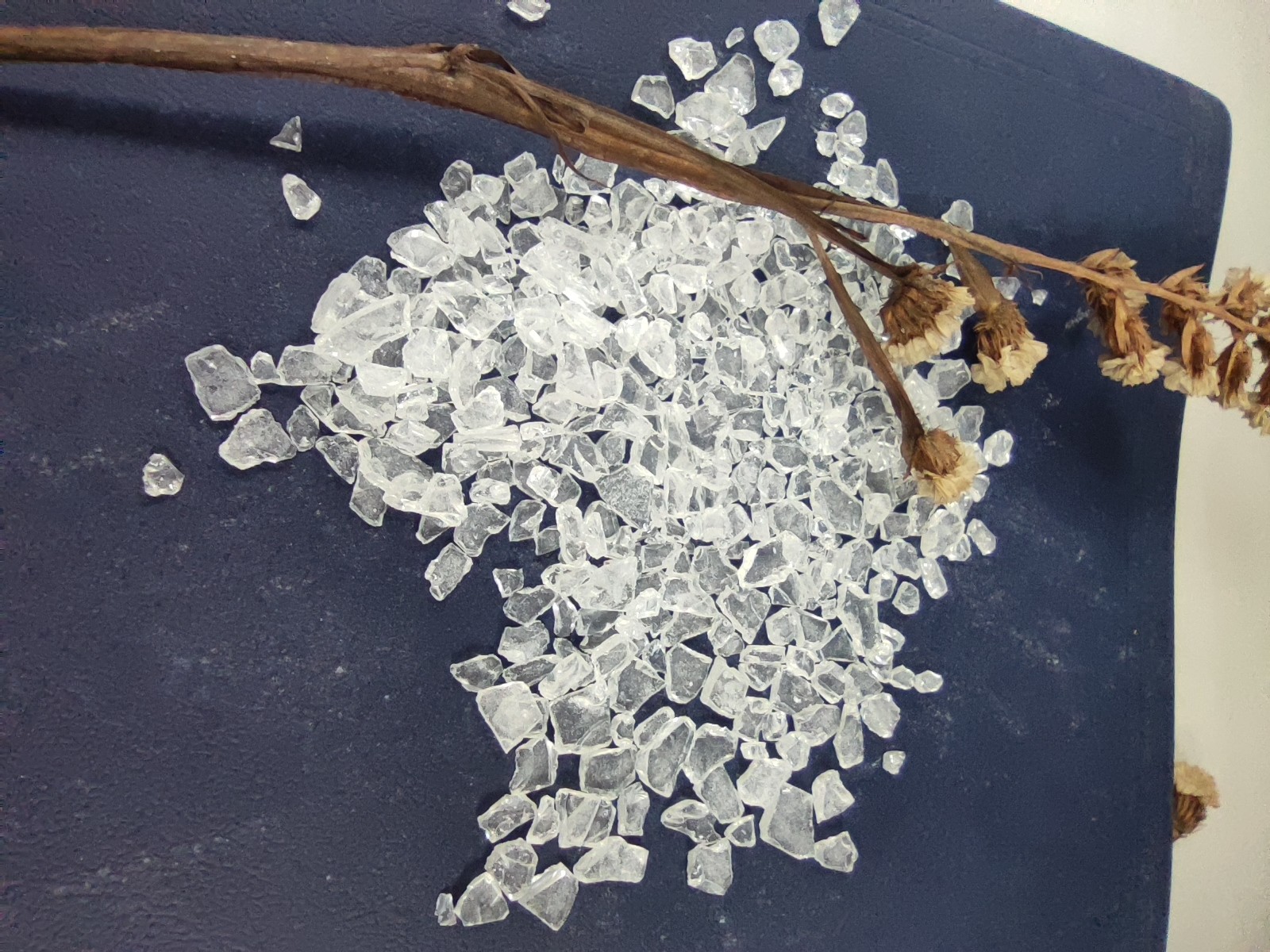

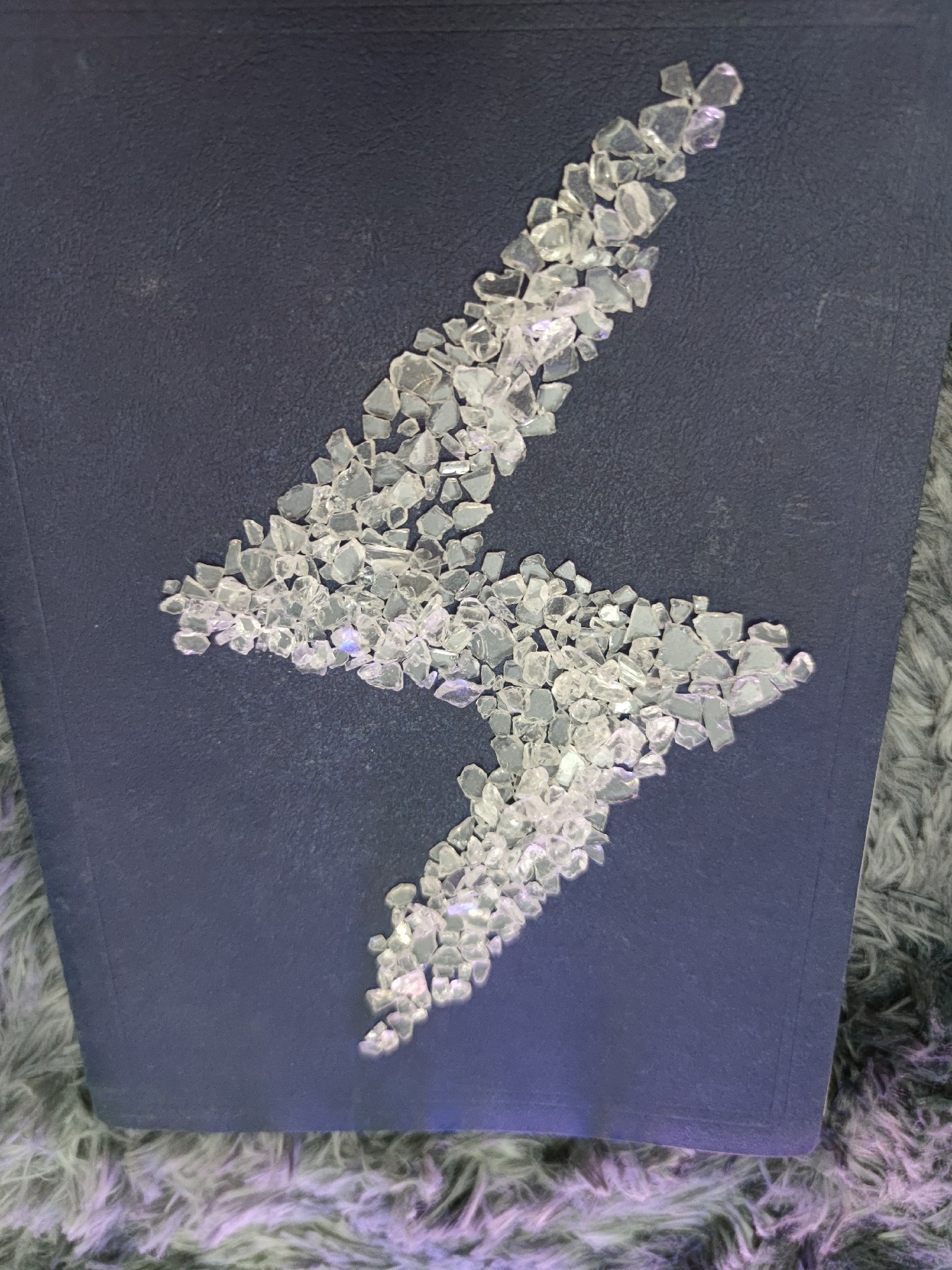

| Appearance | white or pale yellow transparent flakes |
| Acid Value (mgKOH/g) | 31～36 |
| Softening Point (℃) | 95～110 |
| Glass Transition Temp. (℃) | ～63 |
| Melting Viscosity (200℃, ICI, mPa·s) |
2000～4000 |
| Reactivity at 180℃ (s, 6% TGIC) |
80～220 |
| Curing Requirement |
160℃×15~20min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Specifications II:
| Extrusion Condition | Two-screw Extruder | |
|
Zone I: 90～110℃ |
Zone II: 100～110℃ |
|
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～70μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 70~250 |
| Horizontal Flow (180℃, mm) | 24~28 | |
| Gloss (60°) | ≥85% | |
|
Bending (φ1mm) |
Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact (50cm) | Pass | |
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
◎Company Profile:

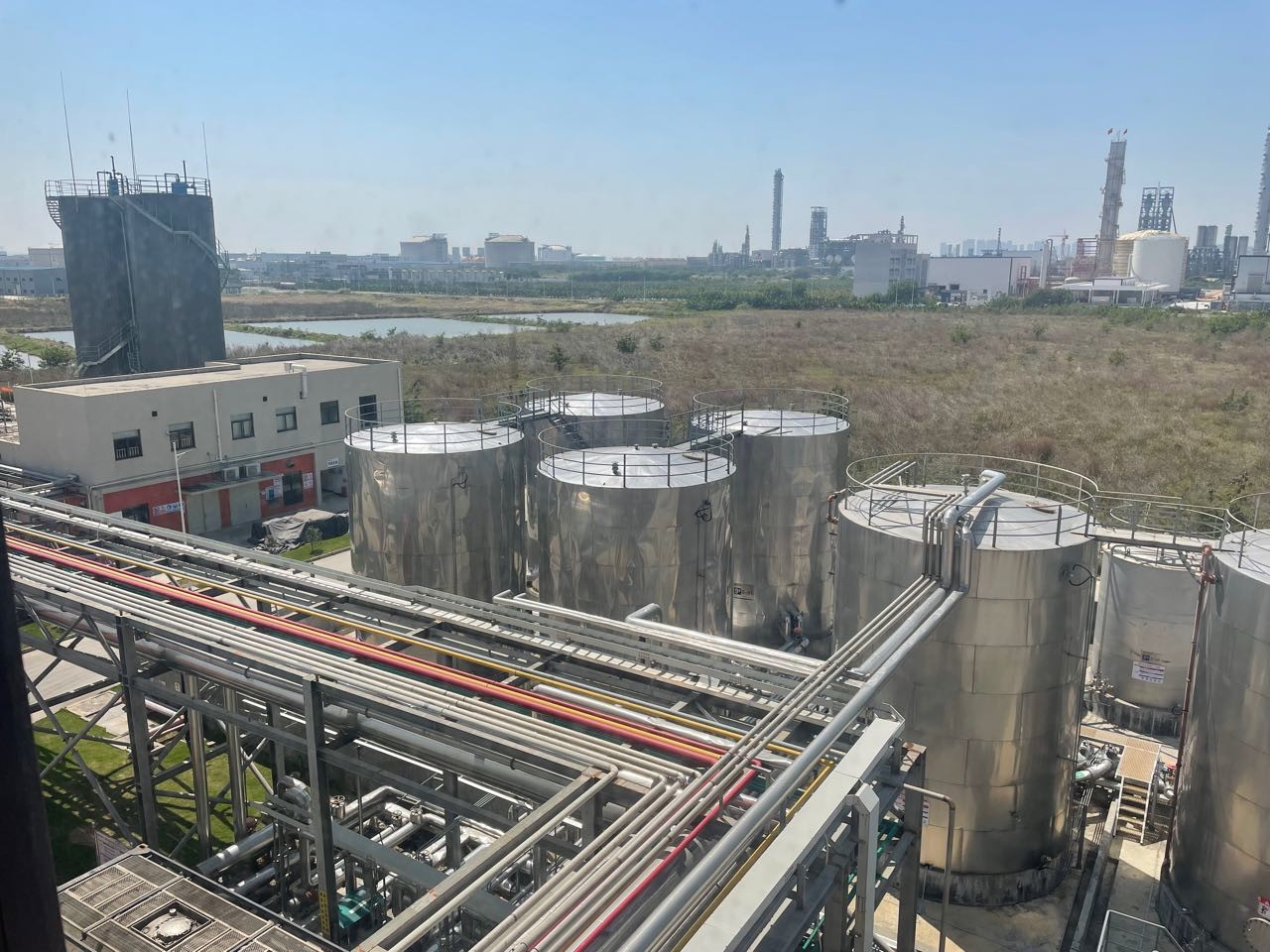

Kinte Materials Science and Technology Co., Ltd. is subordinate to China Machinery Industry Corporation (a key state-owned enterprise directly managed by SASAC, ranking 284 among the world's top 500 in 2021). It is a national high-tech enterprise under China National Electric Apparatus Research Institute Co., Ltd. (Stock Code: 688128), a listed enterprise on the SSE STAR MARKET. Focusing on the R & D, production, and sales of environmentally friendly coatings (powder coatings, waterborne industrial coatings) and powder coating resins, the company is committed to improving the global market competitiveness of China's environmentally friendly coating industry. Now it has become the leader and promoter in China’s technological development of environmentally friendly coatings as well as polyester resins for powder coatings!
