| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | NH3307T |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Cure Type: | 93/7 Polyester TGIC | Cure Requirement: | 200℃×10-15min |
|---|---|---|---|
| Acid Value (mgKOH/g): | 30-35 | Viscosity (200℃, Cone/plate, MPa·s): | 5000±1000 |
| Softening Point: | 103～113℃ | Glass Transition Temperature: | ～ 67℃ |
| Properties: | High Tg And High Weathering Resistance | Application: | For High Gloss Powder Coatings For Aluminum Profile |
| Highlight: | 93/7 TGIC Polyester Resin,Aluminum Profile TGIC Polyester Resin |
||
Durable 93:7 TGIC Polyester Resin for High Gloss Powder Coatings for Aluminum Profile
◎Introduction
NH3307T is tribo chargerable version of NH3307, a saturated carboxyl polyester resin for polyester/TGIC powder coating system at the ratio 93/7.
NH3307 is our company’s star product. High Tg means high storage stability. It features excellent weathering resistance, so it could be durable for 5 years outdoors. With excellent leveling and anti-yellowing, it’s very suitable to make high gloss powder coatings for aluminum profile.
Models with a T indicate powder coatings made with this polyester resin that can be sprayed with a friction gun.
◎Basic Features
Excellent leveling
Excellent anti-yellowing
Good chemical resistance and mechanical properties
High storage stability
High weathering resistance
Suitable to make high gloss powder coatings for aluminum profile
◎Recommend Formulation:
NH3307T/TGIC
| NH3307T | TGIC | Filler ＆ pigment | Leveling agent | Benzoin | 701 |
| 558 | 42 | 383 | 8 | 4 | 5 |
◎Specifications:

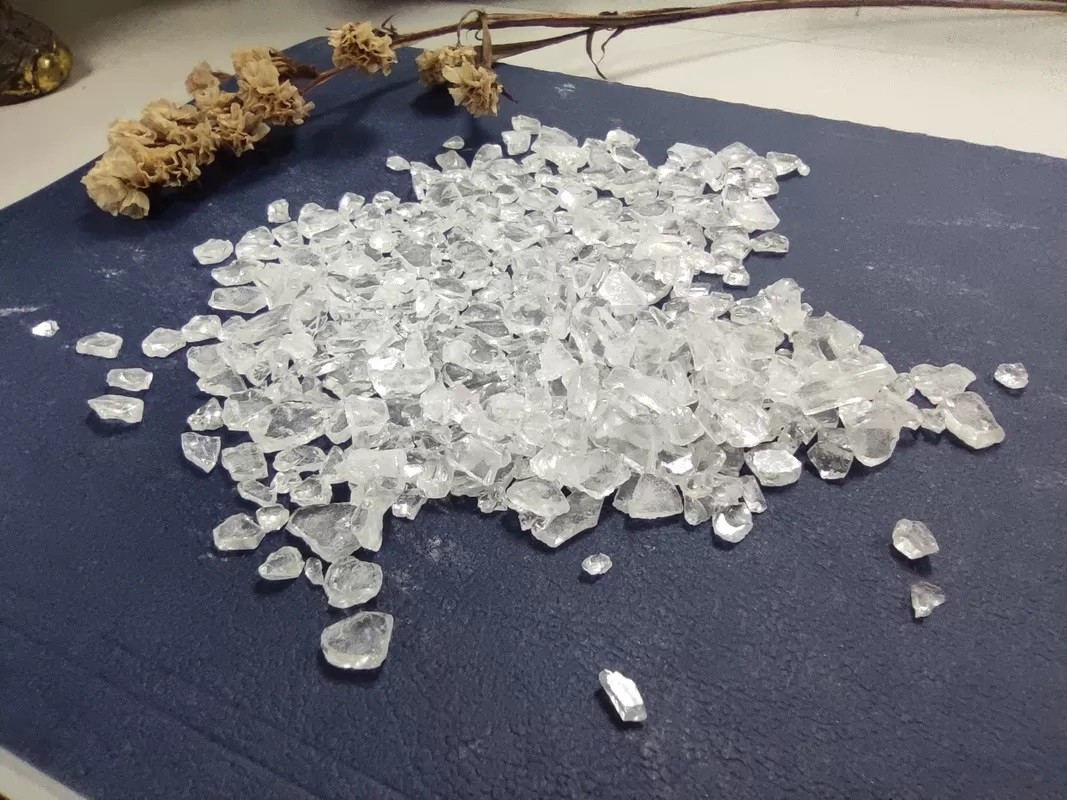

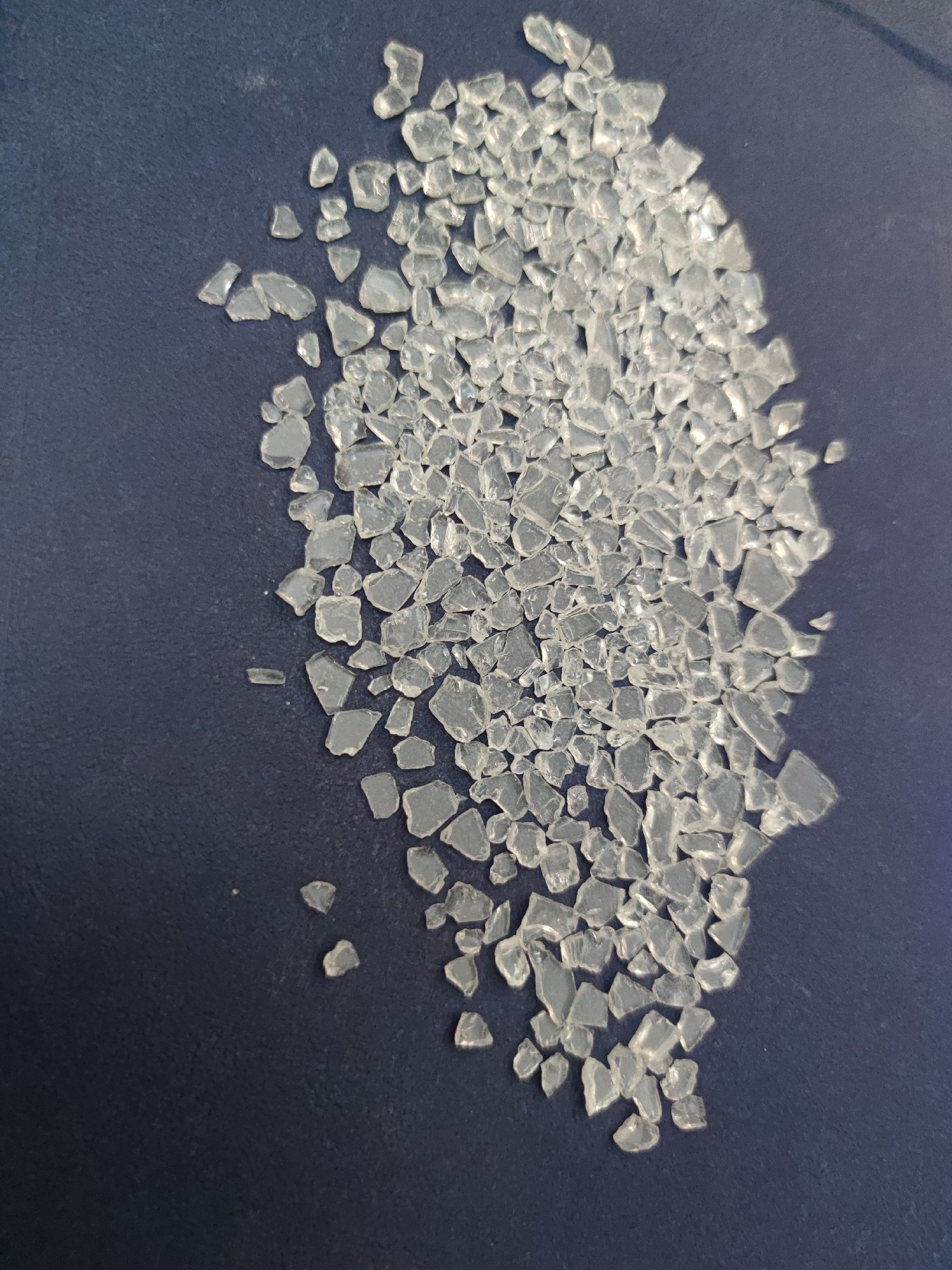

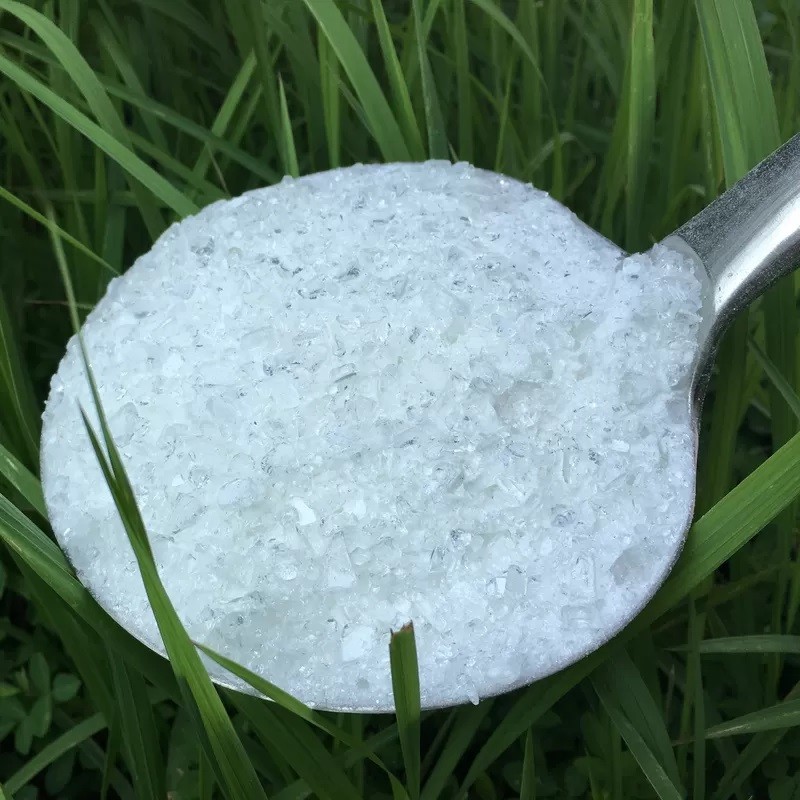

| Appearance | white or pale yellow transparent flakes |
| Acid Value (mgKOH/g) | 30～35 |
| Softening Point (℃) | 103～113 |
| Glass Transition Temp. (℃) | ～67 |
| Melting Viscosity (200℃, cone/plate, mPa·s) |
5000±1000 |
| Reactivity at 180℃ (s, 7% TGIC) |
230±30 |
| Curing Requirement |
200℃×10~15min |

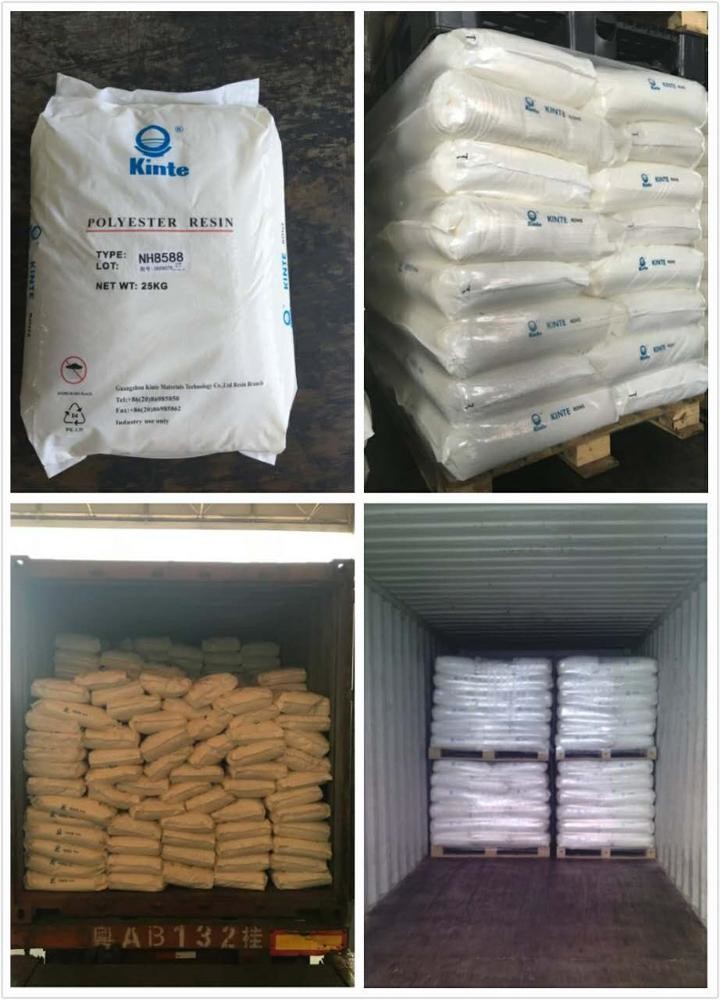

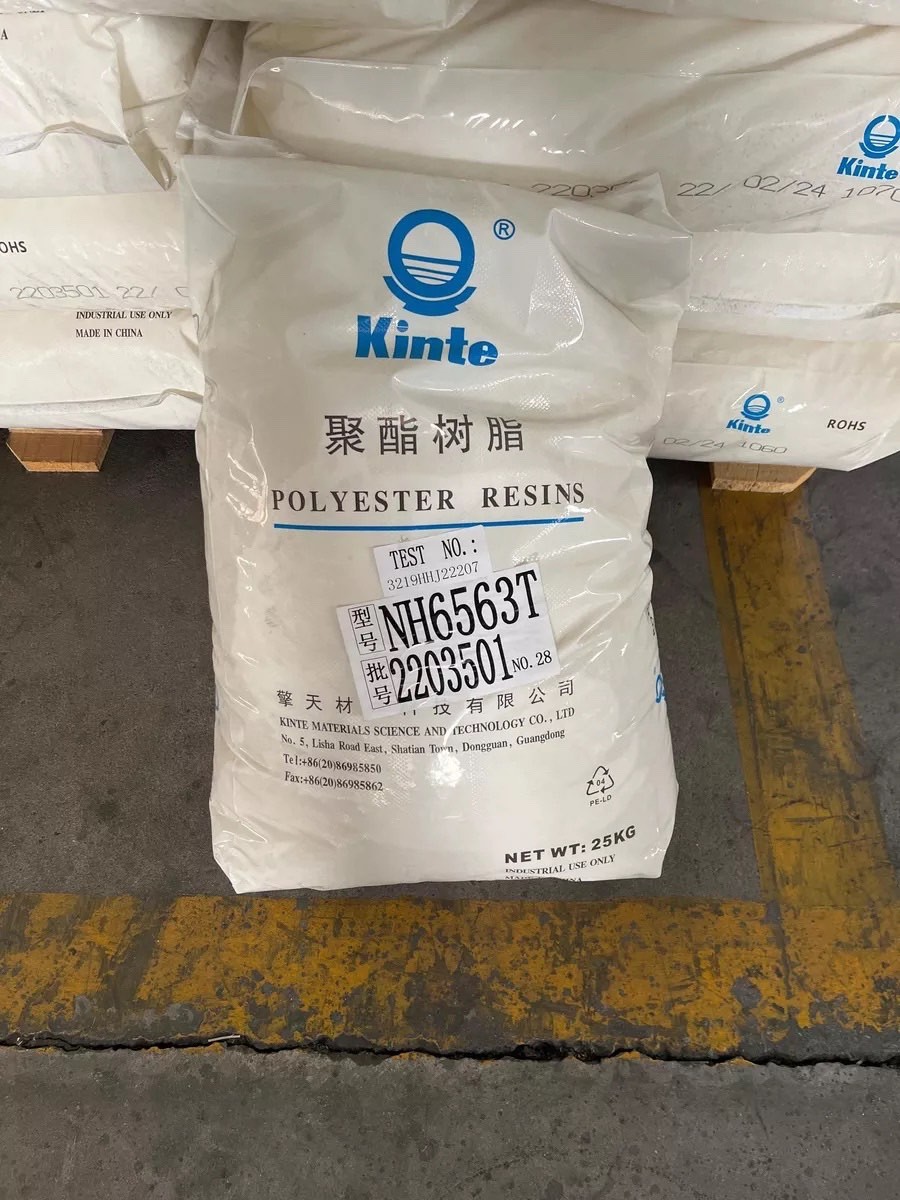

| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Specifications II:
| Extrusion Condition | Two-screw Extruder | |
|
Zone I: 90～110℃ |
Zone II: 110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～0μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 290~390 |
| Horizontal Flow (180℃, mm) | 25~28 | |
| Gloss (60°) | ≥85% | |
|
Bending (φ1mm) |
Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact (50cm) | Pass | |
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
