| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | HH2686P |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Curing System: | 60/40 Polyester Epoxy Resin | Curing Condition: | 200℃×10min |
|---|---|---|---|
| Acid Value (mgKOH/g): | 50-60 | Viscosity (200℃, Cone/plate, MPa·s): | 2500～4500 |
| Softening Point: | 95～105℃ | Glass Transition Temperature: | ～ 53℃ |
| Properties: | Excellent Leveling For Highlight | Application: | Suitable To Flatness System |
| Highlight: | 60/40 Polyester Epoxy Resin,Hybrid Powder Coating Polyester Epoxy Resin |
||
60/40 Polyester Epoxy Resin with Excellent Leveling for Hybrid Powder Coatings
◎Introduction
HH2686P is a carboxyl polyester resin designed for 60/40 hybrid powder coatings.
After years of development, powder coatings have made great progress, and their market shares and application fields have continued to expand. Amorphous polyester resins are currently mainly used in powder coatings. A remarkable feature of amorphous polyester resins is that there is a positive correlation between their glass transition temperature and melt viscosity, that is, the higher the viscosity, the higher the glass transition temperature. However, for powder coatings, polyester resins are expected to have a high glass transition temperature to ensure storage stability, and polyester resins are expected to have low melt viscosity, so that they have excellent flow properties. A coating with better wetting properties to pigments, resulting in better leveling properties.
The Tg of HH2686P is relatively low, and the melt viscosity is relatively low, so the powder coating prepared from it has excellent fluidity, and the polyester resin has better wetting performance for the pigment during curing, so as to obtain better leveling performance .
◎Basic Features
Popular type of polyester resin
Excellent leveling for highlight
Outstanding mechanical properties
Suitable to flatness system
◎Recommend Formulation:
NH3307GT/TGIC
| Material | HH2686P | E12 | BASO4 | 8000Ba | Leveling Agent | Benzoin | 701 |
| Formula | 180 | 120 | 102 | 90 | 4 | 2 | 2.5 |
◎Specifications:

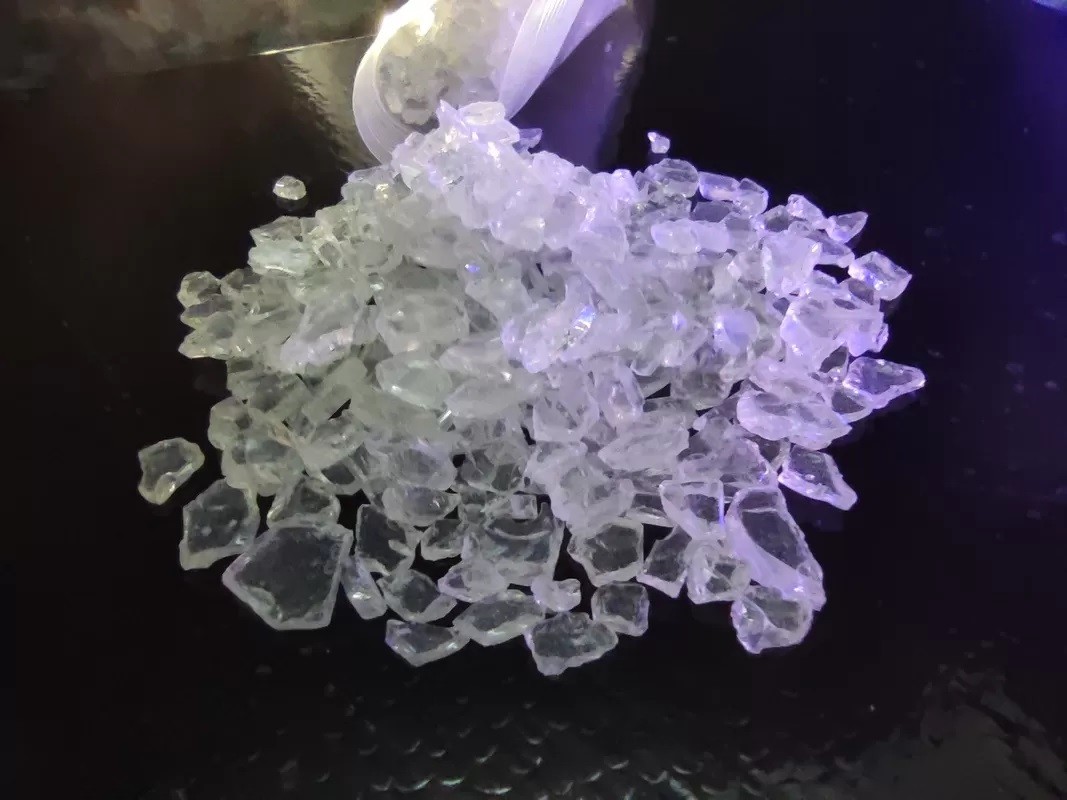

| Appearance | white or light yellow transparent flakes |
| Color (50% DMF) | Max: 3 |
| Acid Value (mgKOH/g) | 50～60 |
| Softening Point (℃) | 95～105 |
| Glass Transition Temp. (℃) | ～53 |
| Melting Viscosity (200℃, ICI, mPa·s) | 2500～4500 |
| Reactivity at 180℃ (s, 40% Epoxy) | 240～360 |
| Curing Requirement | 200℃×10min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Specifications II:
| Extrusion Condition | Two-screw Extruder | |
| Zone I: 90～110℃ | Zone II: 110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～70μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 250~400 |
| Horizontal Flow (180℃, mm) | 28~30 | |
| Gloss (60°) | ≥90% | |
| Bending (φ1mm) | Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | 1H | |
| Impact (50cm) | Pass | |
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
