| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | HH2781T |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Cure System: | 70/30 Polyester And Epoxy Resin | Cure Condition: | 180℃×10min |
|---|---|---|---|
| Acid Value (mgKOH/g): | 30-36 | Viscosity (200℃, Cone/plate, MPa·s): | 4000～5500 |
| Softening Point: | 95～105℃ | Glass Transition Temperature: | ≥ 55℃ |
| Properties: | Good Leveling And Good Reactivity | Application: | Suitable For 70/30 Hybrid Powder Coatings |
| Highlight: | 70/30 Polyester Epoxy Resin,Friction Gun Spraying Polyester Epoxy Resin |
||
70/30 Polyester Epoxy Resin with Friction Gun Spraying for Hybrid Powder Coatings
◎Introduction
HH2781T is tribo chargerable version of HH2781, it is a carboxyl polyester resin designed for 70/30 hybrid powder coatings.
Models with a T indicate powder coatings made with this polyester resin that can be sprayed with a friction gun.
At present, the common powder coating spraying processes include electrostatic spraying and friction gun spraying. Electrostatic spraying is widely used in China because of its low requirements for powder coatings. However, due to the generation of a corona field and the Faraday effect of electrostatic spraying, there will be dead corners on complex workpieces, and some corners are difficult to powder. Although the electrostatic gun has been improved many times, the Faraday effect can only be reduced, but cannot be avoided.
The friction gun spraying can well solve the problem of powder coating in the dead corners of complex workpieces. The friction gun spraying process has the following advantages:
1. The first powder coating rate is high, the efficiency is improved, and the recycled powder is reduced.
2. It could overcome the Faraday effect, especially effective for spraying complex workpieces.
3. Compared with the high-voltage electrostatic gun, the powder on the workpiece is more uniform, and the surface leveling and smoothness of the coating film are better.
4. Comprehensive automatic spraying can be used, so the labor costs are reduced.
◎Basic Features
Good mechanical properties
Good leveling
Good reactivity
◎Recommend Formulation:
| HH2781T | E14U | Filler ＆ pigment | Leveling Agent | Benzoin | Leveling additive 701 |
| 210 | 90 | 192 | 4 | 2 | 2.5 |
◎Specifications:

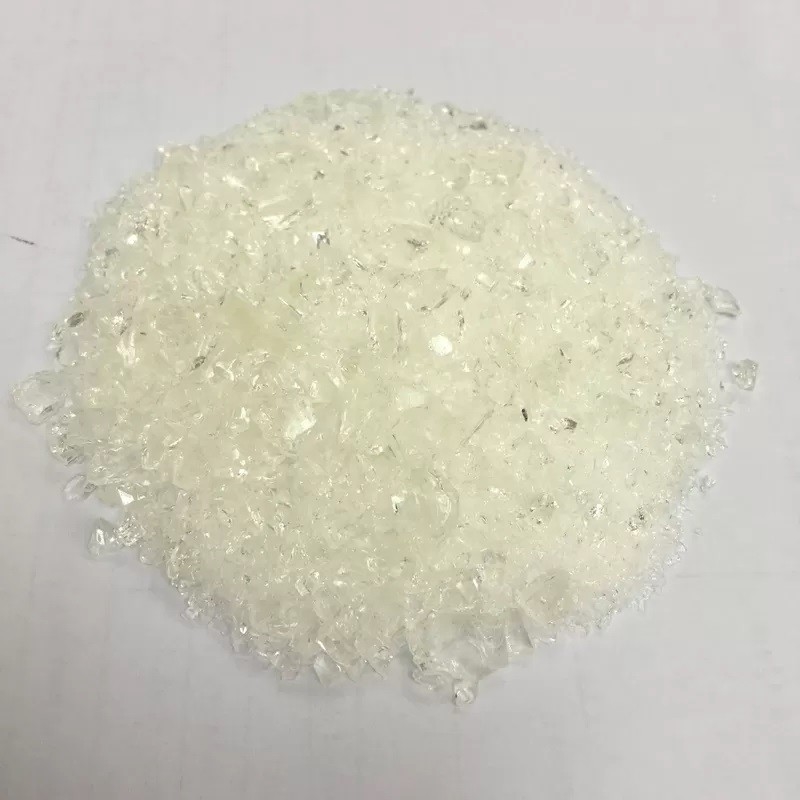

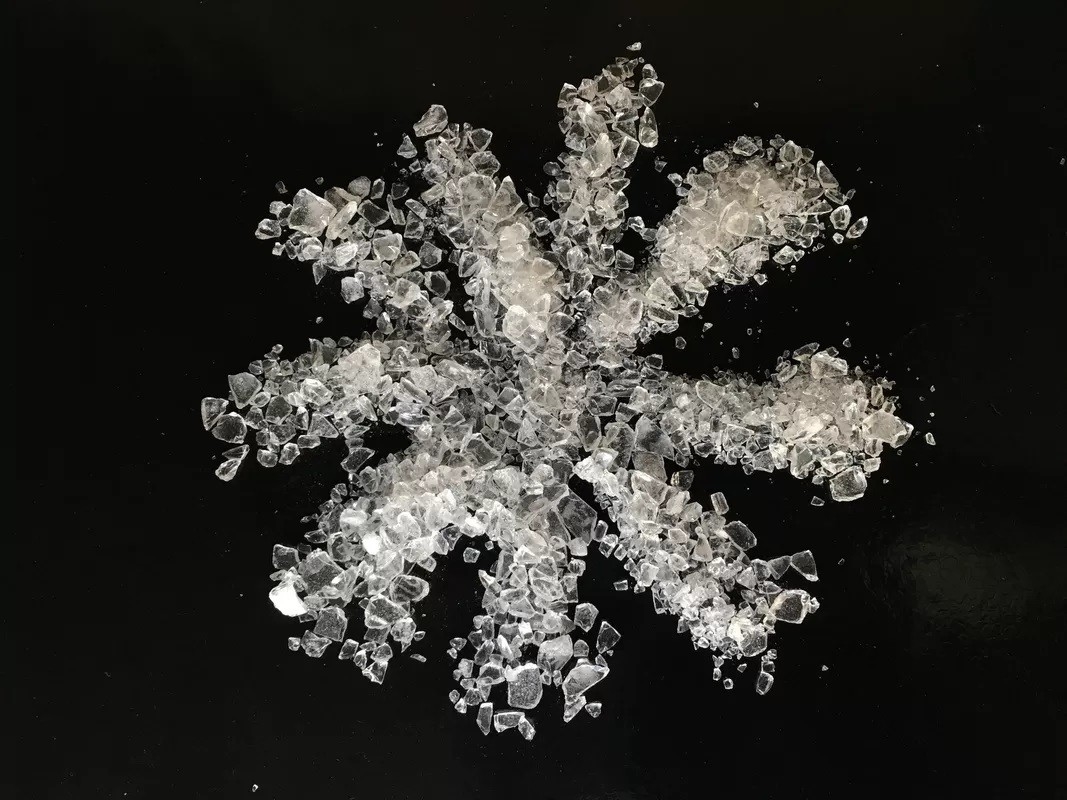

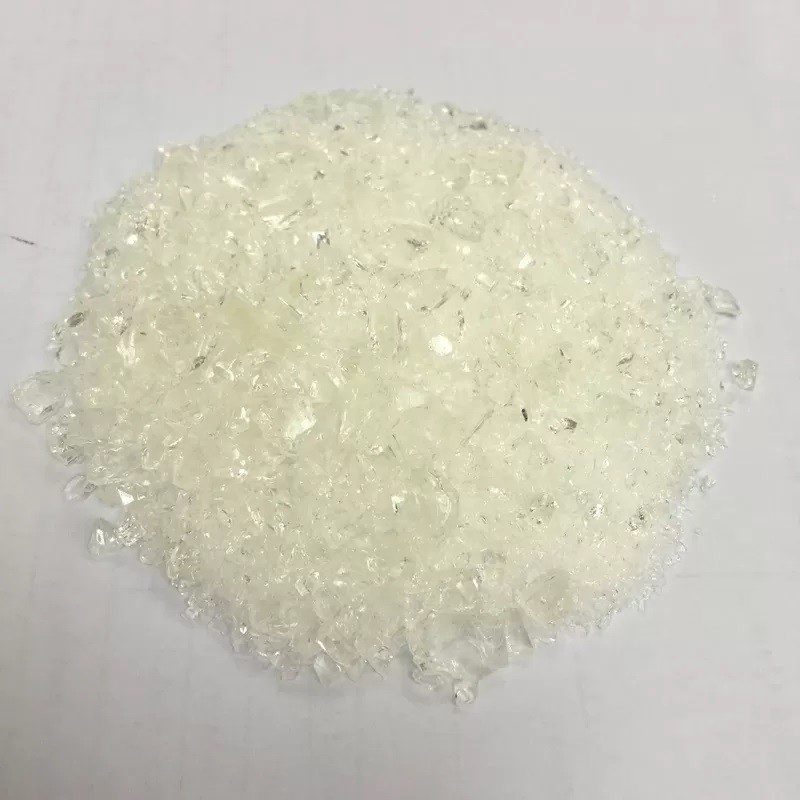

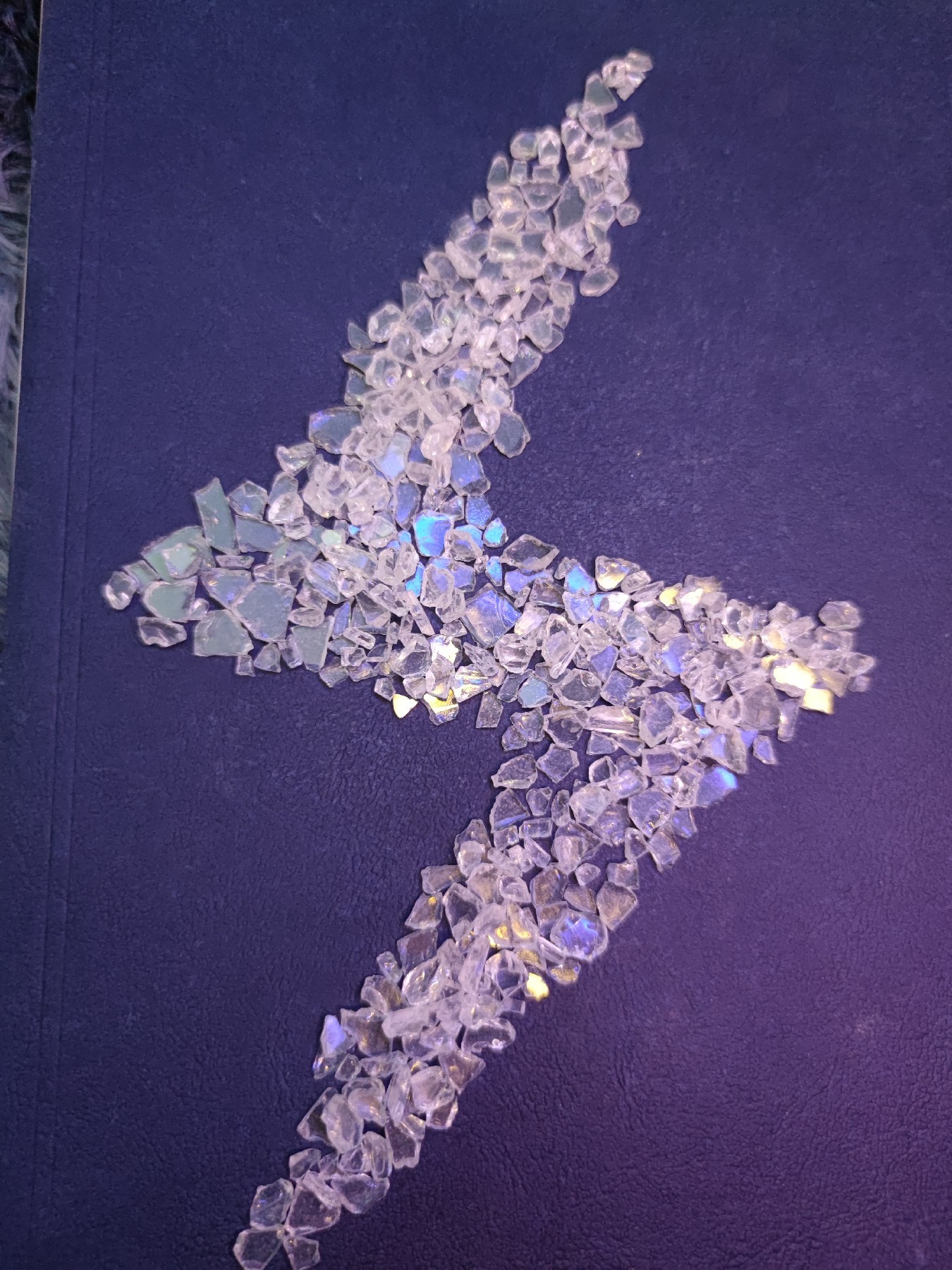

| Appearance | white or light yellow transparent flakes |
| Color (50% DMF) | Max: 3 |
| Acid Value (mgKOH/g) | 50～60 |
| Softening Point (℃) | 95～105 |
| Glass Transition Temp. (℃) |
≥55 |
| Melting Viscosity (200℃, cone/plate, mPa·s) | 4000～5500 |
| Reactivity at 180℃ (s, 30% Epoxy) | 100～200 |
| Curing Requirement | 180℃×10min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Specifications II:
| Extrusion Condition | Two-screw Extruder | |
| Zone I: 90～110℃ | Zone II: 110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～70μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 120~220 |
| Horizontal Flow (180℃, mm) | 23~26 | |
| Gloss (60°) | ≥90% | |
| Bending (φ1mm) | Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness |
≥1H |
|
| Impact (50cm) | Pass | |
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
