| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | Qualicoat, ISO14000, ISO90001, Reach, ROHS |
| Model Number: | HH2783T |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Curing Type: | 70/30 Hybrid Curing | Curing Time: | 180℃×15min |
|---|---|---|---|
| Acid Value (mgKOH/g): | 29-35 | Viscosity (200℃, Cone/plate, MPa·s): | 5500±1000 |
| Softening Point: | 98～110℃ | Glass Transition Temperature: | ～57℃ |
| Properties: | Good Comprehensive Performance | Application: | Suitable For 70/30 Hybrid Powder Coatings. |
| Highlight: | 70/30 Polyester Epoxy Resin,Hybrid Powder Coating Polyester Epoxy Resin |
||
Good Comprehensive Performance Polyester Epoxy Resin for 70/30 Hybrid Powder Coatings
◎Introduction
HH2783T is tribo chargerable of HH2783T, a carboxyl polyester resin designed for 70/30 hybrid powder coatings.
Models with a T indicate powder coatings made with this polyester resin that can be sprayed with a friction gun.
Powder coating has the following advantages:
◎Basic Features
Excellent mechanical properties
Good leveling
Good comprehensive performance
◎Recommend Formulation:
| HH2783T | E-12 | Filler ＆ pigment | Leveling Agent | Benzoin | Leveling additive 701 |
| 420 | 180 | 383 | 8 | 4 | 5 |
◎Specifications:

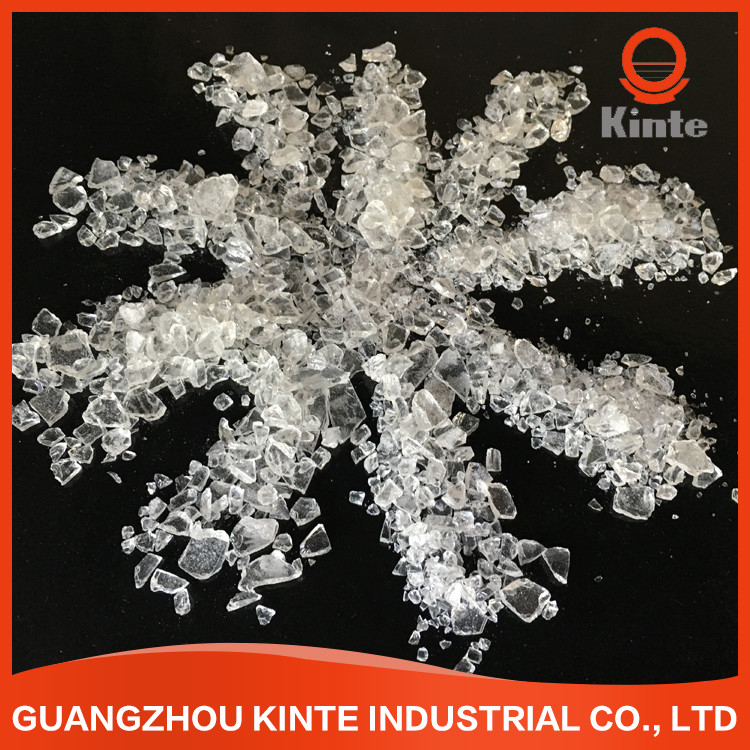

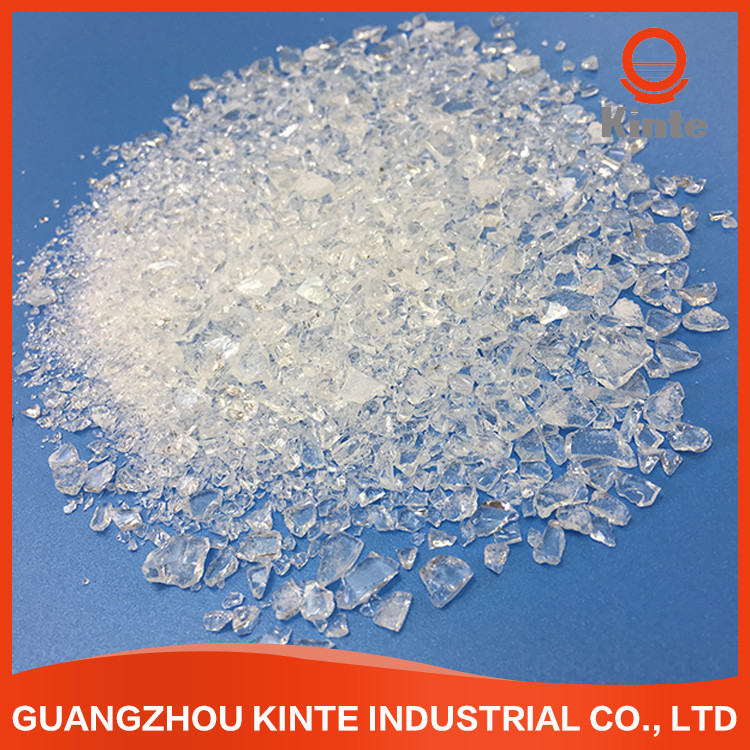

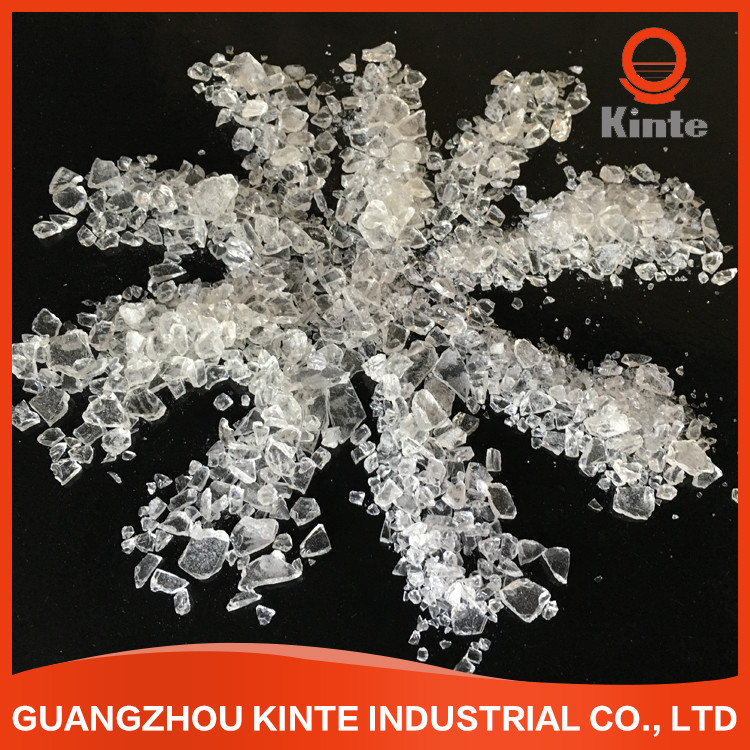

| Appearance | white or light yellow transparent flakes |
| Color (50% DMF) | Max: 2 |
| Acid Value (mgKOH/g) | 29～35 |
| Softening Point (℃) | 98～110 |
| Glass Transition Temp. (℃) |
～57 |
| Melting Viscosity (200℃, cone/plate, mPa·s) |
5500±1000 |
| Reactivity at 180℃ (s, 30% Epoxy) |
240±60 |
| Curing Requirement |
180℃×15min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Specifications II:
| Extrusion Condition | Two-screw Extruder | |
| Zone I: 90～110℃ | Zone II: 110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～70μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 180~300 |
| Horizontal Flow (180℃, mm) | 24~27 | |
| Gloss (60°) | ≥85% | |
| Bending (φ1mm) | Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness |
≥1H |
|
| Impact (50cm) | Pass | |
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
