| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS, ISO90001, ISO14000, Reach, Qualicoat |
| Model Number: | HH2562A |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Cure Ratio: | 50:50 Polyester : Epoxy | Cure Condition: | 160℃×15-20min |
|---|---|---|---|
| Acid Number (mgKOH/g): | 69-75 | Viscosity (mPa·s/200℃): | 2200～3500 |
| Softening Point(℃): | 95～105 | Glass Transition Temp.(℃): | ～ 54 |
| Properties: | Low Curing Temperature | Application: | For 50/50 Polyester/epoxy Hybrid Powder Coating |
| Highlight: | 50/50 Hybrid Polyester Epoxy Resin,Low Temperature Curing Polyester Epoxy Resin |
||
50/50 Hybrid Polyester Epoxy Resin with Low Temperature Curing at 160°C
◎Introduction
HH2562A is a saturated polyester resin, the tin-free version of HH2562. Mainly used for 50/50 polyester/epoxy hybrid powder coatings, which can achieve low temperature curing at 160°C.
Epoxy polyester hybrid powder coating is mainly composed of hydroxyl terminated polyester resin and epoxy resin. The two resins are curing agents for each other. This powder coating takes into account the anti-corrosion performance of epoxy resin and the weather resistance of polyester resin. It is commonly used in the coating of indoor household appliances and the surface coating of electrical instruments and switch cabinets.
Models with an A indicate that this polyester resin is tin-free, which is mainly prepared by using tin-free catalysts.
Organotin catalysts have high activity and are currently commonly used as catalysts for polyesters used in general powder coatings. However, there have been many non-industrial organotin poisoning incidents in recent years, which has aroused the concern of all parties on the toxicity of organotin. At present, organotin compounds have been identified as endocrine disruptors and important persistent toxic substances.
Therefore, many countries and regions, as well as some international well-known brands, require that the finished powder coating be free of tin. HH2562A is completely free of tin, can meet the needs.
◎Basic Features
Good leveling
Good mechanical properties
Lower curing temperature
Excellent chemical resistance
◎Recommend Formulation:
| HH2562A | E12 | Filler ＆ Pigment | Leveling | Benzoin | 701 |
| 300 | 300 | 381 | 10 | 4 | 5 |
◎Specifications:

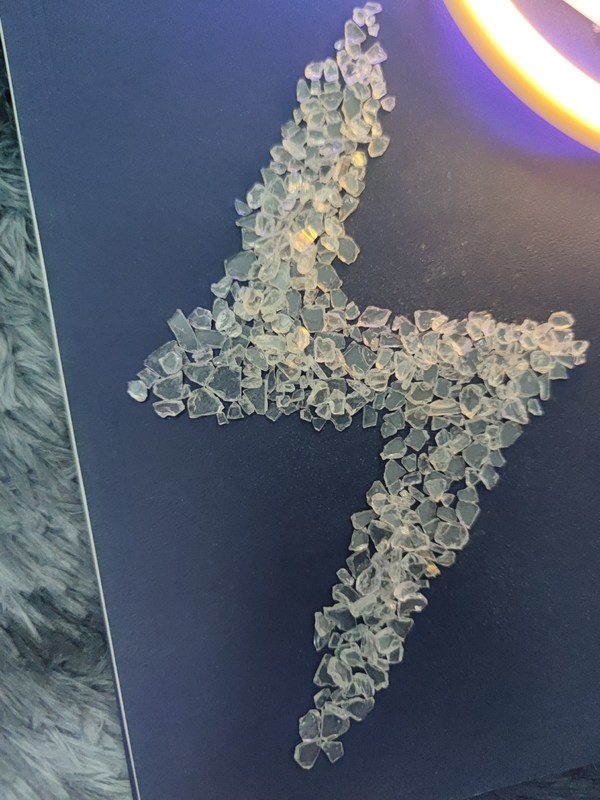

| Appearance | White or pale yellow transparent flakes |
| Acid Value (mgKOH/g) | 68～75 |
| Softening Point (℃) | 95～105 |
| Glass Transition Temp. (℃) | ～54 |
| Melting Viscosity (200℃, ICI, mPa·s) | 2200~3500 |
| Reactivity at 180℃ (s, 50% 014U) | 50~150 |
| Curing Requirement | 160℃×15-20min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Extrusion Condition:
Two-screw Extruder
Jacket Temperature: 110～120℃
Speed of Revolution: 500～1200rpm
Fineness of Powder: ＜100μm
◎Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～70μm
Degreased cold-rolled steel: 0.5mm
◎Film Properties:
| Gel Time (180℃, sec) | 60~160 |
| Horizontal Flow (180℃, mm) | 21~26 |
| Gloss (60°) | ≥90% |
| Bending (φ1mm) | Pass |
| Adhesive (1mm, grade) | 0 |
| Pencil Hardness | ≥1H |
| Impact (50cm) | Pass |
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
◎More Codes:
| Code | Ratio | Cure Cycle | AV (mgKOH/g) | Viscosity (mPa.s/200℃) | Tg (℃) | Reactivity (s/180℃) | Properties |
| HH2562 | 50/50 | 160℃*15min | 67~75 | 1500~3500 | ~54 | 50-150 | For low bake formulation. Good mechanical properties. It could also be cured at 170℃/10min |
| HH2562A | 50/50 | 160℃*15-20min | 68~75 | 2200~3500 | ~54 | 50-150 | The tin-free version of HH2562 |
| HH2563 | 50/50 | 160℃*15min | 67~75 | 2000~4500 | ~54 | 80-180 | For low bake formulation. Excellent mechanical properties and good flow. |
