| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS, ISO90001, ISO14000, Reach, Qualicoat |
| Model Number: | NH3003 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Cured Ratio: | 90:10 TGIC System | Cured Requirement: | 260℃/1.5min |
|---|---|---|---|
| Acid Number (mgKOH/g): | 50-57 | Viscosity (mPa·s/200℃): | 2300～4700 |
| Softening Point(℃): | 105～115 | Glass Transition Temp.(℃): | ～ 60 |
| Properties: | Excellent Yellow Degeneration Resistance | Application: | For Powder Coating Used In Coil Or PCM |
| Highlight: | 90/10 TGIC Saturated Polyester Resins,PCM Powder Coating Saturated Polyester Resins |
||
90/10 TGIC Saturated Polyester Resins for Coil or PCM Powder Coating
◎Introduction
NH3003 is saturated polyester resin for polyester/TGIC powder coating used in coil or PCM.
Pre-coated coils are also called organic-coated steel sheets, color steel sheets, plastic composite steel sheets, color-coated aluminum sheets, etc. Users can directly process it or use it directly without painting. It has been widely used in the construction industry and home appliance industry. Coil pre-coating is currently dominated by liquid coatings, but the pressure caused by a large amount of volatile organic compounds to the environment greatly hinders its application. As a coating that does not contain organic solvents at all, powder coatings have become a strong competitor of liquid coatings Some progress has been made in the coating of materials.
Due to the large length of the coil, it needs to be sprayed very quickly and requires a fast curing speed. However, the curing time of many powder coatings requires 10-20 minutes, so it cannot meet the requirements of coil materials.
The curing time of NH3003 is very short, only 1.5 minutes, because the powder coating prepared with it can meet the requirements of coil materials.
◎Basic Features
Super flexibility
Good resistance to chemicals
Excellent storage stability
Excellent yellow degeneration resistance
◎Specifications:
| Appearance |

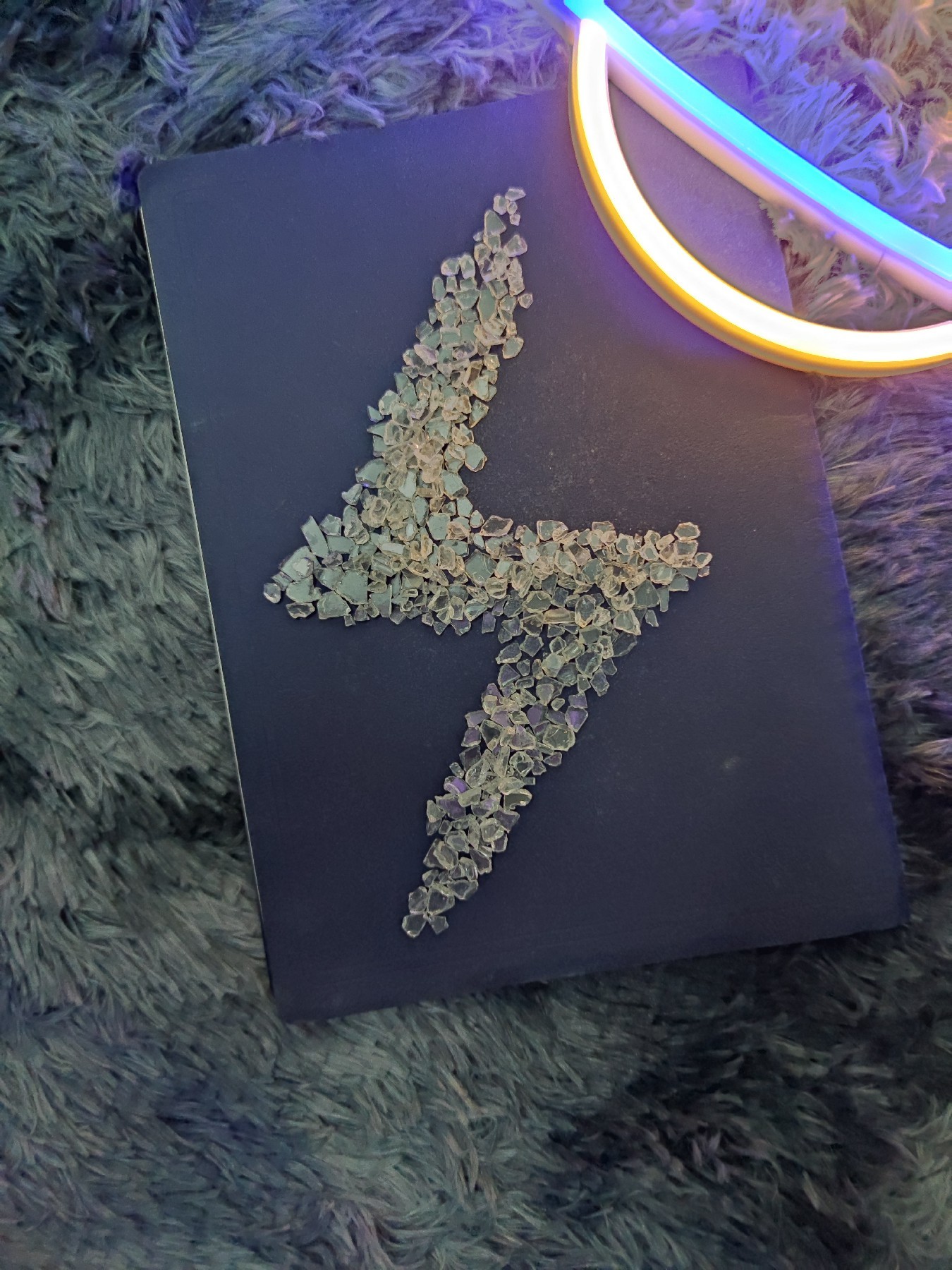

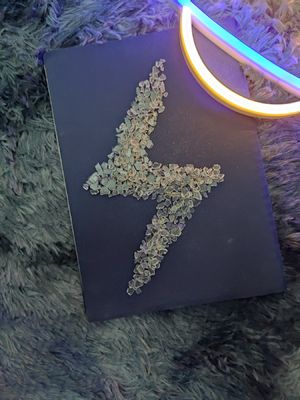

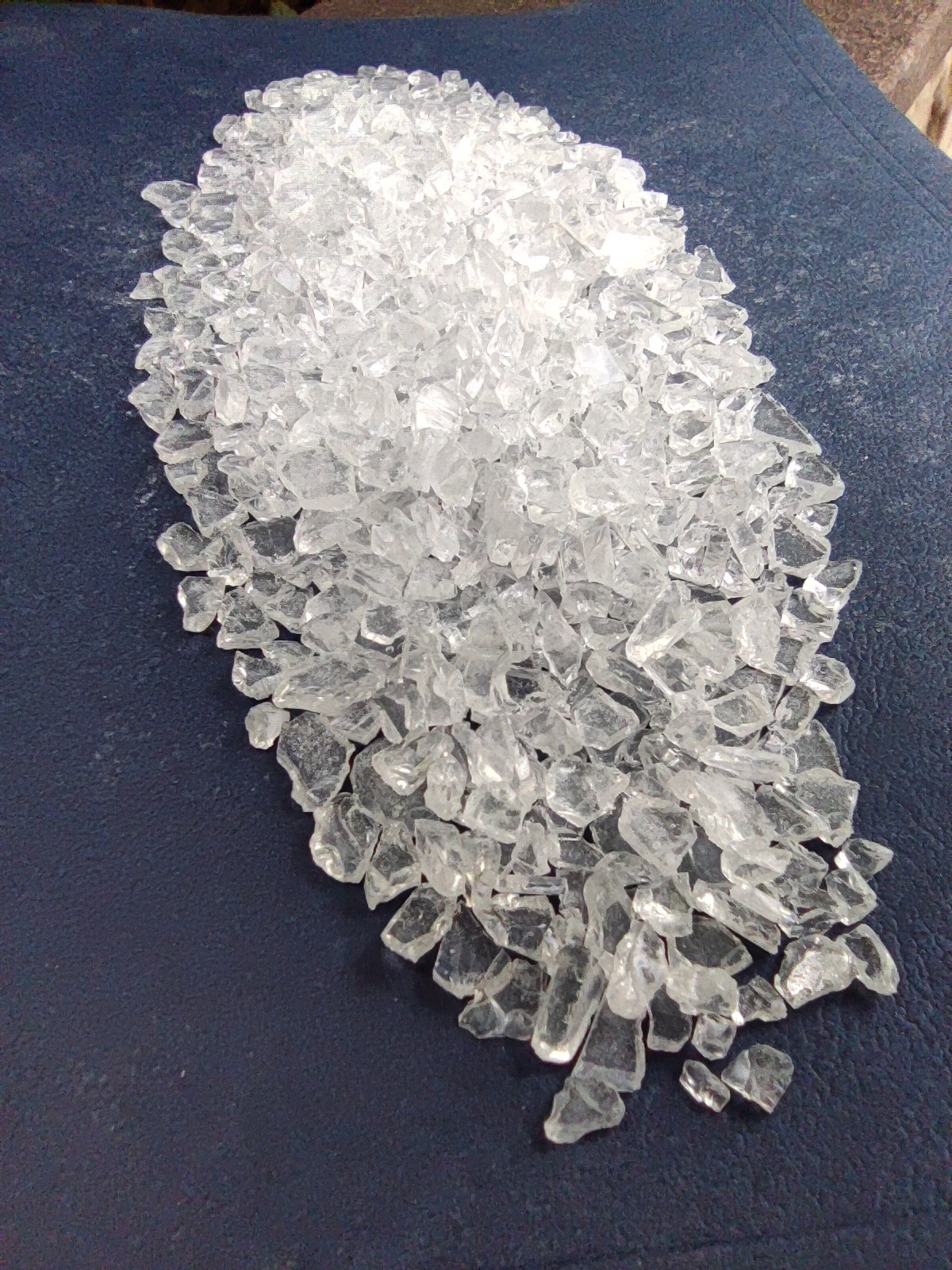

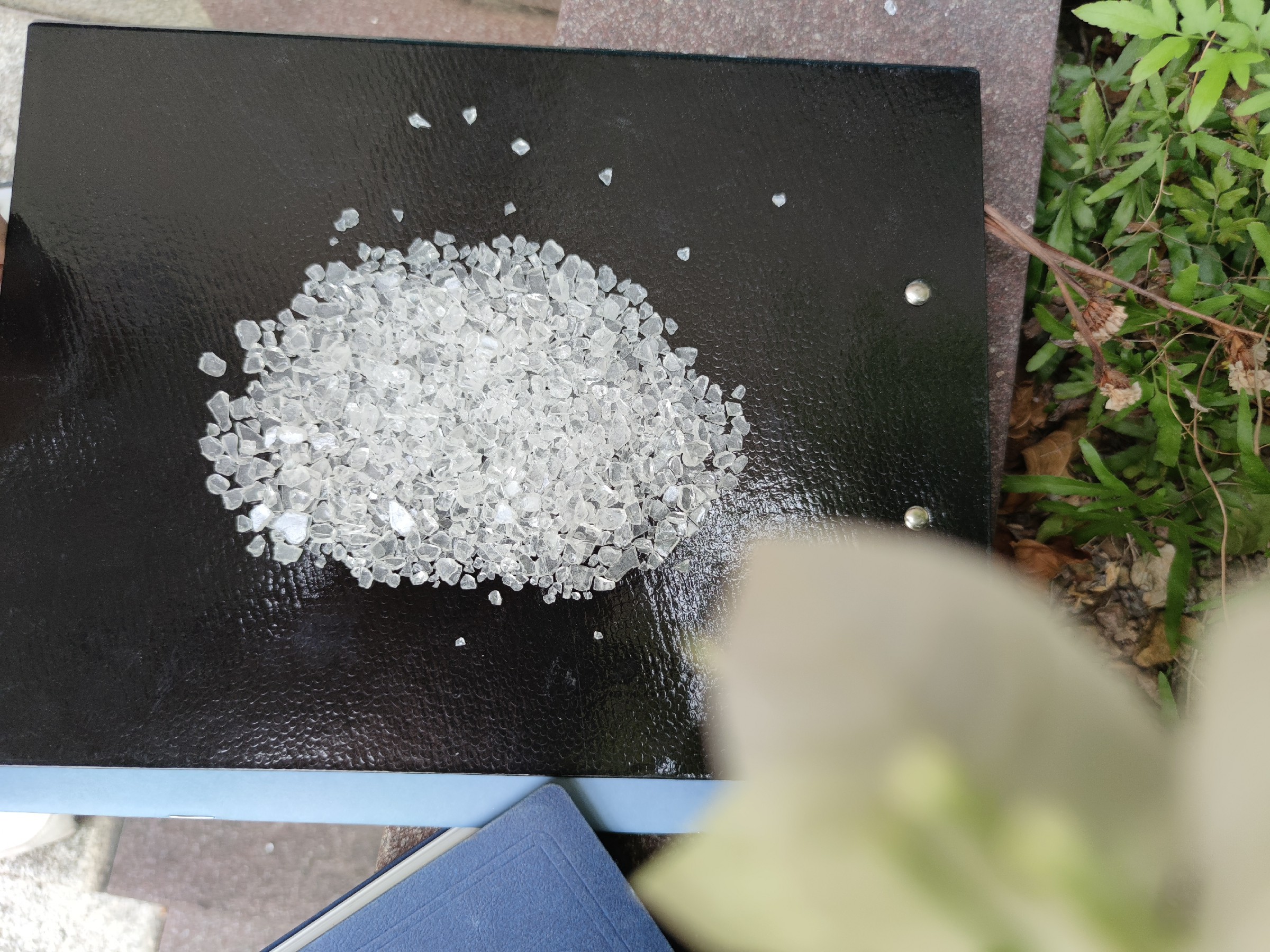

pale yellow flake |
|
Color (50%DMF) |
max:2 |
| Acid Value (mgKOH/g) | 50～57 |
| Softening Point (℃) | 105～115 |
| Glass Transition Temp. (℃) | ～60 |
| Melting Viscosity (200℃, cone/plate, mPa·s) |
2300～4700 |
| Reactivity at 180℃ (s, 50% E-12) |
30～150 |
| Curing Requirement |
260℃×1.5min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Recommend Formulation:
| NH3003 | TGIC | Filler ＆ Pigment | Leveling | Benzoin | 701 |
| 300 | 33.3 | 145 | 3.6 | 1.8 | 1.8 |
◎Extrusion Condition:
Two-screw Extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of Revolution: 500～1200rpm
Fineness of Powder: ＜100μm
◎Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 45～60μm
Degreased cold-rolled steel: 0.5mm
◎Film Properties:
| Gel Time (180℃, sec) | 30~50 |
| Horizontal Flow (180℃, mm) | 18~23 |
| Gloss (60°) | ≥90% |
| Bending (φ1mm8 | Pass |
| Adhesive (1mm, grade) | 0 |
| Pencil Hardness | ≥1H |
| Impact (50cm) | Pass |
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
◎More Codes:
| Code | Ratio | Cure Cycle | AV (mgKOH/g) | Viscosity (mPa.s/200℃) | Tg (℃) | Reactivity (s/180℃) | Properties |
| NH3003 | 90/10 | 260℃*1.5min | 50~57 | 2300~4700 | ~61 | 30-150 | Developed for powder coatings used in coil or PCM. High flexibility and excellent mechanical properties. |
| NH3005 | 90/10 | 200℃*10min | 50~55 | 1600~2400 | ~64 | 160-280 | Suitbale for highly clear heat transfer print powder coatings, easy to tear off paper, excellent flow and good mechanical properties. |
