| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS,ISO90001,ISO14000,Reach,Qualicoat |
| Model Number: | NH8307 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000tons/year |
| Specification: | TGIC Cure | ||
|---|---|---|---|
| High Light: | Carboxyl Polyester Resins,TGIC epoxy polyester,carboxyl blended polyester resin |
||
Sand Texture Polyester Resin NH8307 with Excellent Heat Resistance
◇ Applications:
NH8307 is a saturated carboxyl polyester resin for polyester/TGIC powder coating system.
◇ Basic features:
Excellent heat resistance
Good leveling
◇ Specifications:

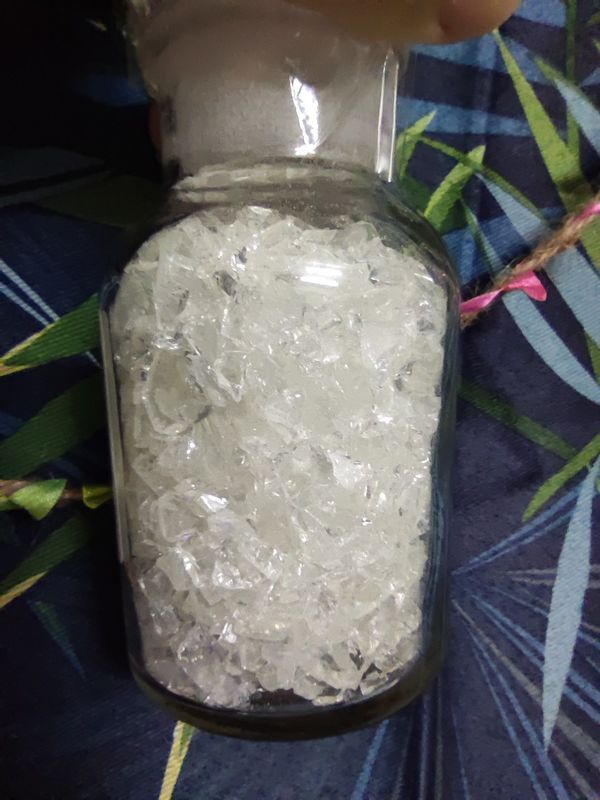

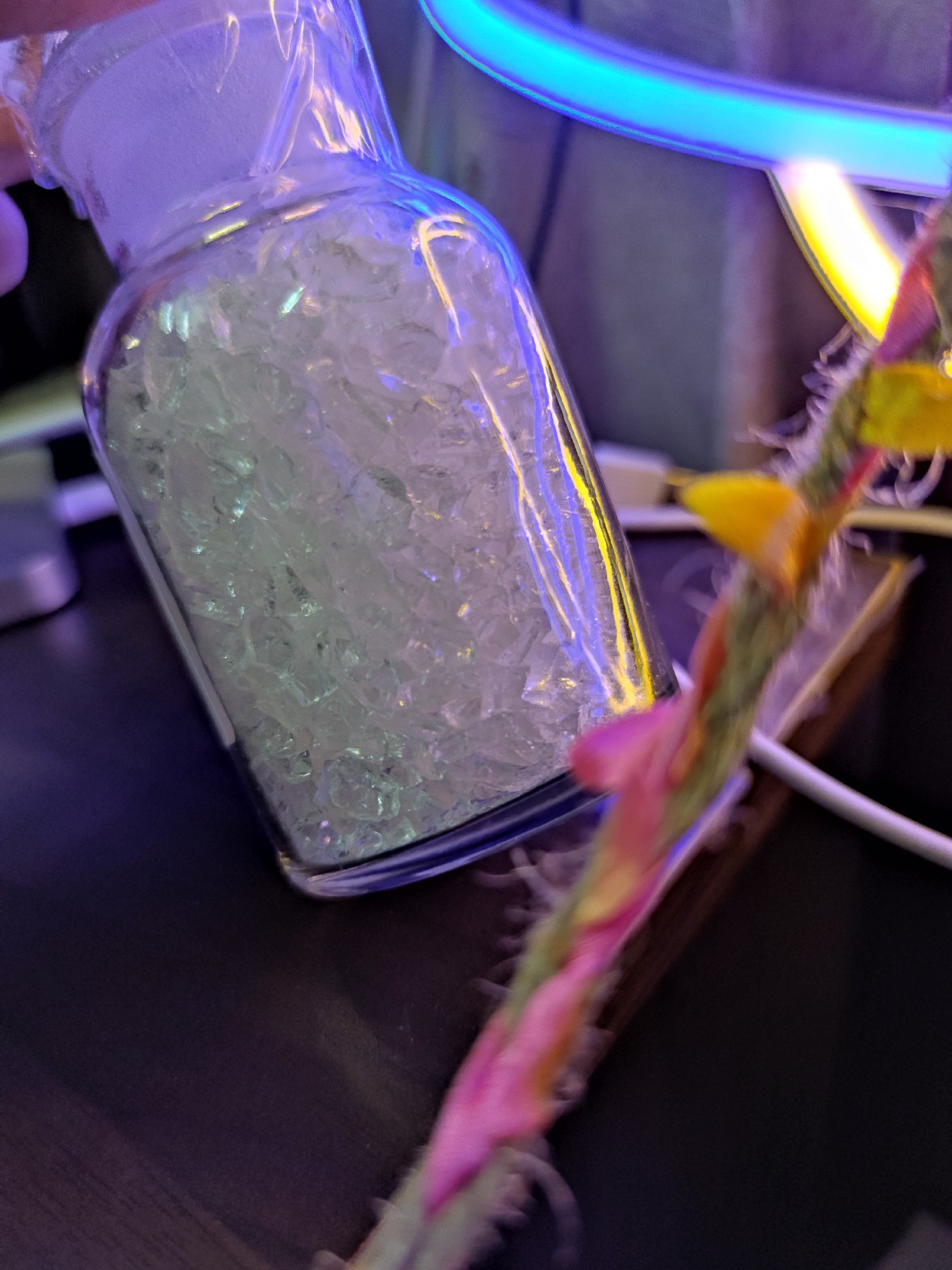

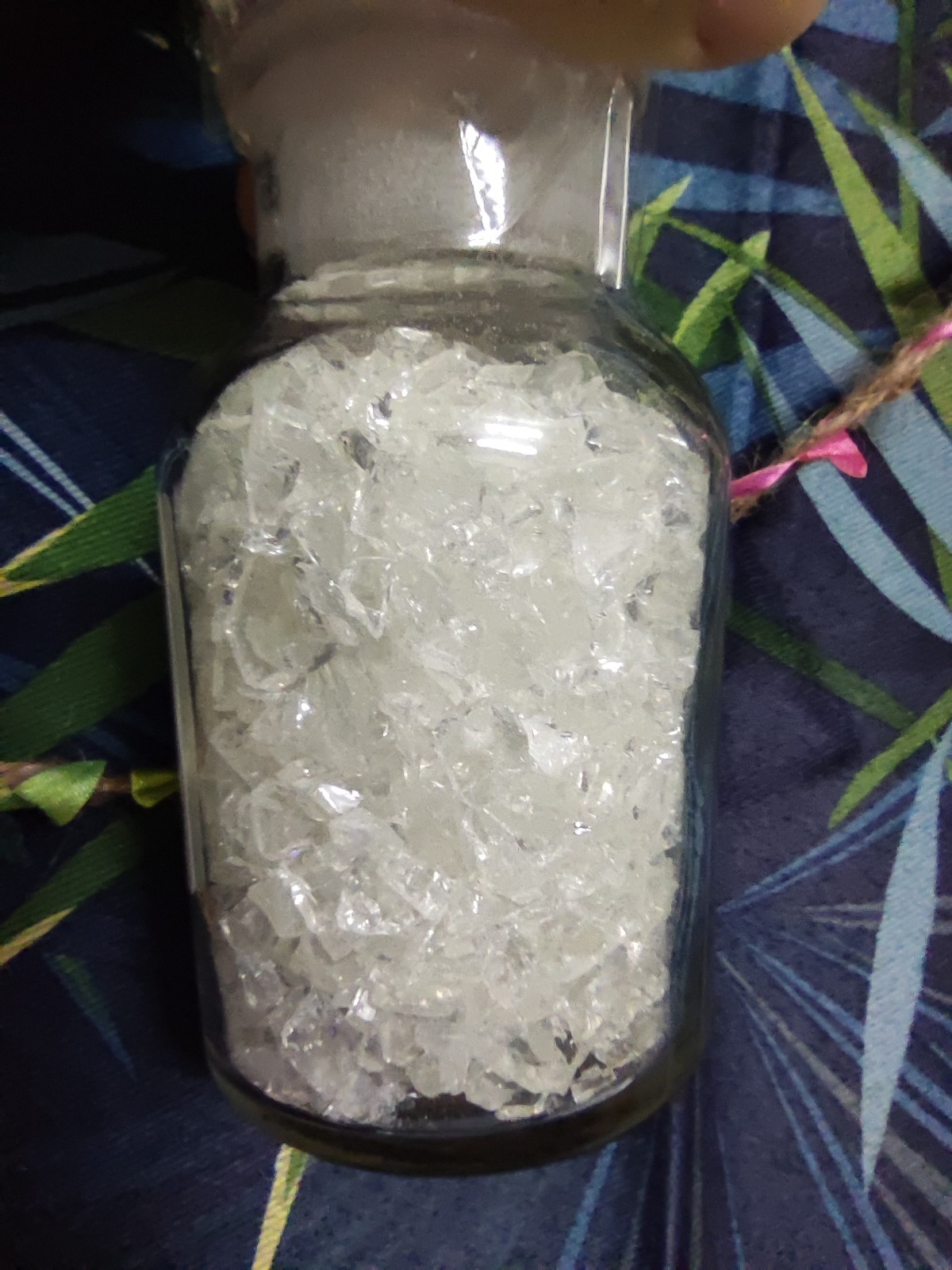

Appearance white or pale yellow transparent flake
Color (50%DMF): max: 2
Acid number(mgKOH/g): 31～34
Softening point(℃): 103～113
Glass transition temp.(℃): ～68
Melting viscosity(200℃, cone/plate, mPa·s): 6500±500
Reactivity at 180℃(s, 7% TGIC): 200～300
◇ Recommend Formulation: NH8307—TGIC
| NH8307 | TGIC | Filler ＆ pigment | Leveling agent | Benzion | 701 |
| 558 | 42 | 383 | 8 | 4 | 5 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Electrostatic spraying with: 40～70KV
Film thickness: 70～90μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 200℃×10min
◇ Film Properties:
Gel time(180℃,sec) 250~400
Horizontal flow:(180℃), mm: 24~27
Gloss(60°): ≥88%
Bending(φ1mm): Pass
Adhesive(1mm,grade): 0
Pencil hardness: ≥1H
Impact (50cm): pass
◇ Packaging:
PE bags, N.W. 25KG±0.1KG / bag
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
According to industry statistics, in 2014, KINTE polyester resin output ranked third in the national industry, becoming a well-known brand and technical leader in the field of polyester resin for powder coatings in China.
The market share in Guangdong province exceeds 50%, and the sales volume ranks the top two in China, and is exported to Southeast Asia, the Middle East, Russia and other regions and countries.
We adhere to the quality concept of "quality is the life of the enterprise", and comprehensively provide customers with one-stop solutions of standards, technical diagnosis and service.
