| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS, ISO90001, ISO14000, Reach, Qualicoat |
| Model Number: | NH6688K |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Features: | Excellent Flowability | Cured System: | 96:4 HAA System |
|---|---|---|---|
| Cured Time: | 180℃/15min | Acid Number (mgKOH/g): | 20-25 |
| Viscosity (mPa·s/200℃): | 7000±1000 | Softening Point(℃): | 100～110 |
| Glass Transition Temp.(℃): | ～ 55 | Usage: | For HAA Powder Coating To Be Cured At 180℃ |
| Highlight: | Primid Saturated HAA Polyester,96/4 HAA Polyester |
||
96/4 HAA Primid Saturated Polyester Resins with Excellent Flowability
◎Introduction
NH6688K is a saturated carboxyl polyester resin designed for 96.5:3.5 Primid XL 552 powder coating to be cured at 180℃.
Outdoor powder coating systems are divided into two categories: triglycidyl isocyanurate (TGIC) and hydroxyalkylamide (HAA) according to their curing systems. TGIC has a triazine ring epoxy structure, the prepared powder coating film has high hardness, clear and bright board surface, no pinholes in a thick coating, good weather resistance, yellowing resistance, and adjustable curing speed; Sensitivity and potential carcinogenicity, the European Union has clearly stipulated that it should not be used as a curing agent for powder coatings; in addition, due to its good compatibility with polyester, small molecular TGIC will produce relatively small molecules after adding it to polyester. With the strong plasticizing effect, so TGIC will greatly reduce the powder Tg, which in turn affects its storage stability. HAA has a highly active amide hydroxyl structure, which has the advantages of energy saving, non-toxicity, and mechanical properties. In addition, it has poor compatibility with polyester and does not reduce the powder Tg basically, so it does not affect the storage stability of the powder; at the same time, due to the HAA Due to its inherent chemical structure, even in the absence of catalysts, the curing speed is still very fast, and the leveling of the resulting coating cannot be satisfactory.
NH6688K solves the above problems, it has excellent leveling performance and surface fineness.
◎Basic Features
Excellent flowability
Good mechanical properties
Good resistance to chemicals and fine anti-yellowing
◎Specifications:

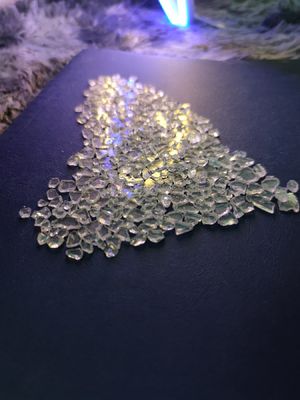

| Appearance | Pale yellow flake |
Color (50% DMF) | Max:2 |
| Acid Value (mgKOH/g) | 20～25 |
| Softening Point (℃) | 100～110 |
| Glass Transition Temp. (℃) | ～55 |
| Melting Viscosity (200℃, ICI, mPa·s) | 7000±1000 |
| Reactivity at 180℃ (s,3.5% T-105) | 240～360 |
| Curing Requirement | 180℃×10min |

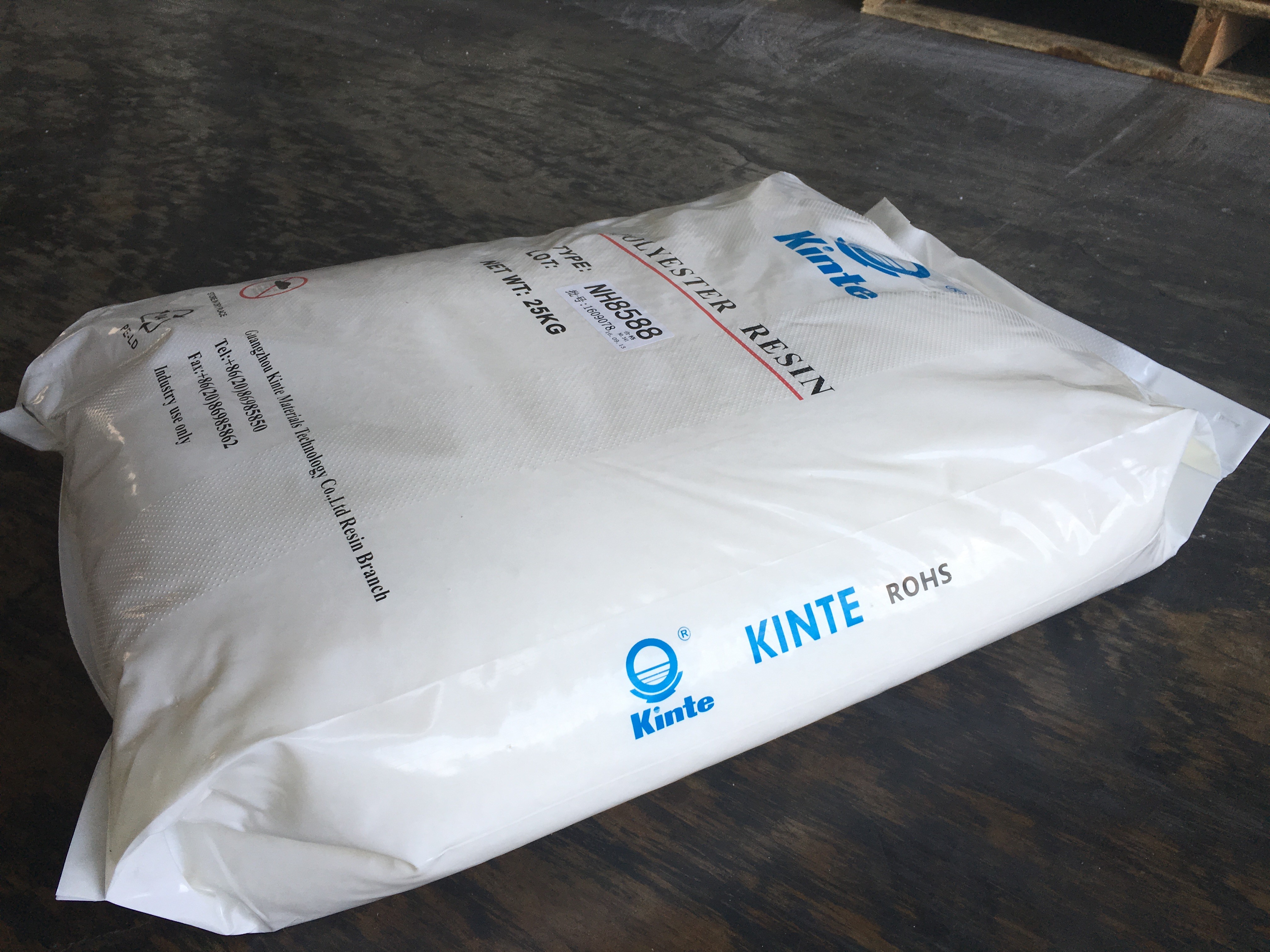

| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Recommend Formulation:
| NH6688K | T-105 | Filler ＆ Pigment | Leveling | Benzoin | 701 | 703 |
| 579 | 21 | 380 | 8 | 4 | 4 | 4 |
◎Extrusion Condition:
Two-screw Extruder
Zone I: 90～110℃ Zone II: 100～110℃
Speed of Revolution: 500～1200rpm
Fineness of Powder: ＜100μm
◎Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～100 μm
Degreased cold-rolled steel: 0.5mm
◎Film Properties:
| Gel Time (180℃, sec) | 220~330 |
| Horizontal Flow (180℃, mm) | 23~27 |
Gloss (60°) | ≥88% |
Bending (φ1mm) | Pass |
| Adhesive (1mm, grade) | 0 |
| Pencil Hardness | ≥1H |
| Impact (50cm) | Pass |
Storage test (40℃, 24hr) | Good |
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
◎More Codes:
| Code | Ratio | Cure Cycle | AV (mgKOH/g) | Viscosity (mPa.s/200℃) | Tg (℃) | Reactivity (s/180℃) | Properties |
| NH6686 | 96/4 | 180℃*10min | 24~29 | 4000~5500 | ~59 | 200-350 | Suitable for general industrial products. Low hardener demand, good flow and pinhole free in thick films. |
| NH6688K | 96/4 | 180℃*15min | 20~25 | 6000~8000 | ~55 | 240-360 | Excellent flowability, Good mechanical properties, good resistance to chemicals and fine anti-yellowing, could be cured at 180℃. |
