| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | NH0004 & NH0504 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 80,000 tons per year |
| Product Type: | Dry-blended Polyester Resins | Ratio: | 90/10 & 95/5 |
|---|---|---|---|
| Cure Type: | Polyester/TGIC Curing System | Cure Time: | 200℃×10min |
| Acid Number (mgKOH/g): | 49～55 & 20～25 | Glass Transition Temp.( ℃): | ~61 & ~62 |
| Properties: | Excellent Bending Properties | Application: | For High Flexibility Outdoor Semi-gloss Powder Coatings |
| Highlight: | High Flexibility Blended Polyester Resin,Coil Field Blended Polyester Resin |
||
Blended Polyester Resin with High Flexibility for Powder Coatings in Coil Field
◎Introduction
NH0004 and NH0504 are high and low acid value polyester resins with high flexibility respectively, which are used in polyester/TGIC powder coating systems. Using NH0004 and NH0504 to make powder respectively and then dry mixing to make high flexibility outdoor semi-gloss powder coating, suitable for coil field.
At present, the application fields of powder coatings are constantly expanding, and powder coatings have begun to be used in metal doors and windows, coiled materials, metal furniture, automotive springs and other components. The coating process in these parts of the field is different from the existing mainstream coating process. The new coating process is mainly to spray the powder coating on the surface of the workpiece, and then bend it. This requires the cured coating to be It has excellent mechanical properties such as high toughness and bending resistance within a certain period of time.
Powder coatings prepared by dry-mixing of NH0004 and NH0504 have high toughness and excellent bending resistance after a few months.
◎Basic Features
Excellent bending properties
Good dry blend matting performance and leveling
good storage stability
Excellent chemical resistance
◎Recommend Formulation:
| Formulation | NH0004 | NH0504 | TGIC | TiO2 | BaSO4 228Ba | Leveling Agent | Benzoin |
| I | 270 | — | 30 | 102 | 92 | 4 | 2 |
| II | — | 285 | 15 | 102 | 92 | 4 | 2 |
◎Specifications I
| Items | NH0004 | NH0504 |
| Appearance | Pale yellow flake | Pale yellow flake |
| Color (50% DMF) | ≤6 | ≤6 |
| Acid Number (mgKOH/g) | 49～55 | 20～25 |
| Softening Point (℃) | 102～120 | 103～120 |
| Glass Transition Temp. (℃) | ～61 | ～62 |
| Melting Viscosity (ICI, mPa·s) | 2800±1500 | 8000±1500 |
| Reactivity s (180℃, TGIC) | 100±50 | 250±100 |
| Curing Requirement | 200℃×10min | |

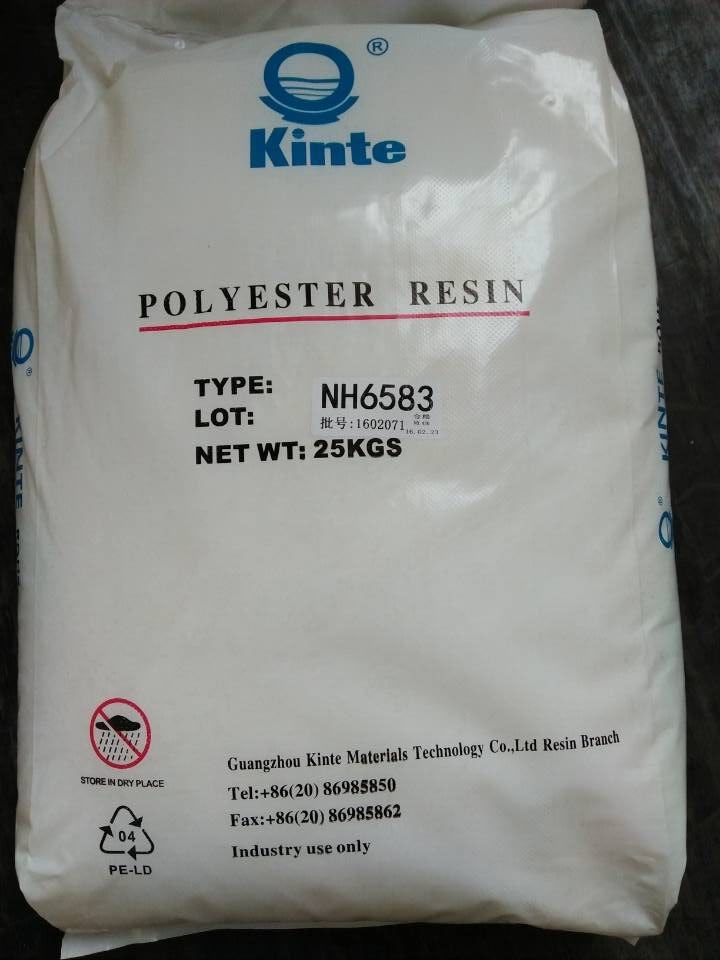

| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag | |
◎Specifications II
| Extrusion Condition | Two-screw Extruder | 110～120℃ |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Extrude NH0004 and NH0504 respectively according to the formula, and mix and pulverize in a ratio of 1:1 to make powder. | ||
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 70～90μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gloss (60°) | 30%~50% |
| Bending (φ1mm) | Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact (50cm) | Pass | |
◎More Code
| Code | Ratio | Cure Cycle | Acid Value (mgKOH/g) | Viscosity (mPa.s/200℃) | Tg (℃) | Reactivity (s/180℃) | Properties |
| NH9001 | 90/10 | 200℃*10min | 46~54 | 4300~5900 | ~65 | 25-75 | Dry-blended for low gloss super durable powder coatings with good anti-yellowing. It could be used in HAA system also. |
| NH9508 | 95/5 | 200℃*10min | 19~25 | 4500~5500 | ~63 | 270-390 | |
| NH0004 | 90/10 | 200℃*10min | 49~55 | 1300~4300 | ~61 | 50-150 | Ecomomic resin. Dry-blended for outdoor semi-gloss powder coating with high flexibility for coil field. |
| NH0504 | 95/5 | 200℃*10min | 20~25 | 6500~9500 | ~62 | 150-350 |
◎Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
