TMA Free 70/30 Thermosetting Hybrid Curing Polyester Powder Coating Resins

Basic Information
Place of Origin: CHINA
Brand Name: KINTE
Certification: ROHS,ISO90001,ISO14000,Reach,Qualicoat
Model Number: HH2782G
Minimum Order Quantity: 1000KG
Price: Negotiable

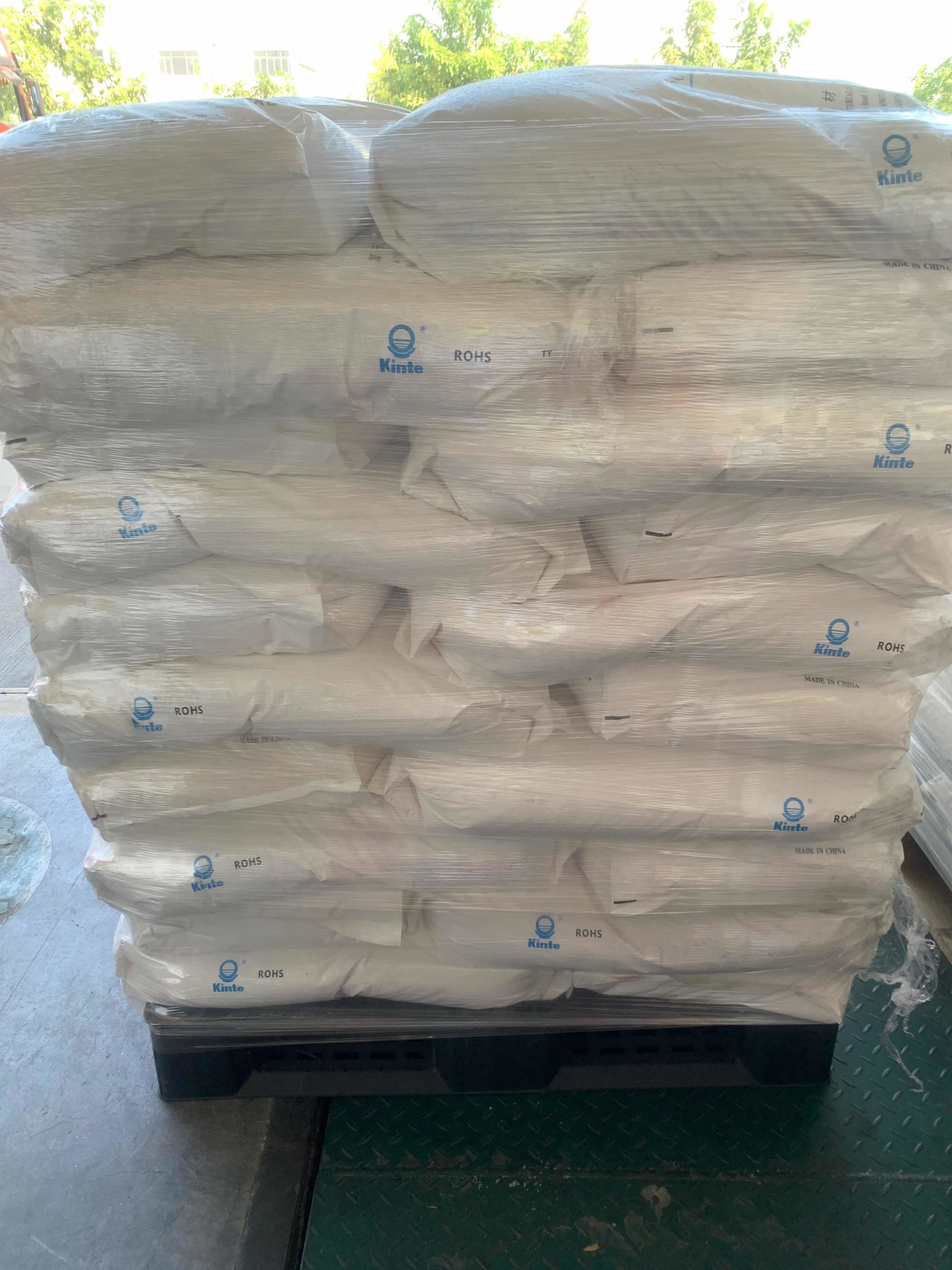

Packaging Details: 25kg/PE bag , 875KG/PALLET , 17,500KG/20GP
Delivery Time: 10 working days
Payment Terms: T/T, L/C, D/P
Supply Ability: 80,000tons/year
Specification: Hybrid Cure Acid Value(mgKOH/g): 29~34
Melting Viscosity (ICI,mPa.s/200℃): 5800~7000 Ratio: 70/30
Softening Point(℃): 100~110 Properties: Good Storage Stability, Good Balance Of Properties
Highlight:

Polyester Powder Coating Resins

,

Thermosetting Hybrid Curing Powder Coating Resins

TMA Free 70/30 Thermosetting Hybrid Curing Polyester Powder Coating Resins


◇ Introduction:


HH2782G is a carboxyl polyester resin designed for 70/30 hybrid powder coatings with excellent gas oven stability. Can be used with B68 for low gloss with good performance.

Powder coating is a solvent-free, 100% solid powder coating, which is solvent-free, pollution-free, recyclable, environmentally friendly, saves energy and resources, reduces labor intensity, and has high mechanical strength of the coating film. According to the use environment of the coated device, such as electrical appliances used under high temperature conditions, there are higher requirements for the heat resistance of powder coatings, especially for products that require the color of the coating to be white, it is difficult to ensure that the coating has a good quality Heat resistance while maintaining coating quality that does not change during use.

Common heat-resistant powder coatings currently on the market can be used for radiators heated by steam or hot water. This powder coating is baked at 180°C to 230°C for 20 minutes, and the color change of the coating is small, but at 180°C The color changes greatly when baking for about 24 hours. Therefore, the use of electrical appliances under high heat and long-term conditions, such as electric heating oil whose surface temperature generally exceeds about 115 degrees during use, cannot be painted with ordinary powder coatings. The electrical appliance is required to maintain the quality of the coating without major changes in the long-term use of the electrical appliance at high temperature.

The direct-fired furnace-resistant powder coating is used for spraying on the surface of electrical appliances with higher operating temperatures, which can ensure that the coating has good heat resistance while maintaining the quality of the coating that does not change during use.



Basic Features:


Outstanding Mechanical Properties

Good Leveling

Good Storage Stability

Good Chemical Resistance

TMA Free



Specifications:

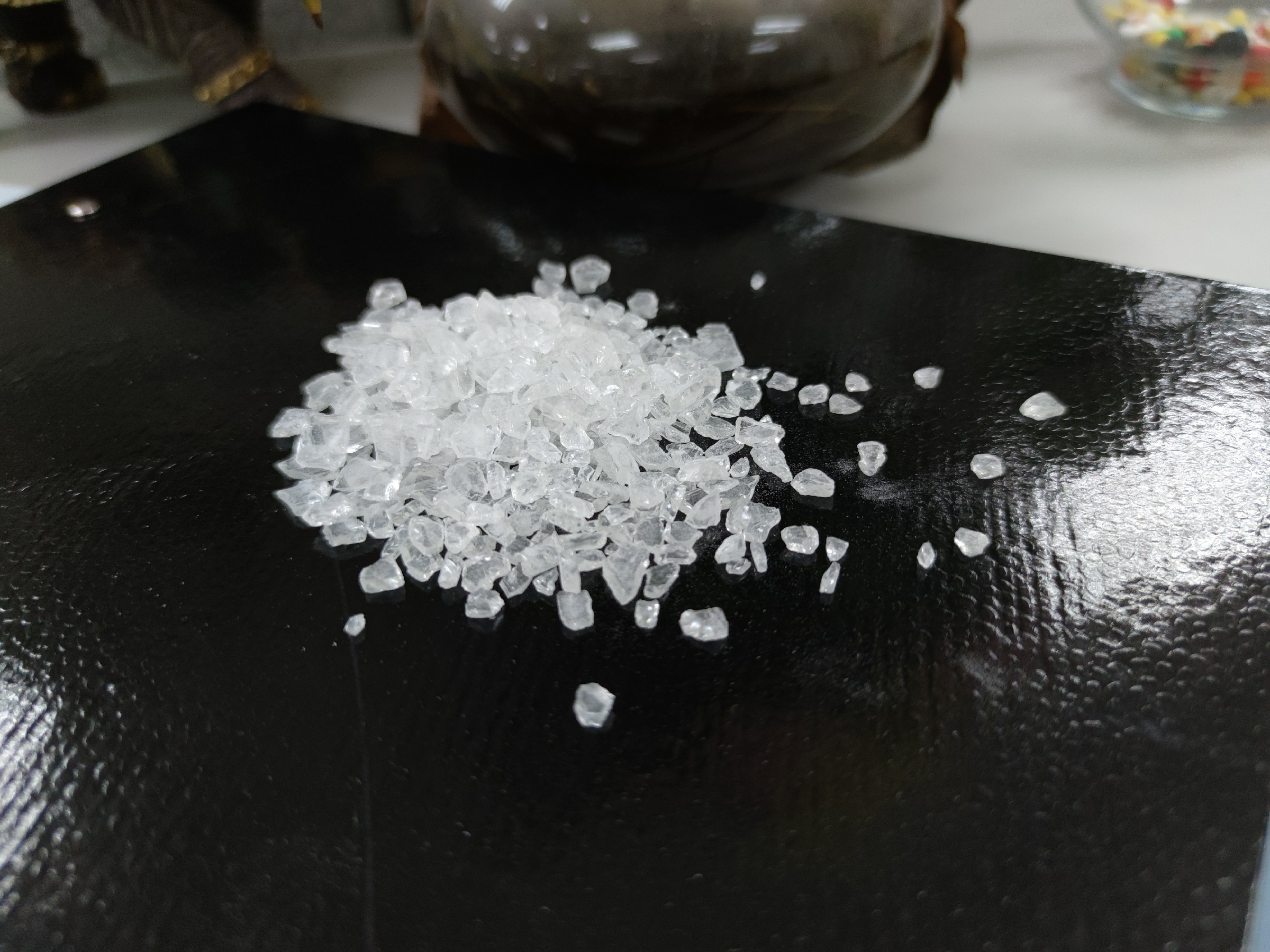

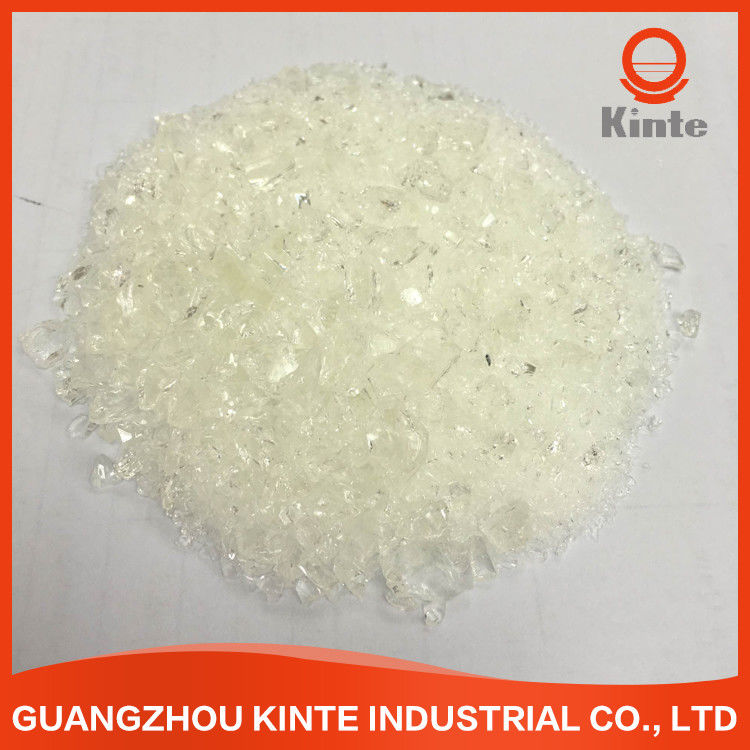

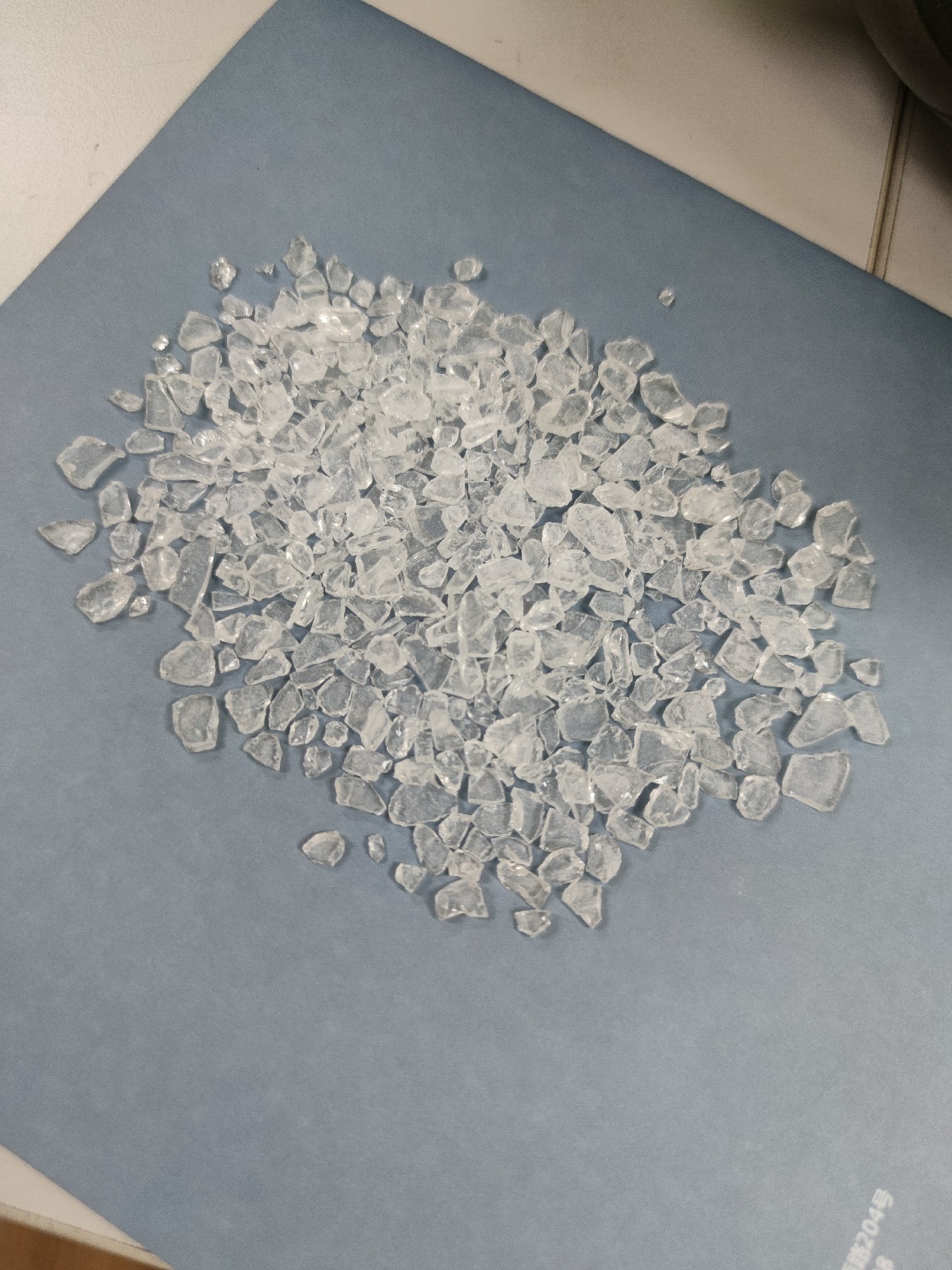

Appearance White or Light Yellow Transparent Flakes
Color (50% DMF) max:2
Acid Number (mgKOH/g) 29~34
Softening Point (℃) 100~110
Glass Transition Temp. ( ℃) ~60
Melting Viscosity (ICI, mPa·s/200℃) 5800~7000
Reactivity at 180℃ (s, 30% Epoxy) 180~280
Curing Requirement

180℃×15min / 200℃×10min

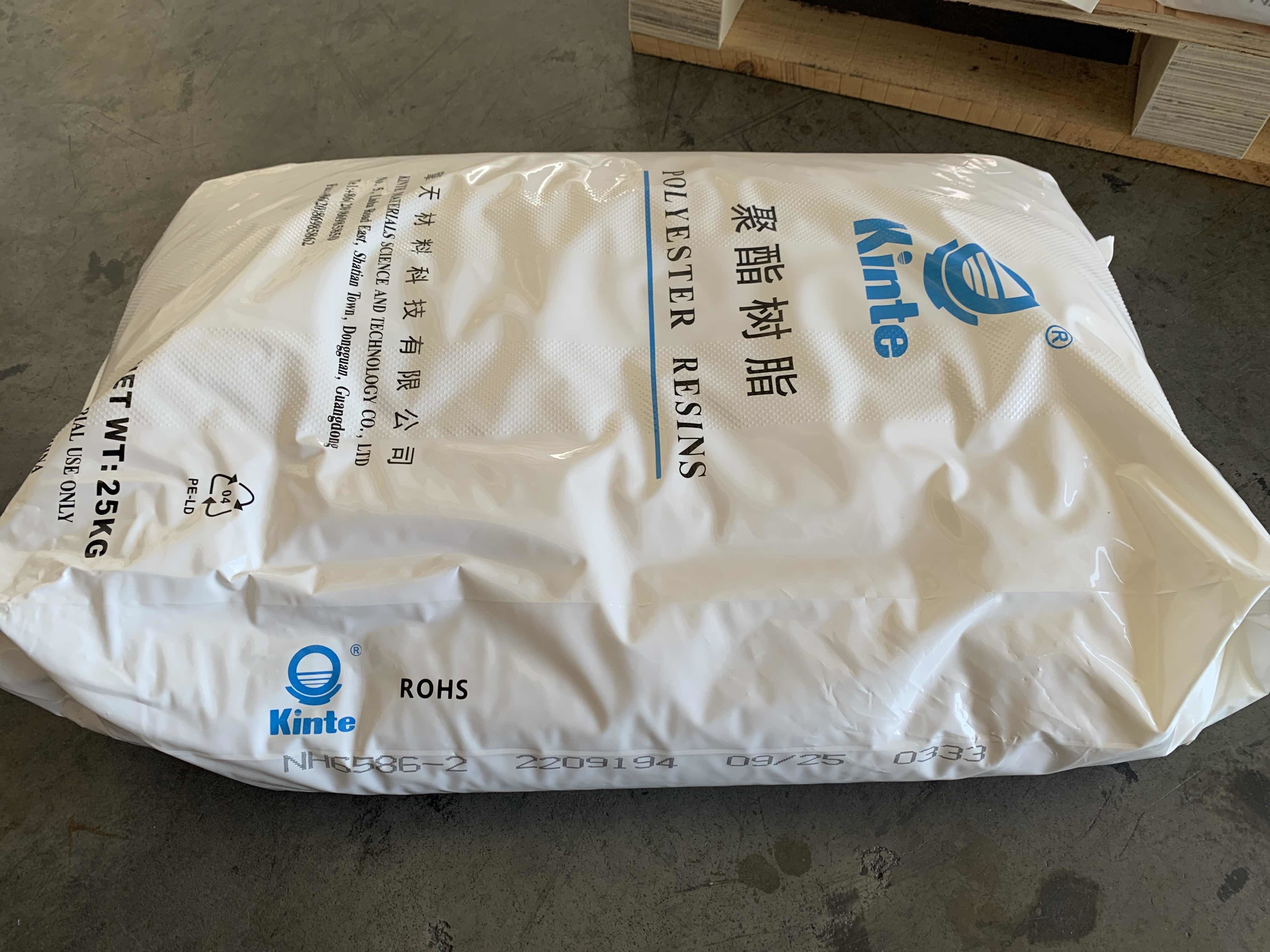

Package PE Bags, Net Weight 25kg±0.1kg / bag



Recommend Formulation:


HH2782G Epoxy Resin TIO2 BaSO4 Leveling Agent Benzoin 701
210 90 102 90 4 2 2.5



◇Extrusion Condition:

Two-screw Extruder
Zone I: 90~110℃ Zone II: 110~120℃
Speed of Revolution: 500~1200rpm
Fineness of Powder: <100μm


◇Application Condition:

Electrostatic spraying with: 40~70KV
Coating film thickness: 50~100μm
Degreased cold-rolled steel: 0.5mm


◇Film Properties:


Gel Time (180℃, sec) 200~300
Horizontal Flow (180℃, mm) 24~28
Gloss (60°) ≥90%
Bending (φ1mm) Pass
Adhesive (1mm, grade) 0
Pencil Hardness 1H
Impact (50kg·cm) Pass



◇More Codes:


Code Ratio Cure Cycle AV (mgKOH/g) Viscosity (mPa.s/200℃) Tg (℃) Reactivity (s/180℃) Properties
HH2781 70/30 180℃*10min 30~36 4500~6500 ~56 120-240 Economic resin. Fast Cure, good flow and impact resistance. TMA free.
HH2781T 70/30 180℃*10min 30~36 4000~5500 ~55 100-200 HH2781T is tribo chargerable of HH2781.
HH2782G 70/30 180℃*15min 29~35 5800~7000 ~60 180-280 Good storage stability, good balance of properties. TMA free.
HH2783 70/30 180℃*15min 29~35 4500~6500 ~57 180-300 General purpose resin. Excellent mechanical properties, good flow, good balance of properties.



Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)


Company Profile:


Kinte Materials Science and Technology Co., Ltd. is subordinate to China Machinery Industry Corporation (a key state-owned enterprise directly managed by SASAC, ranking 284 among the world's top 500 in 2021). It is a national high-tech enterprise under China National Electric Apparatus Research Institute Co., Ltd. (Stock Code: 688128), a listed enterprise on the SSE STAR MARKET. Focusing on the R & D, production, and sales of environmentally friendly coatings (powder coatings, waterborne industrial coatings) and powder coating resins, the company is committed to improving the global market competitiveness of China's environmentally friendly coating industry. Now it has become the leader and promoter in China’s technological development of environmentally friendly coatings as well as polyester resins for powder coatings!
TMA Free 70/30 Thermosetting Hybrid Curing Polyester Powder Coating Resins 0

We have gained ISO9001 and ISO14000, ISO18001, RoHS, UL certification and QUALICOAT Certificate. Due to the excellent and stable quality, our products always enjoy high reputation at home and oversea, and were sold to more than 30 countries.
TMA Free 70/30 Thermosetting Hybrid Curing Polyester Powder Coating Resins 1

Polyester resin branch was founded in 2000, now there are two factories (DongGuan factory and TaiXing Factory) with annual production capacity over 80,000 tons, and the annual production capacity reached 120000 tons by the end of 2020, opening the road to global diversified development. Our clients include many top-tier powder manufacturers in the world such as AKZO, PPG, TIGER, PROTECH, NIPPON, OXYPLAST, JOTUN, SHERWIN, VALSPAR, SINTERPLAST, etc.

We unremittingly stick at the business principle of “Quality is the life, adhere to first-class technology, first-class quality, first-class cost and first-class brand”. We would like to provide a complete set of services and solutions for both domestic and abroad customers and would like to go forward to brilliant future with you together.

TMA Free 70/30 Thermosetting Hybrid Curing Polyester Powder Coating Resins 2TMA Free 70/30 Thermosetting Hybrid Curing Polyester Powder Coating Resins 3
