Thermosetting 70/30 Polyester Powder Coating Resins For General Purpose

Basic Information
Place of Origin: CHINA
Brand Name: KINTE
Certification: ROHS,ISO90001,ISO14000,Reach,Qualicoat
Model Number: HH2783
Minimum Order Quantity: 1000KG
Price: Negotiable
Packaging Details: 25kg/PE bag , 875KG/PALLET , 17,500KG/20GP
Delivery Time: 10 working days
Payment Terms: T/T, L/C, D/P
Supply Ability: 80,000tons/year
Specification: Hybrid Cure Acid Value(mgKOH/g): 29~35
Melting Viscosity (ICI,mPa.s/200℃): 5500±1000 Ratio: 70/30
Softening Point(℃): 98~110 Properties: Good Flow, Good Balance Of Properties
Highlight:

70/30 Polyester Powder Coating Resins

,

Thermosetting Polyester Powder Coating Resins

Thermosetting 70:30 Polyester Powder Coating Resins for General Purpose


◇ Introduction:



HH2783 is a carboxyl polyester resin designed for 70/30 hybrid powder coatings, which are mainly used indoors, such as household appliances, metal furniture, instrumentation, indoor fitness equipment, radiators, etc.

Powder coating is a new type of solvent-free 100% solid powder coating. It comes in two broad categories: thermoplastic powder coatings and thermoset powder coatings. The coating is prepared by mixing resin, pigments and fillers, curing agent and other additives in a certain proportion, and then through hot extrusion, crushing and sieving. They are stable in storage at room temperature. After electrostatic spraying or fluidized bed dipping, they are heated, baked, melted and solidified to form a smooth and bright permanent coating for decoration and anti-corrosion purposes.



Basic Features:


Excellent Mechanical Properties

Good Leveling

Good Comprehensive Performance



Specifications:

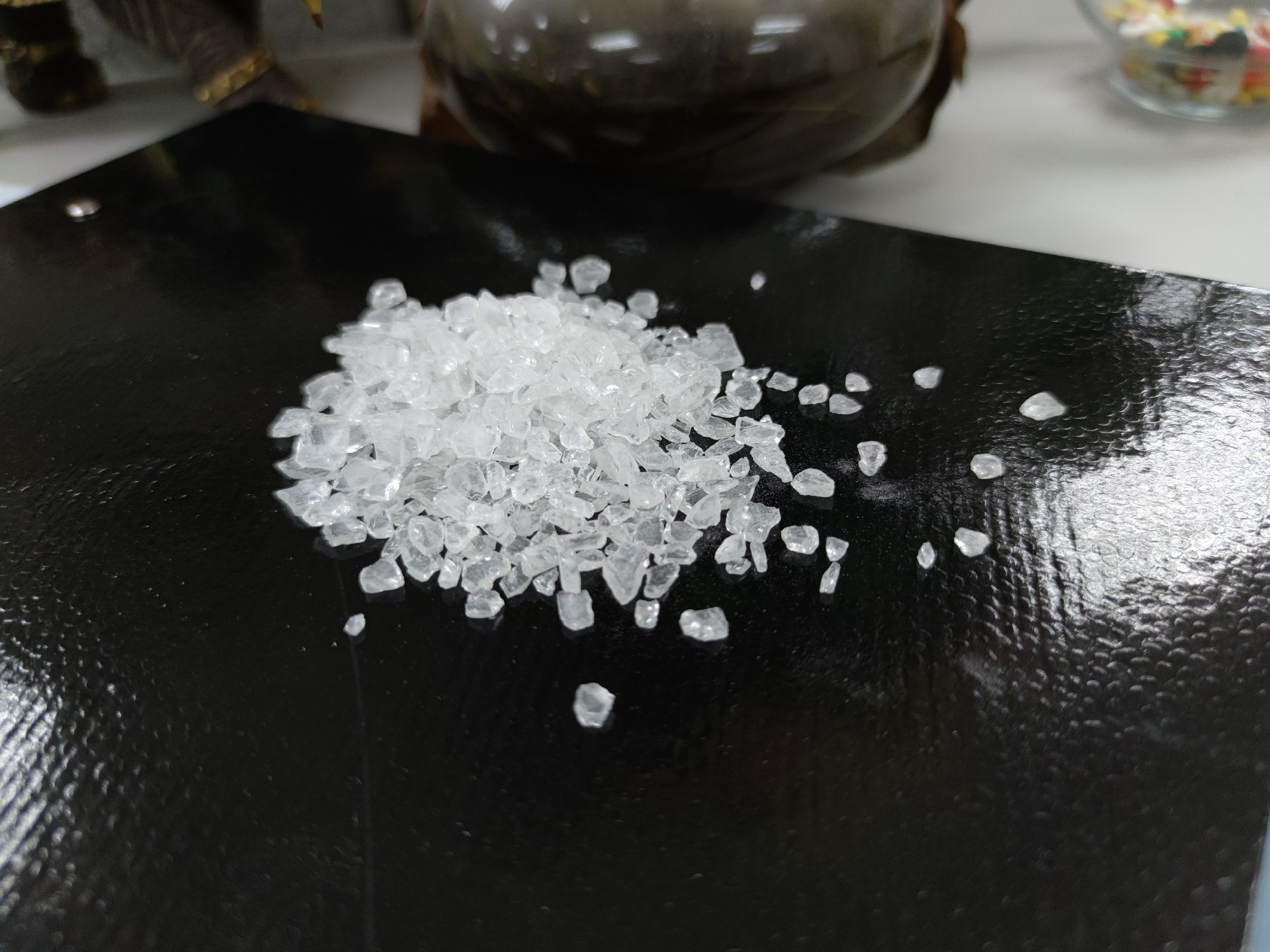

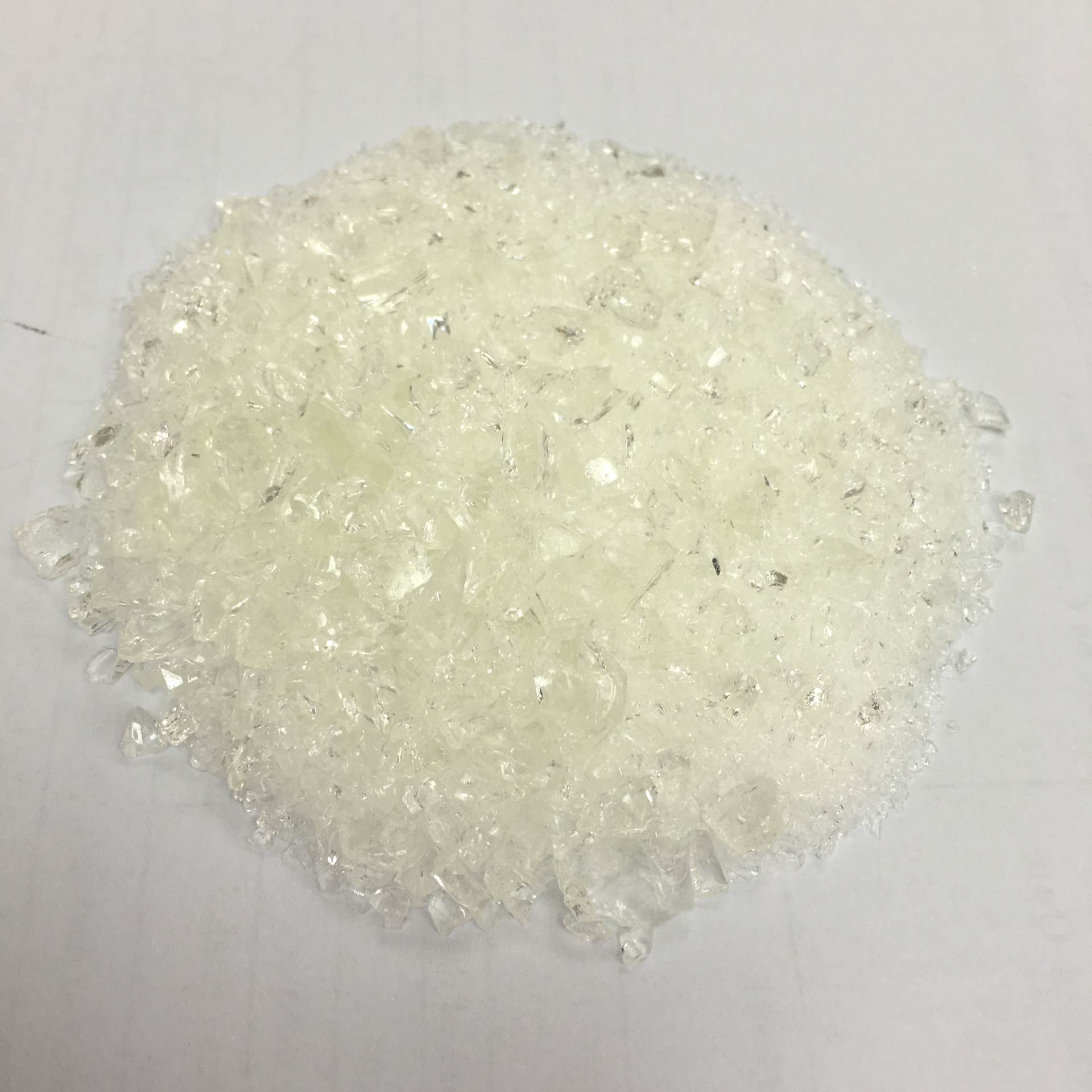

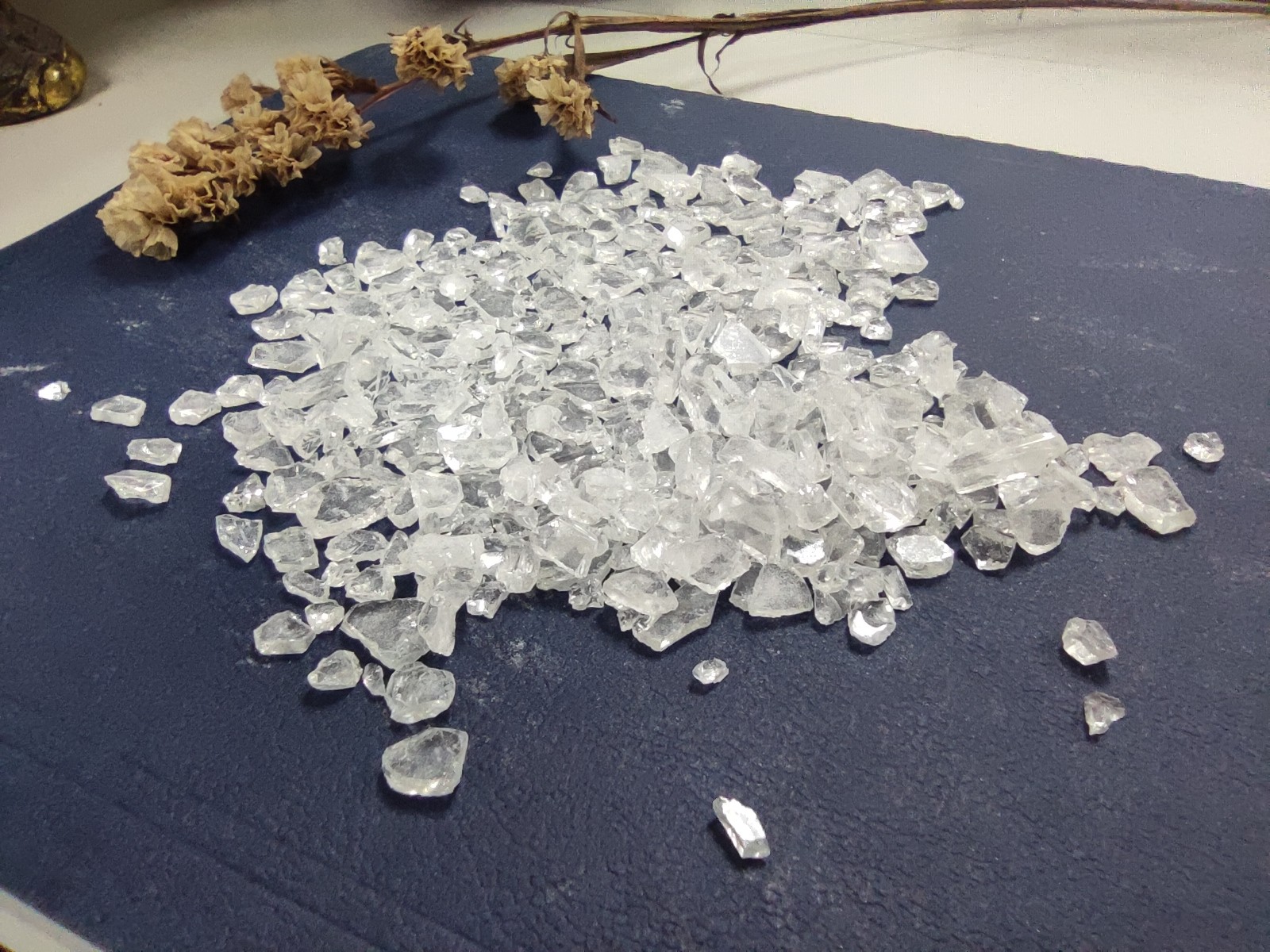

Appearance White or Light Yellow Transparent Flakes
Color (50% DMF) max:2
Acid Number (mgKOH/g) 29~35
Softening Point (℃) 98~110
Glass Transition Temp. ( ℃) ~57
Melting Viscosity (ICI, mPa·s/200℃)

5500±1000

Reactivity at 180℃ (s, 30% Epoxy)

240±60

Curing Requirement

180℃×15min

Package PE Bags, Net Weight 25kg±0.1kg / bag



Recommend Formulation:


HH2783 E12 Filler & Pigment Leveling Agent Benzoin Leveling Additive 701
420 180 383 8 4 5



◇Extrusion Condition:

Two-screw Extruder
Zone I: 90~110℃ Zone II: 110~120℃
Speed of Revolution: 500~1200rpm
Fineness of Powder: <100μm


◇Application Condition:

Electrostatic spraying with: 40~70KV
Coating film thickness: 50~70μm
Degreased cold-rolled steel: 0.5mm


◇Film Properties:


Gel Time (180℃, sec) 180~300
Horizontal Flow (180℃, mm) 24~27
Gloss (60°) ≥85%
Bending (φ1mm) Pass
Adhesive (1mm, grade) 0
Pencil Hardness ≥1H
Impact (50kg·cm) Pass



◇More Codes:


Code Ratio Cure Cycle AV (mgKOH/g) Viscosity (mPa.s/200℃) Tg (℃) Reactivity (s/180℃) Properties
HH2781 70/30 180℃*10min 30~36 4500~6500 ~56 120-240 Economic resin. Fast Cure, good flow and impact resistance. TMA free.
HH2781T 70/30 180℃*10min 30~36 4000~5500 ~55 100-200 HH2781T is tribo chargerable of HH2781.
HH2782G 70/30 180℃*15min 29~35 5800~7000 ~60 180-280 Good storage stability, good balance of properties. TMA free.
HH2783 70/30 180℃*15min 29~35 4500~6500 ~57 180-300 General purpose resin. Excellent mechanical properties, good flow, good balance of properties.



Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
