| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | NH3306 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 80,000 tons per year |
| Features: | Good Heat Resistance And Anti-yellowing | Cure Type: | TGIC Curing Type |
|---|---|---|---|
| Cure Requirement: | 200°C/10mins | Acid Number (mgKOH/g): | 31-36 |
| Viscosity (mPa·s/200℃): | 8200～9800 | Softening Point(℃): | 104～114℃ |
| Glass Transition Temp.(℃): | ～ 69 | Applications: | Suitable For Sand Texture And Wrinkle Texture Powder Coatings |
| Highlight: | TGIC Polyester Resins Anti Yellowing,TGIC Polyester Resins Heat Resistance |
||
93/7 Saturated TGIC Polyester Resins with Anti-yellowing and Heat Resistance
◎Introduction
NH3306 is saturated carboxyl polyester resin for applications of polyester/TGIC powder coating system, with good heat resistance and anti-yellowing, it’s suitable for sand texture and wrinkle texture powder coationgs, which could be used for outdoor decoration.
Powder coating exists in the state of fine powder. It is a new type of solvent-free 100% solid powder coating. It is solvent-free, pollution-free, recyclable, environmentally friendly, saves energy and resources, reduces labor intensity and film mechanical strength Advanced features. The powder coating is sprayed onto the object to be coated in powder form, melted and leveled by baking, and cured to form a film. Because powder coatings have the advantages of improving coating performance, reducing costs, and eliminating the generation of volatile organic compounds, they have been continuously and rapidly developed.
Thermosetting sand texture powder coatings not only have many advantages of general thermosetting powder coatings, but also have beautiful patterns and strong decorative properties. They can also make up and cover defects such as roughness and unevenness on the surface of workpieces. They are widely used in instrumentation, power distribution cabinets, and security doors. , home appliances, furniture, lighting and other fields of painting. The current thermosetting sand grain type powder coating usually makes the final coating film present a uniformly distributed sand grain shape by adding a sand grain agent.
◎Basic Features
Good leveling
Excellent anti-yellowing
Excellent storage stability
Good weathering resistance
Suitable for the powder coatings with deep or bright color
◎Recommend Formulation:
|
NH3306 |
TGIC | Filler ＆ Pigment | Leveling Agent | Benzoin | 701 |
| 558 | 42 | 383 | 8 | 4 | 5 |
◎Specifications I

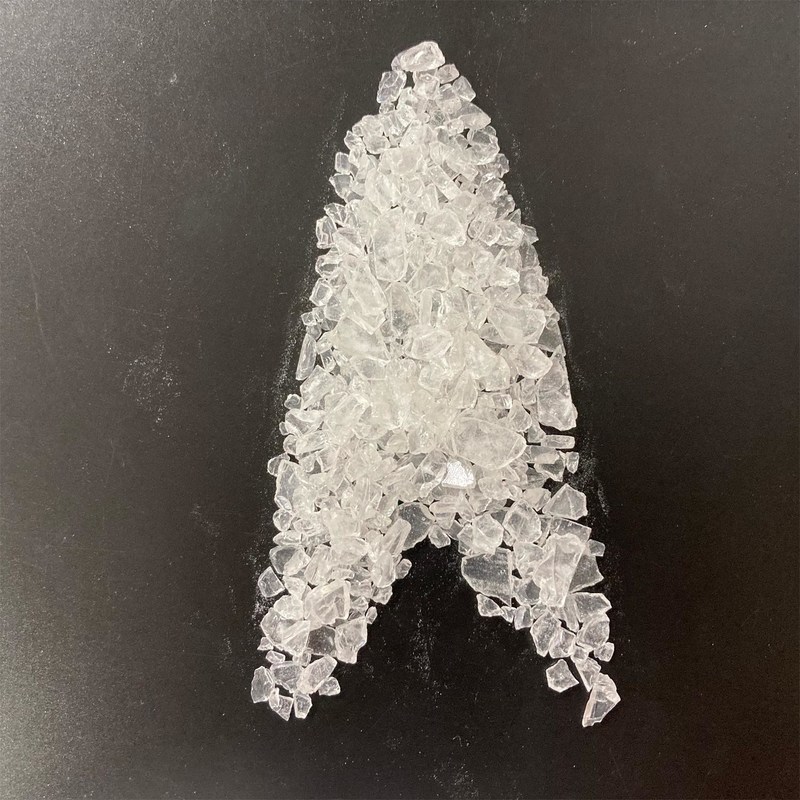

| Appearance | White or Light Yellow Transparent Flakes |
|
Color (50% DMF) |
Max:2 |
| Acid Number (mgKOH/g) | 31～36 |
| Softening Point (℃) | 104～114 |
| Glass Transition Temp. ( ℃) | ～69 |
| Melting Viscosity (ICI, mPa·s/200℃) | 8200～9800 |
| Reactivity at 180℃ (s, 7% TGIC) | 140～200 |
| Curing Requirement |
200℃×10min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◇Extrusion Condition:
Two-screw Extruder
Jacket Temperature: 110～120℃
Speed of Revolution: 500～1200rpm
Fineness of Powder: ＜100μm
◇Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～70μm
Degreased cold-rolled steel: 0.5mm
◇Film Properties:
| Gel Time (180℃, sec) | 200~300 |
| Horizontal Flow (180℃, mm) | 22~26 |
|
Gloss (60°) |
≥85% |
| Bending (φ1mm) | Pass |
| Adhesive (1mm, grade) | 0 |
| Pencil Hardness | ≥1H |
| Impact (50cm) |
Pass |
◎More Code
| Code | Ratio | Cure Cycle | AV (mgKOH/g) | Viscosity (mPa.s/200℃) | Tg (℃) | Reactivity (s/180℃) | Properties |
| NH3305 | 93/7 | 200℃*10min | 31~35 | 4600～6200 | ~65 | 160-280 | General purpose resin. Cost-effective. |
| NH3306 | 93/7 | 200℃*10min | 31~36 | 8200~9800 | ~69 | 140-200 | Excellent storage stability, good heat resistance and anti-yellowing. Suitable for sand texture and wrinkle texture powder coatings. |
| NH3307 | 93/7 | 200℃*10minn | 30~35 | 4000~6000 | ~67 | 200-260 | General purpose resin for aluminum profile powder coatings with high Tg, outstanding flow and excellent outdoor durability. |
| NH3308 | 93/7 | 200℃*10min | 30~36 | 4500~6000 | ~65 | 200-300 | General purpose resin for low gloss powder coatings with good outdoor durability and mechanical properties. |
| NH3309 | 93/7 | 200℃*15min | 30~35 | 2900~4100 | ~60 | 300-400 | Excellent flow, good chemical resistance. |
| NH3309C | 93/7 | 200℃*15min | 29~35 | 3500~4200 | ~60 | 380-450 | Excellent flow, enhanced outdoor durability. |
◎Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
