| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | NH3309C |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 80,000 tons per year |
| Features: | Excellent Flow, Enhanced Outdoor Durability | Cure Type: | TGIC Curing Type |
|---|---|---|---|
| Cure Requirement: | 200°C/15mins | Acid Number (mgKOH/g): | 29-35 |
| Viscosity (mPa·s/200℃): | 3500~4200 | Softening Point(℃): | 103～108℃ |
| Glass Transition Temp.(℃): | ～ 60 | Applications: | For Low Gloss Or Matt Powder Coatings |
| Highlight: | Saturated 93/7 TGIC Polyester Resin,TGIC Polyester Resin For Powder Coating |
||
Saturated 93/7 TGIC Polyester Resin for Powder Coating with Excellent Levelling
◎Introduction
NH3309C is a saturated carboxyl polyester resin for a polyester/TGIC powder coating system with excellent levelling. It is also suitable to mix with acrylic or matting agent to produce low gloss or matt powder coatings.
Depending on the application, a semi-gloss or matt powder coating is sometimes required. In order to reduce the gloss of the coating film, the commonly used matting agents are ultrafine silica, talc, aluminum stearate, calcium stearate, low molecular thermoplastic resin, etc. To get the matting effect, you can use the following methods:
1. Mix the powder coatings with different curing speed by dry mixing method, then the gloss of the obtained coating film will obviously decrease, and it will play a matting effect.
2. Add thermoplastic resin.
3. Use special curing agent with matting effect.
4. Add a filler with matting effect.
◎Basic Features
Excellent Leveling
Outstanding Mechanical Properties
Good Anti-yellowing and Storage stability
Good Chemical Resistance
◎Recommend Formulation:
NH3309C | TGIC | Filler ＆ Pigment | Leveling Agent | Benzoin | 701 |
| 558 | 42 | 383 | 8 | 4 | 5 |
◎Specifications I

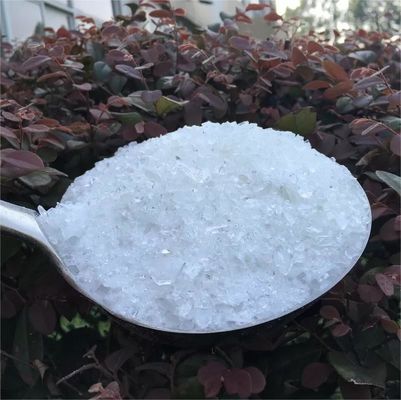

| Appearance | White or Light Yellow Transparent Flakes |
Color (50% DMF) | Max:2 |
| Acid Number (mgKOH/g) | 29～35 |
| Softening Point (℃) | 103～108 |
| Glass Transition Temp. ( ℃) | ～60 |
| Melting Viscosity (ICI, mPa·s/200℃) | 3500～4200 |
| Reactivity at 180℃ (s, 7% TGIC) | 380～420 |
| Curing Requirement | 200℃×15~20min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◇Extrusion Condition:
Two-screw Extruder
Jacket Temperature: 110～120℃
Speed of Revolution: 500～1200rpm
Fineness of Powder: ＜100μm
◇Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～70μm
Degreased cold-rolled steel: 0.5mm
◇Film Properties:
| Gel Time (180℃, sec) | 500~570 |
| Horizontal Flow (180℃, mm) | 29~31 |
Gloss (60°) | ≥88% |
| Bending (φ1mm) | Pass |
| Adhesive (1mm, grade) | 0 |
| Pencil Hardness | ≥1H |
| Impact (50cm) | Pass |
◎More Code
| Code | Ratio | Cure Cycle | AV (mgKOH/g) | Viscosity (mPa.s/200℃) | Tg (℃) | Reactivity (s/180℃) | Properties |
| NH3305 | 93/7 | 200℃*10min | 31~35 | 4600～6200 | ~65 | 160-280 | General purpose resin. Cost-effective. |
| NH3306 | 93/7 | 200℃*10min | 31~36 | 8200~9800 | ~69 | 140-200 | Excellent storage stability, good heat resistance and anti-yellowing. Suitable for sand texture and wrinkle texture powder coatings. |
| NH3307 | 93/7 | 200℃*10minn | 30~35 | 4000~6000 | ~67 | 200-260 | General purpose resin for aluminum profile powder coatings with high Tg, outstanding flow and excellent outdoor durability. |
| NH3308 | 93/7 | 200℃*10min | 30~36 | 4500~6000 | ~65 | 200-300 | General purpose resin for low gloss powder coatings with good outdoor durability and mechanical properties. |
| NH3309 | 93/7 | 200℃*15min | 30~35 | 2900~4100 | ~60 | 300-400 | Excellent flow, good chemical resistance. |
| NH3309C | 93/7 | 200℃*15min | 29~35 | 3500~4200 | ~60 | 380-450 | Excellent flow, enhanced outdoor durability. |
◎Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
