| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | NH3387 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |

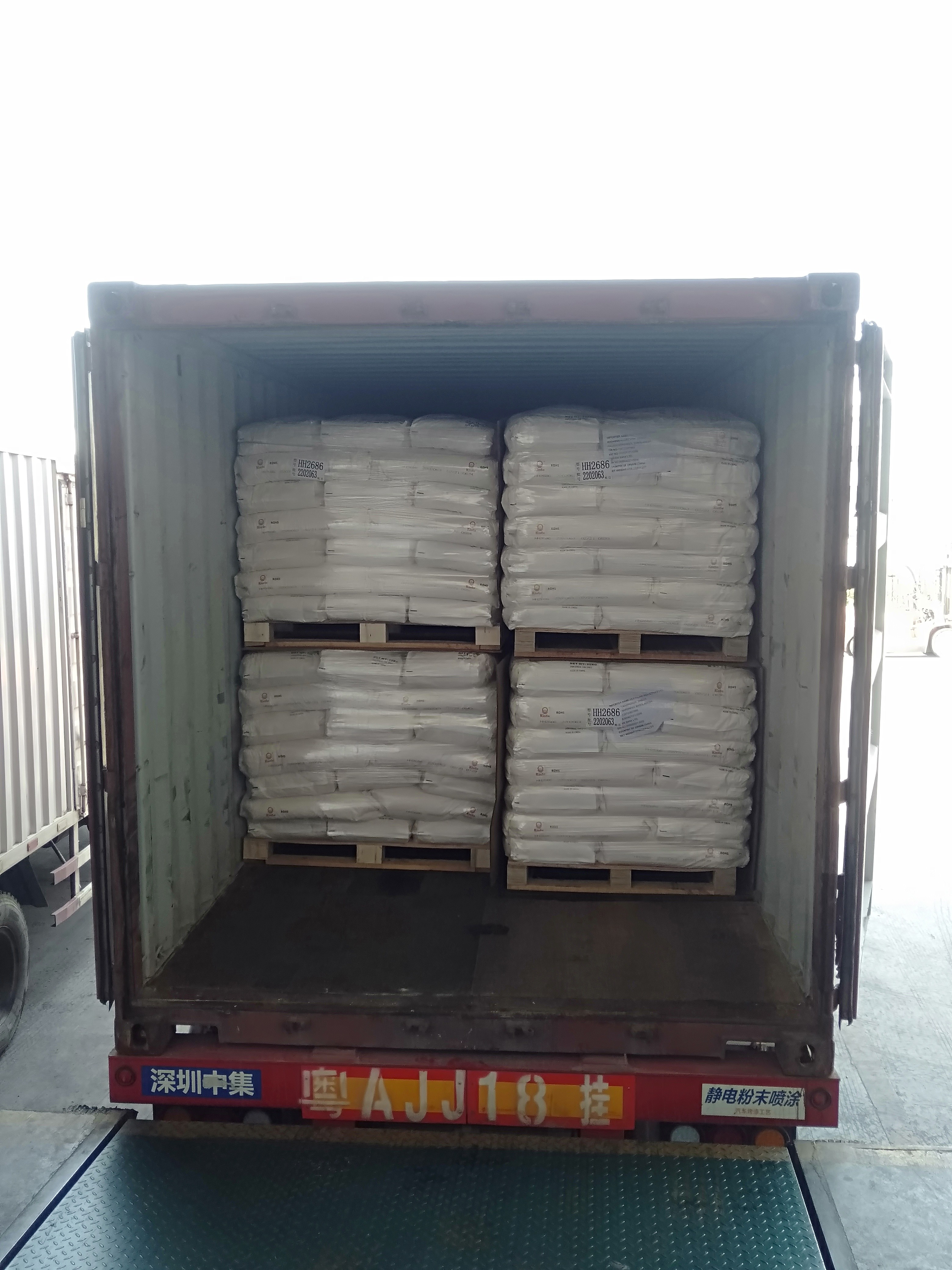

| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 80,000 tons per year |
| Features: | Good Flow And Mechanical Properties | Cure Type: | TGIC Curing Type |
|---|---|---|---|
| Cure Requirement: | 200°C/10-20mins | Acid Number (mgKOH/g): | 30-35 |
| Viscosity (mPa·s/200℃): | 5000±1000 | Softening Point(℃): | 103～113℃ |
| Glass Transition Temp.(℃): | ～ 63 | Applications: | Suitable For General Industrial Products |
| Highlight: | 93/7 TGIC Polyester Resin,Industrial TGIC Polyester Resin |
||
Low-cost 93/7 TGIC Polyester Resin for General Industrial Powder Coatings
◎Introduction
NH3387 is a saturated carboxyl polyester resin for applications of polyester/TGIC powder coating system, it is designed for general industrial powder coatings, which is cost-effecive and well-performed.
Pure polyester powder coatings are thermosetting powder coatings composed of hydroxyl polyester resins, curing agents, pigments, fillers and additives. They have good weather resistance and decorative properties. Compared with epoxy powder coatings, the advantages are baking is not easy to yellow, and the fullness of the paint film is high. Generally used in building materials, home appliances, general industrial fields, such as aluminum extrusion material coating for doors and windows, road marking piles, automobile industry, traffic equipment: parts or hubs of automobiles and motorcycles, bicycle bodies and road isolation fences, air conditioners, appliance casings and gas stove panels, garden utensils, handrails and fences, agricultural equipment and utility poles, etc.
◎Basic Features
Low Costs
Good Leveling
Good Mechanical Properties
Good Storage Stability
◎Recommend Formulation:
| NH3387 | TGIC | Filler ＆ pigment | Leveling agent | Benzoin | 701 |
| 558 | 42 | 383 | 8 | 4 | 5 |
◎Specifications I

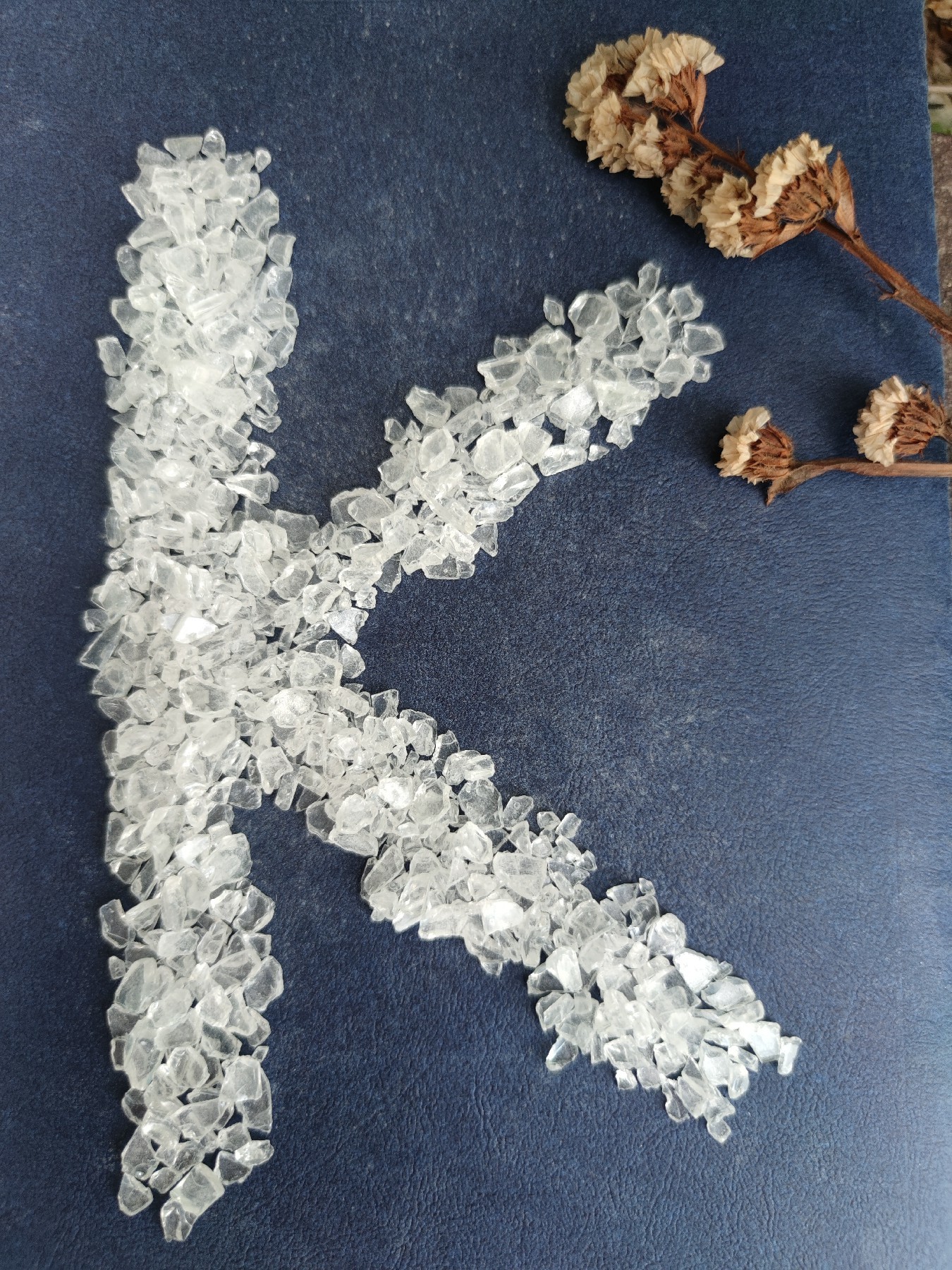

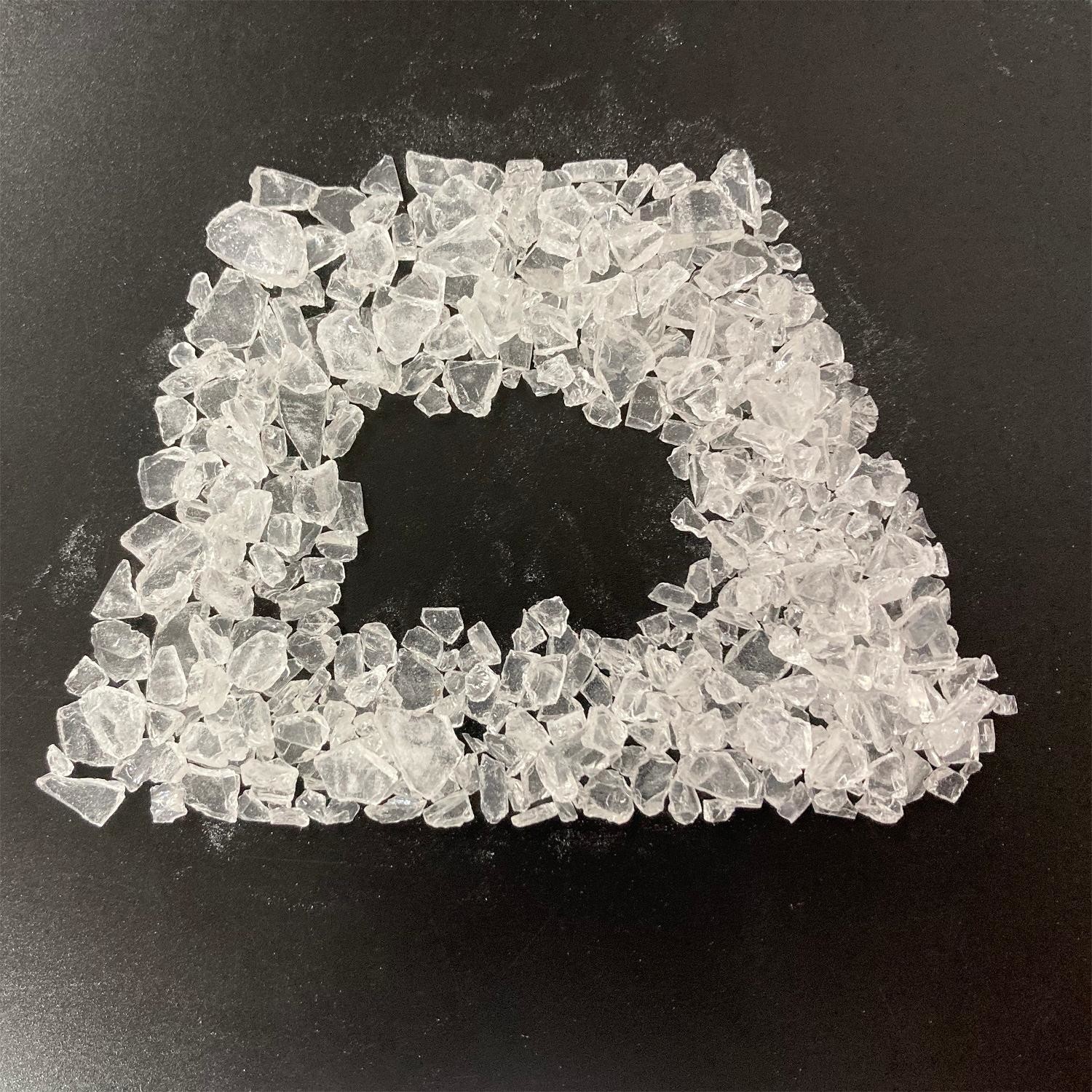

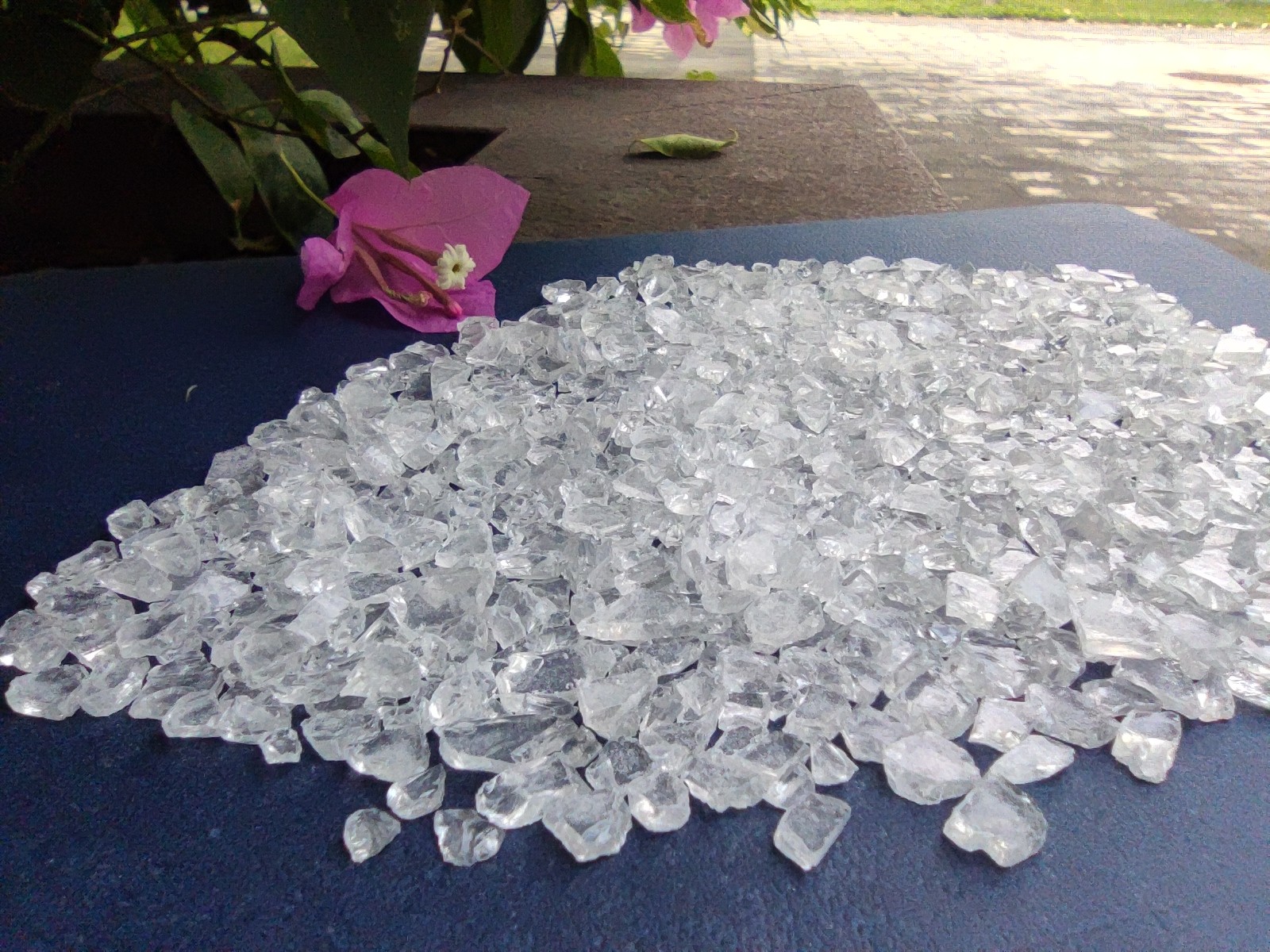

| Appearance | White or Light Yellow Transparent Flakes |
Color (50% DMF) | Max:1 |
| Acid Number (mgKOH/g) | 30～35 |
| Softening Point (℃) | 103～113 |
| Glass Transition Temp. ( ℃) | ～63 |
| Melting Viscosity (ICI, mPa·s/200℃) | 4000～6000 |
| Reactivity at 180℃ (s, 7% TGIC) | 220～280 |
| Curing Requirement | 200℃×10~20min |

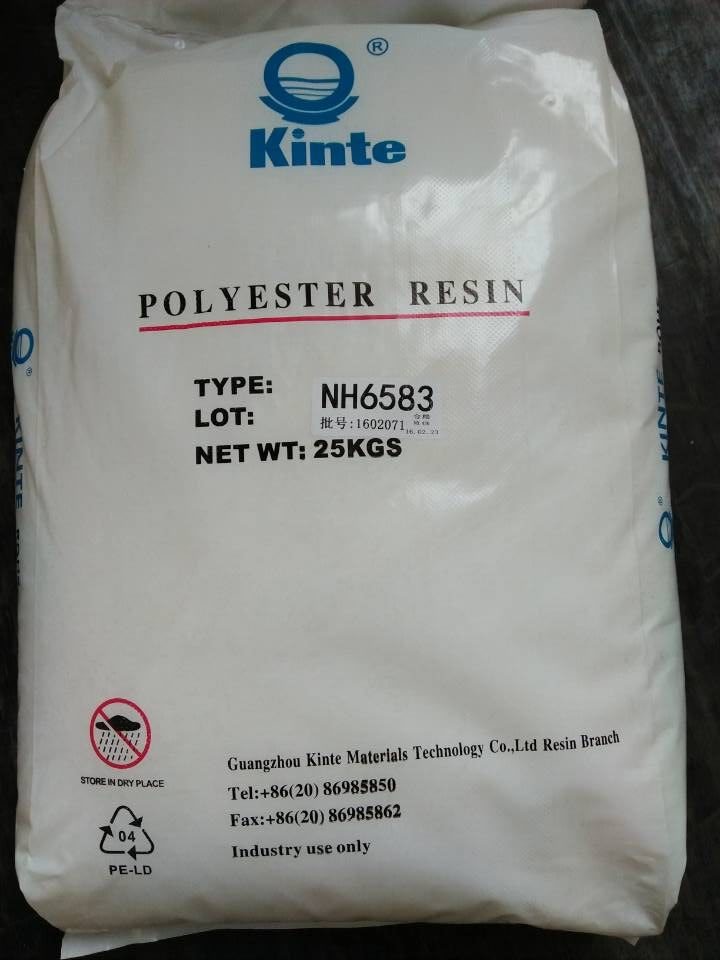

| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◇Extrusion Condition:
Two-screw Extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of Revolution: 500～1200rpm
Fineness of Powder: ＜100μm
◇Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～100μm
Degreased cold-rolled steel: 0.5mm
◇Film Properties:
| Gel Time (180℃, sec) | 320~420 |
| Horizontal Flow (180℃, mm) | 26~29 |
Gloss (60°) | ≥88% |
| Bending (φ1mm) | Pass |
| Adhesive (1mm, grade) | 0 |
| Pencil Hardness | ≥1H |
| Impact (50cm) | Pass |
◎More Code
| Code | Ratio | Cure Cycle | AV (mgKOH/g) | Viscosity (mPa.s/200℃) | Tg (℃) | Reactivity (s/180℃) | Properties |
| NH3383 | 93/7 | 180℃*12min | 30~35 | 4000～6000 | ~67 | 100-160 | Suitable for fast cure formulation. Excellent outdoor durability. |
| NH3385 | 93/7 | 200℃*10min | 30~35 | 5500~7500 | ~63 | 70-130 | Suitable for general industrial products, especially sand texture powder coatings. Good mechanical properties. |
| NH3387 | 93/7 | 200℃*10minn | 30~35 | 4000~6000 | ~63 | 220-280 | Suitable for general industrial products. Good flow and mechanical properties. |
| NH3395 | 93/7 | 190℃×10min | 30~35 | 4500～5500 | ～67 | 120-180 | Moderate curing speed, good weathering resistance and storage stability. |
◎Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
