| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | HH2533 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 80,000 tons per year |
| Features: | Low Curing Temperature | Cure System: | 50/50 Polyester Epoxy |
|---|---|---|---|
| Cure Condition: | 130℃×15-20min | Acid Number (mgKOH/g): | 68-75 |
| Viscosity (mPa·s/200℃): | 2500±1000 | Softening Point(℃): | 93～118 |
| Glass Transition Temp.(℃): | ～ 54 | Applications: | For MDF Powder Coatings |
| Highlight: | MDF Hybrid Polyester Resins,Low Curing Hybrid Polyester Resins |
||
Low Curing Hybrid Polyester Resins for MDF Powder Coatings
◎Introduction
HH2533 is a saturated polyester resin, which is mainly used for 50/50 hybrid powder coating, and can be realized low temperature curing at 130℃.
Powder coatings are environment-friendly coatings that do not contain solvents, have no taste, have no volatility, and have zero VOCs emissions in the manufacturing and use process, realizing zero pollution.
MDF powder coating is an innovative product specially developed for MDF, which has excellent environmental protection properties. It can effectively seal the emission of harmful substances such as formaldehyde in the board, and make the formaldehyde emission of furniture almost zero after painting.
HH2533 greatly improves the reactivity, and at the same time has board appearance and excellent degassing performance. When the resin is applied to powder coatings, it achieves low-temperature curing very well, the coating has good adhesion to the substrate, and has good leveling and stability, and chemical resistance, designed for thermosensitive substrate.
◎Basic Features
Low curing temperature
Excellent storage stability
Excellent chemical resistance.
Outstanding mechanical performance
◎Recommend Formulation:
| HH2533 | E12 | Filler ＆ Pigment | Leveling Agent | Benzoin | 701 |
| 300 | 300 | 383 | 8 | 4 | 5 |
◎Specifications I

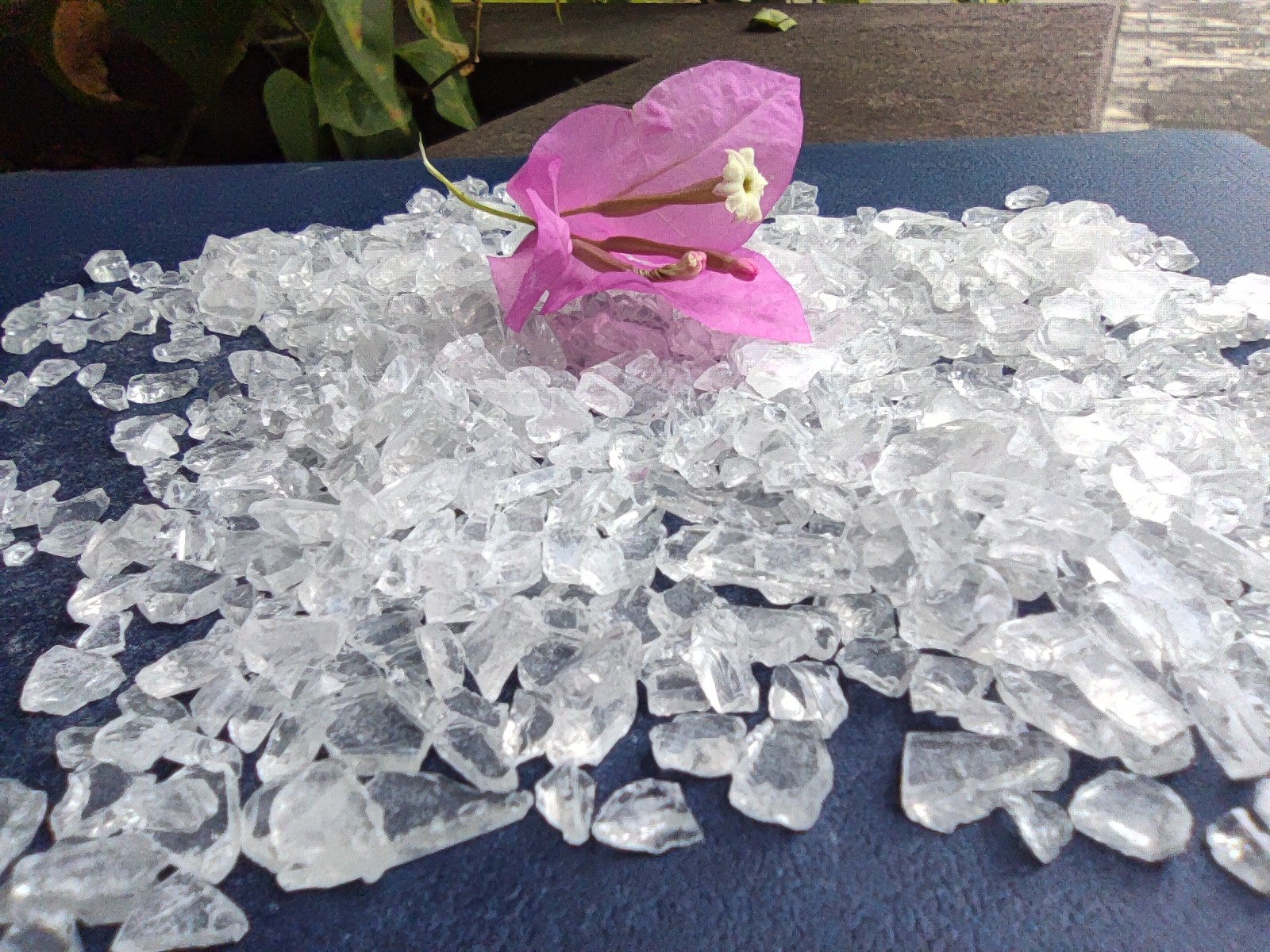

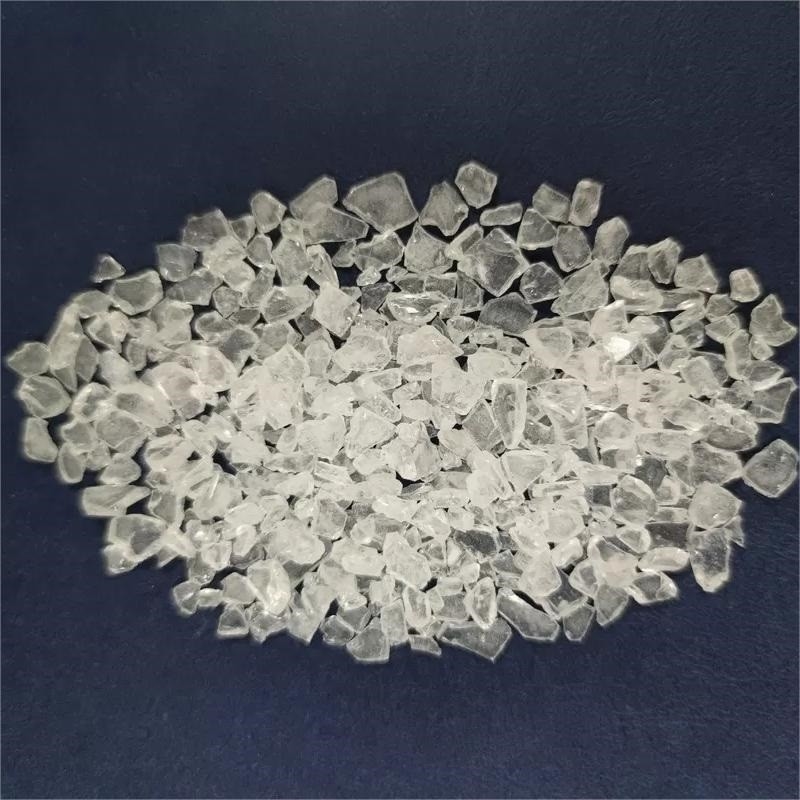

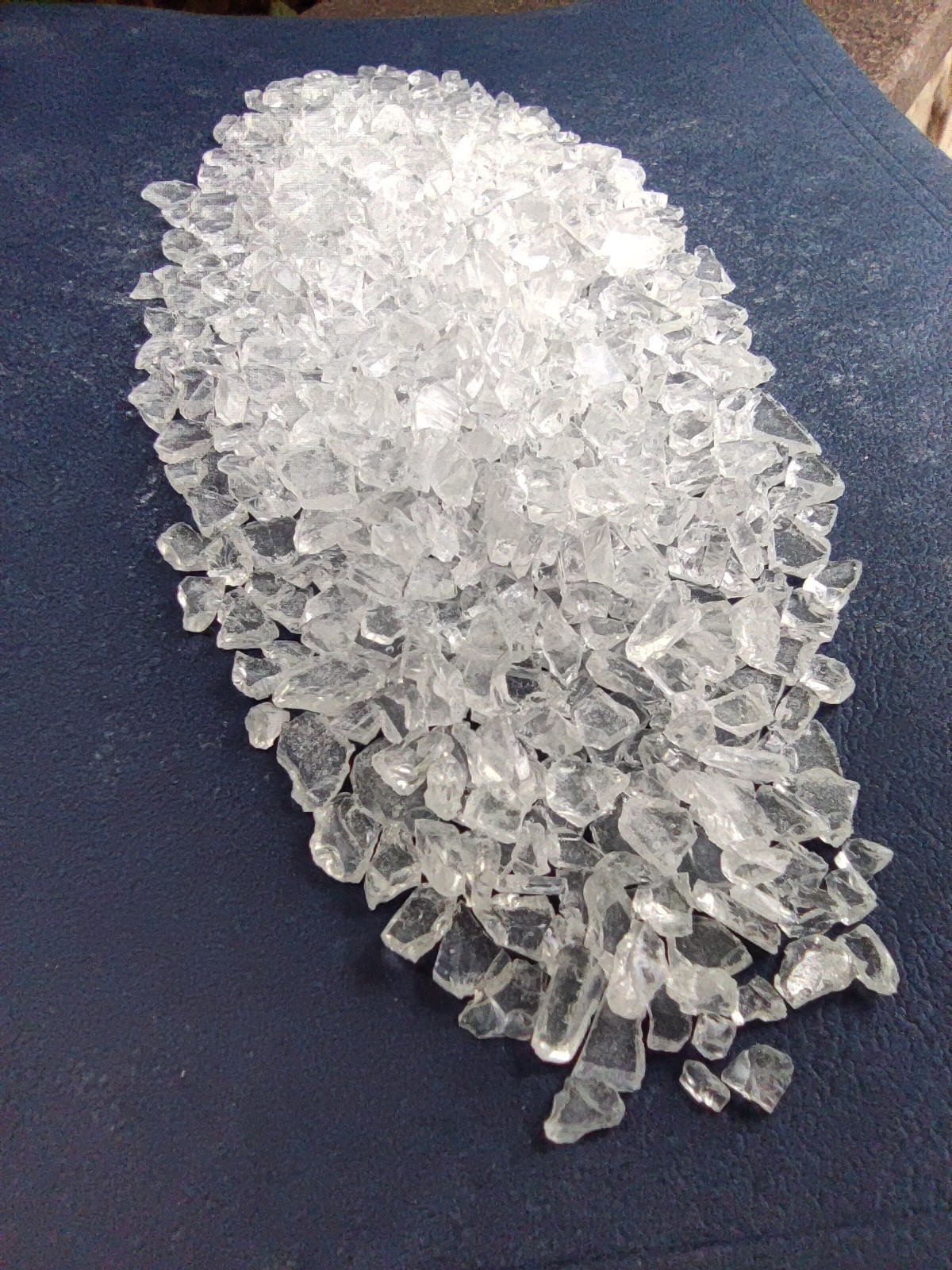

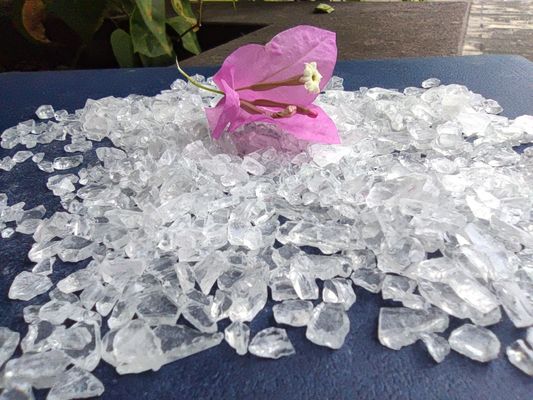

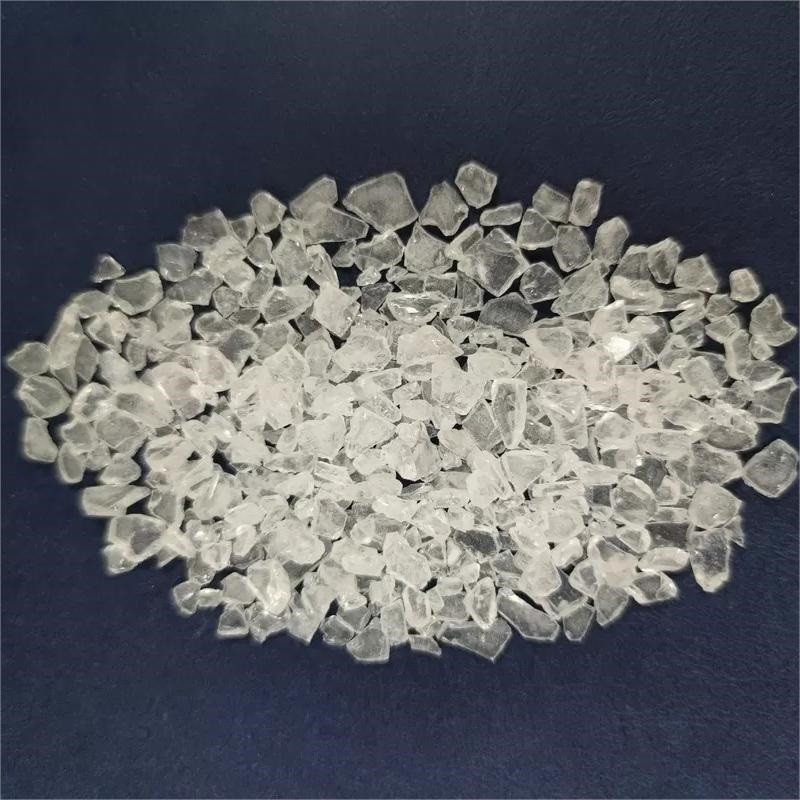

| Appearance | White or Light Yellow Transparent Flakes |
| Acid Number (mgKOH/g) | 68～75 |
| Softening Point (℃) | 93～118 |
| Glass Transition Temp. ( ℃) | ~ 54 |
| Melting Viscosity (ICI, mPa·s/200℃) |
2500±1000 |
| Reactivity at 180℃ (s, 50% E-12) |
70±40 |
| Curing Requirement | 130℃x15-20min |

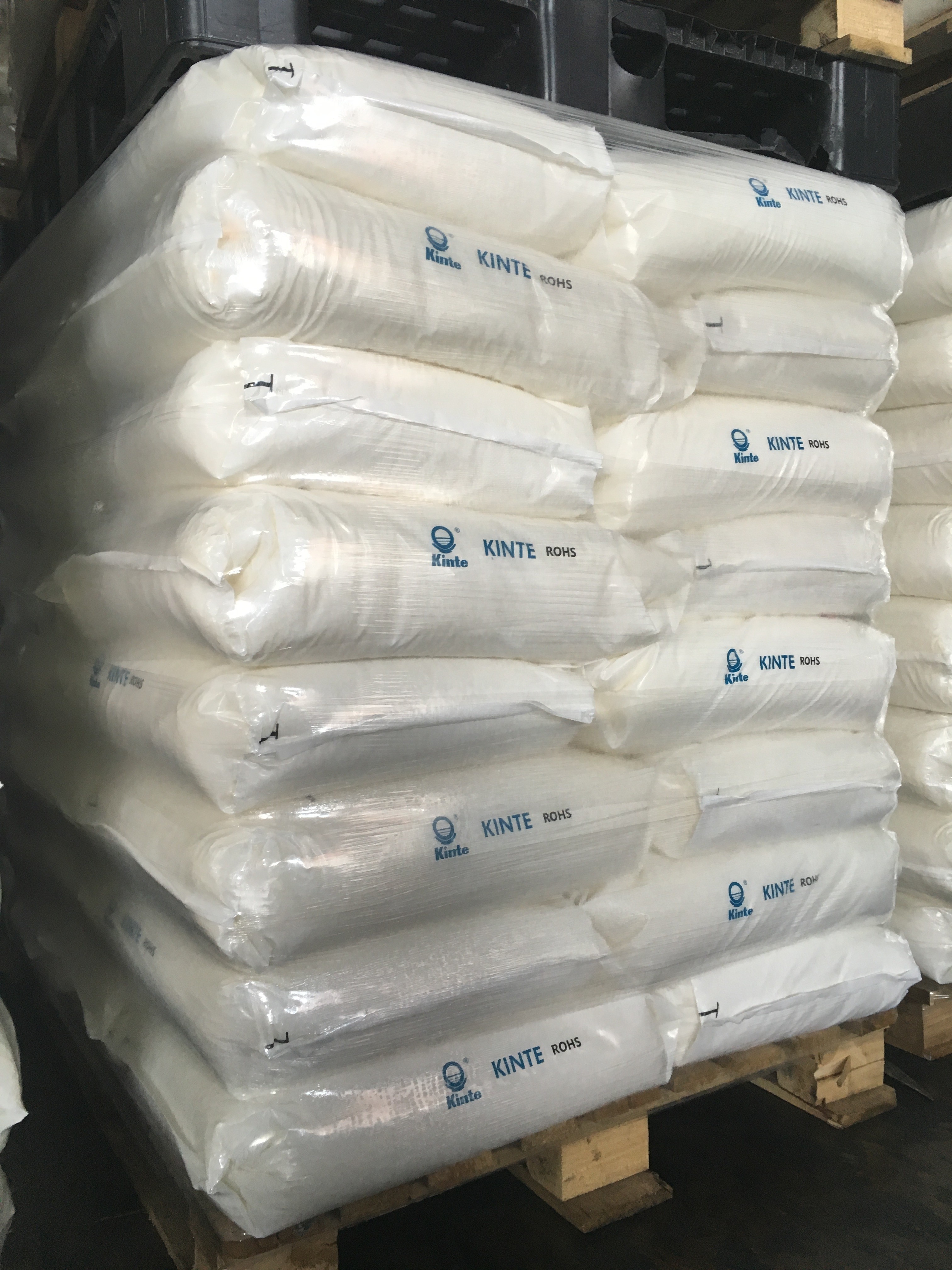

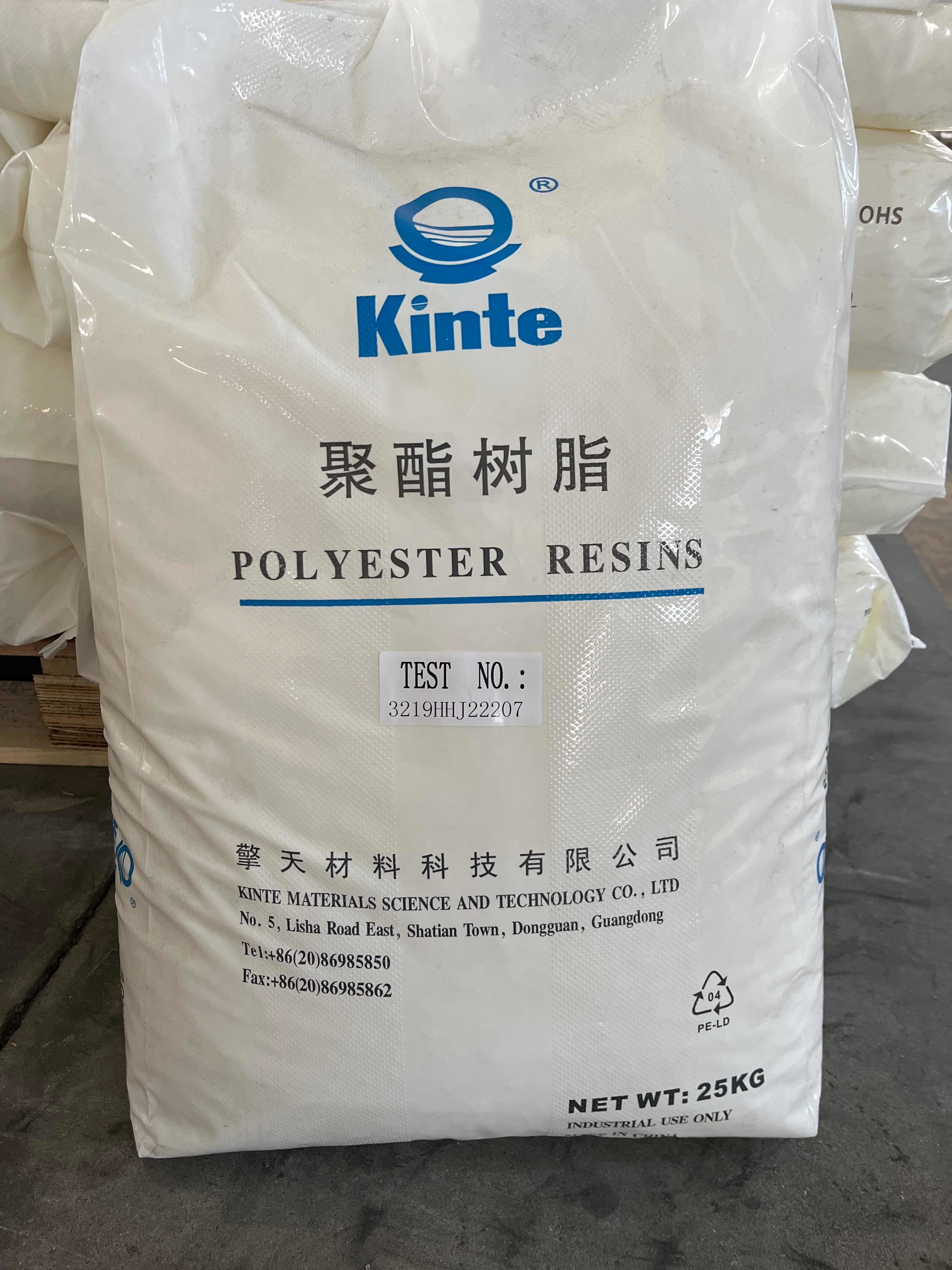

| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◇Specifications II:
| Extrusion Condition | Two-screw Extruder | |
| Jacket temperature | 110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～70μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 30~120 |
| Horizontal Flow (180℃, mm) | 18~22 | |
| Gloss (60°) | ≥85% | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact (50cm) | Pass | |
◇More Code
| Code | Ratio | Cure Cycle | Acid Value (mgKOH/g) | Viscosity (mPa.s/200℃) | Tg (℃) | Reactivity (s/180℃) | Properties |
| NH2533 | 50/50 | 130℃*15-20min | 68~75 | 1500~3500 | ~54 | 30-110 | Low curing temperature, excellent storage stability, excellent chemical resistance and outstanding mechanical performance. |
| NH2535 | 50/50 | 130℃*15-20min or intermediate infrared*3min | 74~82 | 500~1500 | ~52 | 80-150 | Excellent degassing performance and good board appearance, designed for thermosensitive substrate. |
| MDF Resins | 50/50 | 140℃×15-20min or infrared 3min | 68~75 | 500~2000 | ~50 | 60-100 | Good leveling, good mechanical properties, good storage stability amd low curing temperature. |
◇Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
