Place of Origin: | China |
---|---|
Brand Name: | KINTE |
Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
Model Number: | HH2784 |
Minimum Order Quantity: | 1000kg |
Price: | Negotiable |
Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
Delivery Time: | 10 working days |
Payment Terms: | L/C, D/P, D/A, T/T |
Supply Ability: | 80,000 tons per year |
Features: | TMA Free And Good Flow | Cure Ratio: | 70/30 Polyester Epoxy |
---|---|---|---|
Cure Requirement: | 180℃×15min Or 200℃×10min | Acid Number (mgKOH/g): | 29-35 |
Viscosity (mPa·s/200℃): | 4500~6500 | Softening Point(℃): | 98~103 |
Glass Transition Temp.(℃): | ~ 57 | Applications: | For 70/30 Hybrid Powder Paints |
Highlight: | TMA Free Powder Coating Polyester Resin,70/30 Polyester Epoxy Powder Coating Resin |
TMA Free Powder Coating Resin for 70/30 Polyester Epoxy Powder Coatings
◎Introduction
HH2784 is a carboxyl polyester resin designed for 70/30 hybrid powder coatings.
Thermosetting powder coatings are mainly composed of resins, curing agents, pigments and fillers, additives, etc. Pure polyester powder coatings and mixed powder coatings are the most important varieties in the domestic thermosetting powder coatings market, which are mainly used in household appliances, hardware components, metal furniture and other fields.
hybrid type powder coating is also called polyester epoxy hybrid type powder coating. It can be divided into three types: 50/50, 60/40 and 70/30 according to the curing ratio of polyester and epoxy resin.
70/30 hybrid resin is a new product developed on the basis of 60/40 to further reduce the amount of curing agent epoxy resin.
◎Basic Features
Good mechanical properties
Good storage stability
Good flow
TMA free
◎Recommend Formulation:
HH2784 | 014U | TiO2 (R760) | BaSO4 8000 | Leveling | Benzoin | 701 |
210 | 90 | 102 | 90 | 4 | 2 | 2.5 |
◎Specifications I

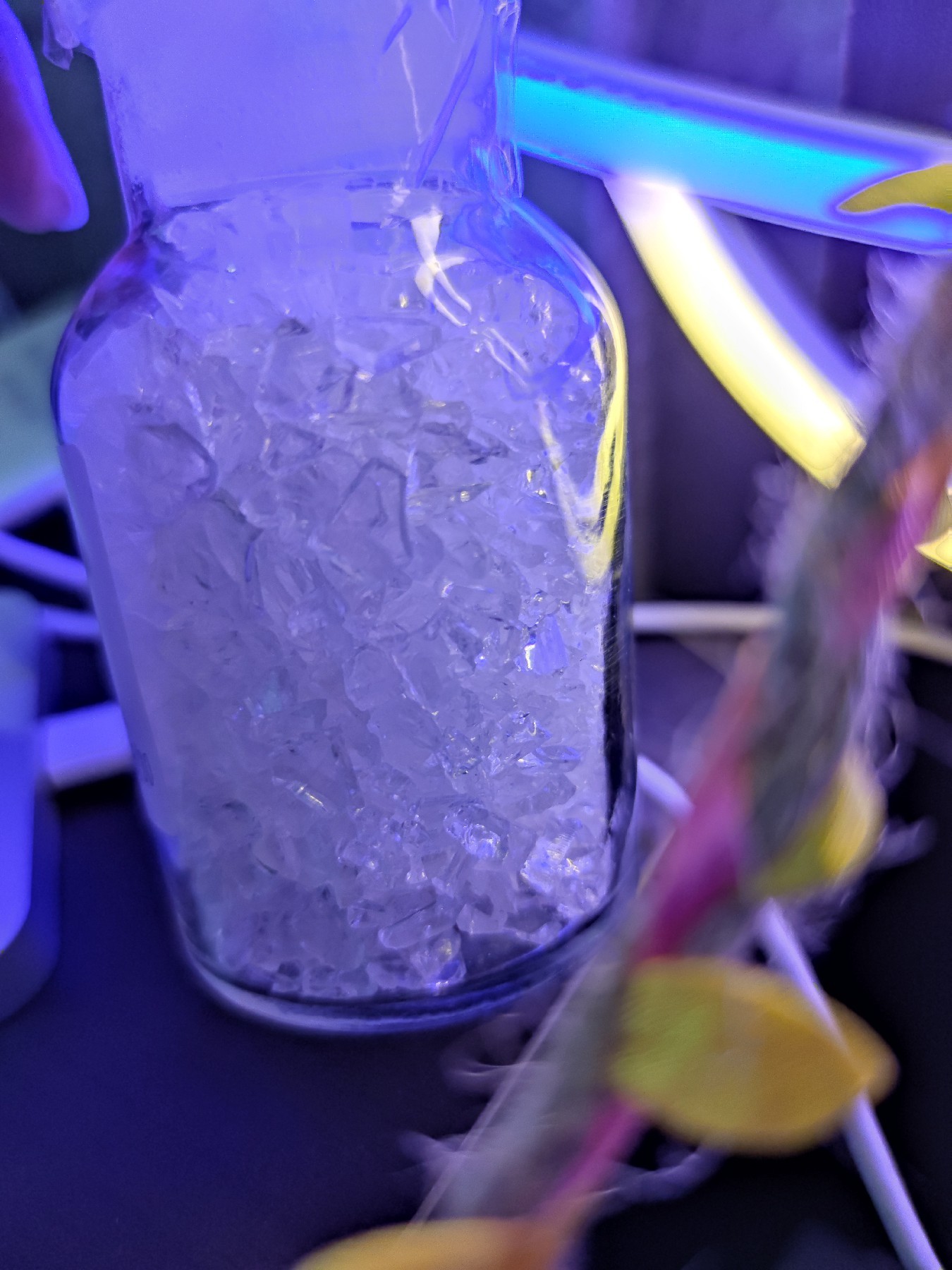

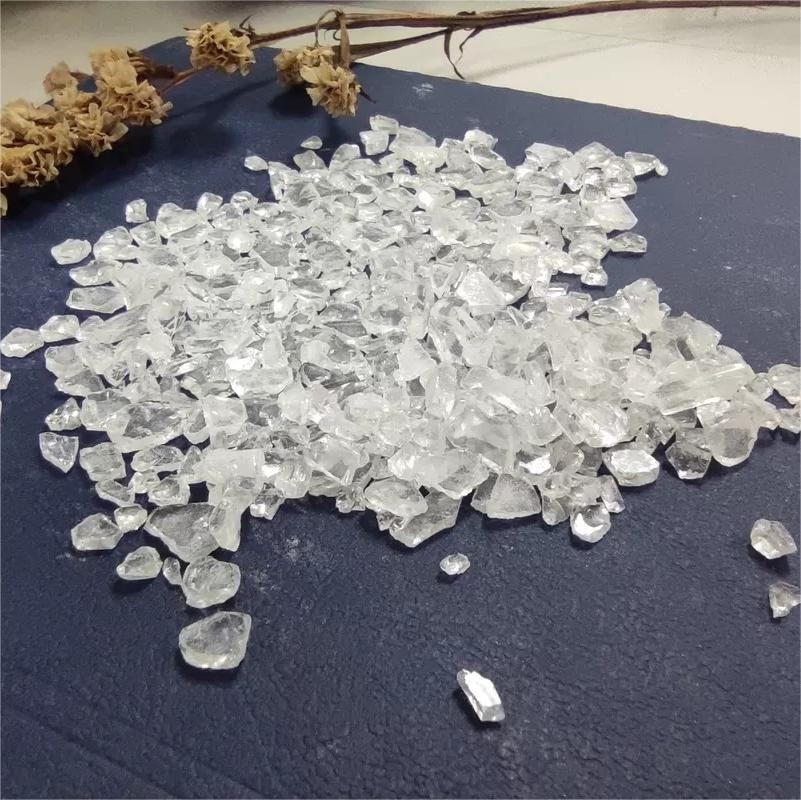

Appearance | White or Light Yellow Transparent Flakes |
Color (50%DMF) |
max:3 |
Acid Number (mgKOH/g) | 29~35 |
Softening Point (℃) | 98~103 |
Glass Transition Temp. ( ℃) | ~ 57 |
Melting Viscosity (ICI, mPa·s/200℃) |
4500~6500 |
Reactivity at 180℃ (s, 30% Epoxy) |
240~360 |
Curing Requirement |
180℃×15min or 200℃×10min |

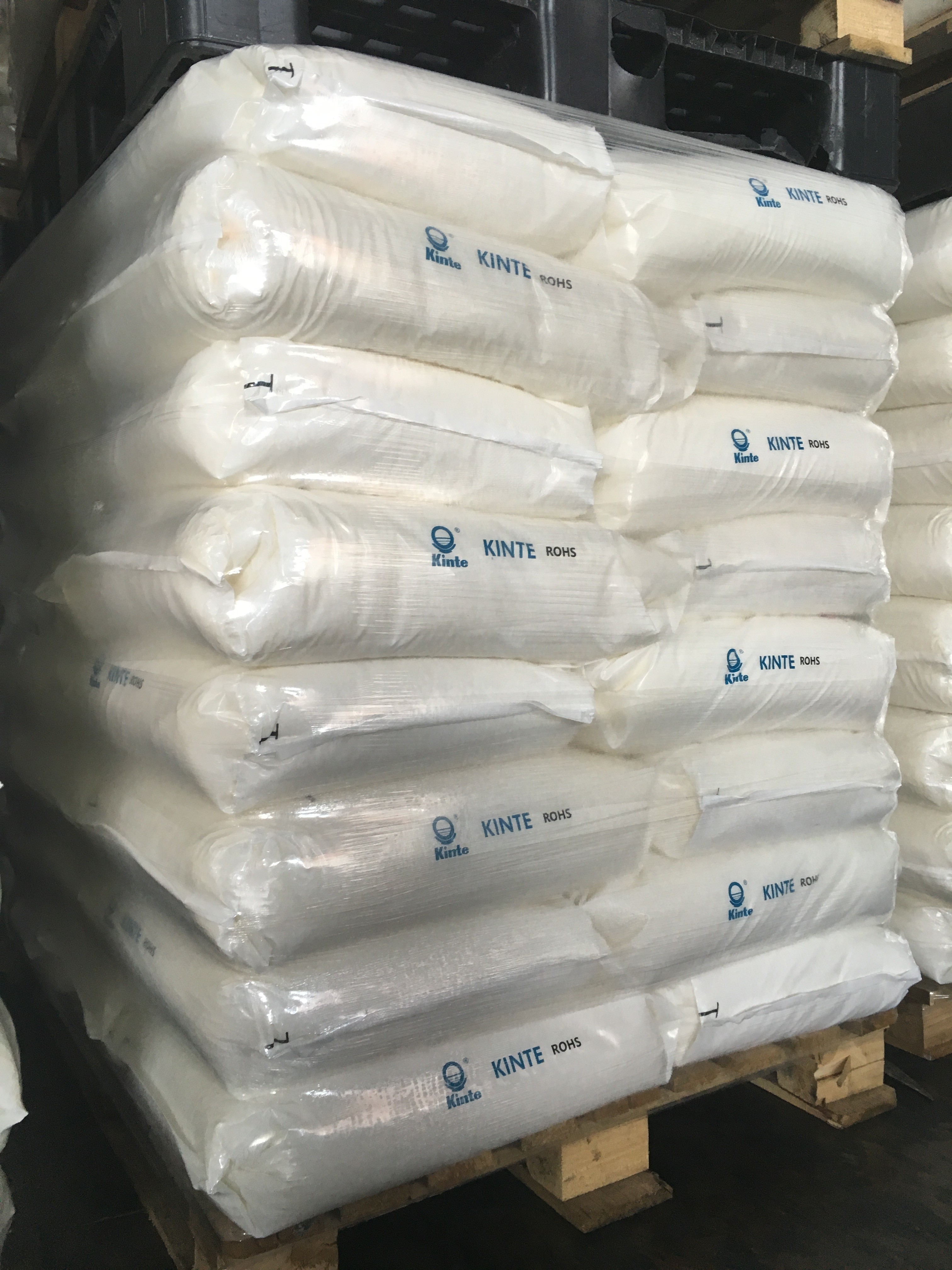

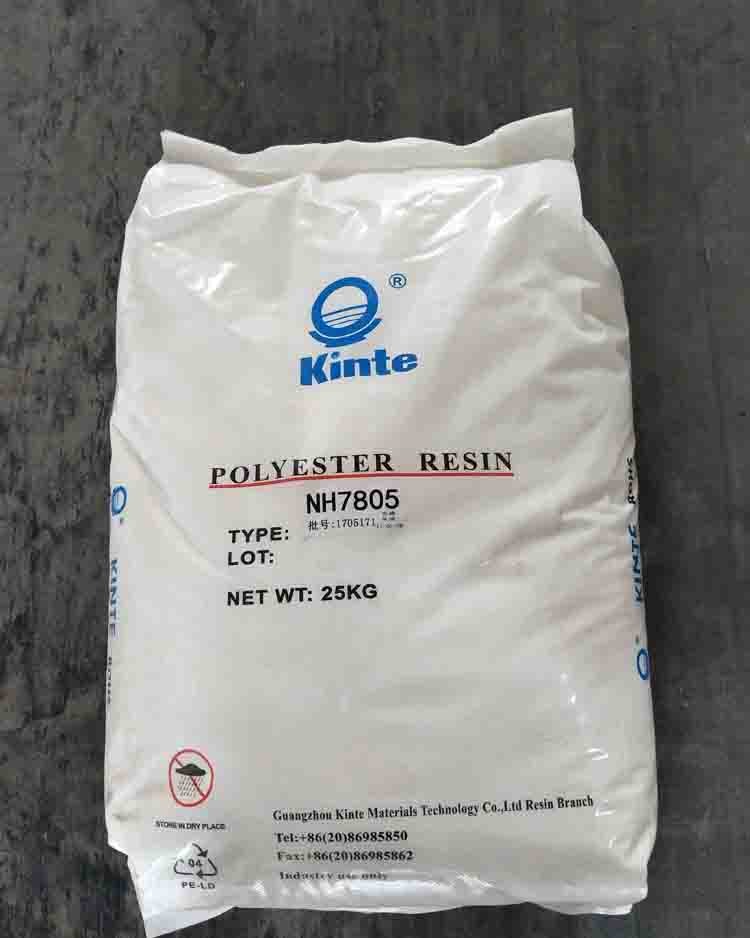

Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◇Specifications II:
Extrusion Condition | Two-screw Extruder | |
Zone I: 90~110℃ |
Zone II: 110~120℃ | |
Speed of Revolution | 500~1200rpm | |
Fineness of Powder | <100μm | |
Application Condition | Electrostatic Spraying With | 40~70KV |
Coating Film Thickness | 50~70μm | |
Degreased Cold-rolled Steel | 0.5mm | |
Film Properties | Gel Time (180℃, sec) | 240~360 |
Horizontal Flow (180℃, mm) | 25~28 | |
Gloss (60°) | ≥90% | |
Bending(φ1mm) |
Pass | |
Adhesive (1mm, grade) | 0 | |
Pencil Hardness | 1H | |
Impact (50cm) |
Pass |
◇More Codes:
Code | Ratio | Cure Cycle | AV (mgKOH/g) | Viscosity (mPa.s/200℃) | Tg (℃) | Reactivity (s/180℃) | Properties |
HH2781 | 70/30 | 180℃*10min | 30~36 | 4500~6500 | ~56 | 120-240 | Economic resin. Fast Cure, good flow and impact resistance. TMA free. |
HH2781T | 70/30 | 180℃*10min | 30~36 | 4000~5500 | ~55 | 100-200 | HH2781T is tribo chargerable of HH2781. |
HH2782G | 70/30 | 180℃*15min | 29~35 | 5800~7000 | ~60 | 180-280 | Good storage stability, good balance of properties. TMA free. |
HH2783 | 70/30 | 180℃*15min | 29~35 | 4500~6500 | ~57 | 180-300 | General purpose resin. Excellent mechanical properties, good flow, good balance of properties. |
HH2784 | 70/30 | 180℃*15min | 29~35 | 4500~6500 | ~57 | 240-360 |
Good mechanical properties, good storage stability and good flow. TMA free. |
◇Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
◇Company Profile:
Kinte Materials Science and Technology Co., Ltd. is subordinate to China Machinery Industry Corporation (a key state-owned enterprise directly managed by SASAC, ranking 284 among the world's top 500 in 2021). It is a national high-tech enterprise under China National Electric Apparatus Research Institute Co., Ltd. (Stock Code: 688128), a listed enterprise on the SSE STAR MARKET. Focusing on the R & D, production, and sales of environmentally friendly coatings (powder coatings, waterborne industrial coatings) and powder coating resins, the company is committed to improving the global market competitiveness of China's environmentally friendly coating industry. Now it has become the leader and promoter in China’s technological development of environmentally friendly coatings as well as polyester resins for powder coatings!
We have gained ISO9001 and ISO14000, ISO18001, RoHS, UL certification and QUALICOAT Certificate. Due to the excellent and stable quality, our products always enjoy high reputation at home and oversea, and were sold to more than 30 countries.
Polyester resin branch was founded in 2000, now there are two factories (DongGuan factory and TaiXing Factory) with annual production capacity over 80,000 tons, and the annual production capacity reached 120000 tons by the end of 2020, opening the road to global diversified development. Our clients include many top-tier powder manufacturers in the world such as AKZO, PPG, TIGER, PROTECH, NIPPON, OXYPLAST, JOTUN, SHERWIN, VALSPAR, SINTERPLAST, etc.
We unremittingly stick at the business principle of “Quality is the life, adhere to first-class technology, first-class quality, first-class cost and first-class brand”. We would like to provide a complete set of services and solutions for both domestic and abroad customers and would like to go forward to brilliant future with you together.
