Pinhole Free 95/5 Saturated Polyester HAA Primid Powder Coating Resin

Basic Information
Place of Origin: China
Brand Name: KINTE
Certification: ISO14000, ISO90001, Reach, Qualicoat, ROHS
Model Number: KK7701
Minimum Order Quantity: 1000kg
Price: Negotiable
Packaging Details: 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP
Delivery Time: 10 working days
Payment Terms: L/C, D/P, D/A, T/T
Supply Ability: 80,000 tons per year
Features: Pinhole Free In Thick Films Cured Ratio: 95/5 Polyester HAA
Cured Requirement: 180℃×10min Acid Number (mgKOH/g): 30-37
Viscosity (mPa·s/200℃): 4000±1000 Softening Point(℃): 98~108
Glass Transition Temp.(℃): ~ 58 Applications: For Primid Powder Coating Cured At 180℃
Highlight:

HAA Primid Powder Coating Resin

,

Pinhole Free Powder Coating Resin

,

95/5 Saturated Powder Coating Resin

Pinhole Free 95/5 Saturated Polyester HAA Primid Powder Coating Resin





Introduction



KK7701 is a saturated carboxyl polyester resin designed for Primid T-105 powder coating to be cured at 180℃.

Pinholes are common defects in the use of powder coatings. Their existence not only affects the appearance quality of products, but also seriously affects the mechanical properties and protective properties of products. Most of the corrosion of protected materials starts from this point and extends, thus losing the use value of powder coatings. Therefore, it is of practical significance to minimize the occurrence of pinholes during the use of powder coatings.

Pinhole refers to the defect formed when the gas in the powder coating passes through the high viscosity, nearly closed elastic resin layer from the bottom layer to the coating surface and fails to escape during the time from melting to curing of the powder coating. It is formed on the surface of the paint film, because the solvent volatilizes too fast during construction or the bubbles in the paint film cannot flow flat after overflowing, resulting in needle shaped holes left after drying.

We can solve the problem of thick film pinholes in HAA system by adding inhibitors.





Basic Features



Excellent mechanical properties

Good anti-yellowing

Pinhole free in thick films

Good weathering resistance and storage stability





Recommend Formulation:



KK7701 T-105 Filler & pigment Leveling agent Benzoin 701 703
200 10.5 133 2.8 1.4 1.4 1.4





Specifications I

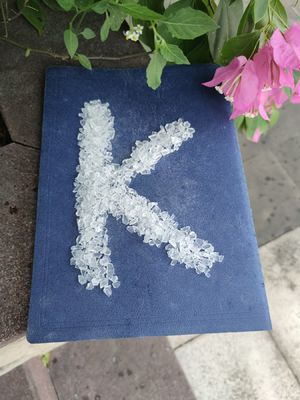

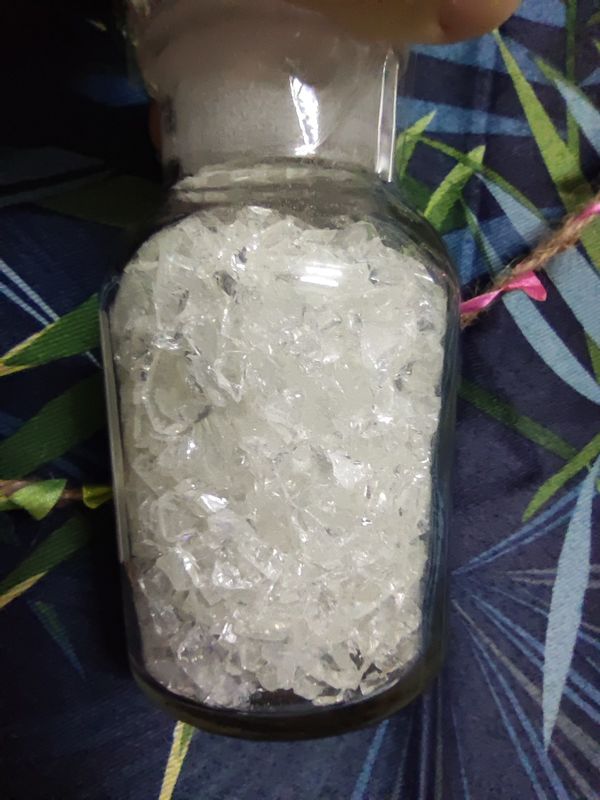

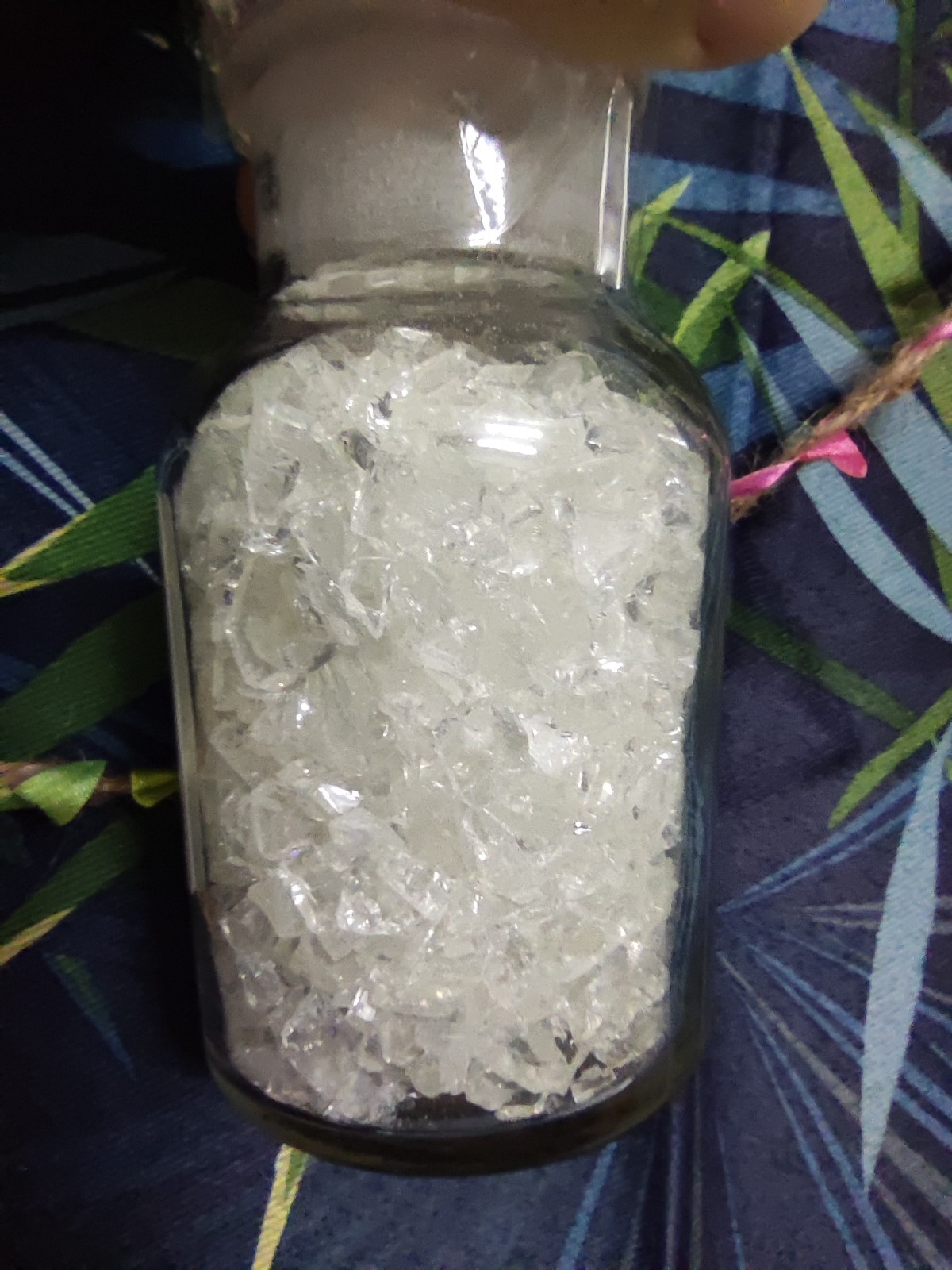

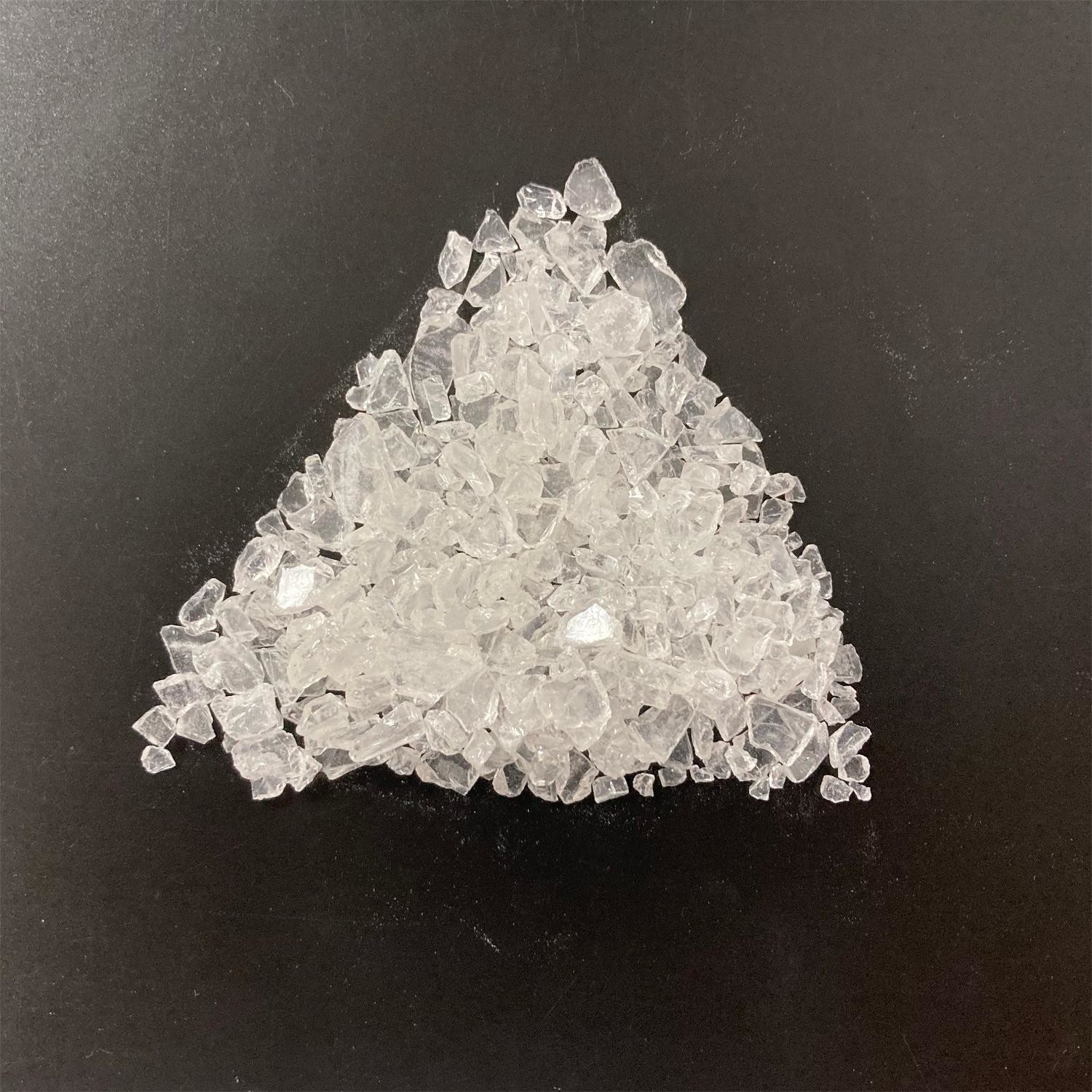

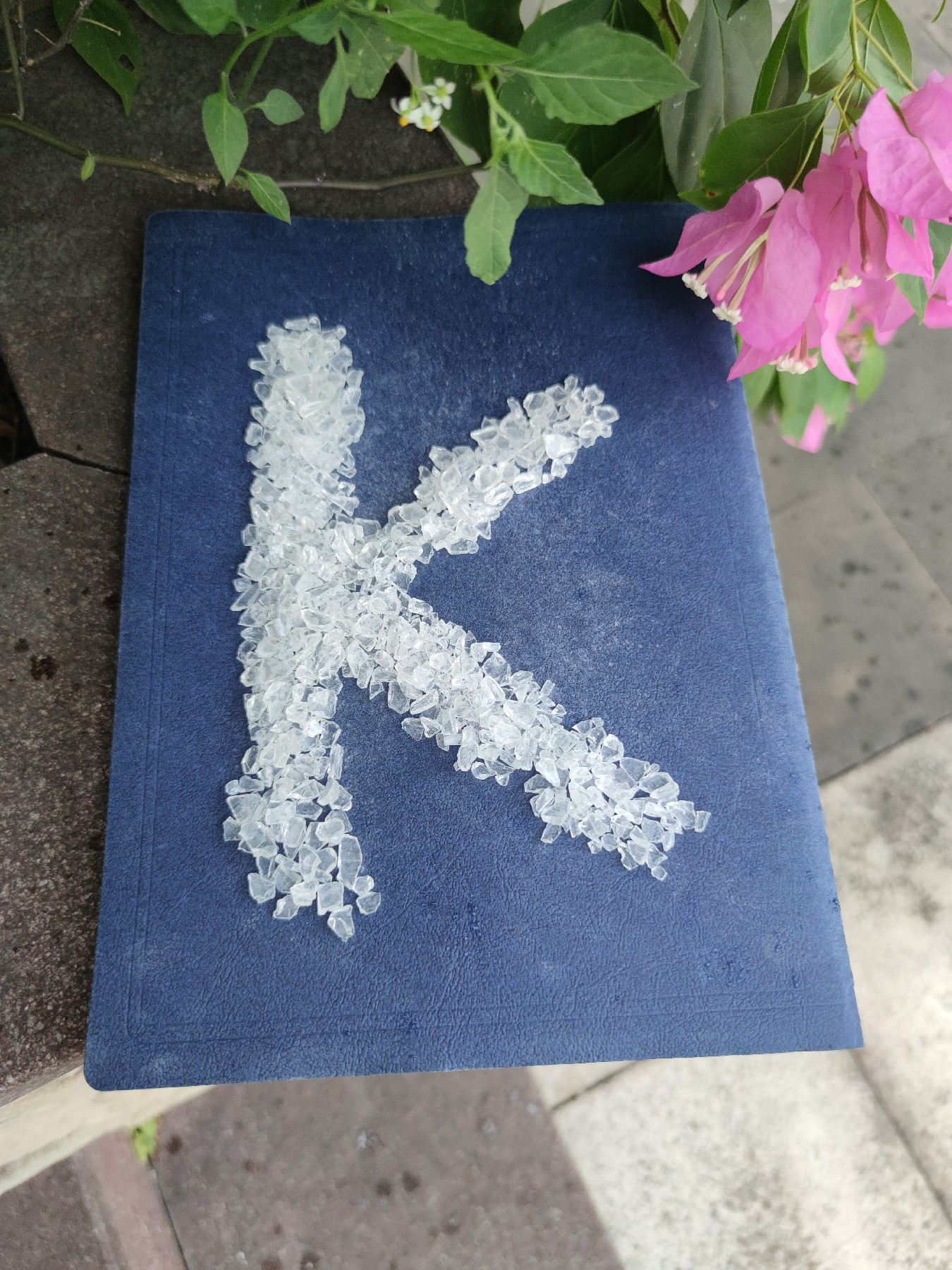

Appearance White or Light Yellow Transparent Flakes

Color (50%DMF)

max:2

Acid Number (mgKOH/g) 30~37
Softening Point (℃) 98~108
Glass Transition Temp. ( ℃) ~ 58
Melting Viscosity (ICI, mPa·s/200℃)

4000±1000

Reactivity at 180℃ (s, 5% XL552)

280±60

Curing Requirement

180℃×10min

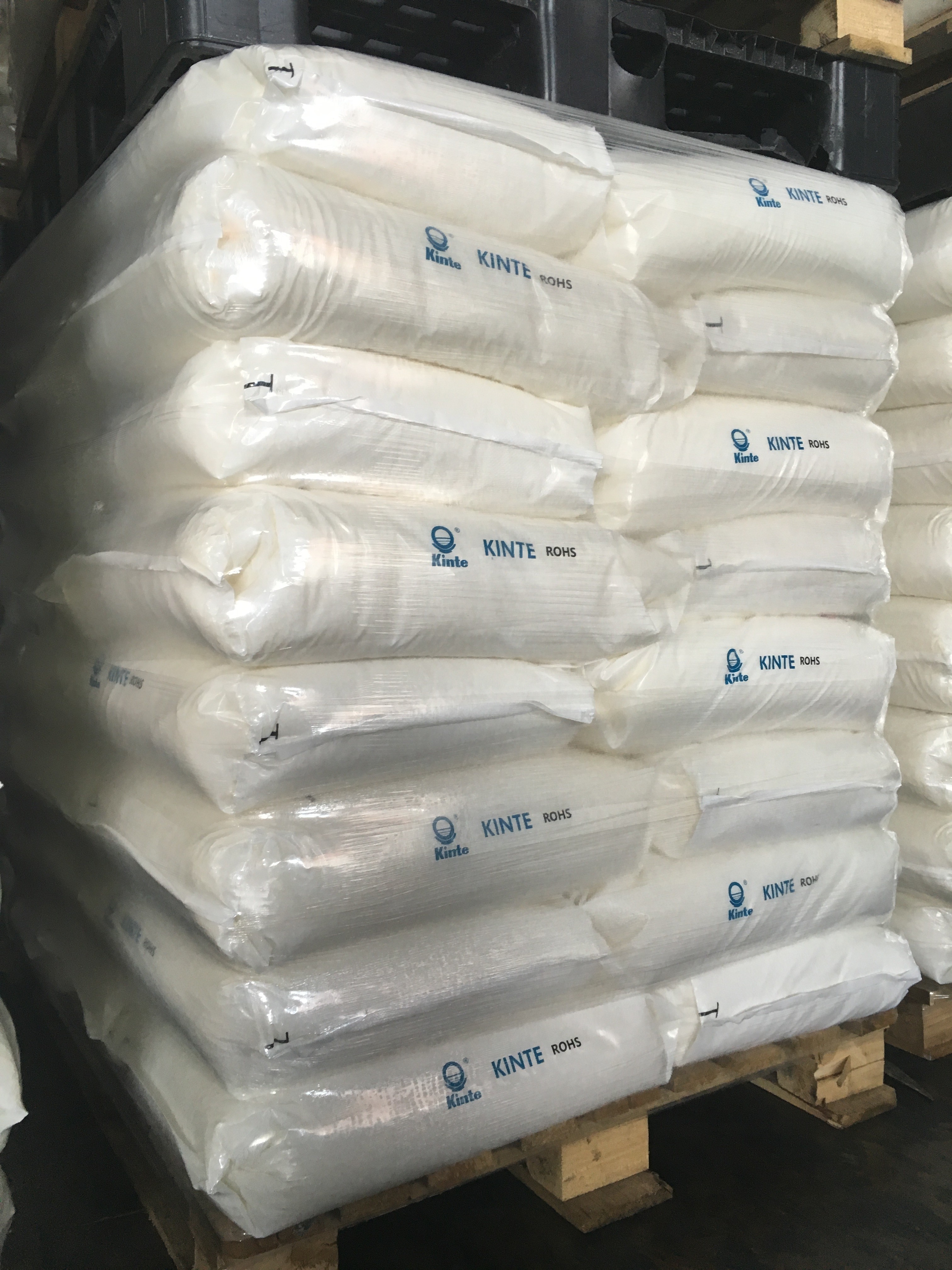

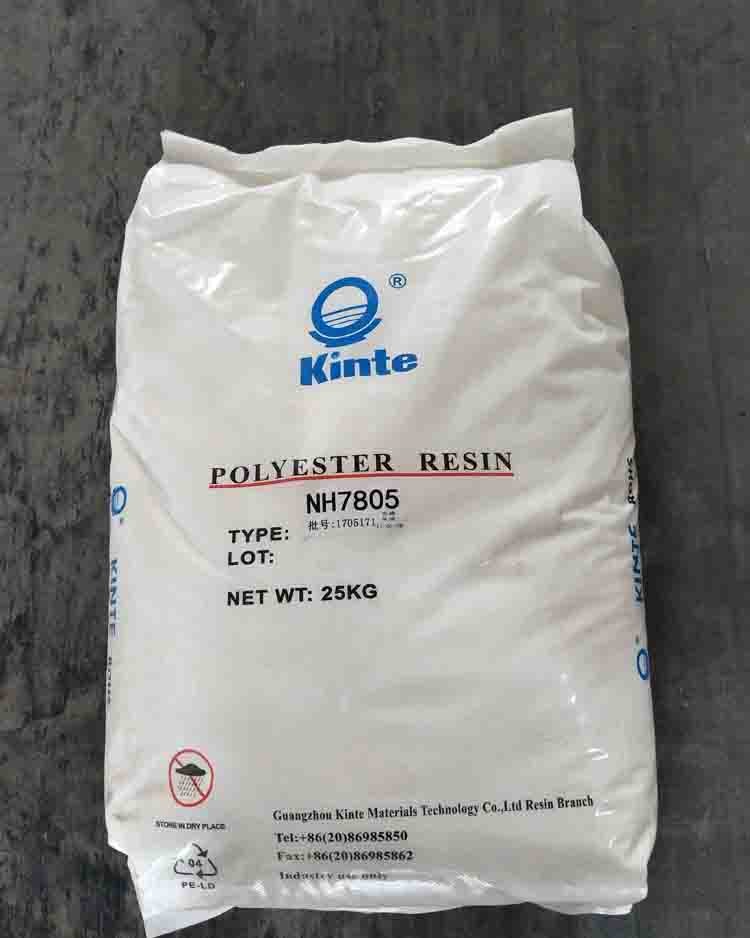

Packaging PE Bags, Net Weight 25kg ± 0.1kg / bag





◇Specifications II:



Extrusion Condition Two-screw Extruder

Jacket temperature

Zone II: 110~120℃
Speed of Revolution 500~1200rpm
Fineness of Powder <100μm
Application Condition Electrostatic Spraying With 40~70KV
Coating Film Thickness 50~70μm
Degreased Cold-rolled Steel 0.5mm
Film Properties Gel Time (180℃, sec) 200~300
Horizontal Flow (180℃, mm) 25~31
Gloss (60°) ≥88%

Bending(φ1mm)

Pass
Adhesive (1mm, grade) 0
Pencil Hardness ≥1H
Impact (50cm)

Pass





Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
