Super Fast Cure TGIC Polyester Resin For Coil Or PCM Powder Coatings

Basic Information
Place of Origin: China
Brand Name: KINTE
Certification: ISO14000, ISO90001, Reach, Qualicoat, ROHS
Model Number: KK8048
Minimum Order Quantity: 1000kg
Price: Negotiable
Packaging Details: 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP
Delivery Time: 10 working days
Payment Terms: L/C, D/P, D/A, T/T
Supply Ability: 80,000 tons per year
Features: Super Fast Cuing And Excellent Durable Weatherablity Curing Ratio: 93/7 Polyester TGIC
Curing Requirement: 280℃×1min Acid Number (mgKOH/g): 30-36
Viscosity (mPa·s/200℃): 5000±1500 Softening Point(℃): 103~118
Glass Transition Temp.(℃): ~ 60 Applications: For Powder Coating Used In Coil Or PCM
Highlight:

Super Fast Cure TGIC Polyester Resin

,

TGIC Polyester Resin For PCM Coatings

Super Fast Cure TGIC Polyester Resin for Coil or PCM Powder Coatings





Introduction



KK8048 is saturated carboxyl polyester resin for polyester/TGIC powder coating used in coil or PCM.

Different from the traditional "post coating" process, the coating of coiled materials is a "pre coating" process. Because this coating process has the advantages of simplifying the production process, improving the construction efficiency, saving investment and transfer costs, and superior performance to traditional methods. Therefore, whether in paint or other types of coatings, it is one of the development trends of the coatings industry in the future.

It was successfully developed and popularized in the late 1950s and early 1960s. Up to now, almost all pre coated coil steel plates are coated with liquid coil paint. However, traditional liquid coil coatings contain organic solvents (VOC) harmful to the environment. The powder coating is a kind of powder material without any organic solvent and has the advantage of zero VOC emission. It is one of the best choices to replace the traditional liquid coil coating.

In addition, as China pays more attention to environmental protection, coating manufacturers are forced to develop products and technologies that can replace traditional liquid coil coatings. The main technical bottleneck of coil powder coating is rapid coating and rapid curing. The former involves coating equipment and process, while the latter involves formulation and curing mode of powder coating.





Basic Features



Outstanding mechanical properties

Good resistance to chemicals

Excellent storage stability

Excellent durable weatherablity





Recommend Formulation:



KK8048 TGIC Filler & pigment Leveling agent Benzoin
200 15 95 2.4 1.2





Specifications I

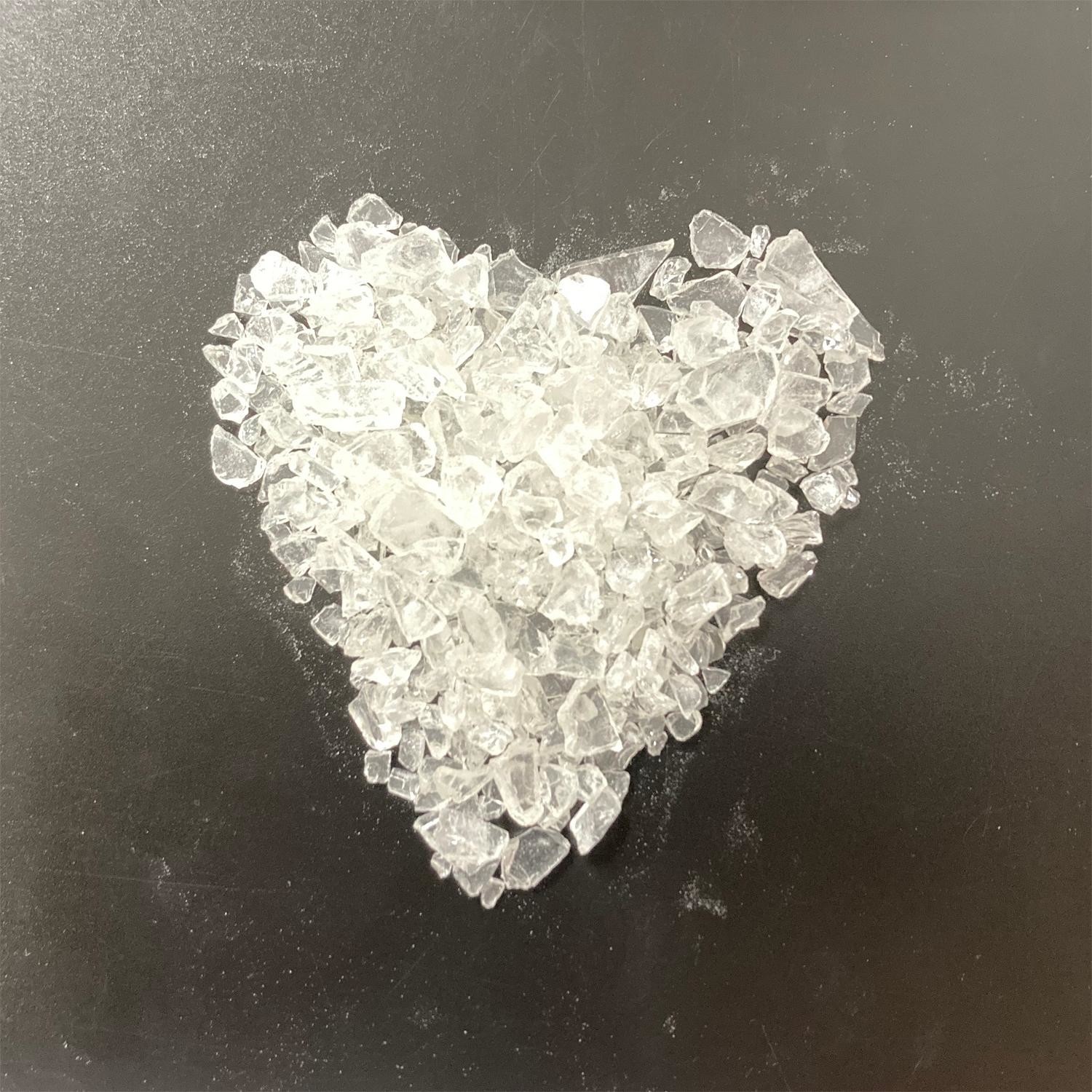

Appearance White or Light Yellow Transparent Flakes

Color (50%DMF)

max:2

Acid Number (mgKOH/g) 30~36
Softening Point (℃) 103~113
Glass Transition Temp. ( ℃) ~ 60
Melting Viscosity (ICI, mPa·s/200℃)

5000±1500

Reactivity at 180℃ (s, 7% TGIC)

100±50

Curing Requirement

180℃×10min

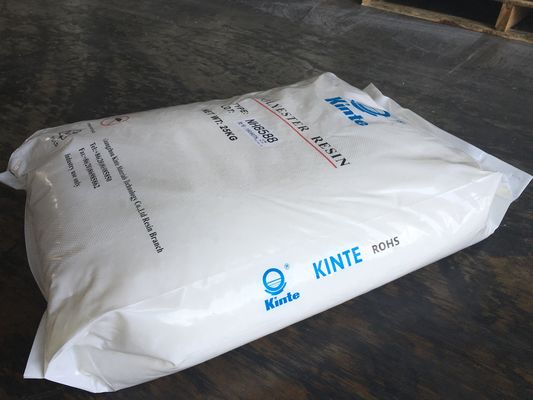

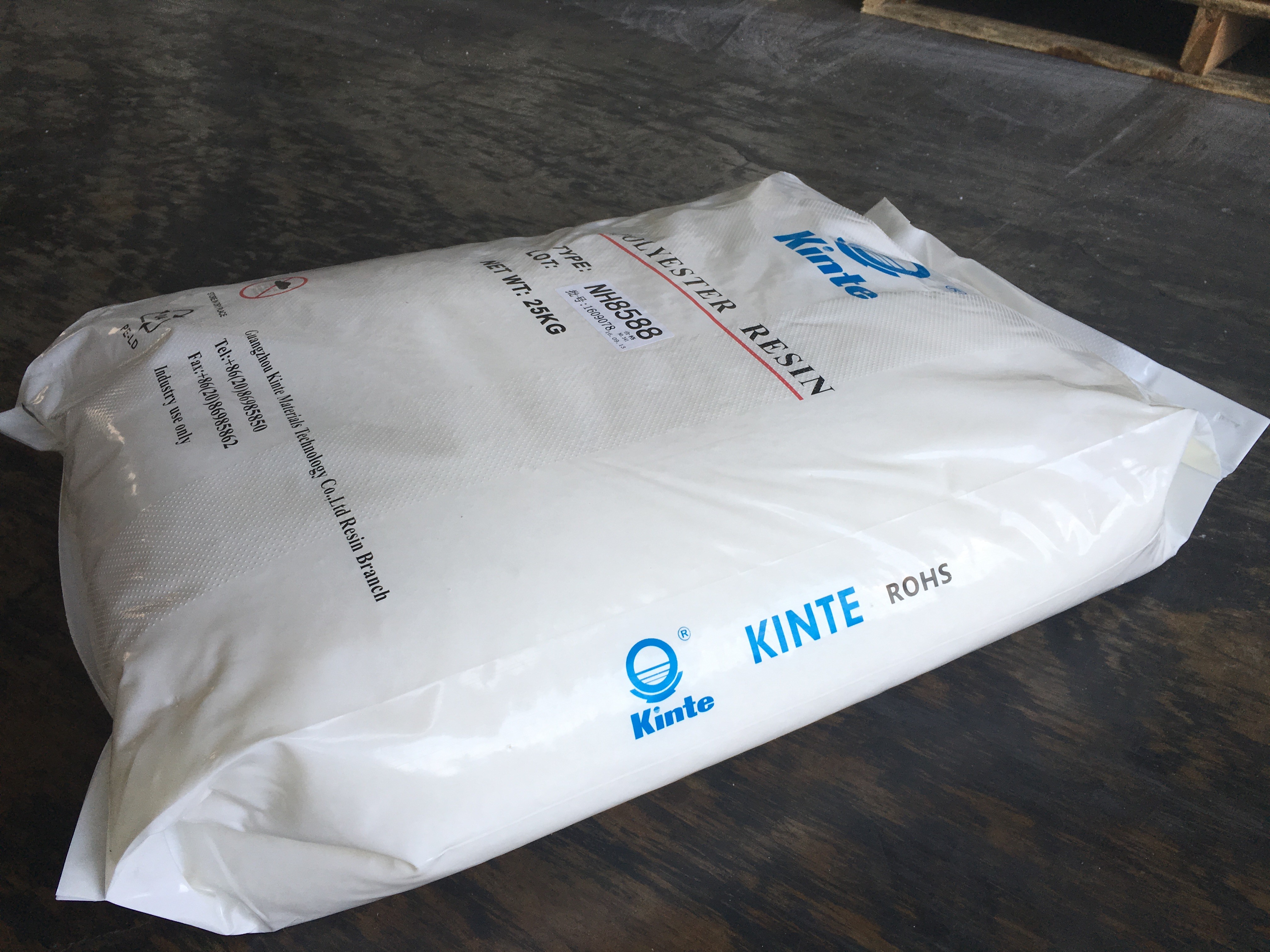

Packaging PE Bags, Net Weight 25kg ± 0.1kg / bag





◇Specifications II:



Extrusion Condition Two-screw Extruder

Zone I: 90~110℃

Zone II: 110~120℃
Speed of Revolution 500~1200rpm
Fineness of Powder <60μm
Application Condition Electrostatic Spraying With 40~70KV
Coating Film Thickness 50~100μm
Degreased Cold-rolled Steel 0.5mm
Film Properties Gel Time (180℃, sec) 60~150
Horizontal Flow (180℃, mm) 20~25
Gloss (60°) ≥85%

Bending(φ1mm)

Pass
Adhesive (1mm, grade) 0
Pencil Hardness 1H
Impact (50cm)

Pass





Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).





Company Profile:



Kinte Materials Science and Technology Co., Ltd. is subordinate to China Machinery Industry Corporation (a key state-owned enterprise directly managed by SASAC, ranking 284 among the world's top 500 in 2021). It is a national high-tech enterprise under China National Electric Apparatus Research Institute Co., Ltd. (Stock Code: 688128), a listed enterprise on the SSE STAR MARKET. Focusing on the R & D, production, and sales of environmentally friendly coatings (powder coatings, waterborne industrial coatings) and powder coating resins, the company is committed to improving the global market competitiveness of China's environmentally friendly coating industry. Now it has become the leader and promoter in China’s technological development of environmentally friendly coatings as well as polyester resins for powder coatings!

Super Fast Cure TGIC Polyester Resin For Coil Or PCM Powder Coatings 0



We have gained ISO9001 and ISO14000, ISO18001, RoHS, UL certification and QUALICOAT Certificate. Due to the excellent and stable quality, our products always enjoy high reputation at home and oversea, and were sold to more than 30 countries.

Super Fast Cure TGIC Polyester Resin For Coil Or PCM Powder Coatings 1





Polyester resin branch was founded in 2000, now there are two factories (DongGuan factory and TaiXing Factory) with annual production capacity over 80,000 tons, and the annual production capacity reached 120000 tons by the end of 2020, opening the road to global diversified development. Our clients include many top-tier powder manufacturers in the world such as AKZO, PPG, TIGER, PROTECH, NIPPON, OXYPLAST, JOTUN, SHERWIN, VALSPAR, SINTERPLAST, etc.

Super Fast Cure TGIC Polyester Resin For Coil Or PCM Powder Coatings 2



We unremittingly stick at the business principle of “Quality is the life, adhere to first-class technology, first-class quality, first-class cost and first-class brand”. We would like to provide a complete set of services and solutions for both domestic and abroad customers and would like to go forward to brilliant future with you together.

Super Fast Cure TGIC Polyester Resin For Coil Or PCM Powder Coatings 3
